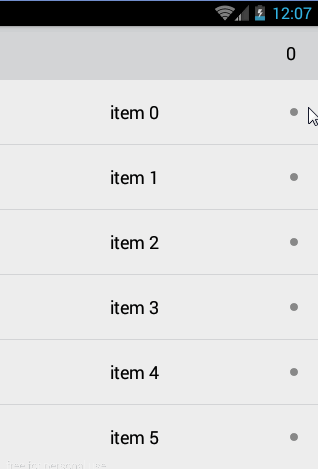

效果圖
CheckBox狀態： Checked , UnChecked
動畫分析：
1.UnChecked --> Checked ， 圓由小變大（簡單易實現），然後是對號的動畫（後面分析怎麼畫對號）
2.Checked --> UnChecked ， 顯示對號消失動畫，然後圓由大變小（簡單易實現）
---------------------------------------------------------------------------------------------------------

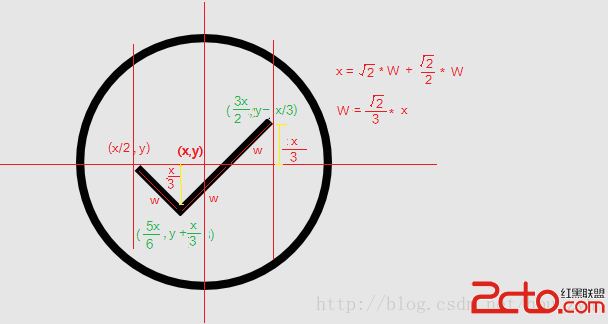

畫的對號的位置分析
然後是畫對號的動畫分析
關鍵分析在圖裡，上代碼
/*
* Created by Hanks
* Copyright (c) 2015 . All rights reserved
*
* Licensed under the Apache License, Version 2.0 (the License);
* you may not use this file except in compliance with the License.
* You may obtain a copy of the License at
*
* http://www.apache.org/licenses/LICENSE-2.0
*
* Unless required by applicable law or agreed to in writing, software
* distributed under the License is distributed on an AS IS BASIS,
* WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
* See the License for the specific language governing permissions and
* limitations under the License.
*/
package rxandroid.zyh.com.rxandroid.custom;
import android.animation.ValueAnimator;
import android.annotation.TargetApi;
import android.content.Context;
import android.graphics.Canvas;
import android.graphics.Color;
import android.graphics.Paint;
import android.os.Build;
import android.util.AttributeSet;
import android.view.View;
import android.view.animation.LinearInterpolator;
/**
* Created by Administrator on 2015/5/14.
*/
public class TouchCheckBox extends View {
private Paint mCirclePaint;
private Paint mCorrectPaint;
private int radius; //圓的半徑
private int width, height; //控件寬高
private int cx, cy; //圓心xy坐標
private float[] points = new float[6]; //對號的3個點的坐標
private float correctProgress;
private float downY;
private boolean isChecked;
private boolean toggle;
private boolean isAnim;
private int animDurtion = 150;
private OnCheckedChangeListener listener;
private int unCheckColor = Color.GRAY;
private int circleColor = Color.RED;
public TouchCheckBox(Context context) {
this(context, null);
}
public TouchCheckBox(Context context, AttributeSet attrs) {
this(context, attrs, 0);
}
public TouchCheckBox(Context context, AttributeSet attrs, int defStyleAttr) {
super(context, attrs, defStyleAttr);
init(context);
}
@TargetApi(Build.VERSION_CODES.LOLLIPOP)
public TouchCheckBox(Context context, AttributeSet attrs, int defStyleAttr, int defStyleRes) {
super(context, attrs, defStyleAttr, defStyleRes);
}
/**
* 初始化
* @param context
*/
private void init(Context context) {
mCirclePaint = new Paint(Paint.ANTI_ALIAS_FLAG);
mCirclePaint.setColor(Color.RED);
mCirclePaint.setStyle(Paint.Style.FILL);
mCorrectPaint = new Paint(Paint.ANTI_ALIAS_FLAG);
mCorrectPaint.setColor(Color.WHITE);
mCorrectPaint.setStyle(Paint.Style.FILL);
mCorrectPaint.setStrokeWidth(dip2px(context, 2));
setOnClickListener(new OnClickListener() {
@Override
public void onClick(View v) {
if (isChecked) {
hideCorrect();
} else {
showCheck();
}
}
});
}
/**
* 設置當前選中狀態
* @param checked
*/
public void setChecked(boolean checked){
if (isChecked && !checked) {
hideCorrect();
} else if(!isChecked && checked) {
showCheck();
}
}
/**
* 返回當前選中狀態
* @return
*/
public boolean isChecked(){
return isChecked;
}
/**
* 確定尺寸坐標
* @param w
* @param h
* @param oldw
* @param oldh
*/
@Override
protected void onSizeChanged(int w, int h, int oldw, int oldh) {
super.onSizeChanged(w, h, oldw, oldh);
height = width = Math.min(w - getPaddingLeft() - getPaddingRight(),h - getPaddingBottom() - getPaddingTop());
cx = w / 2;
cy = h / 2;
float r = height / 2f;
points[0] = r / 2f + getPaddingLeft();
points[1] = r + getPaddingTop();
points[2] = r * 5f / 6f + getPaddingLeft();
points[3] = r + r / 3f + getPaddingTop();
points[4] = r * 1.5f +getPaddingLeft();
points[5] = r - r / 3f + getPaddingTop();
radius = (int) (height * 0.125f);
}
@Override
protected void onDraw(Canvas canvas) {
float f = (radius -height * 0.125f) / (height * 0.5f); //當前進度
mCirclePaint.setColor(evaluate(f,unCheckColor,circleColor));
canvas.drawCircle(cx, cy, radius, mCirclePaint); //畫圓
//畫對號
if(correctProgress>0) {
if(correctProgress<1/3f) {
float x = points[0] + (points[2] - points[0]) * correctProgress;
float y = points[1] + (points[3] - points[1]) * correctProgress;
canvas.drawLine(points[0], points[1], x, y, mCorrectPaint);
}else {
float x = points[2] + (points[4] - points[2]) * correctProgress;
float y = points[3] + (points[5] - points[3]) * correctProgress;
canvas.drawLine(points[0], points[1], points[2], points[3], mCorrectPaint);
canvas.drawLine(points[2], points[3], x,y, mCorrectPaint);
}
}
}
/**
* 設置圓的顏色
* @param color
*/
public void setCircleColor(int color){
circleColor = color;
}
/**
* 設置對號的顏色
* @param color
*/
public void setCorrectColor(int color){
mCorrectPaint.setColor(color);
}
/**
* 設置未選中時的顏色
* @param color
*/
public void setUnCheckColor(int color){
unCheckColor = color;
}
private int evaluate(float fraction, int startValue, int endValue) {
int startInt = startValue;
int startA = (startInt >> 24) & 0xff;
int startR = (startInt >> 16) & 0xff;
int startG = (startInt >> 8) & 0xff;
int startB = startInt & 0xff;
int endInt = endValue;
int endA = (endInt >> 24) & 0xff;
int endR = (endInt >> 16) & 0xff;
int endG = (endInt >> 8) & 0xff;
int endB = endInt & 0xff;
return ((startA + (int) (fraction * (endA - startA))) << 24)
| ((startR + (int) (fraction * (endR - startR))) << 16)
| ((startG + (int) (fraction * (endG - startG))) << 8)
| ((startB + (int) (fraction * (endB - startB))));
}
/**
* 處理觸摸事件觸發動畫
*/
/*private class OnChangeStatusListener implements OnTouchListener {
@Override
public boolean onTouch(View v, MotionEvent event) {
Log.i(Touch,Touch);
switch (event.getAction()) {
case MotionEvent.ACTION_DOWN:
downY = event.getRawY();
break;
case MotionEvent.ACTION_MOVE:
float dy = event.getRawY() - downY;
if (Math.abs(dy) >= 0) { //滑過一半觸發
toggle = true;
} else {
toggle = false;
}
break;
case MotionEvent.ACTION_CANCEL:
case MotionEvent.ACTION_UP:
if (toggle) {
if (isChecked) {
hideCorrect();
} else {
showCheck();
}
}
break;
}
return true;
}
}*/
private void showUnChecked() {
if (isAnim) {
return;
}
isAnim = true;
ValueAnimator va = ValueAnimator.ofFloat(0, 1).setDuration(animDurtion);
va.setInterpolator(new LinearInterpolator());
va.start();
va.addUpdateListener(new ValueAnimator.AnimatorUpdateListener() {
@Override
public void onAnimationUpdate(ValueAnimator animation) {
float value = (float) animation.getAnimatedValue(); // 0f ~ 1f
radius = (int) ((1 - value) * height * 0.375f + height * 0.125f);
if (value >= 1) {
isChecked = false;
isAnim = false;
if(listener!=null){
listener.onCheckedChanged(TouchCheckBox.this,false);
}
}
invalidate();
}
});
}
private void showCheck() {
if (isAnim) {
return;
}
isAnim = true;
ValueAnimator va = ValueAnimator.ofFloat(0, 1).setDuration(animDurtion);
va.setInterpolator(new LinearInterpolator());
va.start();
va.addUpdateListener(new ValueAnimator.AnimatorUpdateListener() {
@Override
public void onAnimationUpdate(ValueAnimator animation) {
float value = (float) animation.getAnimatedValue(); // 0f ~ 1f
radius = (int) (value * height * 0.37f + height * 0.125f);
if (value >= 1) {
isChecked = true;
isAnim = false;
if(listener!=null){
listener.onCheckedChanged(TouchCheckBox.this,true);
}
showCorrect();
}
invalidate();
}
});
}
private void showCorrect() {
if (isAnim) {
return;
}
isAnim = true;
ValueAnimator va = ValueAnimator.ofFloat(0, 1).setDuration(animDurtion);
va.setInterpolator(new LinearInterpolator());
va.start();
va.addUpdateListener(new ValueAnimator.AnimatorUpdateListener() {
@Override
public void onAnimationUpdate(ValueAnimator animation) {
float value = (float) animation.getAnimatedValue(); // 0f ~ 1f
correctProgress = value;
invalidate();
if(value>=1){
isAnim = false;
}
}
});
}
private void hideCorrect() {
if (isAnim) {
return;
}
isAnim = true;
ValueAnimator va = ValueAnimator.ofFloat(0, 1).setDuration(animDurtion);
va.setInterpolator(new LinearInterpolator());
va.start();
va.addUpdateListener(new ValueAnimator.AnimatorUpdateListener() {
@Override
public void onAnimationUpdate(ValueAnimator animation) {
float value = (float) animation.getAnimatedValue(); // 0f ~ 1f
correctProgress = 1-value;
invalidate();
if(value>=1){
isAnim = false;
showUnChecked();
}
}
});
}
public void setOnCheckedChangeListener(OnCheckedChangeListener listener){
this.listener = listener;
}
public interface OnCheckedChangeListener{
void onCheckedChanged(View buttonView, boolean isChecked);
}
/**
* 根據手機的分辨率從 dp 的單位 轉成為 px(像素)
*/
public static int dip2px(Context context, float dpValue) {
final float scale = context.getResources().getDisplayMetrics().density;
return (int) (dpValue * scale + 0.5f);
}
/**
* 根據手機的分辨率從 px(像素) 的單位 轉成為 dp
*/
public static int px2dip(Context context, float pxValue) {
final float scale = context.getResources().getDisplayMetrics().density;
return (int) (pxValue / scale + 0.5f);
}
}
