C++服務器與java進行socket通信案例

編輯：C++入門知識

(一)項目概述：
C++服務器是之前編寫好的，有對應的C++客戶端。因此，服務器的C++代碼不能改變。主要解決的問題是：
1.如何用java類來還原服務器中的結構體
2.數據之間的轉換
3.socket通信數據統一用字節數組。
(二)首先看一下服務器的代碼：(360安全衛士竟然說我的代碼是木馬...好吧，這個服務器不就是能聯網，能獲取本地數據麼？確實有點像木馬，但絕對不是！)
/*主要功能是獲得系統硬盤符號及硬盤下的目錄和文件*/
[C++ code]

[cpp]
// FileNetServer.cpp : Defines the entry point for the console application.
//

#include "stdafx.h"
#include "FileNetServer.h"
#include <winsock.h>
#include <windows.h>
#include "SYS.H"

#pragma comment(lib, "ws2_32")

#ifdef _DEBUG
#define new DEBUG_NEW
#undef THIS_FILE
static char THIS_FILE[] = __FILE__;
#endif

typedef struct
{
    int ID;
    BYTE lparam[BUF_LEN*2];
}COMMAND;
/*BOOL 4byte HICON 4byte*/
typedef struct
{
    char FileName[MAX_PATH];//260byte
    int FileLen;
    char Time[50];
    BOOL IsDir;
    BOOL Error;
    HICON hIcon;
}FILEINFO;

BOOL DeleteDirectory(char *DirName);
BOOL CapScreen(LPTSTR FileName);

DWORD WINAPI SLisen(LPVOID lparam);
DWORD GetDriverProc(COMMAND command, SOCKET client);
DWORD GetDirInfoProc(COMMAND command, SOCKET client);
DWORD ExecFileProc(COMMAND command, SOCKET client);
DWORD DelFileProc(COMMAND command, SOCKET client);
DWORD FileInfoProc(COMMAND command, SOCKET client);
DWORD CreateDirProc(COMMAND command, SOCKET client);
DWORD DelDirProc(COMMAND command, SOCKET client);
DWORD GetFileProc(COMMAND command, SOCKET client);
DWORD PutFileProc(COMMAND command, SOCKET client);
DWORD GetScreenProc(COMMAND command, SOCKET client);

/////////////////////////////////////////////////////////////////////////////
// The one and only application object

CWinApp theApp;

using namespace std;

int _tmain(int argc, TCHAR* argv[], TCHAR* envp[])
{

    WSADATA wsadata;
    SOCKET FileNetServer;
    SOCKET client;
    SOCKADDR_IN FileNetServeraddr;
    SOCKADDR_IN clientaddr;
    int port = 17329;

    WORD ver = MAKEWORD(2,2);
    WSAStartup(ver, &wsadata);

    FileNetServer = socket(AF_INET, SOCK_STREAM, IPPROTO_TCP);
    FileNetServeraddr.sin_family = AF_INET;
    FileNetServeraddr.sin_port = htons(port);
    FileNetServeraddr.sin_addr.S_un.S_addr = htonl(INADDR_ANY);

    bind(FileNetServer, (SOCKADDR*)&FileNetServeraddr, sizeof(FileNetServeraddr));

    listen(FileNetServer, 5);

    int len = sizeof(clientaddr);
    char s_password[100];

    while(true)
    {
        if(client = accept(FileNetServer, (sockaddr*)&clientaddr, &len))
        {

            if(send(client, "Password", sizeof("Password"), 0) != SOCKET_ERROR)
            {
                cout<<"有客戶請求連接，正在等待客戶輸入密碼!";
            }
ag:         if(recv(client, s_password, sizeof(s_password), 0) != SOCKET_ERROR)
            {
                if(strcmp(s_password, "123") == 0)
                {
                    send(client, "OK", sizeof("OK"), 0);
                    cout<<"CreateThread is the OK \n";
                    CreateThread(NULL, NULL, SLisen, (LPVOID)client, NULL, NULL);
                }
                else
                {
                    cout<<"有用戶試圖聯入，但是未能輸入正確密碼!/n";
                    send(client, "NOOK", sizeof("NOOK"), 0);
                    goto ag;
                }
            }
        }
    }

    closesocket(FileNetServer);
    closesocket(client);
    WSACleanup();

    return 0;
}

DWORD WINAPI SLisen(LPVOID lparam)
{
    SOCKET client = (SOCKET)lparam;

    COMMAND command;

    while(1)
    {
        memset((char*)&command, 0, sizeof(command));
        if(recv(client, (char*)&command, sizeof(command), 0) == SOCKET_ERROR)
        {
            cout<<"The Client Socket is Closed\n";
            break;
        }
        else
        {
            cout<<"The recv command is: ID="<<command.ID<<" lparam="<<command.lparam<<endl;
            switch(command.ID)
            {
            case GetDriver:
                GetDriverProc(command, client);
                break;
            case GetDirInfo:
                GetDirInfoProc(command, client);
                break;
            case ExecFile:
                ExecFileProc(command, client);
                break;
            case DelFile:
                DelFileProc(command, client);
                break;
            case FileInfo:
                FileInfoProc(command, client);
                break;
            case CreateDir:
                CreateDirProc(command, client);
                break;
            case DelDir:
                DelDirProc(command, client);
                break;
            case GetFile:
                GetFileProc(command, client);
                break;
            case PutFile:
                PutFileProc(command, client);
                break;
            case GetScreen:
                GetScreenProc(command, client);
                break;
            default:
                cout<<"Can not recongnize the command!\n";
                break;
            }
        }
    }
    closesocket(client);
    return 0;
}

DWORD GetDriverProc(COMMAND command, SOCKET client)
{
    cout<<"GetDriver is ok\n";

    COMMAND cmd;
    memset((char *)&cmd, 0, sizeof(cmd));
    cmd.ID = GetDriver;

    for(char i='A'; i<'Z'; i++)
    {
        char x[20] = {i, ':'};

        UINT Type = GetDriveType(x);

        if(Type==DRIVE_FIXED || Type==DRIVE_REMOVABLE || Type==DRIVE_CDROM)
        {
            cout<<x<<"\n";
            memset((char*)cmd.lparam, 0, sizeof(cmd.lparam));
            strcpy((char*)cmd.lparam, x);

            if(send(client, (char*)&cmd, sizeof(cmd), 0) == SOCKET_ERROR)
            {
                cout<<"Send Driver is Error\n";
            }
        }
    }
    return 0;
}

DWORD GetDirInfoProc(COMMAND command, SOCKET client)
{
    cout<<"GetDir is Ok\n";

    FILEINFO fi;
    COMMAND cmd;
    memset((char*)&cmd, 0, sizeof(cmd));
    memset((char*)&fi, 0, sizeof(fi));

    strcat((char*)command.lparam, "*.*");
    cout<<(char*)command.lparam<<"\n";

    CFileFind file;
    BOOL bContinue = file.FindFile((char*)command.lparam);

    while(bContinue)
    {
        memset((char*)&cmd, 0, sizeof(cmd));
        memset((char*)&fi, 0, sizeof(fi));

        bContinue = file.FindNextFile();
        if(file.IsDirectory())
        {
            fi.IsDir = true;
        }
        strcpy(fi.FileName, file.GetFileName().LockBuffer());
        cout<<fi.FileName<<"\n";

        cmd.ID = GetDirInfo;
        memcpy((char*)&cmd.lparam, (char*)&fi, sizeof(fi));

        if(send(client, (char*)&cmd, sizeof(cmd), 0) == SOCKET_ERROR)
        {
            cout<<"Send Dir is Error\n";
        }
    }
    return 0;
}

DWORD ExecFileProc(COMMAND command, SOCKET client)
{
    return 0;
}

DWORD DelFileProc(COMMAND command, SOCKET client)
{
    return 0;
}

DWORD FileInfoProc(COMMAND command, SOCKET client)
{
    return 0;
}

DWORD CreateDirProc(COMMAND command, SOCKET client)
{
    return 0;
}

DWORD DelDirProc(COMMAND command, SOCKET client)
{
    return 0;
}

BOOL DeleteDirectory(char *DirName)
{
    return 0;
}

DWORD GetFileProc(COMMAND command, SOCKET client)
{
    return 0;
}

DWORD PutFileProc(COMMAND command, SOCKET client)
{

    return 0;
}

DWORD GetScreenProc(COMMAND command, SOCKET client)
{

    return 0;
}

BOOL CapScreen(LPTSTR FileName)
{
    return 0;
}

(三)最主要的是客戶端如何編寫：
當然，編程流程和博客[http://blog.csdn.net/nuptboyzhb/article/details/8041715]是一樣的。主要有一下幾個類：
1.Client.java //還有main函數的類,你們都知道它是功能。
[java]
/*
*@author: ZhengHaibo
*web:     blog.csdn.net/nuptboyzhb
*mail:    [email protected]
*2012-9-23 Nanjing njupt
*/
import java.io.IOException;
import java.net.InetSocketAddress;
import java.net.Socket;
public class Client {
    NetDataTypeTransform mNetDataTypeTransform=new NetDataTypeTransform();
    private static final String IP="127.0.0.1";
    private static final int NetPort=17329;
    private Socket sock;
    public Client(){
        try {
            onCreate();
        } catch (IOException e) {
            // TODO Auto-generated catch block
            e.printStackTrace();
        }
    }
    public void onCreate() throws IOException{
        InetSocketAddress addr = new InetSocketAddress(IP,NetPort); //創建socket
        sock = new Socket();
        sock.connect(addr);//連接服務器
        byte []receive=new byte[9];
        sock.getInputStream().read(receive);
        String tempString=mNetDataTypeTransform.ByteArraytoString(receive, receive.length);
        System.out.println(" Server said:send your "+tempString);
        if(tempString.equals("Password")){
            System.out.println("I can send password 123\0!");
        }
        String password="123\0";//注意，別忘了‘\0’
        sock.getOutputStream().write(mNetDataTypeTransform.StringToByteArray(password));
        byte []isOk=new byte[3];
        sock.getInputStream().read(isOk);
        String okString=mNetDataTypeTransform.ByteArraytoString(isOk,isOk.length);
        System.out.println(" ----- is ok?--"+okString);
        if(okString.equals("OK")){
            System.out.println("new Thread begin...");
            NetDataCommand commd=new NetDataCommand(1,"E:\0");
            sock.getOutputStream().write(commd.getByteArrayData());
            ThreadRead mThreadRead=new ThreadRead(sock,this);
            mThreadRead.start();//啟動監聽線程。
        }
        //////////////////////////////////////////////////////////////
        try {
            Thread.sleep(30000);
        } catch (InterruptedException e) {
            // TODO Auto-generated catch block
            e.printStackTrace();
        }
    }
    public static void main(String [] args) throws InterruptedException, IOException
    {
        new Client();
    }
    public void GetDriverPro(Socket mSocket,NetDataCommand mCommand){
        System.out.println("command ID="+mCommand.getID()+"--"+"command Lparam="+mCommand.getLparam());
        NetDataCommand commd=new NetDataCommand(2,mCommand.getLparam()+"\\\0");
        try {
            mSocket.getOutputStream().write(commd.getByteArrayData());
        } catch (IOException e){
            // TODO Auto-generated catch block
            e.printStackTrace();
        }
    }
    public void GetDirInfoPro(Socket mSocket,NetDataCommand mCommand){
        System.out.println("command ID="+mCommand.getID()+"command Lparam="+mCommand.getLparam());
    }
    public void ExecFilePro(Socket mSocket,NetDataCommand mCommand){
        System.out.println("command ID="+mCommand.getID()+"command Lparam="+mCommand.getLparam());
    }
    public void DelFilePro(Socket mSocket,NetDataCommand mCommand){
        System.out.println("command ID="+mCommand.getID()+"command Lparam="+mCommand.getLparam());

    }
    public void FileInfoPro(Socket mSocket,NetDataCommand mCommand){
        System.out.println("command ID="+mCommand.getID()+"command Lparam="+mCommand.getLparam());
    }
    public void CreateDirPro(Socket mSocket,NetDataCommand mCommand){
        System.out.println("command ID="+mCommand.getID()+"command Lparam="+mCommand.getLparam());
    }
    public void GetFilePro(Socket mSocket,NetDataCommand mCommand){
        System.out.println("command ID="+mCommand.getID()+"command Lparam="+mCommand.getLparam());
    }
    public void PutFilePro(Socket mSocket,NetDataCommand mCommand){
        System.out.println("command ID="+mCommand.getID()+"command Lparam="+mCommand.getLparam());
    }
    public void GetScreenPro(Socket mSocket,NetDataCommand mCommand){
        System.out.println("command ID="+mCommand.getID()+"command Lparam="+mCommand.getLparam());
    }
}

2.NetDataTypeTransform.java//顧名思義：數據轉換的類
[java]
import java.io.UnsupportedEncodingException;

/*
*@author: ZhengHaibo
*web:     blog.csdn.net/nuptboyzhb
*mail:    [email protected]
*2012-9-25 Nanjing njupt
*/
public class NetDataTypeTransform {
    public NetDataTypeTransform(){

    }
    /**
     * 將int轉為低字節在前，高字節在後的byte數組
     */
    public byte[] IntToByteArray(int n) {
        byte[] b = new byte[4];
        b[0] = (byte) (n & 0xff);
        b[1] = (byte) (n >> 8 & 0xff);
        b[2] = (byte) (n >> 16 & 0xff);
        b[3] = (byte) (n >> 24 & 0xff);
        return b;
    }
    /**
     * byte數組轉化為int
     * 將低字節在前轉為int，高字節在後的byte數組
     */
    public int ByteArrayToInt(byte[] bArr) {
        int n = 0;
        for(int i=0;i<bArr.length&&i<4;i++){
            int left = i*8;
            n+= (bArr[i] << left);
        }
        return n;
    }
    /**
     * 將byte數組轉化成String
     */
    public String ByteArraytoString(byte[] valArr,int maxLen) {
        String result=null;
        int index = 0;
        while(index < valArr.length && index < maxLen) {
            if(valArr[index] == 0) {
                break;
            }
            index++;
        }
        byte[] temp = new byte[index];
        System.arraycopy(valArr, 0, temp, 0, index);
        try {
            result= new String(temp,"GBK");
        } catch (UnsupportedEncodingException e) {
            e.printStackTrace();
        }
        return result;
    }
    public byte[] StringToByteArray(String str){
        byte[] temp = null;
        try {
            temp = str.getBytes("GBK");
        } catch (UnsupportedEncodingException e) {
            // TODO Auto-generated catch block
            e.printStackTrace();
        }
        return temp;
    }
}

3.NetDataCommand.java//該類就是實現與C++服務器中COMMMAND結構體對應的java類
[java]
/*
*@author: ZhengHaibo
*web:     blog.csdn.net/nuptboyzhb
*mail:    [email protected]
*2012-9-26 Nanjing njupt
*/
public class NetDataCommand {
    private static final int IDLen=4;
    private static final int LparamLen=2048;
    private static final int CommandLen=2052;
    public byte []byteArrayData=new byte[CommandLen];
    private int ID;
    private String lparam;
    private NetDataTypeTransform mDataTypeTransform=new NetDataTypeTransform();;
    public byte[] getByteArrayData(){
        return byteArrayData;
    }
    public NetDataCommand(){

    }
    public NetDataCommand(int ID,String lparam) {
        // TODO Auto-generated constructor stub

        this.ID=ID;
        this.lparam=lparam;
        byte[] IDbyte = mDataTypeTransform.IntToByteArray(ID);
        System.arraycopy(IDbyte,0, byteArrayData, 0, IDbyte.length);
        byte[] Strbyte = mDataTypeTransform.StringToByteArray(lparam);
        System.arraycopy(Strbyte,0,byteArrayData,IDbyte.length,Strbyte.length);
    }
    public NetDataCommand(byte[] dataArray){
        int id=1;
        String lpString="";
        System.arraycopy(dataArray,0, byteArrayData,0,CommandLen);
        byte[] forIntID = new byte[IDLen];
        System.arraycopy(dataArray,0,forIntID,0,forIntID.length);
        id=mDataTypeTransform.ByteArrayToInt(forIntID);
        byte[] StrTemp=new byte[LparamLen];
        System.arraycopy(dataArray,IDLen,StrTemp,0,StrTemp.length);
        lpString=mDataTypeTransform.ByteArraytoString(StrTemp, StrTemp.length);
        //lpString=StrTemp.toString();
        ID=id;
        lparam=lpString;
    }
    public int getID(){
        return ID;
    }
    public String getLparam(){
        return lparam;
    }
    public void setID(int id) {
        this.ID=id;
    }
    public void setLparam(String str){
        this.lparam=str;
    }

}

4.ThreadRead.java//線程，用於一直接收數據。
[java]
/*
*@author: ZhengHaibo
*web:     blog.csdn.net/nuptboyzhb
*mail:    [email protected]
*2012-9-26 Nanjing njupt
*/
import java.io.IOException;
import java.lang.Thread;
import java.net.Socket;
public class ThreadRead extends Thread{
    public Socket mSocket;
    public Client mClient;
    private static final int GetDriver=0x01;
    private static final int GetDirInfo=0x02;
    private static final int ExecFile=0x03;
    private static final int GetFile=0x04;
    private static final int PutFile=0x05;
    private static final int DelFile=0x06;
    private static final int DelDir =0x07;
    private static final int CreateDir=0x08;
    private static final int FileInfo=0x09;
    private static final int GetScreen=0x10;
    private static final int CommandLen=2052;
    private static int TryTimes=5;
    private byte []byteArrayData=new byte[CommandLen];
    public ThreadRead(Socket lpSocket,Client mClient) {
        // TODO Auto-generated constructor stub
        this.mSocket=lpSocket;
        this.mClient=mClient;
    }

    public void run() {
        while (TryTimes>0) {
            while (true) {
                try {
                    mSocket.getInputStream().read(byteArrayData);
                    NetDataCommand mCommand = new NetDataCommand(byteArrayData);
                    switch (mCommand.getID()){
                    case GetDriver:
                        mClient.GetDriverPro(mSocket, mCommand);
                        break;
                    case GetDirInfo:
                        mClient.GetDirInfoPro(mSocket, mCommand);
                        break;
                    case ExecFile:
                        mClient.ExecFilePro(mSocket, mCommand);
                        break;
                    case DelFile:
                        mClient.DelFilePro(mSocket, mCommand);
                        break;
                    case FileInfo:
                        mClient.FileInfoPro(mSocket, mCommand);
                        break;
                    case CreateDir:
                        mClient.CreateDirPro(mSocket, mCommand);
                        break;
                    case DelDir:
                        mClient.DelFilePro(mSocket, mCommand);
                        break;
                    case GetFile:
                        mClient.GetFilePro(mSocket, mCommand);
                        break;
                    case PutFile:
                        mClient.PutFilePro(mSocket, mCommand);
                        break;
                    case GetScreen:
                        mClient.GetScreenPro(mSocket, mCommand);
                        break;
                    default:
                        System.out.println("----------wrong!!!--------------");
                        break;
                    }

                } catch (IOException e) {
                    // TODO Auto-generated catch block
                    e.printStackTrace();
                    TryTimes--;
                    break;
                }
            }
        }
    }
}

(四)實現結果
項目源碼:http://download.csdn.net/detail/nuptboyzhb/4624574

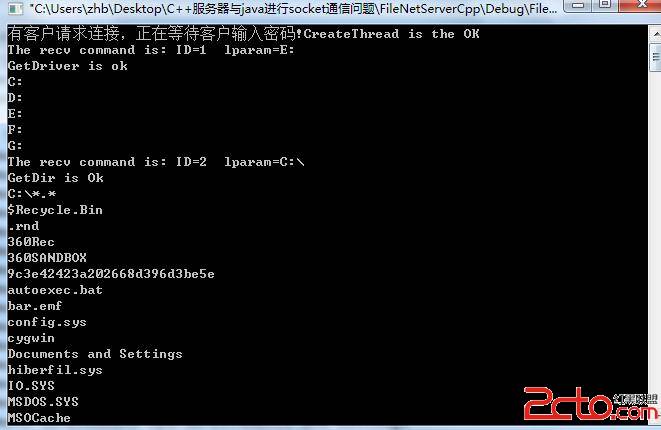

先運行服務器，再運行java客戶端代碼。實驗結果如下：(當然，這是我電腦下的文件夾和文件(隱私暴漏了...))
運行服務器的時候，我真的想告訴360安全衛士，這不是木馬...
Eclipse的控制台：
[plain]
Server said:send your Password
I can send password 123
----- is ok?--OK
new Thread begin...
command ID=1--command Lparam=C:
command ID=1--command Lparam=D:
command ID=1--command Lparam=E:
command ID=1--command Lparam=F:
command ID=1--command Lparam=G:
command ID=2command Lparam=$Recycle.Bin
command ID=2command Lparam=.rnd
command ID=2command Lparam=360Rec
command ID=2command Lparam=360SANDBOX
command ID=2command Lparam=9c3e42423a202668d396d3be5e
command ID=2command Lparam=autoexec.bat
command ID=2command Lparam=bar.emf
command ID=2command Lparam=config.sys
command ID=2command Lparam=cygwin
command ID=2command Lparam=Documents and Settings
command ID=2command Lparam=hiberfil.sys
command ID=2command Lparam=IO.SYS
command ID=2command Lparam=MSDOS.SYS
command ID=2command Lparam=MSOCache
command ID=2command Lparam=pagefile.sys
command ID=2command Lparam=PerfLogs
command ID=2command Lparam=Program Files
command ID=2command Lparam=ProgramData
command ID=2command Lparam=Recovery
command ID=2command Lparam=System Volume Information
command ID=2command Lparam=Users
command ID=2command Lparam=Windows
command ID=2command Lparam=$RECYCLE.BIN
command ID=2command Lparam=eclipse
command ID=2command Lparam=HelloJNI
command ID=2command Lparam=System Volume Information
command ID=2command Lparam=大學部分資料
command ID=2command Lparam=文件魚龍混雜
command ID=2command Lparam=照片和視頻
command ID=2command Lparam=研究方向
command ID=2command Lparam=研究生學習
command ID=2command Lparam=程序語言
command ID=2command Lparam=軟件安裝包
command ID=2command Lparam=$RECYCLE.BIN
command ID=2command Lparam=360
command ID=2command Lparam=360Downloads
command ID=2command Lparam=360Rec
command ID=2command Lparam=360雲盤
command ID=2command Lparam=360驅動大師目錄
command ID=2command Lparam=61ffd6de5ad141016097
command ID=2command Lparam=android-sdk-windows
command ID=2command Lparam=CSDN_ExportBlog
command ID=2command Lparam=eclipse
command ID=2command Lparam=EditPlus
command ID=2command Lparam=Fetion2012
command ID=2command Lparam=FlashFXP_4.2.4.1785
command ID=2command Lparam=JDK1_6
command ID=2command Lparam=kankan
command ID=2command Lparam=KMPlayer
command ID=2command Lparam=KSafeRecycle
command ID=2command Lparam=Kugou
command ID=2command Lparam=KuGouCache
command ID=2command Lparam=matlab2009a
command ID=2command Lparam=msdn6_0
command ID=2command Lparam=MSOCache
command ID=2command Lparam=MySQL Tools
command ID=2command Lparam=PDF_Reader
command ID=2command Lparam=PHPEclipse
command ID=2command Lparam=Program Files
command ID=2command Lparam=ps3
command ID=2command Lparam=Python27
command ID=2command Lparam=QQ
command ID=2command Lparam=QQGame
command ID=2command Lparam=sogou
command ID=2command Lparam=System Volume Information
command ID=2command Lparam=TDDOWNLOAD
command ID=2command Lparam=Ubuntu
command ID=2command Lparam=vc2008
command ID=2command Lparam=vc6_0
command ID=2command Lparam=VC98
command ID=2command Lparam=Video
command ID=2command Lparam=VMware
command ID=2command Lparam=WAMP5
command ID=2command Lparam=WindowsManagerTools
command ID=2command Lparam=youku
command ID=2command Lparam=光影看看
command ID=2command Lparam=快捷方式
command ID=2command Lparam=有道
command ID=2command Lparam=迅雷7
