OpenCV——PS濾鏡之 波浪效果 wave

// define head function
#ifndef PS_ALGORITHM_H_INCLUDED
#define PS_ALGORITHM_H_INCLUDED

#include
#include
#include "cv.h"
#include "highgui.h"
#include "cxmat.hpp"
#include "cxcore.hpp"
#include "math.h"

using namespace std;
using namespace cv;

void Show_Image(Mat&, const string &);

#endif // PS_ALGORITHM_H_INCLUDED


#include "PS_Algorithm.h"
#include

using namespace std;
using namespace cv;

#define pi 3.1415926

int main()
{
    string Img_name("4.jpg");
    Mat Img;
    Img=imread(Img_name);

    Mat Img_out(Img.size(), CV_8UC3);
    Img.copyTo(Img_out);

    int width=Img.cols;
    int height=Img.rows;
    int N=30;

    Point Center(width/2, height/2);

    float new_x,new_y;
    float p,q,x1,y1,x0,y0;

    for (int y=0; y=width-1)  new_x=width-2;
                if(new_y<0)         new_y=0;
                if(new_y>=height-1) new_y=height-2;

                x1=(int)new_x;
                y1=(int)new_y;

                p=new_x-x1;
                q=new_y-y1;

                for (int k=0; k<3; k++)
                {
                    Img_out.at(y, x)[k]=(1-p)*(1-q)*Img.at(y1, x1)[k]+
                                            (p)*(1-q)*Img.at(y1,x1+1)[k]+
                                            (1-p)*(q)*Img.at(y1+1,x1)[k]+
                                            (p)*(q)*Img.at(y1+1,x1+1)[k];
                }

        }
    }

    Img_out=Img_out;
    Show_Image(Img_out, "out");

    imwrite("Out.jpg", Img_out);


    waitKey();

}


// define the show image
#include "PS_Algorithm.h"
#include
#include

using namespace std;
using namespace cv;

void Show_Image(Mat& Image, const string& str)
{
    namedWindow(str.c_str(),CV_WINDOW_AUTOSIZE);
    imshow(str.c_str(), Image);

}

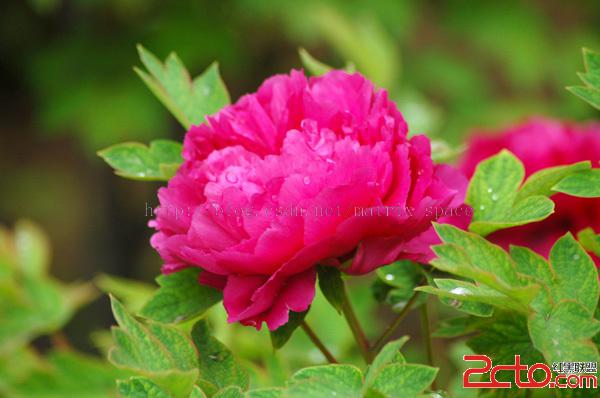

原圖

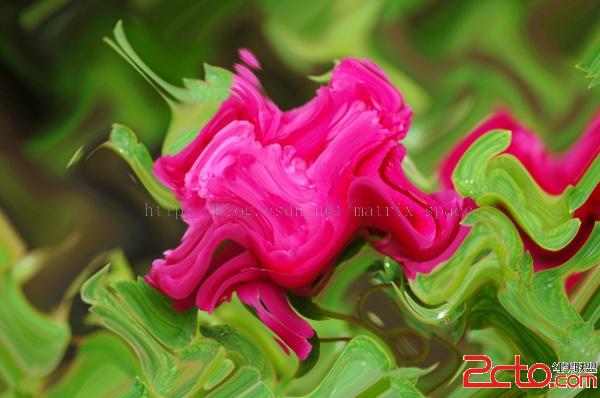

效果圖
