ASP.NET MVC分頁和排序功能實現

分頁和排序，應該是軟件開發中，需要必知必會的技能了，對於分頁，網上很多教程，當然，別人終究是別人的，只有自己理解，會了，並且吸收之後，再用自己的語言，傳授出來，這才是硬道理。好了，廢話說多了。現在我們進入正題：

這裡，我打算使用EF Code-First方式分頁控件就是用PagedList.MVC,來做分頁，對於排序，實現的思路是，加載數據出來之後，默認是升序排序，然後我們點擊一下相應的列標題，就按照該字段降序排序，查數據。思路明確了，就開始干吧！

1.首先新建一個空白的MVC項目，在Model文件夾裡，新建一個Student實體

Student實體中的代碼：

using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;

namespace PagingAndSortingInMVC.Models
{
 public class Student
 {
 public int ID { get; set; }

 public string Name { get; set; }

 public string Sex { get; set; }

 public string Email { get; set; }

 public int Age { get; set; }
 }
}

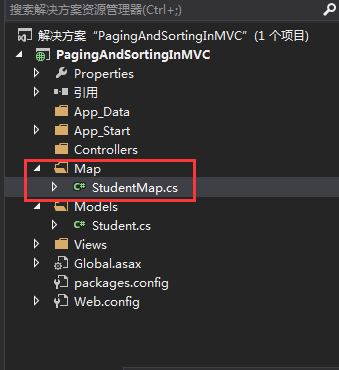

2.添加EF引用之後，我們在根目錄下，在創建一個文件夾Map，在裡面創建一個類StudentMap

StudentMap類的代碼：

using PagingAndSortingInMVC.Models;
using System;
using System.Collections.Generic;
using System.ComponentModel.DataAnnotations.Schema;
using System.Data.Entity.ModelConfiguration;
using System.Linq;
using System.Web;

namespace PagingAndSortingInMVC.Map
{
 public class StudentMap:EntityTypeConfiguration<Student>
 {
 public StudentMap()
 {
  //配置主鍵
  this.HasKey(s => s.ID);

  //把ID列設置為自增列
  this.Property(s => s.ID).HasDatabaseGeneratedOption(DatabaseGeneratedOption.Identity);
  //配置列
  this.Property(s => s.Name).HasMaxLength(50).IsRequired();
  this.Property(s => s.Sex).HasMaxLength(2).IsRequired();
  this.Property(s => s.Age).IsRequired();
  this.Property(s => s.Email).HasMaxLength(100).IsRequired();
 }
 }
}

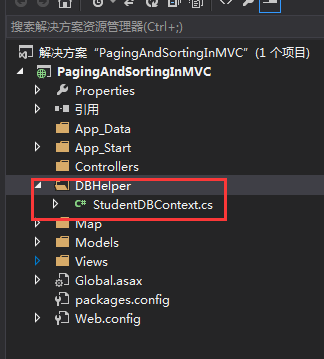

3.在根目錄下，再新建一個文件夾DBHelper，在裡面新建一個類StudentDBContext

StudentDBContext類的代碼：

using PagingAndSortingInMVC.Map;
using System;
using System.Collections.Generic;
using System.Data.Entity;
using System.Linq;
using System.Web;

namespace PagingAndSortingInMVC.DBHelper
{
 public class StudentDBContext:DbContext
 {
 public StudentDBContext()
  : base("name=DbConnectionString")
 {

 }

 protected override void OnModelCreating(DbModelBuilder modelBuilder)
 {
  //因為這裡只有一個實體，就不搞的那麼復雜了，不用反射來做。直接添加單個實體的配置
  modelBuilder.Configurations.Add(new StudentMap());
  base.OnModelCreating(modelBuilder);
 }
 }
}

然後在配置文件中加上：

<connectionStrings>
<add name="DbConnectionString" connectionString="Server=.;Database=MyStudentDB;UID=sa;PWD=Password_1" providerName="System.Data.SqlClient"/>
</connectionStrings>

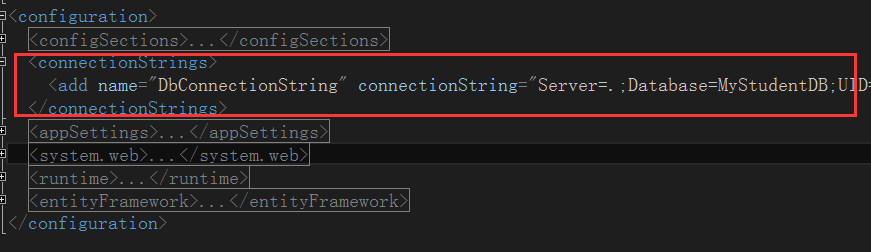

具體的位置在這：

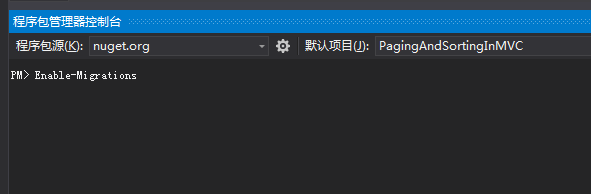

4.好了，現在實體和數據庫的配置都寫好了，現在我們使用數據庫遷移技術【Migrations】來自動生成數據庫，首先打開程序包管理控制台。
添加一行語句：Enable-Migrations，然後按回車鍵：

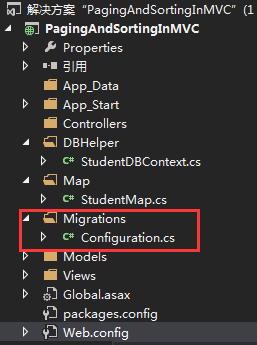

這個時候，就在我們程序中生成了一個文件夾Migrations，裡面有一個類Configuration：

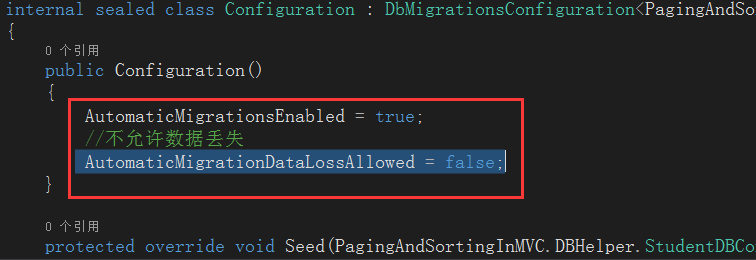

修改Configuration類中的代碼：把 AutomaticMigrationsEnabled 設置為true;並添加一句代碼，讓遷移過程中，沒有數據丟失：
AutomaticMigrationDataLossAllowed = false;

然後在程序包管理控制台中接著輸入：
 Update-Database  -Verbose

注意： 【-Verbose和Database之間有空格】，之所以輸入-Verbose就是可以在控制台看到生成的SQL語句：

PM> Update-Database -Verbose
Using StartUp project 'PagingAndSortingInMVC'.
Using NuGet project 'PagingAndSortingInMVC'.
Specify the '-Verbose' flag to view the SQL statements being applied to the target database.
Target database is: 'MyStudentDB' (DataSource: ., Provider: System.Data.SqlClient, Origin: Configuration).
No pending explicit migrations.
Applying automatic migration: 201607180249098_AutomaticMigration.
CREATE TABLE [dbo].[Students] (
 [ID] [int] NOT NULL IDENTITY,
 [Name] [nvarchar](50) NOT NULL,
 [Sex] [nvarchar](2) NOT NULL,
 [Email] [nvarchar](100) NOT NULL,
 [Age] [int] NOT NULL,
 CONSTRAINT [PK_dbo.Students] PRIMARY KEY ([ID])
)
CREATE TABLE [dbo].[__MigrationHistory] (
 [MigrationId] [nvarchar](150) NOT NULL,
 [ContextKey] [nvarchar](300) NOT NULL,
 [Model] [varbinary](max) NOT NULL,
 [ProductVersion] [nvarchar](32) NOT NULL,
 CONSTRAINT [PK_dbo.__MigrationHistory] PRIMARY KEY ([MigrationId], [ContextKey])
)
INSERT [dbo].[__MigrationHistory]([MigrationId], [ContextKey], [Model], [ProductVersion])
VALUES (N'201607180249098_AutomaticMigration', N'PagingAndSortingInMVC.Migrations.Configuration', 0x1F8B0800000000000400CD57DB6EDB38107D5FA0FF20F03935ED040B7403B9856327BBC6D64950A579A7A5B1422C456A492AB0BFAD0FFB49FB0B3BD4DD926F31DA451120B0A8993333673817FDFBED1FFFD33A11DE2B68C3951C93D160483C90A18AB88CC724B3ABF71FC8A78FEF7EF16FA364ED3D5772574E0E35A51993176BD36B4A4DF80209338384875A19B5B283502594458A5E0E87BFD1D188024210C4F23CFF4B262D4F207FC0C7A99221A4366362A12210A63CC737418EEADDB3044CCA4218934716A36F1319054A5BFC35978BE7E96076F307881434F1268233F42A00B1221E93525966D1E7EBAF0602AB958C83140F9878DAA480722B260C94B15C37E2A78635BC7461D146B1820A336355F246C0D155C913EDAA9FC536A97944266F9171BB7151E76C2243368B405AE2756D5D4F857672FBB82E723428F52FBC9D5217F565C13BE5FE2EBC69266CA6612C21B39A0954CC9682877FC2E649FD05722C3321DA2EA3D3F86EEB008F1EB5C23CDBCD17589581CC67C4A3DB7AB4AB58ABB5748A18E7D25E5D12EF1E8DB3A580FA46B4F808ACD2F03B48D0CC42F4C8AC058D099DBBF091D39EF58E2DF7BFB28657101922DE82AD3F838CEDCB98FC8AA574C7D7105507A5035F25C73A441DAB33D8E1E061A301AC0FD8BCFC11266F13C6C501A3A3E10F897412C3B15CB6017CDA5442BF3EB01359C631D3DB4532BB712F60BDAB5AB0B1940563CA08B6DD2D8003B0DB9086788D2345BF1AD425B9CBE1DAB5A63BD2A23D566D94EEE9A3FE82A52966A3D557CB132F289AEAF47DF0F60E93141834343B1A4DED6D6D098B88C5D0798BA6D1D33BAE8D9D31CB96CCA56B1A253DB15E22F6905C99EB70DDED220DF59582FB5D281D9E3075923A900DA9771867821279C8507BD674DC9E663EE898607A47979A2A9125725FA73BA45DF49DB67E71723A42DE44DA00F9C1E9FA654768239447A763E4E5DD46C80FFAFA3EEDD0DF4D39EDE5BC3333BA77E8500D76456AEB752D766ACE2FEFFFF105A757108508F19098571EE5C5B0311692811318047F8BA9E079D7A804164CF215185B8C5582F5FAA1B317FD3C3B0A352612A72D2AFFFB6AC01DA94787FF1BC7557B1B90AF4C872F4CF7F681F387FD4EC86333F1C82CDF89994FF3F34775CEED771CD4FD3172D2143E34848BBA1B9368A9D0EBC2CF66789F39A2FB6DC0A7EDAF217F0686C70D84FB369210BAFA6A402B99B95CA98A620CADED5125D2C9C0022C8B90A1094EB6150B2DBE0EC1987C557B6622CB53BF84682E1F329B6676620C244BB1B5E3FAF4B0FD7C0FD9F6D97F48DD93F91E21A09B1C43800779937111D57EDFEDB8427B20DC65294B1ABDC25515E1E24D8D74AFE48940257D334841BA7BF104492A10CC3CC880BDC239BEE13AF91962166EAA6EBE1FE47822B669F7679CC59A25A6C468F4DD173E759FF81FFF0366E046F514100000 , N'6.1.3-40302')

Running Seed method.
PM>

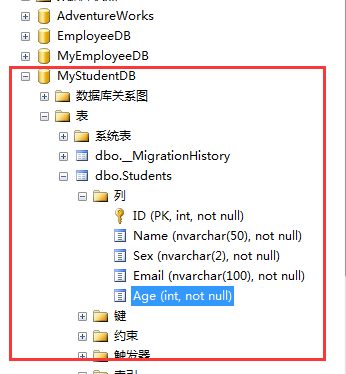

打開數據庫，我們看到，就生成我們想要的數據庫和表了：

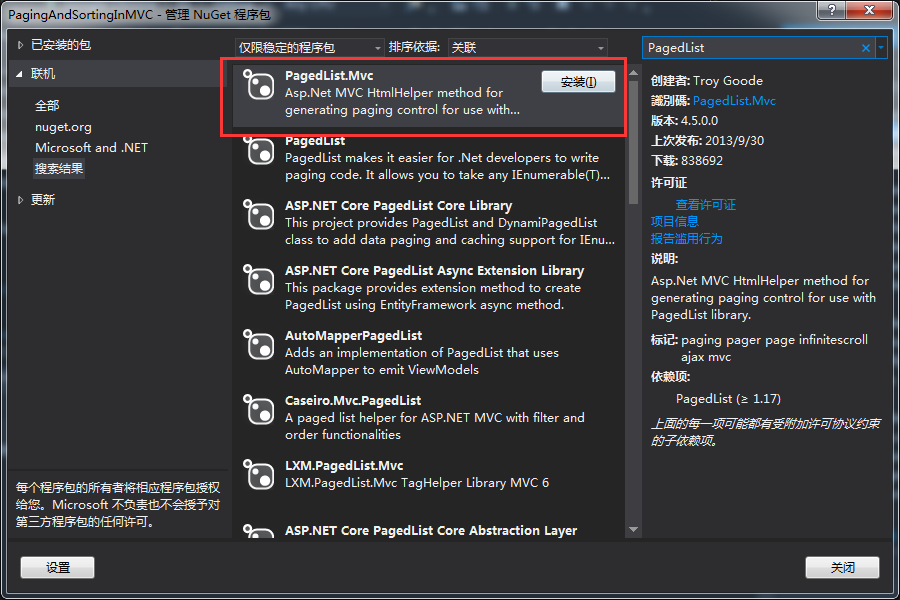

既然要分頁，就開始引入分頁控件吧，引入PagedList.MVC

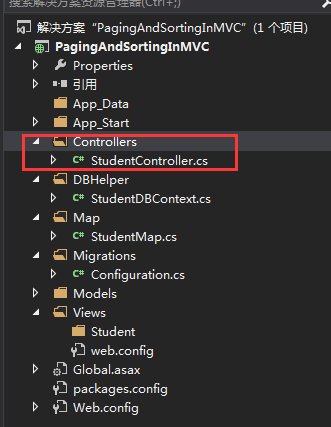

5.新建一個空白模板的Student控制器。

控制器裡面就是我們主要的邏輯代碼了：

using PagingAndSortingInMVC.DBHelper;
using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.Mvc;
using PagedList;
using PagingAndSortingInMVC.Models;

namespace PagingAndSortingInMVC.Controllers
{
 public class StudentController : Controller
 {
 private StudentDBContext db=null;
 public StudentController()
 {
  db = new StudentDBContext();
 }

 /// <summary>
 /// 首頁【查詢分頁數據】
 /// </summary>
 /// <param name="sortBy">根據什麼排序</param>
 /// <param name="currentSort">當前排序字段</param>
 /// <param name="page">當前頁</param>
 /// <returns></returns>
 public ActionResult Index(string sortBy,string currentSort,int? page)
 {
  int pageIndex = 1;
  int pageSize = 5;
  //判斷page是否有值，有的話就給值，沒有就賦值1
  pageIndex = page.HasValue ? Convert.ToInt32(page) : 1;
  ViewBag.CurrentSort = sortBy;
//這句必須要，否則剛開始是空的，報錯，就不能循環了。
sortBy = string.IsNullOrEmpty(sortBy) ? "Name" : sortBy; //如果sortBy為空，就設置為Name，下面設置的時候，默認按照名稱排序

  IPagedList<Student> lstStudent = null;
  switch (sortBy)
  {
  case "Name":
   //如果sortBy==currentSort，就按照對應字段降序排列，並分頁。否則升序。
   if (sortBy.Equals(currentSort))
   {
   lstStudent = db.Set<Student>().
    OrderByDescending(s => s.Name).
    ToPagedList(pageIndex, pageSize);    //根據一熱心博友的建議，加上了這句，點擊相應的列，升序降序循環。　　　　　　　　　　　　　　　　 ViewBag.CurrentSort = null;
   }
   else
   {
   lstStudent = db.Set<Student>().
    OrderBy(s => s.Name).
    ToPagedList(pageIndex, pageSize);
   }
   break;

  case "Sex":
   //如果sortBy==currentSort，就按照對應字段降序排列，並分頁。否則升序。
   if (sortBy.Equals(currentSort))
   {
   lstStudent = db.Set<Student>().
    OrderByDescending(s => s.Sex).
    ToPagedList(pageIndex, pageSize); //根據一熱心博友的建議，加上了這句，點擊相應的列，升序降序循環。　　　　　　　　　　　　　　　　 ViewBag.CurrentSort = null;
   }
   else
   {
   lstStudent = db.Set<Student>().
    OrderBy(s => s.Sex).
    ToPagedList(pageIndex, pageSize);
   }
   break;

  case "Email":
   //如果sortBy==currentSort，就按照對應字段降序排列，並分頁。否則升序。
   if (sortBy.Equals(currentSort))
   {
   lstStudent = db.Set<Student>().
    OrderByDescending(s => s.Email).
    ToPagedList(pageIndex, pageSize); //根據一熱心博友的建議，加上了這句，點擊相應的列，升序降序循環。　　　　　　　　　　　　　　　　 ViewBag.CurrentSort = null;
   }
   else
   {
   lstStudent = db.Set<Student>().
    OrderBy(s => s.Email).
    ToPagedList(pageIndex, pageSize);
   }
   break;

  case "Age":
   //如果sortBy==currentSort，就按照對應字段降序排列，並分頁。否則升序。
   if (sortBy.Equals(currentSort))
   {
   lstStudent = db.Set<Student>().
    OrderByDescending(s => s.Age).
    ToPagedList(pageIndex, pageSize); //根據一熱心博友的建議，加上了這句，點擊相應的列，升序降序循環。　　　　　　　　　　　　　　　　 ViewBag.CurrentSort = null;
   }
   else
   {
   lstStudent = db.Set<Student>().
    OrderBy(s => s.Age).
    ToPagedList(pageIndex, pageSize);
   }
   break;

  default:
   //如果sortBy==currentSort，就按照對應字段降序排列，並分頁。否則升序。
   if (sortBy.Equals(currentSort))
   {
   lstStudent = db.Set<Student>().
    OrderByDescending(s => s.Name).
    ToPagedList(pageIndex, pageSize); //根據一熱心博友的建議，加上了這句，點擊相應的列，升序降序循環。　　　　　　　　　　　　　　　　 ViewBag.CurrentSort = null;
   }
   else
   {
   lstStudent = db.Set<Student>().
    OrderBy(s => s.Name).
    ToPagedList(pageIndex, pageSize);
   }

   break;
  }
  return View(lstStudent);
 }

 public ActionResult AddStudent()
 {
  return View();
 }

 [HttpPost]
 [ValidateAntiForgeryToken]
 public ActionResult AddStudent(Student model)
 {
  db.Set<Student>().Add(model);
  db.SaveChanges();
  return RedirectToAction("Index");
 }
 }
}

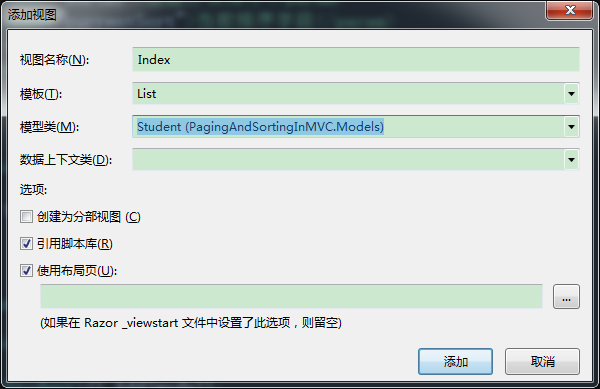

創建相對應的Index視圖和AddStudent視圖：

Index視圖：

@using PagedList.Mvc;@*//引入分頁的組件*@
@model PagedList.IPagedList<PagingAndSortingInMVC.Models.Student>

@{
 ViewBag.Title = "Index";
}
<style>
 table {
 width: 100%;
 }

 table tr td {
  border: 2px solid black;
  text-align: center;
  word-wrap: break-word;
 }

 table tr:hover {
  background-color: #000;
  color: #fff;
 }

 table tr th {
  border: 2px solid black;
  text-align: center;
  background-color: #fff;
  color: #000;
 }
</style>

<h2>Index</h2>

<p>
 @Html.ActionLink("Create New", "Create")
</p>
@using(Html.BeginForm("Index","Employee",FormMethod.Get))
{
<table class="table">
 <tr>
 <th>
  @* 通過創建匿名對象，傳遞參數到控制器中，new { sortBy = "Name", currentSort = ViewBag.CurrentSort }*@
  @*參數的大小寫無所謂，只要和控制器名稱一樣就行，sortBy,currentSort*@
  @Html.ActionLink("Name", "Index", new { sortBy = "Name", currentSort = ViewBag.CurrentSort })
 </th>
 <th>
  @Html.ActionLink("Sex", "Index", new { sortBy = "Sex", currentSort = ViewBag.CurrentSort })
 </th>
 <th>
  @Html.ActionLink("Email", "Index", new { sortBy = "Email", currentSort = ViewBag.CurrentSort })
 </th>
 <th>
  @Html.ActionLink("Age", "Index", new {sortBy = "Age", currentSort = ViewBag.CurrentSort })
 </th>
 <th></th>
 </tr>

@foreach (var item in Model) {
 <tr>
 <td>
  @Html.DisplayFor(modelItem => item.Name)
 </td>
 <td>
  @Html.DisplayFor(modelItem => item.Sex)
 </td>
 <td>
  @Html.DisplayFor(modelItem => item.Email)
 </td>
 <td>
  @Html.DisplayFor(modelItem => item.Age)
 </td>
 <td>

 </td>
 </tr>
}

</table>
}
<div id="Paging" style="text-align:center">
 @*總頁數是否小於當前頁，小於就說明沒數據，賦值0，否則賦值PageNumber*@
 Page @(Model.PageCount< Model.PageNumber?0:Model.PageNumber) of @Model.PageCount
 @Html.PagedListPager(Model, page => Url.Action("Index", new { page}),PagedListRenderOptions.Classic)
</div>

AddStudent視圖：

@model PagingAndSortingInMVC.Models.Student

@{
 ViewBag.Title = "AddStudent";
}

<h2>AddStudent</h2>


@using (Html.BeginForm())
{
 @Html.AntiForgeryToken()

 <div class="form-horizontal">
 <h4>Student</h4>
 <hr />
 @Html.ValidationSummary(true, "", new { @class = "text-danger" })
 <div class="form-group">
  @Html.LabelFor(model => model.Name, htmlAttributes: new { @class = "control-label col-md-2" })
  <div class="col-md-10">
  @Html.EditorFor(model => model.Name, new { htmlAttributes = new { @class = "form-control" } })
  @Html.ValidationMessageFor(model => model.Name, "", new { @class = "text-danger" })
  </div>
 </div>

 <div class="form-group">
  @Html.LabelFor(model => model.Sex, htmlAttributes: new { @class = "control-label col-md-2" })
  <div class="col-md-10">
  @Html.EditorFor(model => model.Sex, new { htmlAttributes = new { @class = "form-control" } })
  @Html.ValidationMessageFor(model => model.Sex, "", new { @class = "text-danger" })
  </div>
 </div>

 <div class="form-group">
  @Html.LabelFor(model => model.Email, htmlAttributes: new { @class = "control-label col-md-2" })
  <div class="col-md-10">
  @Html.EditorFor(model => model.Email, new { htmlAttributes = new { @class = "form-control" } })
  @Html.ValidationMessageFor(model => model.Email, "", new { @class = "text-danger" })
  </div>
 </div>

 <div class="form-group">

  @Html.LabelFor(model => model.Age, htmlAttributes: new { @class = "control-label col-md-2" })
  <div class="col-md-10">
  @Html.EditorFor(model => model.Age, new { htmlAttributes = new { @class = "form-control" } })
  @Html.ValidationMessageFor(model => model.Age, "", new { @class = "text-danger" })
  </div>
 </div>

 <div class="form-group">
  <div class="col-md-offset-2 col-md-10">
  <input type="submit" value="Create" class="btn btn-default" />
  </div>
 </div>
 </div>
}

<div>
 @Html.ActionLink("Back to List", "Index")
</div>

<script src="~/Scripts/jquery-1.10.2.min.js"></script>
<script src="~/Scripts/jquery.validate.min.js"></script>
<script src="~/Scripts/jquery.validate.unobtrusive.min.js"></script>

接著修改一下布局頁：

<!DOCTYPE html>
<html>
<head>
 <meta charset="utf-8" />
 <meta name="viewport" content="width=device-width, initial-scale=1.0">
 <title>@ViewBag.Title - My ASP.NET Application</title>
 <link href="~/Content/Site.css" rel="stylesheet" type="text/css" />
 <link href="~/Content/bootstrap.min.css" rel="stylesheet" type="text/css" />
 <script src="~/Scripts/modernizr-2.6.2.js"></script>
</head>
<body>
 <div class="navbar navbar-inverse navbar-fixed-top">
 <div class="container">
  <div class="navbar-header">
  <button type="button" class="navbar-toggle" data-toggle="collapse" data-target=".navbar-collapse">
   <span class="icon-bar"></span>
   <span class="icon-bar"></span>
   <span class="icon-bar"></span>
  </button>
  @Html.ActionLink("Application name", "Index", "Home", new { area = "" }, new { @class = "navbar-brand" })
  </div>
  <div class="navbar-collapse collapse">
  <ul class="nav navbar-nav">
   @Html.ActionLink("Student List","Index")
   @Html.ActionLink("Add Student ", "AddStudent")
  </ul>
  </div>
 </div>
 </div>

 <div class="container body-content">
 @RenderBody()
 <hr />
 <footer>
  <p>© @DateTime.Now.Year - My ASP.NET Application</p>
 </footer>
 </div>

 <script src="~/Scripts/jquery-1.10.2.min.js"></script>
 <script src="~/Scripts/bootstrap.min.js"></script>
</body>
</html>

修改一下默認路由：

using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.Mvc;
using System.Web.Routing;

namespace PagingAndSortingInMVC
{
 public class RouteConfig
 {
 public static void RegisterRoutes(RouteCollection routes)
 {
  routes.IgnoreRoute("{resource}.axd/{*pathInfo}");

  routes.MapRoute(
  name: "Default",
  url: "{controller}/{action}/{id}",
  defaults: new { controller = "Student", action = "Index", id = UrlParameter.Optional }
  );
 }
 }
}

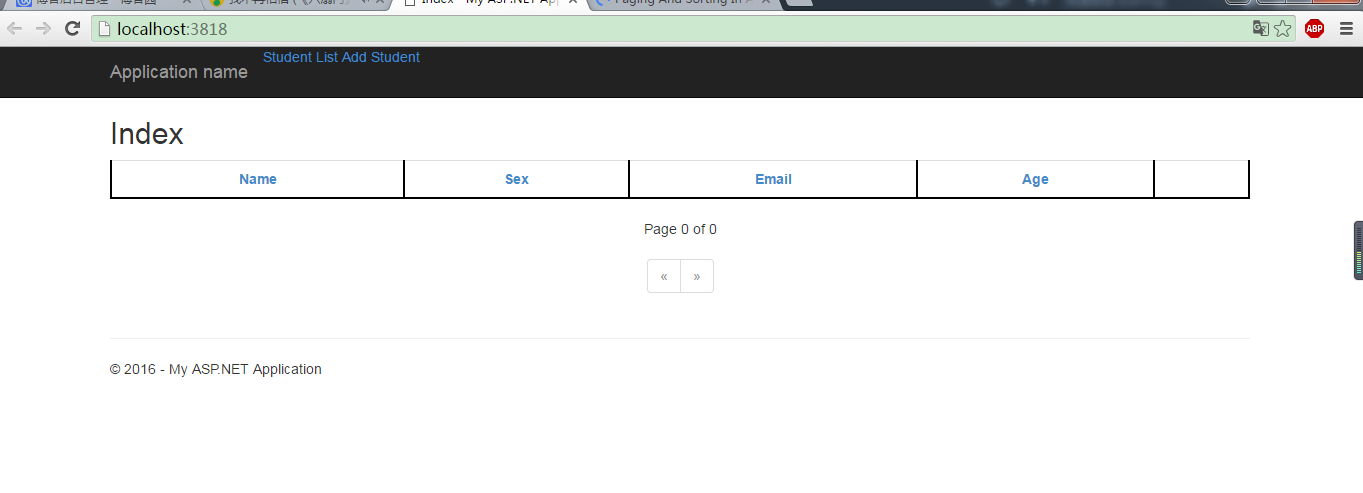

運行項目：

剛開始沒有任何數據，我們添加幾條測試數據：

我們來驗證一下，結果：

看到了麼，點擊相應的列標題就可以進行排序了。分頁也實現了。當然分頁的樣式可以通過改變這個選項：

@Html.PagedListPager(Model, page => Url.Action("Index", new { page}),PagedListRenderOptions.Classic)

這裡，我修改了一下

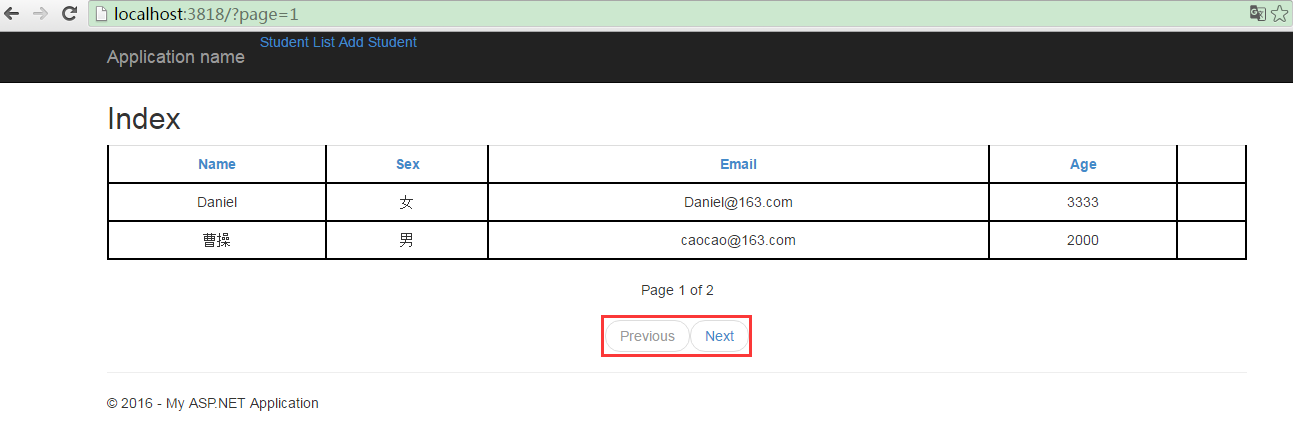

@Html.PagedListPager(Model, page => Url.Action("Index", new { page}),PagedListRenderOptions.TwitterBootstrapPager)

分頁控件的效果就是這樣了。

好了，這篇文章到此結束。

總結：分頁和排序是很重要的功能，需要熟練掌握。

以上就是本文的全部內容，希望對大家的學習有所幫助，也希望大家多多支持腳本之家。
