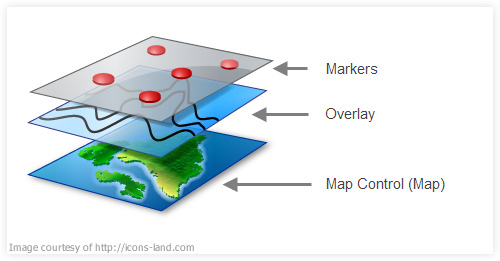

自定義Marker，可以理解為在地圖上自定義圖標（Custom Marker），先看看GMap的地圖和圖標的顯示方式：
Map控件上可以添加Overlay（圖層），可以添加多個圖層，先添加的圖層在下面顯示。
圖層上可以添加GMapMarker，當然也可以添加GMapPolygon和GMapRoute，後續介紹。
在地圖的使用中常要求的功能就是添加自定義圖標，可以點擊圖標、刪除圖標、拖動圖標、高亮圖標等。
下面介紹這些功能的實現（主要是基於WinForm的，WPF的可以參考官方Demo實現）：
1、自定義圖標，使用官方的Marker：
復制代碼 代碼如下:
Bitmap bitmap = Bitmap.FromFile("F:\\Projects\\GMapDemo\\GMapDemo\\Image\\A.png") as Bitmap;
GMapMarker marker = new GMarkerGoogle(point, bitmap);
直接使用GMap.NET.WindowsForms.Markers中的GMarkerGoogle，傳入一個Bitmap，就可以使用自定義的圖片來做圖標。
2、繼承GMapMarker，自定義Marker：
復制代碼 代碼如下:
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using GMap.NET;
using GMap.NET.WindowsForms;
using System.Drawing;
namespace GMapWinFormDemo
{
class GMapMarkerImage : GMapMarker
{
private Image image;
public Image Image
{
get
{
return image;
}
set
{
image = value;
if (image != null)
{
this.Size = new Size(image.Width, image.Height);
}
}
}
public Pen Pen
{
get;
set;
}
public Pen OutPen
{
get;
set;
}
public GMapMarkerImage(GMap.NET.PointLatLng p, Image image)
: base(p)
{
Size = new System.Drawing.Size(image.Width, image.Height);
Offset = new System.Drawing.Point(-Size.Width / 2, -Size.Height / 2);
this.image = image;
Pen = null;
OutPen = null;
}
public override void OnRender(Graphics g)
{
if (image == null)
return;
Rectangle rect = new Rectangle(LocalPosition.X, LocalPosition.Y, Size.Width, Size.Height);
g.DrawImage(image, rect);
if (Pen != null)
{
g.DrawRectangle(Pen, rect);
}
if (OutPen != null)
{
g.DrawEllipse(OutPen, rect);
}
}
public override void Dispose()
{
if (Pen != null)
{
Pen.Dispose();
Pen = null;
}
if (OutPen != null)
{
OutPen.Dispose();
OutPen = null;
}
base.Dispose();
}
}
}
介紹下GMapMarkerImage三個屬性的作用：
Image：保存圖標的圖片。
Pen：在圖片外圍畫DrawRectangle的Pen，當其不為null的時候，會在圖片的外圍畫一個矩形，實現高亮（highlight）的效果。
OutPen：在圖片外圍畫DrawEllipse的Pen，當其不為null的時候，會在圖片外圍畫一個一個橢圓，設置這個值可以實現閃動。
3、移動圖標（Move Marker）的實現：
在MapControl中添加如下事件的響應：
復制代碼 代碼如下:
mapControl.MouseDown += new MouseEventHandler(mapControl_MouseDown);
mapControl.MouseUp += new MouseEventHandler(mapControl_MouseUp);
mapControl.MouseMove += new MouseEventHandler(mapControl_MouseMove);
mapControl.OnMarkerClick += new MarkerClick(mapControl_OnMarkerClick);
mapControl.OnMarkerEnter += new MarkerEnter(mapControl_OnMarkerEnter);
mapControl.OnMarkerLeave += new MarkerLeave(mapControl_OnMarkerLeave);
MouseDown和MouseUp中判斷左鍵是否按下（用左鍵來移動圖標）。
OnMarkerEnter中設置選中的Marker，同時設置Pen的值，實現高亮。
OnMarkerLeave中取消選中的Marker，取消Pen的值，取消高亮。
MouseMove中更新選中選中Marker的Position就可以了。
4、圖標閃動的實現：
需要一個定時器：使用的是Form下的Timer，定時器響應的事件：
復制代碼 代碼如下:
void blinkTimer_Tick(object sender, EventArgs e)
{
foreach (GMapMarker m in objects.Markers)
{
if (m is GMapMarkerImage)
{
GMapMarkerImage marker = m as GMapMarkerImage;
if (marker.OutPen == null)
marker.OutPen = new Pen(Brushes.Red, 2);
else
{
marker.OutPen.Dispose();
marker.OutPen = null;
}
}
}
mapControl.Refresh();
}
更新所有Marker的OutPen的值（當然你也可以只更新某個Marker），通過在圖標上畫圈圈來實現閃動，當然你也可以通過設置Marker的IsVisible屬性來實現自己想要的效果。。。

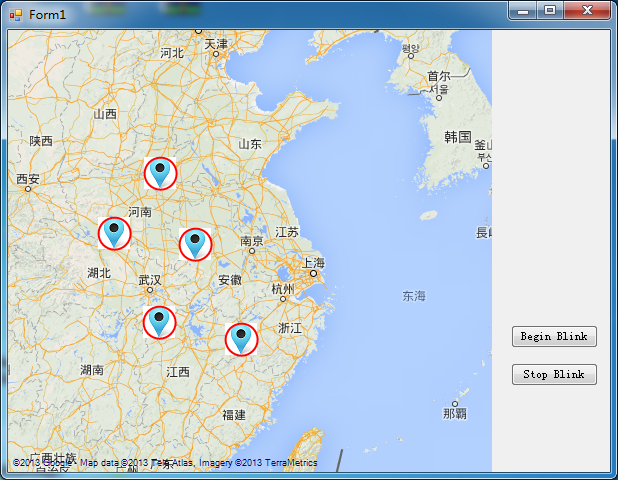

效果圖如下：
全部代碼如下：
復制代碼 代碼如下:
using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Windows.Forms;
using GMap.NET;
using GMap.NET.WindowsForms;
using GMap.NET.MapProviders;
using GMap.NET.WindowsForms.Markers;
namespace GMapWinFormDemo
{
public partial class MainForm : Form
{
private GMapOverlay objects = new GMapOverlay("objects"); //放置marker的圖層
private GMapMarkerImage currentMarker;
private bool isLeftButtonDown = false;
private Timer blinkTimer = new Timer();
public MainForm()
{
InitializeComponent();
try
{
System.Net.IPHostEntry e = System.Net.Dns.GetHostEntry("www.google.com.hk");
}
catch
{
mapControl.Manager.Mode = AccessMode.CacheOnly;
MessageBox.Show("No internet connection avaible, going to CacheOnly mode.", "GMap.NET Demo", MessageBoxButtons.OK, MessageBoxIcon.Warning);
}
mapControl.CacheLocation = Environment.CurrentDirectory + "\\GMapCache\\"; //緩存位置
mapControl.MapProvider = GMapProviders.GoogleChinaMap; //google china 地圖
mapControl.MinZoom = 2; //最小比例
mapControl.MaxZoom = 17; //最大比例
mapControl.Zoom = 5; //當前比例
mapControl.ShowCenter = false; //不顯示中心十字點
mapControl.DragButton = System.Windows.Forms.MouseButtons.Left; //左鍵拖拽地圖
mapControl.Position = new PointLatLng(32.064,118.704); //地圖中心位置：南京
mapControl.OnMapZoomChanged += new MapZoomChanged(mapControl_OnMapZoomChanged);
mapControl.MouseClick += new MouseEventHandler(mapControl_MouseClick);
mapControl.MouseDown += new MouseEventHandler(mapControl_MouseDown);
mapControl.MouseUp += new MouseEventHandler(mapControl_MouseUp);
mapControl.MouseMove += new MouseEventHandler(mapControl_MouseMove);
mapControl.OnMarkerClick += new MarkerClick(mapControl_OnMarkerClick);
mapControl.OnMarkerEnter += new MarkerEnter(mapControl_OnMarkerEnter);
mapControl.OnMarkerLeave += new MarkerLeave(mapControl_OnMarkerLeave);
mapControl.Overlays.Add(objects);
}
void mapControl_MouseMove(object sender, MouseEventArgs e)
{
if (e.Button == System.Windows.Forms.MouseButtons.Left && isLeftButtonDown)
{
if (currentMarker != null)
{
PointLatLng point = mapControl.FromLocalToLatLng(e.X, e.Y);
currentMarker.Position = point;
currentMarker.ToolTipText = string.Format("{0},{1}", point.Lat, point.Lng);
}
}
}
void mapControl_MouseUp(object sender, MouseEventArgs e)
{
if (e.Button == System.Windows.Forms.MouseButtons.Left)
{
isLeftButtonDown = false;
}
}
void mapControl_MouseDown(object sender, MouseEventArgs e)
{
if (e.Button == System.Windows.Forms.MouseButtons.Left)
{
isLeftButtonDown = true;
}
}
void mapControl_OnMarkerLeave(GMapMarker item)
{
if (item is GMapMarkerImage)
{
currentMarker = null;
GMapMarkerImage m = item as GMapMarkerImage;
m.Pen.Dispose();
m.Pen = null;
}
}
void mapControl_OnMarkerEnter(GMapMarker item)
{
if (item is GMapMarkerImage)
{
currentMarker = item as GMapMarkerImage;
currentMarker.Pen = new Pen(Brushes.Red, 2);
}
}
void mapControl_OnMarkerClick(GMapMarker item, MouseEventArgs e)
{
}
void mapControl_MouseClick(object sender, MouseEventArgs e)
{
if(e.Button == System.Windows.Forms.MouseButtons.Right)
{
//objects.Markers.Clear();
PointLatLng point = mapControl.FromLocalToLatLng(e.X,e.Y);
//GMapMarker marker = new GMarkerGoogle(point, GMarkerGoogleType.green);
Bitmap bitmap = Bitmap.FromFile("F:\\Projects\\GMapDemo\\GMapDemo\\Image\\A.png") as Bitmap;
//GMapMarker marker = new GMarkerGoogle(point, bitmap);
GMapMarker marker = new GMapMarkerImage(point, bitmap);
marker.ToolTipMode = MarkerTooltipMode.OnMouseOver;
marker.ToolTipText = string.Format("{0},{1}", point.Lat, point.Lng);
objects.Markers.Add(marker);
}
}
void mapControl_OnMapZoomChanged()
{
}
private void buttonBeginBlink_Click(object sender, EventArgs e)
{
blinkTimer.Interval = 1000;
blinkTimer.Tick += new EventHandler(blinkTimer_Tick);
blinkTimer.Start();
}
void blinkTimer_Tick(object sender, EventArgs e)
{
foreach (GMapMarker m in objects.Markers)
{
if (m is GMapMarkerImage)
{
GMapMarkerImage marker = m as GMapMarkerImage;
if (marker.OutPen == null)
marker.OutPen = new Pen(Brushes.Red, 2);
else
{
marker.OutPen.Dispose();
marker.OutPen = null;
}
}
}
mapControl.Refresh();
}
private void buttonStopBlink_Click(object sender, EventArgs e)
{
blinkTimer.Stop();
foreach (GMapMarker m in objects.Markers)
{
if (m is GMapMarkerImage)
{
GMapMarkerImage marker = m as GMapMarkerImage;
marker.OutPen.Dispose();
marker.OutPen = null;
}
}
mapControl.Refresh();
}
}
}
