本文將介紹如何在 System.Windows.Forms.DataGrid中切入使用ComboBox控件，主要包括三方面的內容。
1． 在DataGrid中加入ComboBox列；
2． 把在DataGrid中的修改保存到對應的網格；
3． 設置DataGrid中網格的焦點。
下面是整個源代碼，一些功能可以看注釋。
using System;
using System.Drawing;
using System.Collections;
using System.ComponentModel;
using System.Windows.Forms;
using System.Data;
namespace DataGridTest
{
public class Form1 : System.Windows.Forms.Form
{
private System.Windows.Forms.DataGrid dgdFunctionArea;
private DataTable dtblFunctionalArea;
private System.Windows.Forms.Button buttonFocus;
private System.ComponentModel.Container components = null;
public Form1()
{
InitializeComponent();
PopulateGrid();
}
protected override void Dispose( bool disposing )
{
if( disposing )
{
if (components != null)
{
components.Dispose();
}
}
base.Dispose( disposing );
}
#region Windows 窗體設計器生成的代碼
private void InitializeComponent()
{
this.dgdFunctionArea = new System.Windows.Forms.DataGrid();
this.buttonFocus = new System.Windows.Forms.Button();
((System.ComponentModel.ISupportInitialize)(this.dgdFunctionArea)).BeginInit();
this.SuspendLayout();
//
// dgdFunctionArea
//
this.dgdFunctionArea.DataMember = "";
this.dgdFunctionArea.HeaderForeColor = System.Drawing.SystemColors.ControlText;
this.dgdFunctionArea.Location = new System.Drawing.Point(4, 8);
this.dgdFunctionArea.Name = "dgdFunctionArea";
this.dgdFunctionArea.Size = new System.Drawing.Size(316, 168);
this.dgdFunctionArea.TabIndex = 0;
//
// buttonFocus
//
this.buttonFocus.Location = new System.Drawing.Point(232, 188);
this.buttonFocus.Name = "buttonFocus";
this.buttonFocus.Size = new System.Drawing.Size(84, 23);
this.buttonFocus.TabIndex = 1;
this.buttonFocus.Text = "獲取焦點";
this.buttonFocus.Click += new System.EventHandler(this.buttonFocus_Click);
//
// Form1
//
this.AutoScaleBaseSize = new System.Drawing.Size(6, 14);
this.ClientSize = new System.Drawing.Size(332, 217);
this.Controls.Add(this.buttonFocus);
this.Controls.Add(this.dgdFunctionArea);
this.Name = "Form1";
this.Text = "Form1";
((System.ComponentModel.ISupportInitialize)(this.dgdFunctionArea)).EndInit();
this.ResumeLayout(false);
}
#endregion
/// <summary>
/// 應用程序的主入口點。
/// </summary>
[STAThread]
static void Main()
{
Application.Run(new Form1());
}
//初始化DataGrid
private void PopulateGrid()
{
//創建一個DataTable對象，包括四列，前三列為String，最後一列為Boolean。
dtblFunctionalArea = new DataTable ("FunctionArea");
string[] arrstrFunctionalArea = new string [3]{"Functional Area","Min","Max"};
DataColumn dtCol = null;
//創建String列
for(int i=0; i< 3;i++)
{
dtCol = new DataColumn(arrstrFunctionalArea[i]);
dtCol.DataType = Type.GetType("System.String");
dtCol.DefaultValue = "";
dtblFunctionalArea.Columns.Add(dtCol);
}
//創建Boolean列，用CheckedBox來顯示。
DataColumn dtcCheck = new DataColumn("IsMandatory");
dtcCheck.DataType = System.Type.GetType("System.Boolean");
dtcCheck.DefaultValue = false;
dtblFunctionalArea.Columns.Add(dtcCheck);
//把表綁定到DataGrid
dgdFunctionArea.DataSource = dtblFunctionalArea;
//為DataGrid加載DataGridTableStyle樣式
if(!dgdFunctionArea.TableStyles.Contains("FunctionArea"))
{
DataGridTableStyle dgdtblStyle = new DataGridTableStyle();
dgdtblStyle.MappingName = dtblFunctionalArea.TableName;
dgdFunctionArea.TableStyles.Add(dgdtblStyle);
dgdtblStyle.RowHeadersVisible = false;
dgdtblStyle.HeaderBackColor = Color.LightSteelBlue;
dgdtblStyle.AllowSorting = false;
dgdtblStyle.HeaderBackColor = Color.FromArgb(8,36,107);
dgdtblStyle.RowHeadersVisible = false;
dgdtblStyle.HeaderForeColor = Color.White;
dgdtblStyle.HeaderFont = new System.Drawing.Font("Microsoft Sans Serif", 9F,
System.Drawing.FontStyle.Bold,
System.Drawing.GraphicsUnit.Point, ((System.Byte)(0)));
dgdtblStyle.GridLineColor = Color.DarkGray;
dgdtblStyle.PreferredRowHeight = 22;
dgdFunctionArea.BackgroundColor = Color.White;
//設置列的寬度
GridColumnStylesCollection colStyle = dgdFunctionArea.TableStyles[0].GridColumnStyles;
colStyle[0].Width = 100;
colStyle[1].Width = 50;
colStyle[2].Width = 50;
colStyle[3].Width = 80;
}
DataGridTextBoxColumn dgtb = (DataGridTextBoxColumn)dgdFunctionArea.TableStyles[0].GridColumnStyles[0];
ComboBox cmbFunctionArea = new ComboBox();
cmbFunctionArea.Items.AddRange(new object[]{"選項一","選項二","選項三"});
cmbFunctionArea.Cursor = Cursors.Arrow;
cmbFunctionArea.DropDownStyle= ComboBoxStyle.DropDownList;
cmbFunctionArea.Dock = DockStyle.Fill;
//在選定項發生更改並且提交了該更改後發生
cmbFunctionArea.SelectionChangeCommitted += new EventHandler(cmbFunctionArea_SelectionChangeCommitted);
//把ComboBox添加到DataGridTableStyle的第一列
dgtb.TextBox.Controls.Add(cmbFunctionArea);
}
//設置焦點模擬
private void GetFocus(int row,int col)
{
//先把焦點移動到DataGrid
this.dgdFunctionArea.Focus();
//把焦點移動到DataGridCell
DataGridCell dgc = new DataGridCell(row,col);
this.dgdFunctionArea.CurrentCell = dgc;
DataGridTextBoxColumn dgtb = (DataGridTextBoxColumn)dgdFunctionArea.TableStyles[0].GridColumnStyles[col];
//設置焦點
dgtb.TextBox.Focus();
}
//把Combobox上修改的數據提交到當前的網格
private void cmbFunctionArea_SelectionChangeCommitted(object sender, EventArgs e)
{
this.dgdFunctionArea[this.dgdFunctionArea.CurrentCell] = ((ComboBox)sender).SelectedItem.ToString();
}
//設置新的焦點
private void buttonFocus_Click(object sender, System.EventArgs e)
{
//焦點模擬,這裡設置第三行第一列
GetFocus(2,0);
}
}

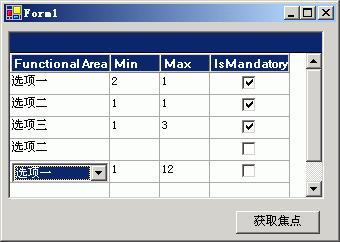

}下面是測試界面：
總結，這裡是通過DataGridTextBoxColumn.TextBox.Controls.Add方法實現在列中添加ComboBox控件；對於數據的保存是使用ComboBox.SelectionChangeCommitted事件來完成；設置焦點是通過DataGridTextBoxColumn.TextBox.Focus方法來實現。另外通過這個方法也可以添加DateTimePicker等類似的控件。
