最前面的話：Smobiler是一個在VS環境中使用.Net語言來開發APP的開發平台，也許比Xamarin更方便

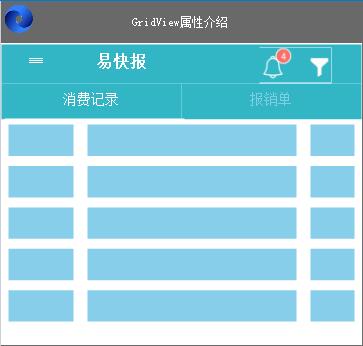

一、目標樣式

我們要實現上圖中的效果，需要如下的操作：

1.從工具欄上的”Smobiler Components”拖動一個GridView控件到窗體界面上

2.修改GridView控件的屬性

a.load事件代碼

VB：
    Private Sub TestGridView3_Load(senderAs Object, e As EventArgs)Handles MyBase.Load
        Dim matTable As New DataTable
        With matTable
        .Columns.Add("MAT_IMG", GetType(String))
        .Columns.Add("MAT_DESC1", GetType(String))
        .Columns.Add("MAT_DESC2", GetType(String))
        .Columns.Add("MAT_DESC3", GetType(String))
        .Rows.Add()
        .Rows(0)("MAT_IMG") = "img97"
        .Rows(0)("MAT_DESC1") = "￥69.00"
        .Rows(0)("MAT_DESC2") = "2015/07/08"
        .Rows(0)("MAT_DESC3") = "1張發票"
        .Rows.Add()
        .Rows(1)("MAT_IMG") = "img96"
        .Rows(1)("MAT_DESC1") = "￥39.00"
        .Rows(1)("MAT_DESC2") = "2015/07/08"
        .Rows(1)("MAT_DESC3") = "1張發票"
        .Rows.Add()
        .Rows(2)("MAT_IMG") = "img95"
        .Rows(2)("MAT_DESC1") = "￥280.00"
        .Rows(2)("MAT_DESC2") = "2015/07/08"
        .Rows(2)("MAT_DESC3") = "1張發票"
        End With
        Me.GridView1.DataSource = matTable
        Me.GridView1.DataBind()
    End Sub

C#：
    private void TestGridView3_Load(object sender, EventArgs e)
    {
        DataTable matTable = new DataTable();
        matTable.Columns.Add("MAT_IMG", typeof(string));
        matTable.Columns.Add("MAT_DESC1", typeof(string));
        matTable.Columns.Add("MAT_DESC2", typeof(string));
        matTable.Columns.Add("MAT_DESC3", typeof(string));
        matTable.Rows.Add();
        matTable.Rows[0]["MAT_IMG"] = "img97";
        matTable.Rows[0]["MAT_DESC1"] = "￥69.00";
        matTable.Rows[0]["MAT_DESC2"] = "2015/07/08";
        matTable.Rows[0]["MAT_DESC3"] = "1張發票";
        matTable.Rows.Add();
        matTable.Rows[1]["MAT_IMG"] = "img96";
        matTable.Rows[1]["MAT_DESC1"] = "￥39.00";
        matTable.Rows[1]["MAT_DESC2"] = "2015/07/08";
        matTable.Rows[1]["MAT_DESC3"] = "1張發票";
        matTable.Rows.Add();
        matTable.Rows[2]["MAT_IMG"] = "img95";
        matTable.Rows[2]["MAT_DESC1"] = "￥280.00";
        matTable.Rows[2]["MAT_DESC2"] = "2015/07/08";
        matTable.Rows[2]["MAT_DESC3"] = "1張發票";
        this.GridView1.DataSource = matTable;
        this.GridView1.DataBind();
    }

b.Layout屬性

新創建MobileForm項，並命名為MessageShow3，並拖入一個Label控件，如圖1

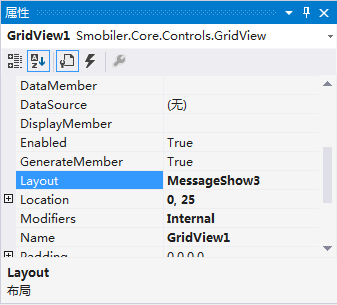

GridView的Layout屬性，綁定新建的窗體MessageShow3，如圖2

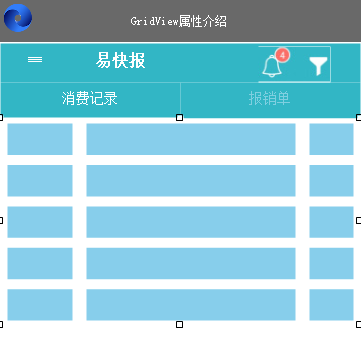

3.Smobiler窗體設計界面顯示效果

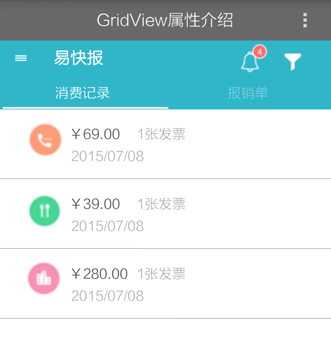

二、手機效果顯示
