Code39是條形碼的一種。由於編制簡單、能夠對任意長度的數據進行編碼、支持設備廣泛等特性而被廣泛采用。
Code39條形碼規則
1、 每五條線表示一個字符； 2、 粗線表示1，細線表示0； 3、 線條間的間隙寬的表示1，窄的表示0； 4、 五條線加上它們之間的四條間隙就是九位二進制編碼，而且這九位中必定有三位是1，所以稱為39碼； 5、 條形碼的首尾各一個 * 標識開始和結束。 Code 39只接受如下43個有效輸入字符：
代碼分享:
/// <summary>
/// Code39一維碼生成類
/// http://www.cnblogs.com/bluescreen/p/4689351.html
/// </summary>
public class CSharpCode39
{
#region 數據碼
private byte[,] c39_bp = new byte[,] {
{ 0x30, 0x30, 0x30, 0x30, 0x31, 0x31, 0x30, 0x31, 0x30, 0x30 }, { 0x31, 0x31, 0x30, 0x30, 0x31, 0x30, 0x30, 0x30, 0x30, 0x31 }, { 0x32, 0x30, 0x30, 0x31, 0x31, 0x30, 0x30, 0x30, 0x30, 0x31 }, { 0x33, 0x31, 0x30, 0x31, 0x31, 0x30, 0x30, 0x30, 0x30, 0x30 }, { 0x34, 0x30, 0x30, 0x30, 0x31, 0x31, 0x30, 0x30, 0x30, 0x31 }, { 0x35, 0x31, 0x30, 0x30, 0x31, 0x31, 0x30, 0x30, 0x30, 0x30 }, { 0x36, 0x30, 0x30, 0x31, 0x31, 0x31, 0x30, 0x30, 0x30, 0x30 }, { 0x37, 0x30, 0x30, 0x30, 0x31, 0x30, 0x30, 0x31, 0x30, 0x31 }, { 0x38, 0x31, 0x30, 0x30, 0x31, 0x30, 0x30, 0x31, 0x30, 0x30 }, { 0x39, 0x30, 0x30, 0x31, 0x31, 0x30, 0x30, 0x31, 0x30, 0x30 }, { 0x41, 0x31, 0x30, 0x30, 0x30, 0x30, 0x31, 0x30, 0x30, 0x31 }, { 0x42, 0x30, 0x30, 0x31, 0x30, 0x30, 0x31, 0x30, 0x30, 0x31 }, { 0x43, 0x31, 0x30, 0x31, 0x30, 0x30, 0x31, 0x30, 0x30, 0x30 }, { 0x44, 0x30, 0x30, 0x30, 0x30, 0x31, 0x31, 0x30, 0x30, 0x31 }, { 0x45, 0x31, 0x30, 0x30, 0x30, 0x31, 0x31, 0x30, 0x30, 0x30 }, { 70, 0x30, 0x30, 0x31, 0x30, 0x31, 0x31, 0x30, 0x30, 0x30 },
{ 0x47, 0x30, 0x30, 0x30, 0x30, 0x30, 0x31, 0x31, 0x30, 0x31 }, { 0x48, 0x31, 0x30, 0x30, 0x30, 0x30, 0x31, 0x31, 0x30, 0x30 }, { 0x49, 0x30, 0x30, 0x31, 0x30, 0x30, 0x31, 0x31, 0x30, 0x30 }, { 0x4a, 0x30, 0x30, 0x30, 0x30, 0x31, 0x31, 0x31, 0x30, 0x30 }, { 0x4b, 0x31, 0x30, 0x30, 0x30, 0x30, 0x30, 0x30, 0x31, 0x31 }, { 0x4c, 0x30, 0x30, 0x31, 0x30, 0x30, 0x30, 0x30, 0x31, 0x31 }, { 0x4d, 0x31, 0x30, 0x31, 0x30, 0x30, 0x30, 0x30, 0x31, 0x30 }, { 0x4e, 0x30, 0x30, 0x30, 0x30, 0x31, 0x30, 0x30, 0x31, 0x31 }, { 0x4f, 0x31, 0x30, 0x30, 0x30, 0x31, 0x30, 0x30, 0x31, 0x30 }, { 80, 0x30, 0x30, 0x31, 0x30, 0x31, 0x30, 0x30, 0x31, 0x30 }, { 0x51, 0x30, 0x30, 0x30, 0x30, 0x30, 0x30, 0x31, 0x31, 0x31 }, { 0x52, 0x31, 0x30, 0x30, 0x30, 0x30, 0x30, 0x31, 0x31, 0x30 }, { 0x53, 0x30, 0x30, 0x31, 0x30, 0x30, 0x30, 0x31, 0x31, 0x30 }, { 0x54, 0x30, 0x30, 0x30, 0x30, 0x31, 0x30, 0x31, 0x31, 0x30 }, { 0x55, 0x31, 0x31, 0x30, 0x30, 0x30, 0x30, 0x30, 0x30, 0x31 }, { 0x56, 0x30, 0x31, 0x31, 0x30, 0x30, 0x30, 0x30, 0x30, 0x31 },
{ 0x57, 0x31, 0x31, 0x31, 0x30, 0x30, 0x30, 0x30, 0x30, 0x30 }, { 0x58, 0x30, 0x31, 0x30, 0x30, 0x31, 0x30, 0x30, 0x30, 0x31 }, { 0x59, 0x31, 0x31, 0x30, 0x30, 0x31, 0x30, 0x30, 0x30, 0x30 }, { 90, 0x30, 0x31, 0x31, 0x30, 0x31, 0x30, 0x30, 0x30, 0x30 }, { 0x2d, 0x30, 0x31, 0x30, 0x30, 0x30, 0x30, 0x31, 0x30, 0x31 }, { 0x2e, 0x31, 0x31, 0x30, 0x30, 0x30, 0x30, 0x31, 0x30, 0x30 }, { 0x20, 0x30, 0x31, 0x31, 0x30, 0x30, 0x30, 0x31, 0x30, 0x30 }, { 0x2a, 0x30, 0x31, 0x30, 0x30, 0x31, 0x30, 0x31, 0x30, 0x30 }, { 0x24, 0x30, 0x31, 0x30, 0x31, 0x30, 0x31, 0x30, 0x30, 0x30 }, { 0x2f, 0x30, 0x31, 0x30, 0x31, 0x30, 0x30, 0x30, 0x31, 0x30 }, { 0x2b, 0x30, 0x31, 0x30, 0x30, 0x30, 0x31, 0x30, 0x31, 0x30 }, { 0x25, 0x30, 0x30, 0x30, 0x31, 0x30, 0x31, 0x30, 0x31, 0x30 }
};
//code39合法字符集 [0-9A-Z+-*/%. ] 共43個
private byte[] c39_cw = new byte[] {
0x30, 0x31, 50, 0x33, 0x34, 0x35, 0x36, 0x37, 0x38, 0x39, 0x41, 0x42, 0x43, 0x44, 0x45, 70,
0x47, 0x48, 0x49, 0x4a, 0x4b, 0x4c, 0x4d, 0x4e, 0x4f, 80, 0x51, 0x52, 0x53, 0x54, 0x55, 0x56,
0x57, 0x58, 0x59, 90, 0x2d, 0x2e, 0x20, 0x24, 0x2f, 0x2b, 0x25
};
private byte[,] c39_ex = new byte[,] {
{ 1, 0x24, 0x41 }, { 2, 0x24, 0x42 }, { 3, 0x24, 0x43 }, { 4, 0x24, 0x44 }, { 5, 0x24, 0x45 }, { 6, 0x24, 70 }, { 7, 0x24, 0x47 }, { 8, 0x24, 0x48 }, { 9, 0x24, 0x49 }, { 10, 0x24, 0x4a }, { 11, 0x24, 0x4b }, { 12, 0x24, 0x4c }, { 13, 0x24, 0x4d }, { 14, 0x24, 0x4e }, { 15, 0x24, 0x4f }, { 0x10, 0x24, 80 },
{ 0x11, 0x24, 0x51 }, { 0x12, 0x24, 0x52 }, { 0x13, 0x24, 0x53 }, { 20, 0x24, 0x54 }, { 0x15, 0x24, 0x55 }, { 0x16, 0x24, 0x56 }, { 0x17, 0x24, 0x57 }, { 0x18, 0x24, 0x58 }, { 0x19, 0x24, 0x59 }, { 0x1a, 0x24, 90 }, { 0x1b, 0x25, 0x41 }, { 0x1c, 0x25, 0x42 }, { 0x1d, 0x25, 0x43 }, { 30, 0x25, 0x44 }, { 0x1f, 0x25, 0x45 }, { 0x3b, 0x25, 70 },
{ 60, 0x25, 0x47 }, { 0x3d, 0x25, 0x48 }, { 0x3e, 0x25, 0x49 }, { 0x3f, 0x25, 0x4a }, { 0x5b, 0x25, 0x4b }, { 0x5c, 0x25, 0x4c }, { 0x5d, 0x25, 0x4d }, { 0x5e, 0x25, 0x4e }, { 0x5f, 0x25, 0x4f }, { 0x7b, 0x25, 80 }, { 0x7c, 0x25, 0x51 }, { 0x7d, 0x25, 0x52 }, { 0x7e, 0x25, 0x53 }, { 0x7f, 0x25, 0x54 }, { 0, 0x25, 0x55 }, { 0x40, 0x25, 0x56 },
{ 0x60, 0x25, 0x57 }, { 0x21, 0x2f, 0x41 }, { 0x22, 0x2f, 0x42 }, { 0x23, 0x2f, 0x43 }, { 0x26, 0x2f, 70 }, { 0x27, 0x2f, 0x47 }, { 40, 0x2f, 0x48 }, { 0x29, 0x2f, 0x49 }, { 0x2a, 0x2f, 0x4a }, { 0x2c, 0x2f, 0x4c }, { 0x3a, 0x2f, 90 }, { 0x61, 0x2b, 0x41 }, { 0x62, 0x2b, 0x42 }, { 0x63, 0x2b, 0x43 }, { 100, 0x2b, 0x44 }, { 0x65, 0x2b, 0x45 },
{ 0x66, 0x2b, 70 }, { 0x67, 0x2b, 0x47 }, { 0x68, 0x2b, 0x48 }, { 0x69, 0x2b, 0x49 }, { 0x6a, 0x2b, 0x4a }, { 0x6b, 0x2b, 0x4b }, { 0x6c, 0x2b, 0x4c }, { 0x6d, 0x2b, 0x4d }, { 110, 0x2b, 0x4e }, { 0x6f, 0x2b, 0x4f }, { 0x70, 0x2b, 80 }, { 0x71, 0x2b, 0x51 }, { 0x72, 0x2b, 0x52 }, { 0x73, 0x2b, 0x53 }, { 0x74, 0x2b, 0x54 }, { 0x75, 0x2b, 0x55 },
{ 0x76, 0x2b, 0x56 }, { 0x77, 0x2b, 0x57 }, { 120, 0x2b, 0x58 }, { 0x79, 0x2b, 0x59 }, { 0x7a, 0x2b, 90 }
};
#endregion
#region 字段和屬性
private bool _checksum;
private string _dataToEncode;
private bool _humanReadable;
private string _humanReadableFont;
private float _humanReadableSize;
private float _marginX;
private float _marginY;
private float _moduleHeight;
private float _moduleWidth;
private float _ratio;
private float _reduction;
private Color _codeBarColor = Color.Black;
private bool _isDisplayCheckCode;
private string _checkData;
private bool _isDisplayStartStopSign;
/// <summary>
/// 是否檢查效驗
/// </summary>
public bool Checksum
{
get
{
return _checksum;
}
set
{
_checksum = value;
}
}
/// <summary>
/// 要進行編碼的數據
/// </summary>
public string DataToEncode
{
get
{
return _dataToEncode;
}
set
{
_dataToEncode = value;
}
}
/// <summary>
/// 是否顯示文本內容
/// </summary>
public bool HumanReadable
{
get
{
return _humanReadable;
}
set
{
_humanReadable = value;
}
}
/// <summary>
/// 用於顯示文本內容的字體
/// </summary>
public string HumanReadableFont
{
get
{
return _humanReadableFont;
}
set
{
_humanReadableFont = value;
}
}
/// <summary>
/// 用於顯示文本內容文字的代大小
/// </summary>
public float HumanReadableSize
{
get
{
return _humanReadableSize;
}
set
{
_humanReadableSize = value;
}
}
/// <summary>
/// 水平方向邊距
/// 水平方向建議盡量留白
/// 如果沒有留白同時模塊寬度較小可能會造成無法識別
/// </summary>
public float MarginX
{
get
{
return _marginX;
}
set
{
_marginX = value;
}
}
/// <summary>
/// 垂直方向邊距
/// </summary>
public float MarginY
{
get
{
return _marginY;
}
set
{
_marginY = value;
}
}
/// <summary>
/// 模塊高度(mm)
/// </summary>
public float ModuleHeight
{
get
{
return _moduleHeight;
}
set
{
_moduleHeight = value;
}
}
/// <summary>
/// 模塊寬度(mm)
/// 模塊寬度不應低於0.2646f
/// 模塊寬度過低會造成數據丟失因而讀不出數據或者會誤讀
/// </summary>
public float ModuleWidth
{
get
{
return _moduleWidth;
}
set
{
_moduleWidth = value;
}
}
/// <summary>
/// 放大比率
/// </summary>
public float Ratio
{
get
{
return _ratio;
}
set
{
_ratio = value;
}
}
/// <summary>
/// 縮小
/// </summary>
public float Reduction
{
get
{
return _reduction;
}
set
{
_reduction = value;
}
}
/// <summary>
/// 設置條形碼的顏色
/// </summary>
public Color CodeBarColor
{
get
{
return _codeBarColor;
}
set
{
_codeBarColor = value;
}
}
/// <summary>
/// 是否顯示效驗碼
/// 此屬性要在Checksum屬性為true的情況下有用
/// </summary>
public bool IsDisplayCheckCode
{
get { return this._isDisplayCheckCode; }
set { this._isDisplayCheckCode = value; }
}
/// <summary>
/// 供人識別是否顯示起止符
/// </summary>
public bool IsDisplayStartStopSign
{
get { return this._isDisplayStartStopSign; }
set { this._isDisplayStartStopSign = value; }
}
#endregion
/// <summary>
/// 默認構造函數
/// 初始化
/// </summary>
public CSharpCode39()
{
this.initData();
}
public CSharpCode39(string dataToEncode)
{
this.initData();
this._dataToEncode = dataToEncode;
}
/// <summary>
/// 默認構造函數
/// 初始化數據
/// </summary>
private void initData()
{
this._humanReadableFont = "Arial";
this._humanReadableSize = 10f;
this._codeBarColor = Color.Black;
this._moduleHeight = 15f;//模塊高度毫米
this._moduleWidth = 0.35f;//模塊寬度毫米
this._ratio = 3f;
this._marginX =2;
this._marginY =2;
this._checksum = true;
this._isDisplayCheckCode = false;
this._isDisplayStartStopSign = false;
}
private char[] _bitpattern_c39(string rawdata, ref int finalLength)
{
//0x27 39
//0x50 80
if ((rawdata.Length == 0) || (rawdata.Length > 0x50 /*0x27*/))
{
return null;
}
for (int i = 0; i < rawdata.Length; i++)
{
if ((rawdata[i] == '\0') || (rawdata[i] > '\x007f'))
{
return null;
}
}
byte[] data = processTilde(rawdata);
if (data.Length == 0)
{
return null;
}
byte[] buffer2 = this.processExtended(data);
if ((buffer2.Length == 0) || (buffer2.Length > /*40*/80))
{
return null;
}
finalLength = this._checksum ? ((buffer2.Length + 2) + 1) : (buffer2.Length + 2);
return this.getPattern_c39(buffer2);
}
/// <summary>
/// 計算效驗值
/// </summary>
/// <param name="data"></param>
/// <param name="len"></param>
/// <returns></returns>
private byte _checksum_c39(byte[] data, int len)
{
//0x2b 43
//字符值的總和除以合法字符集的個數43 取余數 余數在合法字符數組中對應的數值就是效驗值
int num2 = 0;
for (int i = 1; i < len; i++)
{
num2 += this.valueFromCharacter(data[i]);
}
return this.c39_cw[num2 % 0x2b];
}
private char[] Code39_bitpattern(string dataToEncode)
{
int finalLength = 0;
return this._bitpattern_c39(dataToEncode, ref finalLength);
}
/// <summary>
/// 獲得Code39條碼圖片
/// </summary>
/// <param name="resolution">DPI</param>
/// <returns></returns>
public Bitmap getBitmapImage(float resolution)
{
return Code39_createCode(resolution);
}
private Bitmap Code39_createCode(float resolution)
{
int num6;
int finalLength = 0;
char[] chArray = this._bitpattern_c39(DataToEncode, ref finalLength);
if (chArray == null)
{
return null;
}
float fontsize = this._humanReadable ? (0.3527778f * this._humanReadableSize) : 0f;
// float num3 = (7f * ModuleWidth) + ((3f * Ratio) * ModuleWidth);
float num3 = (7f * this._moduleWidth) + ((3f * this._ratio) * this._moduleWidth);
float width = (finalLength * num3) + (2f * this._marginX);
float height = (this._moduleHeight + (2f * this._marginY)) + fontsize;
width *= resolution / 25.4f;
height *= resolution / 25.4f;
Bitmap image = new Bitmap((int)width, (int)height, PixelFormat.Format32bppPArgb);
image.SetResolution(resolution, resolution);
//image.SetResolution(300, 300);
Graphics g = Graphics.FromImage(image);
g.Clear(Color.White);
g.PageUnit = GraphicsUnit.Millimeter; //以毫米為度量單位
g.FillRectangle(new SolidBrush(Color.White), new Rectangle(0, 0, /*(int)width*/image.Width, /*(int)height*/image.Height));
//new Pen(Color.Black, 2f);
//new SolidBrush(Color.White);
SolidBrush brush = new SolidBrush(Color.Black);
if (resolution < 300f)
{
//g.TextRenderingHint = TextRenderingHint.AntiAlias;
//g.SmoothingMode = SmoothingMode.AntiAlias;
g.CompositingQuality = CompositingQuality.HighQuality;
//g.SmoothingMode = SmoothingMode.HighQuality;
g.InterpolationMode = InterpolationMode.HighQualityBicubic;
g.TextRenderingHint = TextRenderingHint.AntiAliasGridFit;
}
float num7 = 0f;
for (num6 = 0; num6 < chArray.Length; num6++)
{
if (chArray[num6] == '0')
{
if ((num6 & 1) != 1)
{
RectangleF rect = new RectangleF(MarginX + num7, MarginY, ModuleWidth, ModuleHeight);
MakeBar(g, rect, Reduction);
}
num7 += 1f * ModuleWidth;
}
else
{
if ((num6 & 1) != 1)
{
RectangleF ef2 = new RectangleF(MarginX + num7, MarginY, Ratio * ModuleWidth, ModuleHeight);
MakeBar(g, ef2, Reduction);
}
num7 += Ratio * ModuleWidth;
}
}
#region 供人識別內容
if (this._humanReadable)
{
#region 保留
/*byte[] buffer2 = processTilde(this._dataToEncode);
int index = 0;
List<byte> arr = new List<byte>();
for (num6 = 0; num6 < buffer2.Length; num6++)
{
//0x20 32 0x7e 126
if ((buffer2[num6] >= 0x20) && (buffer2[num6] <= 0x7e))
{
arr.Add(buffer2[num6]);
}
}
byte[] bytes = new byte[arr.Count];
for (int i = 0; i < arr.Count; i++)
{
bytes[i] = arr[i];
}
index = arr.Count;
//string text = new ASCIIEncoding().GetString(bytes, 0, index);
*/
#endregion
string text = this._dataToEncode;
if (this._isDisplayCheckCode&&!string.IsNullOrEmpty(this._checkData)) {
text += this._checkData;
}
if (this._isDisplayStartStopSign)
{
text = "*" + text + "*";
}
Font font = new Font(this._humanReadableFont, this._humanReadableSize);
//g.DrawString(text, font, brush, new PointF(MarginX, MarginY + ModuleHeight));
//新增字符串格式
var drawFormat = new StringFormat { Alignment = StringAlignment.Center };
float inpix = image.Width / resolution;//根據DPi求出 英寸數
float widthmm = inpix * 25.4f; //有每英寸像素求出毫米
//g.DrawString(text, font, Brushes.Black, width / 2, height - 14, drawFormat);
g.DrawString(text, font, /*Brushes.Black*/brush, new PointF(/*MarginX*/(int)(widthmm / 2), MarginY + ModuleHeight + 1), drawFormat);
}
#endregion
return image;
}
/// <summary>
/// 進行圖形填充
/// </summary>
/// <param name="g"></param>
/// <param name="rect"></param>
/// <param name="reduction"></param>
private void MakeBar(Graphics g, RectangleF rect, float reduction)
{
MakeBar(g, rect, reduction,this._codeBarColor);
}
/// <summary>
/// 進行圖形填充
/// </summary>
/// <param name="g"></param>
/// <param name="rect"></param>
/// <param name="reduction"></param>
/// <param name="brushColor"></param>
private void MakeBar(Graphics g, RectangleF rect, float reduction, Color brushColor)
{
float num = rect.Width * (reduction / 200f);
float num2 = rect.Width - (rect.Width * (reduction / 200f));
RectangleF ef = new RectangleF
{
X = rect.X + num,
Y = rect.Y,
Width = num2,
Height = rect.Height
};
SolidBrush brush = new SolidBrush(brushColor);
g.FillRectangle(brush, ef);
}
private char[] getPattern_c39(byte[] data)
{ //0x2a 42為*
//int num = 0x27;
int num = 80;
byte[] buffer = new byte[num + 1];
buffer[0] = 0x2a;
int index = 1;
for (int i = 0; i < data.Length; i++)
{
buffer[index] = data[i];
index++;
}
if (Checksum)
{
buffer[index] = this._checksum_c39(buffer, index);
if (_isDisplayCheckCode)
{
this._checkData = ((char)buffer[index]).ToString();
}
index++;
}
buffer[index] = 0x2a;
index++;
char[] chArray = new char[index * 10];
int num5 = 0;
for (int j = 0; j < index; j++)
{
byte c = buffer[j];
int num9 = this.indexFromCharacter(c);
for (int k = 0; k < 9; k++)
{
chArray[num5] = (char)this.c39_bp[num9, k + 1];
num5++;
}
chArray[num5] = '0';
num5++;
}
return chArray;
}
private int indexFromCharacter(byte c)
{
//0x2c==44
for (int i = 0; i < 0x2c; i++)
{
if (this.c39_bp[i, 0] == c)
{
return i;
}
}
return -1;
}
private byte[] processExtended(byte[] data)
{
//0x25 38
//0x4F 79 0x4E 78
//int num = 0x4F;
int num = data.Length - 1;
byte[] sourceArray = new byte[num + 1];
int index = 0;
for (int i = 0; i < data.Length; i++)
{
byte c = data[i];
if (this.valueFromCharacter(c) != -1)
{
sourceArray[index] = c;
index++;
}
else
{
byte num5 = 0;
byte num6 = 0;
if (this.valuesFromExtended(c, ref num5, ref num6))
{
sourceArray[index] = num5;
sourceArray[index + 1] = num6;
index += 2;
}
}
}
byte[] destinationArray = new byte[index];
Array.Copy(sourceArray, destinationArray, index);
return destinationArray;
}
/// <summary>
/// 返回指定字符在code39合法字符數組中對應的索引
/// </summary>
/// <param name="c"></param>
/// <returns></returns>
private int valueFromCharacter(byte c)
{
//c39_cw為數組，保存的為合法的字符集信息[0-9A-Z+-*/%. ] 共43個
//如果存在這個字符就返回c39_cw對應的索引
for (int i = 0; i < /*0x2b*/this.c39_cw.Length; i++)
{
if (this.c39_cw[i] == c)
{
return i;
}
}
return -1;
}
/// <summary>
/// 判斷字符集是否存在Extended
/// </summary>
/// <param name="c"></param>
/// <param name="v1"></param>
/// <param name="v2"></param>
/// <returns></returns>
private bool valuesFromExtended(byte c, ref byte v1, ref byte v2)
{
//0x55 85
for (int i = 0; i < 0x55; i++)
{
if (this.c39_ex[i, 0] == c)
{
v1 = this.c39_ex[i, 1];
v2 = this.c39_ex[i, 2];
return true;
}
}
return false;
}
private byte[] processTilde(string rawdata)
{
byte[] sourceArray = new byte[rawdata.Length];
int index = 0;
for (int i = 0; i < rawdata.Length; i++)
{
if (rawdata[i] != '~')
{
sourceArray[index] = (byte)rawdata[i];
index++;
}
else if ((i + 3) < rawdata.Length)
{
string str = new string(new char[] { rawdata[i + 1], rawdata[i + 2], rawdata[i + 3] });
int num3 = Convert.ToInt32(str, 10);
if ((num3 > 0) && (num3 <= 0xff))
{
sourceArray[index] = (byte)num3;
index++;
}
if (num3 == 0x3e7)
{
sourceArray[index] = 0x86;
index++;
}
i += 3;
}
else
{
sourceArray[index] = (byte)rawdata[i];
index++;
}
}
byte[] destinationArray = new byte[index];
Array.Copy(sourceArray, destinationArray, index);
return destinationArray;
}
}
這個方法是根據DPI以及數據模塊的高寬來確定條碼的實際高寬。模塊的寬度以毫米（mm）來算。類中的getBitmapImage方法的一個參數getBitmapImage為DPI。安卓用戶安裝平時常用的掃碼軟件即可做識別測試。就識別率來說還是可以的，掃描槍絕對是可以掃的出的。同時使用過MessagingToolkit.Barcode進行解碼測試，萬張無一誤讀。
在線解碼網站：http://cli.im/deqr/、http://www.fbqr.com/desQR#

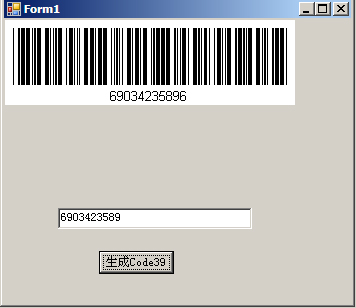

WinForm的例子下載：點擊下載DEMO
