C#調用AutoCAD組件將DWG轉成PDF的方法

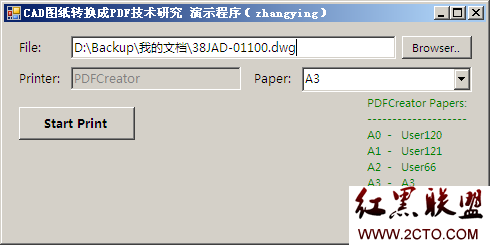

下面就是個演示例子（目前我在HIGER所以版權是它的，呵呵），原理就是把DWG打印到一個打印機上，要想實現自動打印機要支持自動保存，下面的PDFCreator就支持。

想要調試就自己建一個項目加個FORM就好了~~~~~~~~~~~

using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Text;
using System.Windows.Forms;
using Autodesk.AutoCAD.Interop;
using System.IO;

namespace WindowsFormsApplication1
{
    public partial class Form1 : Form
    {
        AcadApplicationClass app; //常駐應用程序

        public Form1()
        {
            InitializeComponent();

            try
            {
                app = new AcadApplicationClass();
            }
            catch
            {
                MessageBox.Show("Start AutoCAD object failed! Installed?");
                button1.Enabled = false;
                return;
            }
        }

        private void button1_Click(object sender, EventArgs e)
        {
            if (!File.Exists(textBox1.Text))
            {
                MessageBox.Show("File is not exists");
                return;
            }

            AcadDocument doc;
            try
            {
                doc = app.Documents.Open(textBox1.Text, null, null); //打開文件
            }
            catch (Exception error)
            {
                MessageBox.Show("Can't open the file. " + error.Message);
                return;
            }

            doc.ModelSpace.Layout.PlotType = Autodesk.AutoCAD.Interop.Common.AcPlotType.acExtents; //定義打印范圍為自動延伸全圖紙
            doc.ModelSpace.Layout.ConfigName = textBox3.Text; //選定打印機
            doc.ModelSpace.Layout.CanonicalMediaName = comboBox1.Text; //設置圖幅

            doc.Plot.NumberOfCopies = 1; //打印份數
            try
            {
                doc.Plot.PlotToDevice(null);
            }
            catch (Exception error)
            {
                MessageBox.Show("Send to printer failed. " + error.Message);
                return;
            }
            finally
            {
                doc.Close(false, null);
            }
        }

        private void Form1_FormClosing(object sender, FormClosingEventArgs e)
        {
            if (app != null)
                try
                {
                    app.Quit();
                }
                catch { }
        }   www.2cto.com

        private void button2_Click_1(object sender, EventArgs e)
        {
            OpenFileDialog d = new OpenFileDialog();
            d.Filter = "AutoCAD圖紙(*.dwg)|*.dwg";
            if (d.ShowDialog() == DialogResult.OK)
            {
                textBox1.Text = d.FileName;
            }
        }
    }
}
