之前貼過推箱子用objective-c簡單實現，與之配合使用的還應該有一個地圖編輯器，這裡用C#做了一個，供大家參考！
思路很簡單，就是在窗體上點擊生成 Wall：牆， Worke：工人，Box：箱子，Passageway：通道，Destination：目的地，最後導出一個關卡的配置的plist，裡面是一個一維數組：010101234567... 通過這個數組游戲就可以進行初始化布局了！代碼如下：
[csharp]
public partial class frmMain : Form
{
private enum Map_State
{
None = -1, Wall = 0, Worker,
Box, Passageway, Destination, WorkerInDest, RedBox
};
//Wall：牆0， Worke：工人1，Box：箱子2，Passageway：通道3，Destination：目的地4，WorkerInDest：工人在目的地5，RedBox：箱子在目的地6
private Map_State m_now_Select;//當前選中的圖標工具
private Map_State[,] myArray = new Map_State[10, 10];//地圖數組
private int BlockSize = 50;//方塊邊長
public frmMain()
{
InitializeComponent();
}
private void frmMain_Load(object sender, EventArgs e)
{
initMap();//初始化地圖
}
private void toolStripBtn_Wall_Click(object sender, EventArgs e)
{
//選中牆
m_now_Select = Map_State.Wall;
}
private void toolStripBtn_Box_Click(object sender, EventArgs e)
{
//選中箱子
m_now_Select = Map_State.Box;
}
private void toolStripBtn_Destination_Click(object sender, EventArgs e)
{
//選中目的地
m_now_Select = Map_State.Destination;
}
private void toolStripBtn_Passageway_Click(object sender, EventArgs e)
{
//選中通道
m_now_Select = Map_State.Passageway;
}
private void toolStripBtn_Worker_Click(object sender, EventArgs e)
{
//選中人
m_now_Select = Map_State.Worker;
}
private void toolStripBtn_Save_Click(object sender, EventArgs e)
{
saveFileDialog1.Filter = "plist文件|*.plist";
saveFileDialog1.Title = "保存";
saveFileDialog1.FileName = string.Empty;
saveFileDialog1.ShowDialog(); //顯示保存對話框
}
private void toolStripBtn_New_Click(object sender, EventArgs e)
{
initMap();//新建，初始化地圖
}
private void ClearMap()
{
m_now_Select = Map_State.None; //當前未選中圖標工具
for (int i = 0; i < 10; i++)
for (int j = 0; j < 10; j++)
myArray[i, j] = Map_State.None;
pictureBox1.Width = 10 * BlockSize + 2;
pictureBox1.Height = 10 * BlockSize + 2;
drawimage();//畫圖
}
private void initMap()
{
m_now_Select = Map_State.None; //當前未選中圖標工具
for (int i = 0; i < 10; i++)
for (int j = 0; j < 10; j++)
myArray[i, j] = Map_State.Passageway;
pictureBox1.Width = 10 * BlockSize + 2;
pictureBox1.Height = 10 * BlockSize + 2;
drawimage();
}
//繪制整個游戲區域圖形
private void drawimage()
{
Bitmap bit = new Bitmap(this.pictureBox1.Width, this.pictureBox1.Height);
Graphics g = Graphics.FromImage(bit);
SolidBrush redBrush = new SolidBrush(Color.Red);
System.Drawing.Image image;
for (int i = 0; i < 10; i++)
{
for (int j = 0; j < 10; j++)
{
if (myArray[i, j] == Map_State.Wall)//是牆
{
image = new Bitmap(System.Windows.Forms.Application.StartupPath+"\\wall.gif");
g.DrawImage(image, i * 50, j * 50, 50, 50);
}
if (myArray[i, j] == Map_State.Worker)//是工人
{
image = new Bitmap(System.Windows.Forms.Application.StartupPath + "\\worker.gif");
g.DrawImage(image, i * 50, j * 50, 50, 50);
}
if (myArray[i, j] == Map_State.Box)//是箱子
{
image = new Bitmap(System.Windows.Forms.Application.StartupPath + "\\box.gif");
g.DrawImage(image, i * 50, j * 50, 50, 50);
}
if (myArray[i, j] == Map_State.Passageway)//是通道
{
image = new Bitmap(System.Windows.Forms.Application.StartupPath + "\\passageway.gif");
g.DrawImage(image, i * 50, j * 50, 50, 50);
}
if (myArray[i, j] == Map_State.Destination)//是目的地
{
image = new Bitmap(System.Windows.Forms.Application.StartupPath + "\\destination.gif");
g.DrawImage(image, i * 50, j * 50, 50, 50);
}
}
}
this.pictureBox1.Image = bit;
}
private void pictureBox1_MouseDown(object sender, MouseEventArgs e)
{
int x, y;
x = e.X / 50;
y = e.Y / 50;
myArray[x, y] = m_now_Select;//修改地圖
drawimage();
//MessageBox.Show(x.ToString()+"-"+y.ToString());
}
private void saveFileDialog1_FileOk(object sender, CancelEventArgs e)
{
//寫入
var arr = new PListArray();
for (int j = 9; j >= 0; j--)
{
for (int i = 0; i < 10; i++)
{
arr.Add(new PListInteger((long)myArray[i, j]));
}
}
var myRoot = new PListRoot();
myRoot.Root = arr;
myRoot.Save(saveFileDialog1.FileName, PListFormat.Xml);
}
private void toolStripBtnOpen_Click(object sender, EventArgs e)
{
openFileDialog1.Filter = "plist文件|*.plist";
openFileDialog1.Title = "打開";
openFileDialog1.Multiselect = false;
openFileDialog1.FileName = string.Empty;
openFileDialog1.ShowDialog();//顯示打開對話框
}
private void openFileDialog1_FileOk(object sender, CancelEventArgs e)
{
if (File.Exists(openFileDialog1.FileName))
{
//讀取
PListRoot root = PListRoot.Load(openFileDialog1.FileName);
PListArray arr = (PListArray)root.Root;
for (int j = 9; j >= 0; j--)
{
for (int i = 0; i < 10; i++)
{
myArray[i, j] = (Map_State)((PListInteger)arr[(9 - j) * 10 + i]).Value;
}
}
drawimage();
}
}
}
上面使用到的讀寫plist文件的類庫，在我之前的文章有介紹：C#使用iphone-plist-net庫讀寫plist文件

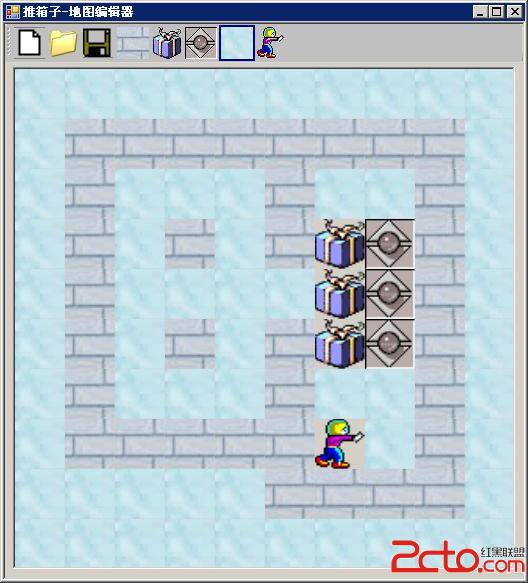

運行截圖：
