C# 開發step步驟條控件詳解

編輯:C#入門知識

C# 開發step步驟條控件詳解。本站提示廣大學習愛好者:(C# 開發step步驟條控件詳解)文章只能為提供參考,不一定能成為您想要的結果。以下是C# 開發step步驟條控件詳解正文

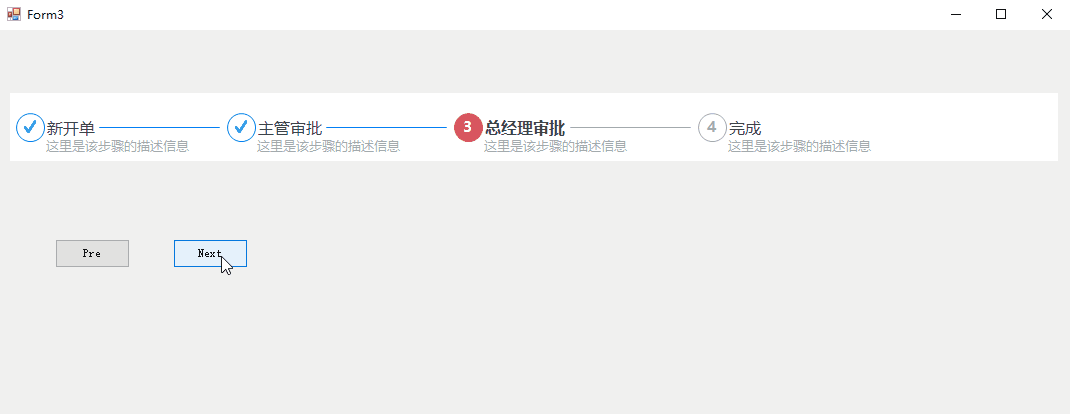

現在很多的javascript控件,非常的不錯,其中step就是一個,如下圖所示:

那麼如何用C#來實現一個step控件呢?

先定義一個StepEntity類來存儲步驟條節點的信息:

public class StepEntity
 {
  public string Id { get; set; }
  public string StepName { get; set; }
  public int StepOrder { get; set; }
  public eumStepState StepState { get; set; }
  public string StepDesc { get; set; }
  public object StepTag { get; set; }
  //public Image StepCompletedImage { get; set; }
  //public Image StepDoingImage { get; set; }
  public StepEntity(string id,string stepname,int steporder,string stepdesc, eumStepState stepstate,object tag)
  {
   this.Id = id;
   this.StepName = stepname;
   this.StepOrder = steporder;
   this.StepDesc = stepdesc;
   this.StepTag = tag;
   this.StepState = stepstate;
  }
 }

定義一個名為StepViewer 的用戶控件。

public partial class StepViewer : UserControl
 {
  public StepViewer()
  {
   InitializeComponent();
   this.Height = 68;
  }
}

在StepViewer 的用戶控件中定義一個ListDataSource的屬性,如下:

private List<StepEntity> _dataSourceList = null;
  [Browsable(true), Category("StepViewer")]
  public List<StepEntity> ListDataSource
  {
   get
   {
    return _dataSourceList;
   }
   set
   {
    if (_dataSourceList != value)
    {
     _dataSourceList = value;
     Invalidate();
    }
   }
  }

在此控件的paint方法中,進行步驟條的繪制:

private void StepViewer_Paint(object sender, PaintEventArgs e)
  {
   if(this.ListDataSource!=null)
   {
    int CenterY = this.Height / 2;
    int index = 1;
    int count = ListDataSource.Count;
    int lineWidth = 120;
    int StepNodeWH = 28;
    //this.Width = 32 * count + lineWidth * (count - 1) + 6+300;
    //defalut pen & brush
    e.Graphics.SmoothingMode = System.Drawing.Drawing2D.SmoothingMode.HighQuality;
    Brush brush = new SolidBrush(_Gray);
    Pen p = new Pen(brush, 1f);
    Brush brushNode = new SolidBrush(_DarkGray);
    Pen penNode = new Pen(brushNode, 1f);
    Brush brushNodeCompleted = new SolidBrush(_Blue);
    Pen penNodeCompleted = new Pen(brushNodeCompleted, 1f);
    int initX = 6;
    //string
    Font nFont = new Font("微軟雅黑", 12);
    Font stepFont = new Font("微軟雅黑", 11,FontStyle.Bold);
    int NodeNameWidth = 0;
    foreach (var item in ListDataSource)
    {
     //round
     Rectangle rec = new Rectangle(initX, CenterY - StepNodeWH / 2, StepNodeWH, StepNodeWH);
     if (CurrentStep == item.StepOrder)
     {
      if (item.StepState == eumStepState.OutTime)
      {
       e.Graphics.DrawEllipse(new Pen(_Red,1f), rec);
       e.Graphics.FillEllipse(new SolidBrush(_Red), rec);
      }
      else
      {
       e.Graphics.DrawEllipse(penNodeCompleted, rec);
       e.Graphics.FillEllipse(brushNodeCompleted, rec);
      }
      //白色字體
      SizeF fTitle = e.Graphics.MeasureString(index.ToString(), stepFont);
      Point pTitle = new Point(initX + StepNodeWH / 2 - (int)Math.Round(fTitle.Width) / 2, CenterY - (int)Math.Round(fTitle.Height / 2));
      e.Graphics.DrawString(index.ToString(), stepFont, Brushes.White, pTitle);
      //nodeName
      SizeF sNode = e.Graphics.MeasureString(item.StepName, nFont);
      Point pNode = new Point(initX + StepNodeWH, CenterY - (int)Math.Round(sNode.Height / 2) + 2);
      e.Graphics.DrawString(item.StepName,new Font( nFont,FontStyle.Bold), brushNode, pNode);
      NodeNameWidth = (int)Math.Round(sNode.Width);
      if (index < count)
      {
       e.Graphics.DrawLine(p, initX + StepNodeWH + NodeNameWidth, CenterY, initX + StepNodeWH + NodeNameWidth + lineWidth, CenterY);
      }
     }
     else if (item.StepOrder < CurrentStep)
     {
      //completed
      e.Graphics.DrawEllipse(penNodeCompleted, rec);
      //image
      RectangleF recRF = new RectangleF(rec.X + 6, rec.Y + 6, rec.Width - 12, rec.Height - 12);
      e.Graphics.DrawImage(ControlsResource.check_lightblue, recRF);
      //nodeName
      SizeF sNode = e.Graphics.MeasureString(item.StepName, nFont);
      Point pNode = new Point(initX + StepNodeWH, CenterY - (int)Math.Round(sNode.Height / 2) + 2);
      e.Graphics.DrawString(item.StepName, nFont, brushNode, pNode);
      NodeNameWidth = (int)Math.Round(sNode.Width);
      if (index < count)
      {
       e.Graphics.DrawLine(penNodeCompleted, initX + StepNodeWH + NodeNameWidth, CenterY, initX + StepNodeWH + NodeNameWidth + lineWidth, CenterY);
      }
     }
     else
     {
      e.Graphics.DrawEllipse(p, rec);
      //
      SizeF fTitle = e.Graphics.MeasureString(index.ToString(), stepFont);
      Point pTitle = new Point(initX + StepNodeWH / 2 - (int)Math.Round(fTitle.Width) / 2, CenterY - (int)Math.Round(fTitle.Height / 2));
      e.Graphics.DrawString(index.ToString(), stepFont, brush, pTitle);
      //nodeName
      SizeF sNode = e.Graphics.MeasureString(item.StepName, nFont);
      Point pNode = new Point(initX + StepNodeWH, CenterY - (int)Math.Round(sNode.Height / 2) + 2);
      e.Graphics.DrawString(item.StepName, nFont, brushNode, pNode);
      NodeNameWidth = (int)Math.Round(sNode.Width);
      if (index < count)
      {
       //line
       e.Graphics.DrawLine(p, initX + StepNodeWH + NodeNameWidth, CenterY, initX + StepNodeWH + NodeNameWidth + lineWidth, CenterY);
      }
     }
     //描述信息
     if (item.StepDesc != "")
     {
      Point pNode = new Point(initX + StepNodeWH, CenterY+10);
      e.Graphics.DrawString(item.StepDesc,new Font(nFont.FontFamily,10),brush, pNode);
     }
     index++;
     //8 is space width
     initX = initX + lineWidth + StepNodeWH+ NodeNameWidth+8;
    }
   }
  }

控件的使用:

List<StepEntity> list = new List<StepEntity>();
 list.Add(new StepEntity("1", "新開單", 1, "這裡是該步驟的描述信息", eumStepState.Completed, null));
 list.Add(new StepEntity("2", "主管審批", 2, "這裡是該步驟的描述信息", eumStepState.Waiting, null));
 list.Add(new StepEntity("3", "總經理審批", 3, "這裡是該步驟的描述信息", eumStepState.OutTime, null));
 list.Add(new StepEntity("2", "完成", 4, "這裡是該步驟的描述信息", eumStepState.Waiting, null));
 this.stepViewer1.CurrentStep = 3;
 this.stepViewer1.ListDataSource = list;

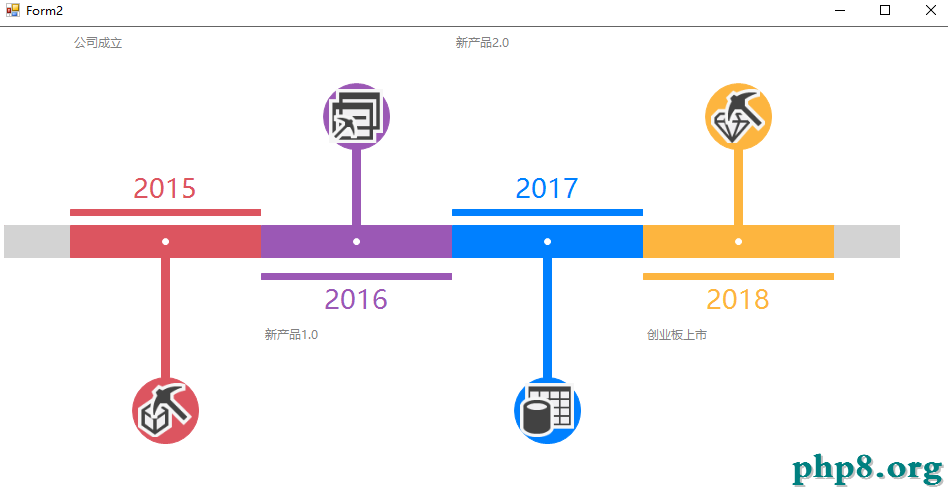

同樣的,我們可以實現如下的timeline控件。
