Windows體系中應用C#編寫藍牙通訊法式的簡略實例

編輯:C#入門知識

Windows體系中應用C#編寫藍牙通訊法式的簡略實例。本站提示廣大學習愛好者:(Windows體系中應用C#編寫藍牙通訊法式的簡略實例)文章只能為提供參考,不一定能成為您想要的結果。以下是Windows體系中應用C#編寫藍牙通訊法式的簡略實例正文


如今許多電腦供給了藍牙支撐,許多筆記本網卡也集成了藍牙功效,也能夠采取USB藍牙便利的銜接手機等藍牙裝備停止通訊。
操作藍牙要應用類庫InTheHand.Net.Personal
起首在項目中援用該類庫;

static void Main(string[] args)
{
  BluetoothRadio bluetoothRadio = BluetoothRadio.PrimaryRadio;
  if (bluetoothRadio == null)
  {
  Console.WriteLine("沒有找到本機藍牙裝備!");
  }
  else
  {
  Console.WriteLine("ClassOfDevice: " + bluetoothRadio.ClassOfDevice);
  Console.WriteLine("HardwareStatus: " + bluetoothRadio.HardwareStatus);
  Console.WriteLine("HciRevision: " + bluetoothRadio.HciRevision);
  Console.WriteLine("HciVersion: " + bluetoothRadio.HciVersion);
  Console.WriteLine("LmpSubversion: " + bluetoothRadio.LmpSubversion);
  Console.WriteLine("LmpVersion: " + bluetoothRadio.LmpVersion);
  Console.WriteLine("LocalAddress: " + bluetoothRadio.LocalAddress);
  Console.WriteLine("Manufacturer: " + bluetoothRadio.Manufacturer);
  Console.WriteLine("Mode: " + bluetoothRadio.Mode);
  Console.WriteLine("Name: " + bluetoothRadio.Name);
  Console.WriteLine("Remote:" + bluetoothRadio.Remote);
  Console.WriteLine("SoftwareManufacturer: " + bluetoothRadio.SoftwareManufacturer);
  Console.WriteLine("StackFactory: " + bluetoothRadio.StackFactory);
  }
  Console.ReadKey();
}

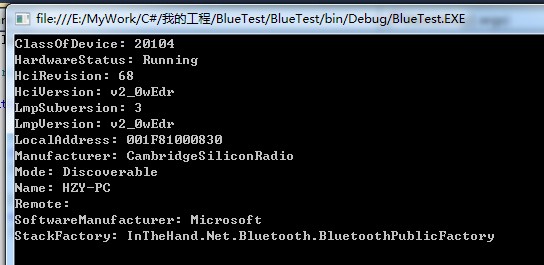

 假如PC拔出了藍牙適配器,便會顯示藍牙相干信息:


 然後我們就要應用藍牙收發文件了:
條件是藍牙裝備(如手機)曾經和PC配對了

public partial class Form1 : Form
{
  BluetoothRadio radio = null;//藍牙適配器
  string sendFileName = null;//發送文件名
  BluetoothAddress sendAddress = null;//發送目標地址
  ObexListener listener = null;//監聽器
  string recDir = null;//接收文件寄存目次
  Thread listenThread, sendThread;//發送/吸收線程

  public Form1()
  {
    InitializeComponent();
    radio = BluetoothRadio.PrimaryRadio;//獲得以後PC的藍牙適配器
    CheckForIllegalCrossThreadCalls = false;//不檢討跨線程挪用
    if (radio == null)//檢討該電腦藍牙能否可用
    {
      MessageBox.Show("這個電腦藍牙弗成用!", "提醒", MessageBoxButtons.OK, MessageBoxIcon.Information);
    }
    recDir = Environment.GetFolderPath(Environment.SpecialFolder.Desktop);
    labelRecDir.Text = recDir;
  }

  private void buttonSelectBluetooth_Click(object sender, EventArgs e)//選擇長途藍牙裝備
  {
    SelectBluetoothDeviceDialog dialog = new SelectBluetoothDeviceDialog();
    dialog.ShowRemembered = true;//顯示曾經記住的藍牙裝備
    dialog.ShowAuthenticated = true;//顯示認證過的藍牙裝備
    dialog.ShowUnknown = true;//顯示地位藍牙裝備
    if (dialog.ShowDialog() == DialogResult.OK)
    {
      sendAddress = dialog.SelectedDevice.DeviceAddress;//獲得選擇的長途藍牙地址
      labelAddress.Text = "地址:" + sendAddress.ToString() + "  裝備名:" + dialog.SelectedDevice.DeviceName;
    }
  }

  private void buttonSelectFile_Click(object sender, EventArgs e)//選摘要發送的當地文件
  {
    OpenFileDialog dialog = new OpenFileDialog();
    if (dialog.ShowDialog() == DialogResult.OK)
    {
      sendFileName = dialog.FileName;//設置文件名
      labelPath.Text = Path.GetFileName(sendFileName);
    }
  }

  private void buttonSend_Click(object sender, EventArgs e)//發送按鈕
  {
    sendThread = new Thread(sendFile);//開啟示送文件線程
    sendThread.Start();
  }

  private void sendFile()//發送文件辦法
  {
    ObexWebRequest request = new ObexWebRequest(sendAddress, Path.GetFileName(sendFileName));//創立收集要求
    WebResponse response = null;
    try
    {
      buttonSend.Enabled = false;
      request.ReadFile(sendFileName);//發送文件
      labelInfo.Text = "開端發送!";
      response = request.GetResponse();//獲得回應
      labelInfo.Text = "發送完成!";
    }
    catch (System.Exception ex)
    {
      MessageBox.Show("發送掉敗!", "提醒", MessageBoxButtons.OK, MessageBoxIcon.Warning);
      labelInfo.Text = "發送掉敗!";
    }
    finally
    {
      if (response != null)
      {
        response.Close();
        buttonSend.Enabled = true;
      }
    }
  }

  private void buttonselectRecDir_Click(object sender, EventArgs e)//選擇接收目次
  {
    FolderBrowserDialog dialog = new FolderBrowserDialog();
    dialog.Description = "請選擇藍牙吸收文件的寄存途徑";
    if (dialog.ShowDialog() == DialogResult.OK)
    {
      recDir = dialog.SelectedPath;
      labelRecDir.Text = recDir;
    }
  }

  private void buttonListen_Click(object sender, EventArgs e)//開端/停滯監聽
  {
    if (listener == null || !listener.IsListening)
    {
      radio.Mode = RadioMode.Discoverable;//設置當地藍牙可被檢測
      listener = new ObexListener(ObexTransport.Bluetooth);//創立監聽
      listener.Start();
      if (listener.IsListening)
      {
        buttonListen.Text = "停滯";
        labelRecInfo.Text = "開端監聽";
        listenThread = new Thread(receiveFile);//開啟監聽線程
        listenThread.Start();
      }
    }
    else
    {
      listener.Stop();
      buttonListen.Text = "監聽";
      labelRecInfo.Text = "停滯監聽";
    }
  }

  private void receiveFile()//收文件辦法
  {
    ObexListenerContext context = null;
    ObexListenerRequest request = null;
    while (listener.IsListening)
    {
      context = listener.GetContext();//獲得監聽高低文
      if (context == null)
      {
        break;
      }
      request = context.Request;//獲得要求
      string uriString = Uri.UnescapeDataString(request.RawUrl);//將uri轉換成字符串
      string recFileName = recDir + uriString;
      request.WriteFile(recFileName);//吸收文件
      labelRecInfo.Text = "收到文件" + uriString.TrimStart(new char[] { '/' });
    }
  }

  private void Form1_FormClosed(object sender, FormClosedEventArgs e)
  {
    if (sendThread != null)
    {
      sendThread.Abort();
    }
    if (listenThread != null)
    {
      listenThread.Abort();
    }
    if (listener != null && listener.IsListening)
    {
      listener.Stop();
    }
  }
}

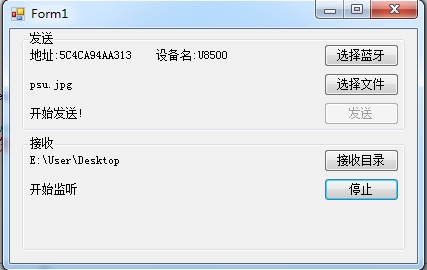

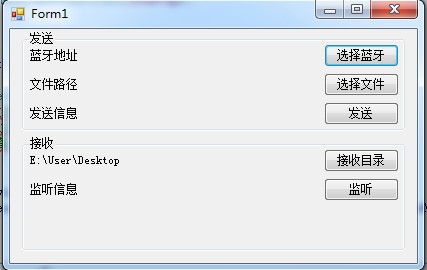

法式界面:

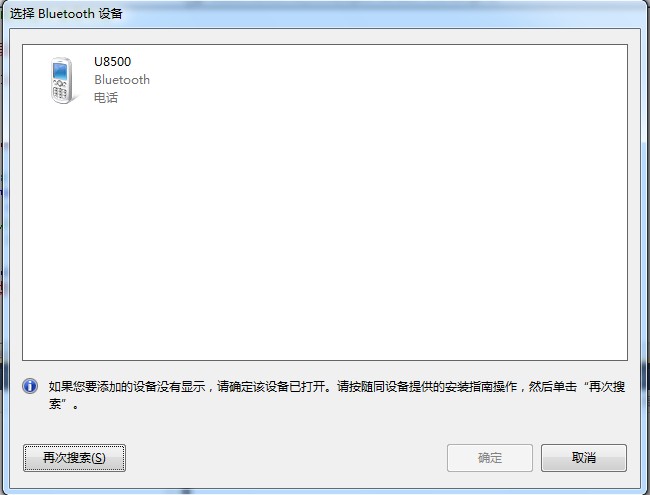

SelectBluetoothDeviceDialog是一個InTheHand.Net.Personal供給的窗體,用於選擇藍牙裝備:


從手機往電腦發送文件須要在電腦上開啟監聽ObexListener,能力收到文件。


焦點代碼:

BluetoothRadio radio = null;//藍牙適配器
string sendFileName = null;//發送文件名
BluetoothAddress sendAddress = null;//發送目標地址
ObexListener listener = null;//監聽器
string recDir = null;//接收文件寄存目次
Thread listenThread, sendThread;//發送/吸收線程

radio = BluetoothRadio.PrimaryRadio;//獲得以後PC的藍牙適配器

//關於藍牙裝備選擇對話框
SelectBluetoothDeviceDialog dialog = new SelectBluetoothDeviceDialog();
dialog.ShowRemembered = true;//顯示曾經記住的藍牙裝備
dialog.ShowAuthenticated = true;//顯示認證過的藍牙裝備
dialog.ShowUnknown = true;//顯示地位藍牙裝備
sendAddress = dialog.SelectedDevice.DeviceAddress;//獲得選擇的長途藍牙地址

//發送文件操作
ObexWebRequest request = new ObexWebRequest(sendAddress, Path.GetFileName(sendFileName));//創立收集要求
WebResponse response = null;
request.ReadFile(sendFileName);//發送文件
response = request.GetResponse();//獲得回應
response.Close();

//吸收文件
radio.Mode = RadioMode.Discoverable;//設置當地藍牙可被檢測
listener = new ObexListener(ObexTransport.Bluetooth);//創立監聽
listener.Start();
listener.Stop();

ObexListenerContext context = null;
ObexListenerRequest request = null;
context = listener.GetContext();//獲得監聽高低文
request = context.Request;//獲得要求
string uriString = Uri.UnescapeDataString(request.RawUrl);//將uri轉換成字符串
string recFileName = recDir + uriString;
request.WriteFile(recFileName);//吸收文件
labelRecInfo.Text = "收到文件" + uriString.TrimStart(new char[] { '/' }

PS:關於InTheHand.Net.Personal
InTheHand.Net.Personal.dll起源於32feet.NET。
32feet.NET是shared-source的項目,支撐CF.net 2.0和桌面版本.NET framework,供給短間隔范疇(personal area networking technologie)的通訊功效,支撐bluetooth,Infrared(IrDA)紅外等. 想懂得更多的信息可以參考其 官方主頁,其項目標裝置包和源碼是放在微軟的開源工程網站CodePlex下面的,作為.NET開辟人員我們必需要上的網站就是CodePlex~
