winform分頁控件 附源碼下載。本站提示廣大學習愛好者：（winform分頁控件 附源碼下載）文章只能為提供參考，不一定能成為您想要的結果。以下是winform分頁控件 附源碼下載正文
之前都是從事B/S開辟，因為公司有個比擬年夜的C/S項目，在應用DATAGRIDVIEW的時刻，顯示數據量比擬年夜，所以才用分頁形式，也不曉得如許能否准確。
想找個C/S上面的分頁控件，都沒有甚麼好的，就本身跟B/S下的分頁控件，修正成WINFORM上面的。
起首創立一個用戶控件稱號為pager,在控件中拖入bindingNavigator和bindingSource，修正bindingNavigator，參加需要的一些控件。
後果以下：
代碼完成以下：
namespace WindowsApp.MyControl
{
/**//// <summary>
/// 聲名拜托
/// </summary>
/// <param name="e"></param>
/// <returns></returns>
public delegate int EventPagingHandler(EventPagingArg e);
/**//// <summary>
/// 分頁控件出現
/// </summary>
public partial class Pager : UserControl
{
public Pager()
{
InitializeComponent();
}
public event EventPagingHandler EventPaging;
/**//// <summary>
/// 每頁顯示記載數
/// </summary>
private int _pageSize = 20;
/**//// <summary>
/// 每頁顯示記載數
/// </summary>
public int PageSize
{
get { return _pageSize; }
set
{
_pageSize = value;
GetPageCount();
}
}
private int _nMax = 0;
/**//// <summary>
/// 總記載數
/// </summary>
public int NMax
{
get { return _nMax; }
set
{
_nMax = value;
GetPageCount();
}
}
private int _pageCount = 0;
/**//// <summary>
/// 頁數=總記載數/每頁顯示記載數
/// </summary>
public int PageCount
{
get { return _pageCount; }
set { _pageCount = value; }
}
private int _pageCurrent = 0;
/**//// <summary>
/// 以後頁號
/// </summary>
public int PageCurrent
{
get { return _pageCurrent; }
set { _pageCurrent = value; }
}
private void GetPageCount()
{
if (this.NMax > 0)
{
this.PageCount = Convert.ToInt32(Math.Ceiling(Convert.ToDouble(this.NMax) / Convert.ToDouble(this.PageSize)));
}
else
{
this.PageCount = 0;
}
}
/**//// <summary>
/// 翻頁控件數據綁定的辦法
/// </summary>
public void Bind()
{
if (this.EventPaging != null)
{
this.NMax = this.EventPaging(new EventPagingArg(this.PageCurrent));
}
if (this.PageCurrent > this.PageCount)
{
this.PageCurrent = this.PageCount;
}
if (this.PageCount == 1)
{
this.PageCurrent = 1;
}
lblPageCount.Text = this.PageCount.ToString();
this.lblMaxPage.Text = "共"+this.NMax.ToString()+"筆記錄";
this.txtCurrentPage.Text = this.PageCurrent.ToString();
if (this.PageCurrent == 1)
{
this.btnPrev.Enabled = false;
this.btnFirst.Enabled = false;
}
else
{
btnPrev.Enabled = true;
btnFirst.Enabled = true;
}
if (this.PageCurrent == this.PageCount)
{
this.btnLast.Enabled = false;
this.btnNext.Enabled = false;
}
else
{
btnLast.Enabled = true;
btnNext.Enabled = true;
}
if (this.NMax == 0)
{
btnNext.Enabled = false;
btnLast.Enabled = false;
btnFirst.Enabled = false;
btnPrev.Enabled = false;
}
}
private void btnFirst_Click(object sender, EventArgs e)
{
PageCurrent = 1;
this.Bind();
}
private void btnPrev_Click(object sender, EventArgs e)
{
PageCurrent -= 1;
if (PageCurrent <= 0)
{
PageCurrent = 1;
}
this.Bind();
}
private void btnNext_Click(object sender, EventArgs e)
{
this.PageCurrent += 1;
if (PageCurrent > PageCount)
{
PageCurrent = PageCount;
}
this.Bind();
}
private void btnLast_Click(object sender, EventArgs e)
{
PageCurrent = PageCount;
this.Bind();
}
private void btnGo_Click(object sender, EventArgs e)
{
if (this.txtCurrentPage.Text != null && txtCurrentPage.Text != "")
{
if (Int32.TryParse(txtCurrentPage.Text, out _pageCurrent))
{
this.Bind();
}
else
{
Common.MessageProcess.ShowError("輸出數字格局毛病！");
}
}
}
}
/**//// <summary>
/// 自界說事宜數據基類
/// </summary>
public class EventPagingArg : EventArgs
{
private int _intPageIndex;
public EventPagingArg(int PageIndex)
{
_intPageIndex = PageIndex;
}
}
}
控件功效根本完成。
若何綁定命據呢？
年夜數目分頁，應用存儲進程。
這個存儲進程是收集上考的，呵呵。我把它給貼出來，願望原作者別砸我磚頭。
ALTER PROCEDURE SP_Pagination
/**//*
***************************************************************
** 萬萬數目級分頁存儲進程 **
***************************************************************
參數解釋:
1.Tables :表稱號,視圖
2.PrimaryKey :主症結字
3.Sort :排序語句，不帶Order By 好比：NewsID Desc,OrderRows Asc
4.CurrentPage :以後頁碼
5.PageSize :分頁尺寸
6.Filter :過濾語句，不帶Where
7.Group :Group語句,不帶Group By
後果演示：http://www.cn5135.com/_App/Enterprise/QueryResult.aspx
***************************************************************/
(
@Tables varchar(2000),
@PrimaryKey varchar(500),
@Sort varchar(500) = NULL,
@CurrentPage int = 1,
@PageSize int = 10,
@Fields varchar(2000) = '*',
@Filter varchar(1000) = NULL,
@Group varchar(1000) = NULL
)
AS
/**//*默許排序*/
IF @Sort IS NULL OR @Sort = ''
SET @Sort = @PrimaryKey
DECLARE @SortTable varchar(1000)
DECLARE @SortName varchar(1000)
DECLARE @strSortColumn varchar(1000)
DECLARE @operator char(2)
DECLARE @type varchar(1000)
DECLARE @prec int
/**//*設定排序語句.*/
IF CHARINDEX('DESC',@Sort)>0
BEGIN
SET @strSortColumn = REPLACE(@Sort, 'DESC', '')
SET @operator = '<='
END
ELSE
BEGIN
IF CHARINDEX('ASC', @Sort) = 0
SET @strSortColumn = REPLACE(@Sort, 'ASC', '')
SET @operator = '>='
END
IF CHARINDEX('.', @strSortColumn) > 0
BEGIN
SET @SortTable = SUBSTRING(@strSortColumn, 0, CHARINDEX('.',@strSortColumn))
SET @SortName = SUBSTRING(@strSortColumn, CHARINDEX('.',@strSortColumn) + 1, LEN(@strSortColumn))
END
ELSE
BEGIN
SET @SortTable = @Tables
SET @SortName = @strSortColumn
END
SELECT @type=t.name, @prec=c.prec
FROM sysobjects o
JOIN syscolumns c on o.id=c.id
JOIN systypes t on c.xusertype=t.xusertype
WHERE o.name = @SortTable AND c.name = @SortName
IF CHARINDEX('char', @type) > 0
SET @type = @type + '(' + CAST(@prec AS varchar) + ')'
DECLARE @strPageSize varchar(500)
DECLARE @strStartRow varchar(500)
DECLARE @strFilter varchar(1000)
DECLARE @strSimpleFilter varchar(1000)
DECLARE @strGroup varchar(1000)
/**//*默許以後頁*/
IF @CurrentPage < 1
SET @CurrentPage = 1
/**//*設置分頁參數.*/
SET @strPageSize = CAST(@PageSize AS varchar(500))
SET @strStartRow = CAST(((@CurrentPage - 1)*@PageSize + 1) AS varchar(500))
/**//*挑選和分組語句.*/
IF @Filter IS NOT NULL AND @Filter != ''
BEGIN
SET @strFilter = ' WHERE ' + @Filter + ' '
SET @strSimpleFilter = ' AND ' + @Filter + ' '
END
ELSE
BEGIN
SET @strSimpleFilter = ''
SET @strFilter = ''
END
IF @Group IS NOT NULL AND @Group != ''
SET @strGroup = ' GROUP BY ' + @Group + ' '
ELSE
SET @strGroup = ''
/**//*履行查詢語句*/
EXEC(
'
DECLARE @SortColumn ' + @type + '
SET ROWCOUNT ' + @strStartRow + '
SELECT @SortColumn=' + @strSortColumn + ' FROM ' + @Tables + @strFilter + ' ' + @strGroup + ' ORDER BY ' + @Sort + '
SET ROWCOUNT ' + @strPageSize + '
SELECT ' + @Fields + ' FROM ' + @Tables + ' WHERE ' + @strSortColumn + @operator + ' @SortColumn ' + @strSimpleFilter + ' ' + @strGroup + ' ORDER BY ' + @Sort + '
'
)
應用該存儲過陳，獲得數據，將數據綁定到數據控件，供給了一個pageData類
/**//// <summary>
/// 數據源供給
/// </summary>
public class PageData
{
private int _PageSize = 10;
private int _PageIndex = 1;
private int _PageCount = 0;
private int _TotalCount = 0;
private string _TableName;//表名
private string _QueryFieldName = "*";//表字段FieldStr
private string _OrderStr = string.Empty; //排序_SortStr
private string _QueryCondition = string.Empty;//查詢的前提 RowFilter
private string _PrimaryKey = string.Empty;//主鍵
/**//// <summary>
/// 顯示頁數
/// </summary>
public int PageSize
{
get
{
return _PageSize;
}
set
{
_PageSize = value;
}
}
/**//// <summary>
/// 以後頁
/// </summary>
public int PageIndex
{
get
{
return _PageIndex;
}
set
{
_PageIndex = value;
}
}
/**//// <summary>
/// 總頁數
/// </summary>
public int PageCount
{
get
{
return _PageCount;
}
}
/**//// <summary>
/// 總記載數
/// </summary>
public int TotalCount
{
get
{
return _TotalCount;
}
}
/**//// <summary>
/// 表名，包含視圖
/// </summary>
public string TableName
{
get
{
return _TableName;
}
set
{
_TableName = value;
}
}
/**//// <summary>
/// 表字段FieldStr
/// </summary>
public string QueryFieldName
{
get
{
return _QueryFieldName;
}
set
{
_QueryFieldName = value;
}
}
/**//// <summary>
/// 排序字段
/// </summary>
public string OrderStr
{
get
{
return _OrderStr;
}
set
{
_OrderStr = value;
}
}
/**//// <summary>
/// 查詢前提
/// </summary>
public string QueryCondition
{
get
{
return _QueryCondition;
}
set
{
_QueryCondition = value;
}
}
/**//// <summary>
/// 主鍵
/// </summary>
public string PrimaryKey
{
get {
return _PrimaryKey;
}
set {
_PrimaryKey = value;
}
}
public DataSet QueryDataTable()
{
SqlParameter[] parameters = {
new SqlParameter("@Tables", SqlDbType.VarChar, 255),
new SqlParameter("@PrimaryKey" , SqlDbType.VarChar , 255),
new SqlParameter("@Sort", SqlDbType.VarChar , 255 ),
new SqlParameter("@CurrentPage", SqlDbType.Int),
new SqlParameter("@PageSize", SqlDbType.Int),
new SqlParameter("@Fields", SqlDbType.VarChar, 255),
new SqlParameter("@Filter", SqlDbType.VarChar,1000),
new SqlParameter("@Group" ,SqlDbType.VarChar , 1000 )
};
parameters[0].Value = _TableName;
parameters[1].Value = _PrimaryKey;
parameters[2].Value = _OrderStr;
parameters[3].Value = PageIndex;
parameters[4].Value = PageSize;
parameters[5].Value =_QueryFieldName;
parameters[6].Value = _QueryCondition;
parameters[7].Value = string.Empty;
DataSet ds = DbHelperSQL.RunProcedure("SP_Pagination", parameters, "dd");
_TotalCount = GetTotalCount();
if (_TotalCount == 0)
{
_PageIndex = 0;
_PageCount = 0;
}
else
{
_PageCount = _TotalCount % _PageSize == 0 ? _TotalCount / _PageSize : _TotalCount / _PageSize + 1;
if (_PageIndex > _PageCount)
{
_PageIndex = _PageCount;
parameters[4].Value = _PageSize;
ds = QueryDataTable();
}
}
return ds;
}
public int GetTotalCount()
{
string strSql = " select count(1) from "+_TableName;
if (_QueryCondition != string.Empty)
{
strSql +=" where " + _QueryCondition;
}
return int.Parse(DbHelperSQL.GetSingle(strSql).ToString());
}
}
好了，在頁面放個DATAGRIDVIEW 拖入控件pager
private void ReceiveOrderJLForm_Load(object sender, EventArgs e)
{
this.pager1.PageCurrent = 1;
this.pager1.Bind();
}
private int dgvBind()
{
WindowsApp.MyControl.PageData pageData = new WindowsApp.MyControl.PageData();
pageData.TableName = "T_ReceiveOrder";
pageData.PrimaryKey = "ReceiveOrderID";
pageData.OrderStr = "ReceiveOrderID desc";
pageData.PageIndex = this.pager1.PageCurrent;
pageData.PageSize = this.pager1.PageSize;
pageData.QueryCondition = _strSql + strWhere.ToString();
pageData.QueryFieldName = "*";
this.pager1.bindingSource.DataSource = pageData.QueryDataTable().Tables[0];
this.pager1.bindingNavigator.BindingSource = pager1.bindingSource;
dgvReceiveOrder.AutoGenerateColumns = false;
dgvReceiveOrder.DataSource = this.pager1.bindingSource;
return pageData.TotalCount;
}
private int pager1_EventPaging(WindowsApp.MyControl.EventPagingArg e)
{
return dgvBind();
}

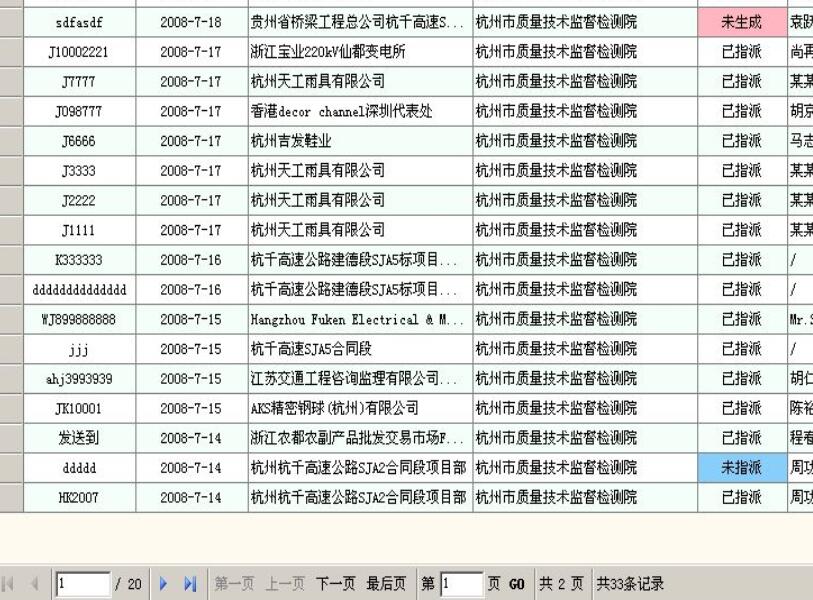

後果以下
源碼下載：http://xiazai.jb51.net/201609/yuanma/winformPager(jb51.net).rar
以上就是本文的全體內容，願望對年夜家的進修有所贊助，也願望年夜家多多支撐。
