.Net Micro Framework研究—用MF編寫俄羅斯方塊

          上次編寫俄羅斯方塊，好像是N年前的大學時代，使用TC2.0在DOS平台上開發的，由於當時的代碼是保存在3.5寸軟盤上的，到現在那些程序早已經作了古，沒有了蹤影。俄羅斯方塊其實編寫並不太容易，要考慮的東西還是蠻多的，以前想在PPC上用.Net精簡框架集實現，後來起了個頭，沒有太大的動力，也就作罷了。現在對MF充滿了激情，所以從零做起（沒有參考任何現成代碼，只不過還是依照我早期的思路編寫而成），花費我大半天的時間才編寫完畢（在編寫過程中，還發現MF對二維數組支持不大好，我後面會提到）。

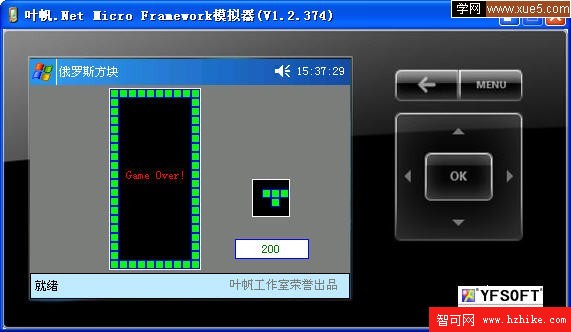

好了，讓我們在.Net Micro Framework模擬器（由於我這裡沒有帶LCD屏的MF開發板，所以很遺憾，不知道在實際的設備上該程序的性能會怎樣）上體驗一下俄羅斯方塊游戲吧。
進入MF Windows（姑且這麼叫吧），單擊“開始”菜單按鈕（MF平台不支持鼠標，是單擊模擬器上的Menu按鈕，或在鍵盤敲“空格”或“Windows”鍵），我們用光標鍵選中“俄羅斯方塊”游戲，按OK鍵（或按鍵盤上的“回車”鍵）進入游戲。


通過開始菜單進入“俄羅斯方塊”游戲


編寫的俄羅斯方塊游戲可是具備經典版的所有功能喲！可以翻轉，可以移動，可以得分，可以快速降落等等！要認真玩，否則很快就“Game Over”的。


$False$


在編寫過程中發現MF對二維數組支持不是太好。
下面的代碼編譯時會報錯：
bool[,] bFlag=new bool[10,20];


所以在MF中二維數組必須這樣聲明才行：
bool[][] bShowFlag = new bool[22][];             //主顯示區含邊框
    for (int i = 0; i < 22; i++)
     {
  bShowFlag[i] = new bool[12];
}

附：MF俄羅斯方塊核心代碼

 //俄羅斯方塊(葉帆工作室：http://blog.csdn.Net/yefanqiu)
        public class ElsGame
        {
            int Current_Y = -2, Current_X =3;
     &nbsp;      int intGrade = 0;
            bool[][] bShowFlag = new bool[22][];             //主顯示區含邊框
            bool[][] bMetaShowFlag = new bool[4][];          //下一個方塊顯示區
            bool[][] bCurrentMetaShowFlag = new bool[4][];   //當前方塊顯示區

            int intNextNo = 0;                               //下一個方塊索引
            int intCurrentNo = 0;                            //當前方塊索引

            enum

MoveWay{Left,Down,Right};
            DispatcherTimer GameTimer;                       //游戲時鐘

            bool bGameRunFlag = false;                       //游戲運行標志

            public ElsGame(DispatcherTimer GameTimer)
            {
                this.GameTimer = GameTimer;
                Init();
            }

            //元素
            private bool[][] GetElsMeta(int intNo)
            {
       &nbsp;        bool[][] ElsMetaFlag = new bool[4][];
                for (int i = 0; i < 4; i++)
     &nbs        {
                    ElsMetaFlag[i] = new bool[4];
                }
                switch (intNo)
                {
                    case 0:   //田
                        ElsMetaFlag[1][1] = true;
                        ElsMetaFlag[1][2] = true;
                        ElsMetaFlag[2][1] = true;
   &nbsp;                    ElsMetaFlag[2][2] = true;
                        return ElsMetaFlag;
                    case 1: //-
                        ElsMetaFlag[2][0] = true;
                        ElsMetaFlag[2][1] = true;
                        ElsMetaFlag[2][2] = true;
                        ElsMetaFlag[2][3] = true;
                        return ElsMetaFlag;
                    case 2: //|
                        ElsMetaFlag[0][2] = true;an>
                        ElsMetaFlag[1][2] = true;
                        ElsMetaFlag[2][2] = true;
                        ElsMetaFlag[3][2] = true;
                        return ElsMetaFlag;
                    case 3: //┻
                        ElsMetaFlag[1][2] = true;
                        ElsMetaFlag[2][1] = true;
                        ElsMetaFlag[2][2] = true;
                        ElsMetaFlag[2][3] = true;
               &nbsp;        return ElsMetaFlag;
                    case 4: //┣
                        ElsMetaFlag[2][2] = true;
                        ElsMetaFlag[1][1] = true;
     ElsMetaFlag[2][1] = true;
                        ElsMetaFlag[3][1] = true;
                        return ElsMetaFlag;
                    case 5: //┳
                        ElsMetaFlag[2][2] = true;
                        ElsMetaFlag[1][1] = blue">true;
                        ElsMetaFlag[1][2] = true;
                        ElsMetaFlag[1][3] = true;
                        return ElsMetaFlag;
                    case 6: //┫
                        ElsMetaFlag[2][1] = true;
                        ElsMetaFlag[1][2] = true;
                        ElsMetaFlag[2][2] = true;
                        ElsMetaFlag[3][2] = true;
                        return ElsMetaFlag;
            &nbsp;       case 7: //┖
                        ElsMetaFlag[3][2] = true;
                        ElsMetaFlag[1][1] = true;
                        ElsMetaFlag[2][1] = true;
                        ElsMetaFlag[3][1] = true;
                        return ElsMetaFlag;
                    case 8: //┍
                        ElsMetaFlag[2][1] = true;
                        ElsMetaFlag[1][1] = true;
                        ElsMetaFlag[1][2] = true;
                        ElsMetaFlag[1][3] = true;
                        return ElsMetaFlag;
                    case 9: //┒
                        ElsMetaFlag[1][1] = true;
                        ElsMetaFlag[1][2] = true;
                        ElsMetaFlag[2][2] = true;
 ElsMetaFlag[3][2] = true;
                        return ElsMetaFlag;
                    case 10: //┙
&nbsp;                       ElsMetaFlag[1][3] = true;
                        ElsMetaFlag[2][1] = true;
                        ElsMetaFlag[2][2] = true;
                        ElsMetaFlag[2][3] = true;
                        return ElsMetaFlag;
                    case 11: //┕
                        ElsMetaFlag[1][1] = true;
                        ElsMetaFlag[2][1] = true;
                        ElsMetaFlag[2][2] = true;
                     &nbsp;  ElsMetaFlag[2][3] = true;
                        return ElsMetaFlag;
                    case 12: //┎
                        ElsMetaFlag[1][2] = true;
                        ElsMetaFlag[1][1] = true;
                        ElsMetaFlag[2][1] = true;
                        ElsMetaFlag[3][1] = true;
                        return ElsMetaFlag;
                    case 13: //┑
                        ElsMetaFlag[2][3] = true;

tyle="FONT-SIZE: 9pt">                        ElsMetaFlag[1][1] = true;
                        ElsMetaFlag[1][2] = true;
                        ElsMetaFlag[1][3] = true;
                        return ElsMetaFlag;
                    case 14: //┚
                        ElsMetaFlag[3][1] = true;
                        ElsMetaFlag[1][2] = true;
                        ElsMetaFlag[2][2] = true;
                        ElsMetaFlag[3][2] = true;
&nbsp;      return ElsMetaFlag;
                }
                return null;
            }

            //翻轉
            private int GetTurnMeta(int intNo)
            {
                switch (intNo)
                {
                    case 0:   //田
                        return 0;
                    case 1: //-
                  ;      return 2;
                    case 2: //|
                        return 1;
                    case 3: //┻
                        return 4;
                    case 4: //┣
                        return 5;
                    case 5: //┳
                        return 6;
                    case 6: //E: 9pt; COLOR: green">┫
                        return 3;
                    case 7: //┖
                        return 8;
                    case 8: //┍
                        return 9;
                    case 9: //┒
                        return 10;
                    case 10: //┙
                        return 7;">                    case 11: //┕
                        return 12;
                    case 12: //┎
                        return 13;
          &nbs     case 13: //┑
                        return 14;
                    case 14: //┚
                        return 11;
                }
                return intNo;n>
            }

            //初始化
            public void Init()
            {
                if (!bGameRunFlag)
                {
                    //主顯示區
                    for (int i = 0; i < 22; i++)
                    {
                        bShowFlag[i] = new bool[12];
                        for (int j = 0; j < 12; j++)
                      &nbsp; {
                            if (i == 21 || j == 0 || j == 11)
                            {
                                bShowFlag[i][j] = true;
                            }
                            else
                            {
                                bShowFlag[i][j] = false;
                            }
                        }
                    }


                 //輔助顯示區
                    for (int i = 0; i < 4; i++)
                    {
                        bMetaShowFlag[i] = new bool[4];
                        for (int j = 0; j < 4; j++)
                        {
                            bMetaShowFlag[i][j] = false;
   &nbsp;                    }
                    }

                    //方塊初始化
                    Microsoft.SPOT.Math.Randomize();

                    intCurrentNo = Microsoft.SPOT.Math.Random(15);
                    bCurrentMetaShowFlag = GetElsMeta(intCurrentNo);

                    intNextNo = Microsoft.SPOT.Math.Random(15);
                    bMetaShowFlag = GetElsMeta(intNextNo);

                    //時鐘開始
                    GameTimer.Start();

                    //積分清零
                    intGrade = 0;

                    //游戲運行標志
                    bGameRunFlag = true;
                }
            }

            //下降
            public bool DoDownMove()
            {
               if (IsMove(Current_X, Current_Y, bCurrentMetaShowFlag, MoveWay.Down) && bGameRunFlag)
                {
                    Current_Y++;
                    MoveBlock(Current_X, Current_Y, bCurrentMetaShowFlag, MoveWay.Down);
                }
                else
                {
                  &nbsp;//時鐘恢復正常
                    GameTimer.Interval = new TimeSpan(0, 0, 1);
                    //判斷是否得分及游戲是否結束
                    int intRet=GetGameState() ;
                    if (intRet == -1)
                    {
                        GameTimer.Stop();
                        bGameRunFlag = false;
                        //主顯示區
                        for (int i = 0; i < 22; i++)
    &nbsp;        {
                            bShowFlag[i] = new bool[12];
                            for (int j = 0; j < 12; j++)
                            {
                                if (i==1 || i == 20 || j == 1 || j == 10)
                                {
                                    bShowFlag[i][j] = true;
                                }
                                else
              ;                  {
                                    bShowFlag[i][j] = false;
                                }
                            }
                        }
                    }
                    else
                    {
                        intGrade += intRet;
                        Current_Y = -3;
                        Current_X = 3;
                        NextBlock();
                    }
                }
                return true;
            }

            //判斷游戲狀態
            private int GetGameState()
            {
                bool bFlag = false;
                int intNum = 0;
                //判斷游戲是否結束
                for (int i = 1; i < 11; i++)
                {
                    if (bSg>howFlag[1][i])
                    {
                        return -1;
                    }
                }

                //判斷得分
                for (int i = 1; i < 21; i++)
                {
                    bFlag = true;
                    for (int j = 1; j < 11; j++)
                    {
                        if (!bShowFlag[i][j]) bFlag = false;
                    }
                    if (bFlag)
                    {
                        //移動數組
                        for (int e = i; e>0; e--)
                        {
                            for (int k = 1; k < 11; k++)
                            {
                                bShowFlag[e][k] =bShowFlag[e-1][k];
                            }
                        }
     &nbsp;                  intNum++;
                    }
                }
                switch (intNum)
                {
                    case 1:
                        intNum = 100;
                        break;
                    case 2:
                        intNum = 300;
                        break;
                    case 3:
                        inttrong> Num = 500;
                        break;
                    case 4:
                        intNum = 800;
                        break;
                }
                return intNum;
            }

            //左移
            public bool DoLeftMove()
            {
                if (!bGameRunFlag) return false;
                if (IsMove(Current_X, Current_Y, bCurrentMetaShowFlag, MoveWay.Left))<BR>                {
                    Current_X--;
                    MoveBlock(Current_X, Current_Y, bCurrentMetaShowFlag, MoveWay.Left);
                    return true;
                }
                return false;
            }

            //右移
            public bool DoRightMove()
            {
                if (!bGameRunFlag) return false;
                if (IsMove(Current_X, Current_Y, bCurrentMetaShowFlag, MoveWay.Right))FONT-SIZE: 9pt">                {
                    Current_X++;
                    MoveBlock(Current_X, Current_Y, bCurrentMetaShowFlag, MoveWay.Right);
                    return true;
                }
                return false;
            }

            //方塊翻轉
            public bool DoTurn()
            {
                if (!bGameRunFlag) return false;
                #region //判斷是否能翻轉
                int mX=0, mY = 0;
                bool bFlag = true;
                //翻轉後的標志
                bool[][] bFlags = GetElsMeta(GetTurnMeta(intCurrentNo));            SetBlock(Current_X, Current_Y, bCurrentMetaShowFlag, false);
                for (int i = 0; i < 4; i++)
                {
                    for (int j = 0; j < 4; j++)
                    {
                        mX = Current_X + j + 1;
                       mY = Current_Y + i + 1;
                        if (mX > -1 && mX < 12 && mY > -1 && mY < 22)
                        {
                            if (bShowFlag[mY][mX] && bFlags[i][j])
                            {
                                bFlag = false;
                            }
                        }
                    }
                }
                SetBlock(Current_X, Current_Y, bCurrentMetaShowFlag, true);

COLOR: blue">                #endregion

                if (bFlag)
                {
                    SetBlock(Current_X, Current_Y, bCurrentMetaShowFlag, false);
                    intCurrentNo = GetTurnMeta(intCurrentNo);
                    bCurrentMetaShowFlag = GetElsMeta(intCurrentNo);
                    SetBlock(Current_X, Current_Y, bCurrentMetaShowFlag, true);
                    return true;
                }
                return false;
            }

            //設置方塊
       &nbsp;    private void SetBlock(int X, int Y, bool[][] bFlags, bool bFlag)
            {
                略 ;-)
            }

            //下一個方塊
            private void NextBlock()
            {
                intCurrentNo = intNextNo;
  &nbs            bCurrentMetaShowFlag = bMetaShowFlag;
                intNextNo = Microsoft.SPOT.Math.Random(15);
                bMetaShowFlag = GetElsMeta(intNextNo);
            }

            //移動方塊
        ;   private void MoveBlock(int X, int Y, bool[][] bFlags,MoveWay mw)
            {
                switch (mw)
                {
                    case MoveWay.Left:
                        SetBlock(X+1, Y, bCurrentMetaShowFlag, false);
                        SetBlock(X, Y, bCurrentMetaShowFlag, true);
                        break;
                    case MoveWay.Down:
                        SetBlock(X, Y - 1, bCurrentMetaShowFlag, false);
               &nbsp;        SetBlock(X, Y, bCurrentMetaShowFlag, true);
                        break;
                    case MoveWay.Right:
                        SetBlock(X-1, Y, bCurrentMetaShowFlag, false);
                        SetBlock(X, Y, bCurrentMetaShowFlag, true);
                        break;
                    default:
                        break;
                }
            }

           //

pt; COLOR: green">是否可以移動
            private bool IsMove(int X, int Y, bool[][] bFlags, MoveWay mw)
            {
                略 ;-)
            }

            //繪制
            public void Draw(DrawingContext dc)
            {
                int BarTop = 26;
                int BarHeight = SystemMetrics.ScreenHeight - BarTop * 2;
                dc.DrawRectangle(new SolidColorBrush(Colors.Gray), new Pen(Colors.Gray), 0, BarTop, SystemMetrics.ScreenWidth,

BarHeight);

                //主顯示區
                dc.DrawRectangle(new SolidColorBrush(Colors.Black), new Pen(Colors.White), 79, BarTop + 3, 92, 182);

                //輔助顯示區
                dc.DrawRectangle(new SolidColorBrush(Colors.Black), new Pen(Colors.White), 222,120, 38, 38);

                //積分區
                dc.DrawRectangle(new SolidColorBrush(Colors.White), new Pen(Colors.Blue), 205, 180, 74, 20);
                dc.DrawText(intGrade.ToString(), YFWinApp.YFFont,ColorUtility.ColorFromRGB(0,120,0),224 + 17 - intGrade.ToString().Length * 3, 184);

                //顯示
                DrawEls(80, BarTop + 4, 9, 9, dc);

                //結束
                if (!bGameRunFlag)
                {
                    dc.DrawText("Game Over!", YFWinApp.YFFont, Colors.Red,96, 110);
                }
            }

            //顯示方塊
            private void DrawEls(int X,int Y,int Width,int Height,DrawingContext dc)
            {
                SolidColorBrush sb=new SolidColorBrush(Colors.Green);
                Pen pen=new Pen(Colors.Blue);

                //主顯示區
                for (int i = 0; i < 20; i++)
                {
                    for (int j = 0; j < 10; j++)
                    {
                        if(bShowFlag[i+1][j+1])
                           dc.DrawRectangle(sb,

pen, X +j * Width, Y + i * Height, Width, Height);
                    }
                }

                //輔助顯示區
                for (int i = 0; i < 4; i++)
                {
                    for (int j = 0; j < 4; j++)
                    {
                        if(bMetaShowFlag[i][j])
 &nbsp;                           dc.DrawRectangle(sb, pen,223 + j * Width, 121 + i * Height, Width, Height);
                    }
                }
            }
}
