XSD To Entity -- Vs2008 Add Ins

最近閒得無事，不過也是為了以後設計的一個環節，做了一個Add-Ins

主要是XSD To Entity的操作。

Step 1:先配置一下

把相關的AddIn、DLL Copy To 當前用戶\文檔\Visual Studio 200X\Addins

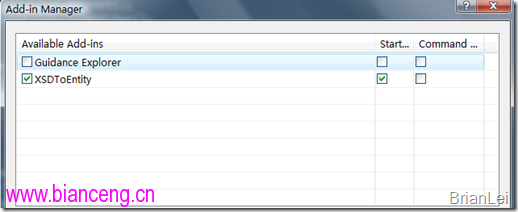

Step 2:Tools\Add-In Manager勾選即可

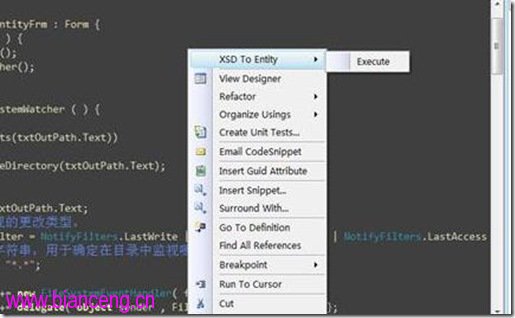

Step 3:現在隨便打開一個project,然後在Code Windows中右擊,就可以看到XSD To Entity

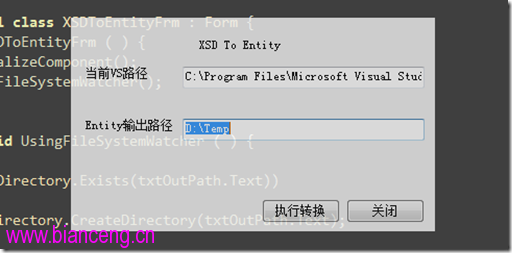

界面

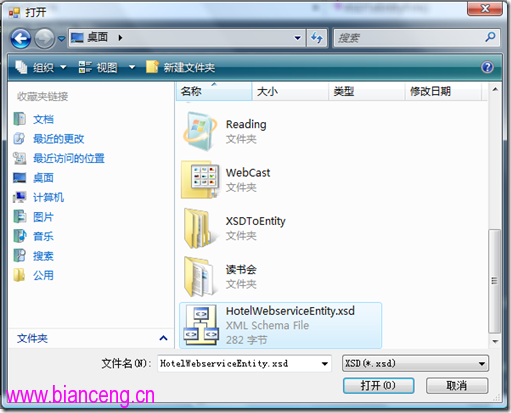

選擇一個XSD File

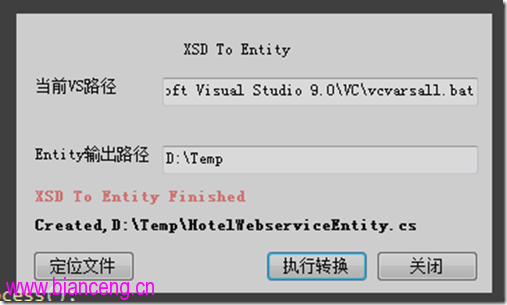

轉換完成

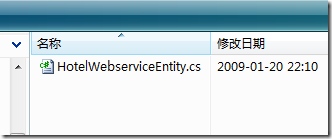

轉換文件

代碼方面：

Connect.cs:

1 public void OnConnection(object application, ext_ConnectMode connectMode, object addInInst, ref Array custom)
 2 {
 3           _applicationObject = (DTE2)application;
 4           _addInInstance = (AddIn)addInInst;
 5
 6           // Get the CommandBar for the window in which you want to add the menuitem.
 7           //I am going to add it to the code window.
 8           CommandBar oCommandBar = ((CommandBars)_applicationObject.CommandBars)["Code Window"];
 9
10           // I am going to add a MenuItem and a submenuitem to that.
11           // So I go ahead and create a PopUp Item.
12           CommandBarPopup oPopup = (CommandBarPopup)oCommandBar.Controls.Add(MsoControlType.msoControlPopup,
13                                                                              System.Reflection.Missing.Value,
14                                                                              System.Reflection.Missing.Value, 1, true);
15           // Set the caption of the menuitem
16           oPopup.Caption = "XSD To Entity";
17
18           // Now I go ahead and add a Submenu item to the added Menuitem.
19           CommandBarControl oControl = oPopup.Controls.Add(MsoControlType.msoControlButton,
20                                                            System.Reflection.Missing.Value,
21                                                            System.Reflection.Missing.Value, 1, true);
22           // Set the caption of the submenuitem
23           oControl.Caption = "Execute";
24
25           // Now that we have added the menu items,
26           // we will associate the click events for these items.
27           // I will associate a click event only for the SubMenuitem at present.
28           oSubMenuItemHandler = (CommandBarEvents)_applicationObject.Events.get_CommandBarEvents(oControl);
29           oSubMenuItemHandler.Click += new _dispCommandBarControlEvents_ClickEventHandler(oSubMenuItemHandler_Click);
30 }
31
32 /// <summary>
33 /// Invoked on click of sub menu item.
34 /// </summary>
35 protected void oSubMenuItemHandler_Click(object CommandaBarControl, ref bool handled, ref bool cancelDefault)
36 {
37           XSDToEntityFrm frm = new XSDToEntityFrm();
38           frm.ShowDialog();
39 }

XSDToEntityFrm.cs

System.Diagnostics.Process p = new System.Diagnostics.Process();
{
　　　p.StartInfo.FileName = "cmd.exe";
　　　p.StartInfo.UseShellExecute = false;
　　　p.StartInfo.RedirectStandardInput = true;
　　　p.StartInfo.RedirectStandardOutput = true;
　　　p.StartInfo.RedirectStandardError = true;
　　　p.StartInfo.CreateNoWindow = true;
　　　p.Start();
　　　p.StandardInput.WriteLine( String.Concat( @"%comspec% /k """"" , txtVsPath.Text , @""""" x86" ) );
　　　p.StandardInput.WriteLine( String.Concat( @"xsd /c /language:CS " , selectFile , @" /out:" , txtOutPath.Text ) );
　　　p.StandardInput.WriteLine( "Exit" );
　　　p.Close();
}

XML To XSD : xsd test.xml /outputdir:D:\

XSD TO DataSet : xsd /dataset /language:CS Test.xsd (不過，不是每個xsd都是可以轉換的)

DLL To XSD : xsd Test.dll　(不過，不是每個DLL都是可以轉換的)
