WF4:Workflow Service中Correlation的基本使用

編輯:關於.NET

1.關聯可以保證消息之間的正確路由,本文舉一個簡單的例子,首先定義一個流程表單類,如下:

namespace CaryContract
{
     [DataContract]
     public class FlowForm
     {
         [DataMember]
         public Guid FormNum { get; set; }

         [DataMember]
         public string FlowStatus { get; set; }

         [DataMember]
         public string ApplyName { get; set; }

         [DataMember]
         public string ApplyContent { get; set; }
     }
}

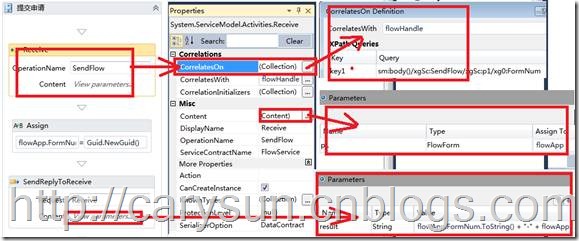

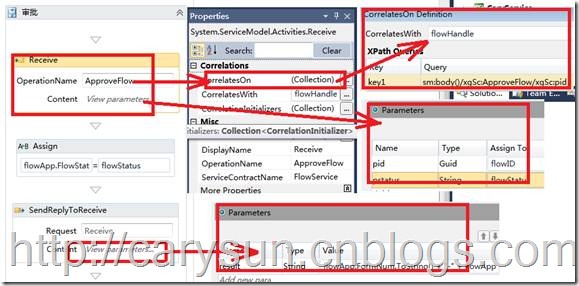

2.然後工作流中完成提交申請和審批兩個動作,每個動作我們都使用了ReceiveAndSendReply模板,具體設計如下:



3.對應工作流的XAML如下:

<Activity mc:Ignorable="sap" x:Class="CaryService.Workflow1" mva:VisualBasic.Settings="Assembly references and imported namespaces serialized as XML namespaces" xmlns="http://schemas.microsoft.com/netfx/2009/xaml/activities" xmlns:c="clr-namespace:CaryContract;assembly=CaryContract, Version=1.0.0.0, Culture=neutral, PublicKeyToken=null" xmlns:c1="clr-namespace:CaryContract;assembly=CaryContract" xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006" xmlns:mv="clr-namespace:Microsoft.VisualBasic;assembly=System" xmlns:mva="clr-namespace:Microsoft.VisualBasic.Activities;assembly=System.Activities" xmlns:p="http://schemas.microsoft.com/netfx/2009/xaml/servicemodel" xmlns:s="clr-namespace:System;assembly=mscorlib, Version=4.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089" xmlns:s1="clr-namespace:System;assembly=mscorlib" xmlns:s2="clr-namespace:System;assembly=System" xmlns:s3="clr-namespace:System;assembly=System.Xml" xmlns:s4="clr-namespace:System;assembly=System.Core" xmlns:sad="clr-namespace:System.Activities.Debugger;assembly=System.Activities" xmlns:sap="http://schemas.microsoft.com/netfx/2009/xaml/activities/presentation" xmlns:scg="clr-namespace:System.Collections.Generic;assembly=System" xmlns:scg1="clr-namespace:System.Collections.Generic;assembly=System.ServiceModel" xmlns:scg2="clr-namespace:System.Collections.Generic;assembly=System.Core" xmlns:scg3="clr-namespace:System.Collections.Generic;assembly=mscorlib" xmlns:sd="clr-namespace:System.Data;assembly=System.Data" xmlns:sd1="clr-namespace:System.Data;assembly=System.Data.DataSetExtensions" xmlns:sl="clr-namespace:System.Linq;assembly=System.Core" xmlns:ssa="clr-namespace:System.ServiceModel.Activities;assembly=System.ServiceModel.Activities" xmlns:ssx="clr-namespace:System.ServiceModel.XamlIntegration;assembly=System.ServiceModel" xmlns:st="clr-namespace:System.Text;assembly=mscorlib" xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml">
  <Sequence sad:XamlDebuggerXmlReader.FileName="c:\users\baby\documents\visual studio 2010\Projects\CaryService\CaryService\Workflow1.xaml" sap:VirtualizedContainerService.HintSize="300,1056">
    <Sequence.Variables>
      <Variable x:TypeArguments="c1:FlowForm" Name="flowApp" />
      <Variable x:TypeArguments="p:CorrelationHandle" Name="flowHandle" />
    </Sequence.Variables>
    <sap:WorkflowViewStateService.ViewState>
      <scg3:Dictionary x:TypeArguments="x:String, x:Object">
        <x:Boolean x:Key="IsExpanded">True</x:Boolean>
      </scg3:Dictionary>
    </sap:WorkflowViewStateService.ViewState>
    <Sequence DisplayName="提交申請" sap:VirtualizedContainerService.HintSize="278,446">
      <Sequence.Variables>
        <Variable x:TypeArguments="p:CorrelationHandle" Name="__handle1" />
      </Sequence.Variables>
      <sap:WorkflowViewStateService.ViewState>
        <scg3:Dictionary x:TypeArguments="x:String, x:Object">
          <x:Boolean x:Key="IsExpanded">True</x:Boolean>
          <x:Boolean x:Key="IsPinned">False</x:Boolean>
        </scg3:Dictionary>
      </sap:WorkflowViewStateService.ViewState>
      <p:Receive x:Name="__ReferenceID0" CanCreateInstance="True" CorrelatesWith="[flowHandle]" sap:VirtualizedContainerService.HintSize="256,92" OperationName="SendFlow" ServiceContractName="FlowService">
        <p:Receive.CorrelatesOn>
          <p:XPathMessageQuery x:Key="key1">
            <p:XPathMessageQuery.Namespaces>
              <ssx:XPathMessageContextMarkup>
                <x:String x:Key="xg0">http://schemas.datacontract.org/2004/07/CaryContract</x:String>
                <x:String x:Key="xgSc">http://tempuri.org/</x:String>
              </ssx:XPathMessageContextMarkup>
            </p:XPathMessageQuery.Namespaces>sm:body()/xgSc:SendFlow/xgSc:p1/xg0:FormNum</p:XPathMessageQuery>
        </p:Receive.CorrelatesOn>
        <p:Receive.CorrelationInitializers>
          <p:RequestReplyCorrelationInitializer CorrelationHandle="[__handle1]" />
        </p:Receive.CorrelationInitializers>
        <p:ReceiveParametersContent>
          <OutArgument x:TypeArguments="c1:FlowForm" x:Key="p1">[flowApp]</OutArgument>
        </p:ReceiveParametersContent>
      </p:Receive>
      <Assign sap:VirtualizedContainerService.HintSize="256,58">
        <Assign.To>
          <OutArgument x:TypeArguments="s1:Guid">[flowApp.FormNum]</OutArgument>
        </Assign.To>
        <Assign.Value>
          <InArgument x:TypeArguments="s1:Guid">[Guid.NewGuid()]</InArgument>
        </Assign.Value>
      </Assign>
      <p:SendReply Request="{x:Reference __ReferenceID0}" DisplayName="SendReplyToReceive" sap:VirtualizedContainerService.HintSize="256,92">
        <p:SendParametersContent>
          <InArgument x:TypeArguments="x:String" x:Key="result">[flowApp.FormNum.ToString() + "-" + flowApp.ApplyName + "-" + flowApp.ApplyContent + "-" + flowApp.FlowStatus]</InArgument>
        </p:SendParametersContent>
      </p:SendReply>
    </Sequence>
    <Sequence DisplayName="審批" sap:VirtualizedContainerService.HintSize="278,446">
      <Sequence.Variables>
        <Variable x:TypeArguments="p:CorrelationHandle" Name="__handle1" />
        <Variable x:TypeArguments="s1:Guid" Name="flowID" />
        <Variable x:TypeArguments="x:String" Name="flowStatus" />
      </Sequence.Variables>
      <sap:WorkflowViewStateService.ViewState>
        <scg3:Dictionary x:TypeArguments="x:String, x:Object">
          <x:Boolean x:Key="IsExpanded">True</x:Boolean>
          <x:Boolean x:Key="IsPinned">False</x:Boolean>
        </scg3:Dictionary>
      </sap:WorkflowViewStateService.ViewState>
      <p:Receive x:Name="__ReferenceID1" CorrelatesWith="[flowHandle]" sap:VirtualizedContainerService.HintSize="256,92" OperationName="ApproveFlow" ServiceContractName="FlowService">
        <p:Receive.CorrelatesOn>
          <p:XPathMessageQuery x:Key="key1">
            <p:XPathMessageQuery.Namespaces>
              <ssx:XPathMessageContextMarkup>
                <x:String x:Key="xgSc">http://tempuri.org/</x:String>
              </ssx:XPathMessageContextMarkup>
            </p:XPathMessageQuery.Namespaces>sm:body()/xgSc:ApproveFlow/xgSc:pid</p:XPathMessageQuery>
        </p:Receive.CorrelatesOn>
        <p:Receive.CorrelationInitializers>
          <p:RequestReplyCorrelationInitializer CorrelationHandle="[__handle1]" />
        </p:Receive.CorrelationInitializers>
        <p:ReceiveParametersContent>
          <OutArgument x:TypeArguments="s1:Guid" x:Key="pid">[flowID]</OutArgument>
          <OutArgument x:TypeArguments="x:String" x:Key="pstatus">[flowStatus]</OutArgument>
        </p:ReceiveParametersContent>
      </p:Receive>
      <Assign sap:VirtualizedContainerService.HintSize="256,58">
        <Assign.To>
          <OutArgument x:TypeArguments="x:String">[flowApp.FlowStatus]</OutArgument>
        </Assign.To>
        <Assign.Value>
          <InArgument x:TypeArguments="x:String">[flowStatus]</InArgument>
        </Assign.Value>
      </Assign>
      <p:SendReply Request="{x:Reference __ReferenceID1}" DisplayName="SendReplyToReceive" sap:VirtualizedContainerService.HintSize="256,92">
        <p:SendParametersContent>
          <InArgument x:TypeArguments="x:String" x:Key="result">[flowApp.FormNum.ToString() + "-" + flowApp.ApplyName + "-" + flowApp.ApplyContent + "-" + flowApp.FlowStatus]</InArgument>
        </p:SendParametersContent>
      </p:SendReply>
    </Sequence>
  </Sequence>
</Activity>

4.我們使用WorkflowServiceHost來宿主工作流如下:

namespace CaryService
{
     class Program
     {
         static void Main(string[] args)
         {
             string baseAddress = "http://localhost:8081/FlowService";
             using (WorkflowServiceHost shost = new WorkflowServiceHost(new Workflow1(), new Uri(baseAddress)))
             {
                 shost.Description.Behaviors.Add(new ServiceMetadataBehavior() { HttpGetEnabled = true });
                 shost.Open();
                 Console.WriteLine("FlowService is listening:" + baseAddress);
                 Console.ReadLine();
             }
         }
     }
}

5.客戶端使用WebForm,WebForm1.aspx對應的cs文件的代碼如下:

namespace CaryClient
{
     public partial class WebForm1 : System.Web.UI.Page
     {
         protected void Page_Load(object sender, EventArgs e)
         {
         }
         protected void Button1_Click(object sender, EventArgs e)
         {
             FlowForm flow = new FlowForm();
             ServiceReference1.FlowServiceClient fs = new ServiceReference1.FlowServiceClient();
             flow.ApplyName = TextBox1.Text;
             flow.ApplyContent = TextBox2.Text;
             flow.FlowStatus = "申請";
             ListBox1.Items.Add(fs.SendFlow(flow));
         }
         protected void Button2_Click(object sender, EventArgs e)
         {
             FlowForm flow = new FlowForm();
             flow.FlowStatus = "審批";
             ServiceReference1.FlowServiceClient fs = new ServiceReference1.FlowServiceClient();
             ListBox1.Items.Add(fs.ApproveFlow(flow.FormNum,flow.FlowStatus));
         }
     }
}

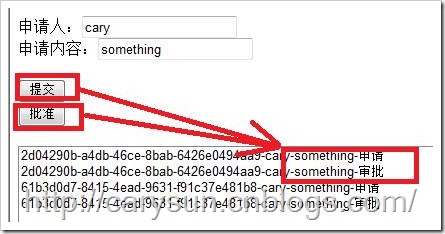

6.執行結果如下:
