WCF從理論到實踐(13):事務投票

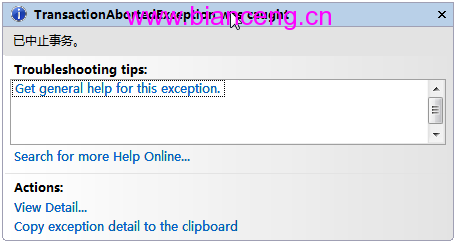

注意，本文的Receive和Send方法的TransactionAutoComplete設置的為false，這樣就需要我們在事務包含的每個方法中均顯示的進行事務投票，即調用OperationContext.Current.SetTransactionComplete();如果忽略此處，系統會出現如下的異常：

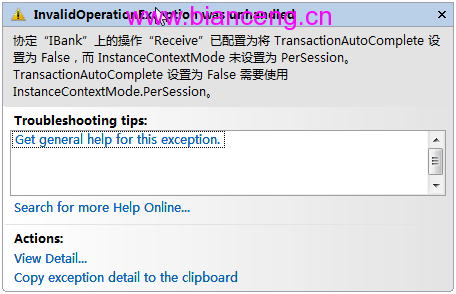

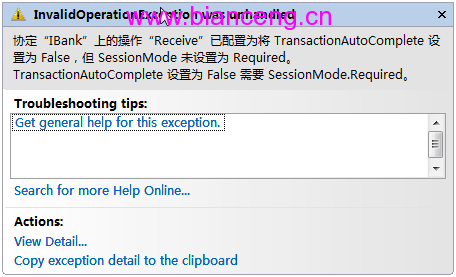

而且如果TransactionAutoComplete為false的時候，必須將InstanceContextMode設置為PerSession,並且服務契約(ServiceContract)也必須設置SessionMode為Required,否則分別 會出現如下異常：

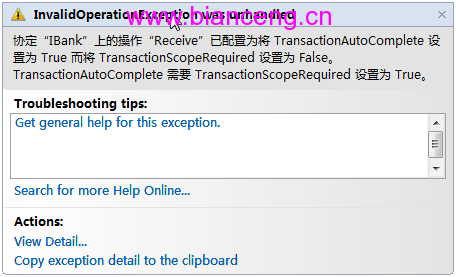

而如果TransactionAutoComplete為True，則要求TransactionScopeRequired必須同時為True，否則會出現異常:

宿主程序

宿主程序非常簡單，我們只是將服務寄宿到兩個不同的進程中並且指定不同的服務地址便可，唯一值得注意的是因為服務契約需要事務支持，所以Binding的TransactionFlow也必須為True.

他們的代碼分別為：

Jillzhang.Wcf.Transactions.ICBC

ICBC
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.ServiceModel;
using Jillzhang.Wcf.Transactions.Contracts;

namespace Jillzhang.Wcf.Transactions.ICBC
{
class Program
{
static void Main(string[] args)
{
Uri baseAddress = new Uri("http://127.0.0.1:8654/ICBC");
using (ServiceHost host = new ServiceHost(typeof(Bank), baseAddress))
{
WSDualHttpBinding bind = new WSDualHttpBinding();
bind.TransactionFlow = true;
host.AddServiceEndpoint(typeof(IBank), bind, "");
host.Open();
Console.WriteLine("中國工商銀行開始營業!");
Console.Read();
}
}
}
}

Jillzhang.Wcf.Transactions.CCB

CCB
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.ServiceModel;
using Jillzhang.Wcf.Transactions.Contracts;

namespace Jillzhang.Wcf.Transactions.CCB
{
class Program
{
static void Main(string[] args)
{
Uri baseAddress = new Uri("http://127.0.0.1:8655/CCB");
using (ServiceHost host = new ServiceHost(typeof(Bank), baseAddress))
{
WSDualHttpBinding bind = new WSDualHttpBinding();
bind.TransactionFlow = true;
host.AddServiceEndpoint(typeof(IBank), bind, "");
host.Open();
Console.WriteLine("中國建設銀行開始營業!");
Console.Read();
}
}
}
}

客戶端

一個WPF應用程序，可以調用服務來模擬銀行轉帳功能，因為本文著重介紹WCF，對此不作詳細贅述，以後在一起學WPF系列中會逐步加以學習，本文只給出主要的xaml文件和.cs文件

Window1.xaml

Windows.xaml
<Window x:Class="Jillzhang.Wcf.BankClient.Window1"
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
WindowStyle="ToolWindow" SizeToContent="WidthAndHeight" WindowStartupLocation="CenterScreen"
Title="銀行聯盟自助服務系統" ResizeMode="NoResize" Initialized="Window_Initialized">
<Window.Resources>
<Style x:Key="styleBackground">
<Setter Property="Control.Background">
<Setter.Value>
<LinearGradientBrush StartPoint="0.5,0" EndPoint="0.5,1">
<GradientStop Color="#50000000" Offset="0.5"/>
<GradientStop Color="#ff999999" Offset="1"/>
</LinearGradientBrush>
</Setter.Value>
</Setter>
<Setter Property="Control.Width" Value="500">
</Setter>
</Style>
<!-- Banner Style -->
<Style x:Key="styleBanner">
<Setter Property="StackPanel.Background">
<Setter.Value>
<LinearGradientBrush StartPoint="0.5,0" EndPoint="0.5,1">
<GradientStop Color="DarkGray" Offset="0.1" />
<GradientStop Color="Black" Offset="1" />
</LinearGradientBrush>
</Setter.Value>
</Setter>
<Setter Property="TextBlock.Foreground" Value="White" />
<Setter Property="TextBlock.FontFamily" Value="Tahoma" />
</Style>
<!-- CONTENT AREA STYLE -->
<Style x:Key="styleContentArea_Base">
<Setter Property="Border.BorderThickness" Value="1" />
<Setter Property="Border.CornerRadius" Value="10" />
<Setter Property="Border.Margin" Value="12" />
</Style>
<!-- Content Area Style -->
<Style x:Key="styleContentArea" BasedOn="{StaticResource styleContentArea_Base}">
<Setter Property="Border.Background" Value="White" />
<Setter Property="Border.BorderBrush" Value="Gray" />
<Setter Property="TextBlock.FontFamily" Value="Sans Serif" />
</Style>
</Window.Resources>
<Grid Style="{DynamicResource styleBackground}">
<Grid.RowDefinitions>
<RowDefinition Height="Auto"/>
<RowDefinition Height="*"/>
</Grid.RowDefinitions>
<Grid.ColumnDefinitions>
<ColumnDefinition Width="*"/>
<ColumnDefinition Width="2.5*"/>
</Grid.ColumnDefinitions>
<!-- BANNER -->
<Grid Grid.ColumnSpan="2" Grid.Column="0" Grid.Row="0" Height="70" Style="{DynamicResource styleBanner}">
<TextBlock
FontSize="26"
Padding="10,0,10,0"
Text="銀行聯盟自助服務系統"
VerticalAlignment="Center"
/>
</Grid>
<Grid Grid.Column="0" Grid.Row="1" Height="150">
<GroupBox Header="銀行列表" FontSize="15" Margin="5,5,5,10">
<StackPanel Margin="5,20,5,15">
<RadioButton Name="radioButton1" FontSize="13" Height="25" IsChecked="True" Checked="radioButton1_Checked">中國工商銀行</RadioButton>
<Separator Height="10"></Separator>
<RadioButton FontSize="13" Name="radioButton2" Height="25" Checked="radioButton2_Checked">中國建設銀行</RadioButton>
</StackPanel>
</GroupBox>
</Grid>
<Grid Grid.Column="1" Grid.Row="1" Grid.RowSpan="2">
<Border Style="{DynamicResource styleContentArea}">
<Grid>
<Grid.RowDefinitions>
<RowDefinition Height="Auto" MinHeight="36" />
<RowDefinition Height="*"/>
<RowDefinition Height="*"/>
</Grid.RowDefinitions>
<Grid.ColumnDefinitions>
<ColumnDefinition Width="Auto" MinWidth="36" />
<ColumnDefinition Width="*"/>
</Grid.ColumnDefinitions>
<Image Margin="4,4,0,0" Stretch="None" Source="Resources\Icons\agent.ico" />
<StackPanel Grid.Column="1" Orientation="Horizontal">
<TextBlock FontSize="15" Padding="8" Text="您好,您操作的是：" VerticalAlignment="Center" />
<TextBlock FontSize="13" Padding="8" Name="AccountName" VerticalAlignment="Center" /> </StackPanel>
<StackPanel Orientation="Horizontal" Grid.Column="0" Grid.Row="1" Grid.ColumnSpan="2">
<TextBlock Text="帳戶余額:" FontSize="13" Padding="15"></TextBlock>
<TextBlock FontSize="13" Padding="8" Name="Balance" VerticalAlignment="Center" />
</StackPanel>
<StackPanel Orientation="Horizontal" Grid.Column="0" Grid.Row="2" Grid.ColumnSpan="2" Margin="0,0,0,10">
<TextBlock Text="轉帳金額：" FontSize="13" Padding="15" ></TextBlock>
<TextBox Text="" Width="100" Height="25" Name="textBox1"></TextBox>
<Separator Width="10" Height="0"></Separator>
<Button Content="轉帳" Padding="25,2,25,2" Height="25" Click="Button_Click" Name="button1"></Button>
</StackPanel>
</Grid>
</Border>
</Grid>
</Grid>
</Window>

Window1.xaml.cs

Windows.xaml.cs
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Data;
using System.Windows.Documents;
using System.Windows.Input;
using System.Windows.Media;
using System.Windows.Media.Imaging;
using System.Windows.Navigation;
using System.Windows.Shapes;
using System.ServiceModel;
using System.Transactions;
using Jillzhang.Wcf.Transactions.Contracts;

namespace Jillzhang.Wcf.BankClient
{
/**//// <summary>
/// Interaction logic for Window1.xaml
/// </summary>
public partial class Window1 : Window
{
BankProxy bankICBC;
BankProxy bankCCB;
static readonly string icbcAddress = "http://127.0.0.1:8654/ICBC";
static readonly string ccbAddress = "http://127.0.0.1:8655/CCB";
bool inited = false;
public Window1()
{
InitializeComponent();
}
void InitAccountInfo()
{
if (!inited)
{
return;
}
try
{
if (radioButton1.IsChecked == true)
{
AccountName.Text = "中國工商銀行";
Balance.Text = bankICBC.GetBalance().ToString();
}
else
{
AccountName.Text = "中國建設銀行";
Balance.Text = bankCCB.GetBalance().ToString();
}
}
catch (Exception ex)
{
MessageBox.Show(ex.Message);
}
}

private void radioButton2_Checked(object sender, RoutedEventArgs e)
{
InitAccountInfo();
}

private void radioButton1_Checked(object sender, RoutedEventArgs e)
{
InitAccountInfo();
}

private void Window_Initialized(object sender, EventArgs e)
{
inited = true;
WSDualHttpBinding bind = new WSDualHttpBinding();
bind.TransactionFlow = true;
bankICBC = new BankProxy(bind, new EndpointAddress(icbcAddress));
bankCCB = new BankProxy(bind, new EndpointAddress(ccbAddress));
InitAccountInfo();
}

private void Button_Click(object sender, RoutedEventArgs e)
{
try
{
button1.IsEnabled = false;
decimal money = Convert.ToDecimal(textBox1.Text.Trim());
using (TransactionScope tx = new TransactionScope())
{
if (radioButton1.IsChecked == true)
{
Balance.Text = bankICBC.Send(money).ToString();
bankCCB.Receive(money);
}
else
{
Balance.Text = bankCCB.Send(money).ToString();
bankICBC.Receive(money);
}
tx.Complete();
MessageBox.Show("轉帳操作完成！");
}
//if (radioButton1.IsChecked == true)
//{
// Balance.Text = bankICBC.SendOnServer(money, ccbAddress).ToString();
//}
//else
//{
// Balance.Text = bankCCB.SendOnServer(money, icbcAddress).ToString();
//}
}
catch (Exception ex)
{
MessageBox.Show(ex.Message);
}
finally
{
button1.IsEnabled = true;
textBox1.Text = "";
}
}
}
}

有兩種方式可以實現轉帳，上面代碼中是在客戶端實現事務，另外一種你可以將using (TransactionScope tx = new TransactionScope())塊注釋起來，然後將下面的注釋取消，這樣就可以在服務端實現事務。

下面就讓我們來看下運行效果吧：

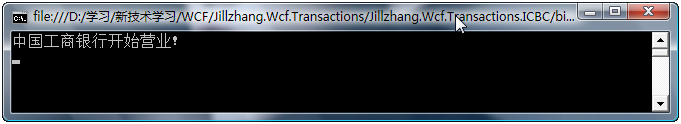

ICBC-工商行服務

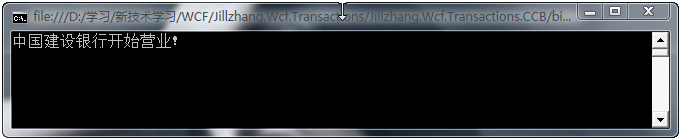

CCB-建設行服務

我們漂亮的客戶端效果為：

其實中國工商銀行和中國建設銀行的賬戶余額均為10,如上圖所示，選擇中國工商銀行，然後輸入轉帳金額4，點擊轉帳，運行後效果如下：

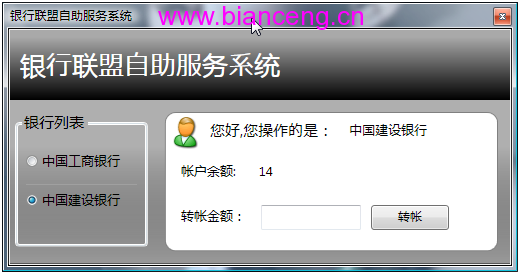

選擇中國建設銀行，可以看到余額為14，如圖：

總結

WCF為我們提供了一種顯示控制事務提交的方式，即事務投票，我們通過OperationContext.Current.SetTransactionComplete();來投贊成票，而只有參與事務的全部方法均投贊成票的時候，事務才能被成功提交。顯示的投票方法比聲明TransactionAutoComplet為true更靈活。同時我們又體驗了一把WPF的魅力。

本文配套源碼
