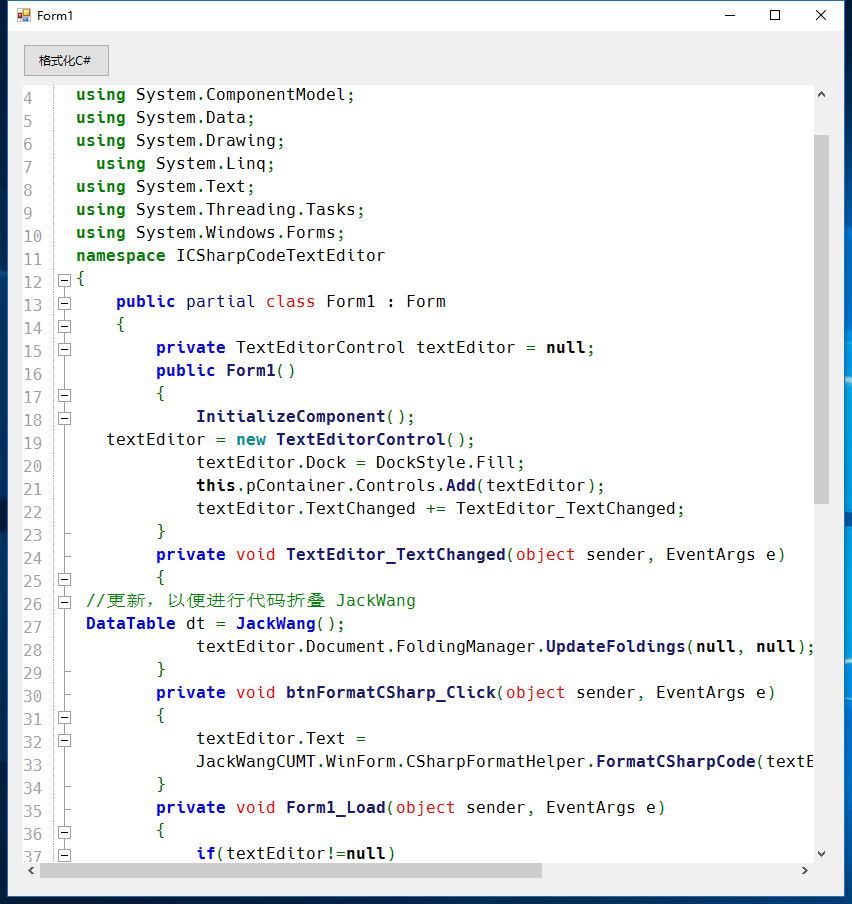

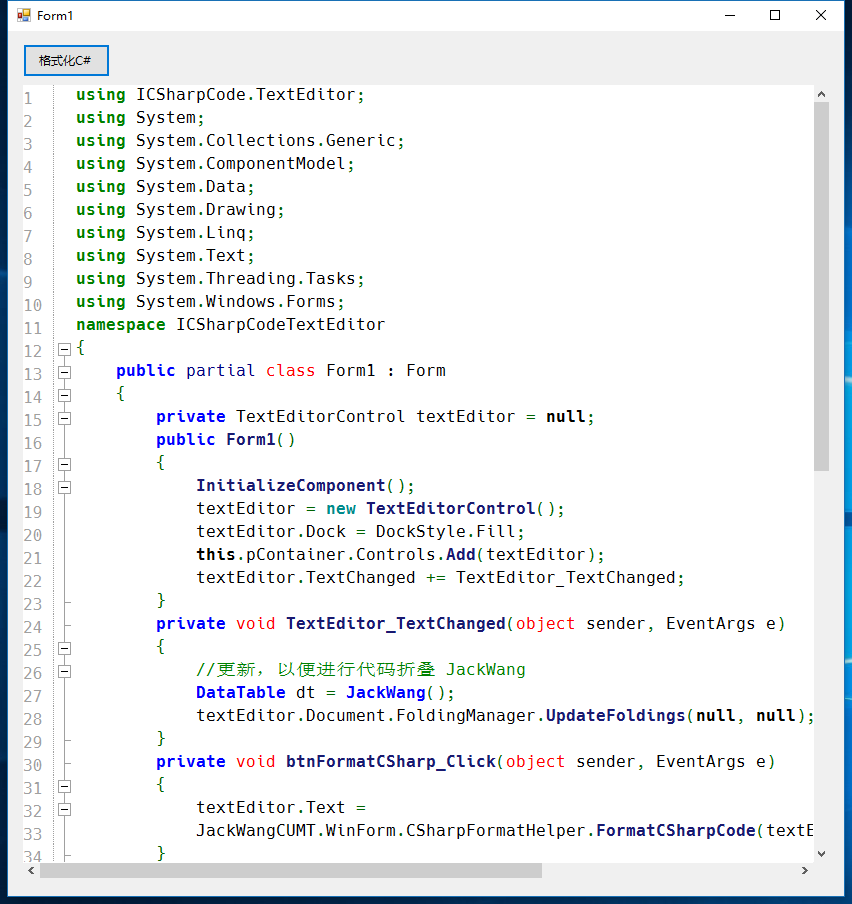

ICSharpCode.TextEditor 是一款非常不錯的.NET代碼編輯控件,內置了多種高亮語言支持,同時完美支持中文,非常贊!先來看一下運行效果:

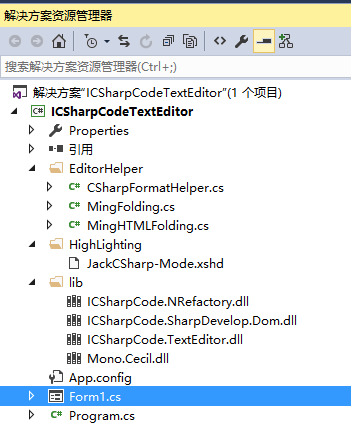

1 項目結構
這裡需要注意lib文件夾下導入的類庫,這個Demo需要這些dll.
2 代碼折疊
需要實現IFoldingStrategy中的 GenerateFoldMarkers 方法,代碼如下:
using ICSharpCode.TextEditor.Document; using System; using System.Collections.Generic; using System.Linq; using System.Text; using System.Threading.Tasks; namespace JackWangCUMT.WinForm { /// <summary> /// The class to generate the foldings, it implements ICSharpCode.TextEditor.Document.IFoldingStrategy /// </summary> public class MingFolding : IFoldingStrategy { /// <summary> /// Generates the foldings for our document. /// </summary> /// <param name="document">The current document.</param> /// <param name="fileName">The filename of the document.</param> /// <param name="parseInformation">Extra parse information, not used in this sample.</param> /// <returns>A list of FoldMarkers.</returns> public List<FoldMarker> GenerateFoldMarkers(IDocument document, string fileName, object parseInformation) { List<FoldMarker> list = new List<FoldMarker>(); //stack 先進先出 var startLines = new Stack<int>(); // Create foldmarkers for the whole document, enumerate through every line. for (int i = 0; i < document.TotalNumberOfLines; i++) { // Get the text of current line. string text = document.GetText(document.GetLineSegment(i)); if (text.Trim().StartsWith("#region")) // Look for method starts { startLines.Push(i); } if (text.Trim().StartsWith("#endregion")) // Look for method endings { int start = startLines.Pop(); // Add a new FoldMarker to the list. // document = the current document // start = the start line for the FoldMarker // document.GetLineSegment(start).Length = the ending of the current line = the start column of our foldmarker. // i = The current line = end line of the FoldMarker. // 7 = The end column list.Add(new FoldMarker(document, start, document.GetLineSegment(start).Length, i, 57, FoldType.Region, "...")); } //支持嵌套 {} if (text.Trim().StartsWith("{")) // Look for method starts { startLines.Push(i); } if (text.Trim().StartsWith("}")) // Look for method endings { if (startLines.Count > 0) { int start = startLines.Pop(); list.Add(new FoldMarker(document, start, document.GetLineSegment(start).Length, i, 57, FoldType.TypeBody, "...}")); } } // /// <summary> if (text.Trim().StartsWith("/// <summary>")) // Look for method starts { startLines.Push(i); } if (text.Trim().StartsWith("/// <returns>")) // Look for method endings { int start = startLines.Pop(); //獲取注釋文本(包括空格) string display = document.GetText(document.GetLineSegment(start + 1).Offset, document.GetLineSegment(start + 1).Length); //remove /// display = display.Trim().TrimStart('/'); list.Add(new FoldMarker(document, start, document.GetLineSegment(start).Length, i, 57, FoldType.TypeBody, display)); } } return list; } } }
3 高亮配置

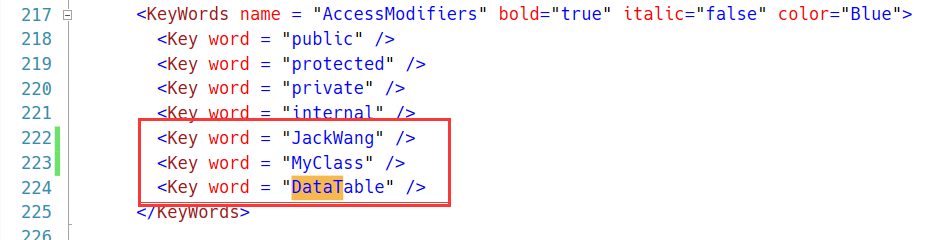

拷貝CSharp-Mode.xshd為 JackCSharp-Mode.xshd ,將其中的名字修改為: SyntaxDefinition name = "JackC#",並添加高亮關鍵字,如下:
這樣代碼中出現的JackWang就會高亮。下面的代碼片段將自定義高亮文件進行加載,並用SetHighlighting進行設置,這裡一定注意目錄下必須有xshd的配置文件,否則高亮將失效。
1 textEditor.Encoding = System.Text.Encoding.UTF8; 2 textEditor.Font = new Font("Hack",12); 3 textEditor.Document.FoldingManager.FoldingStrategy = new JackWangCUMT.WinForm.MingFolding(); 4 textEditor.Text = sampleCode; 5 6 //自定義代碼高亮 7 string path = Application.StartupPath+ "\\HighLighting"; 8 FileSyntaxModeProvider fsmp; 9 if (Directory.Exists(path)) 10 { 11 fsmp = new FileSyntaxModeProvider(path); 12 HighlightingManager.Manager.AddSyntaxModeFileProvider(fsmp); 13 textEditor.SetHighlighting("JackC#"); 14 15 16 }
為了保持代碼適時進行折疊,這裡監聽文本變化,如下所示:
1 private void TextEditor_TextChanged(object sender, EventArgs e) 2 { 3 //更新,以便進行代碼折疊 4 textEditor.Document.FoldingManager.UpdateFoldings(null, null); 5 }
最後說明的是,我們可以定義一個格式化代碼的類,來格式化C#代碼:
