Delphi 2009 之 TCategoryPanelGroup[2]: HeaderAlignment、GradientDirection

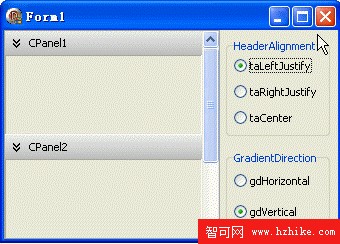

本例效果圖:

　　代碼文件:unit Unit1;
interface
uses
　Windows, Messages, SysUtils, Variants, Classes, Graphics, Controls, Forms,
　Dialogs, ExtCtrls, StdCtrls;
type
　TForm1 = class(TForm)
　　CategoryPanelGroup1: TCategoryPanelGroup;
　　CategoryPanel1: TCategoryPanel;
　　CategoryPanel2: TCategoryPanel;
　　CategoryPanel3: TCategoryPanel;
　　RadioGroup1: TRadioGroup;
　　RadioGroup2: TRadioGroup;
　　procedure FormCreate(Sender: TObject);
　　procedure RadioGroup1Click(Sender: TObject);
　　procedure RadioGroup2Click(Sender: TObject);
　end;
var
　Form1: TForm1;
implementation
{$R *.dfm}
uses TypInfo, GraphUtil;
procedure TForm1.FormCreate(Sender: TObject);
var
　i: Integer;
begin
　CategoryPanel1.Height := ClIEntHeight div 2;
　CategoryPanel2.Height := CategoryPanel1.Height;
　CategoryPanel3.Height := CategoryPanel1.Height;
　CategoryPanel1.Caption := 'CPanel1';
　CategoryPanel2.Caption := 'CPanel2';
　CategoryPanel3.Caption := 'CPanel3';
　RadioGroup1.Caption := 'HeaderAlignment';
　for i := 0 to 2 do
　　RadioGroup1.Items.Add(GetEnumName(TypeInfo(TAlignment), i));
　RadioGroup1.ItemIndex := 0;
　RadioGroup2.Caption := 'GradIEntDirection';
　for i := 0 to 1 do
　　RadioGroup2.Items.Add(GetEnumName(TypeInfo(TGradIEntDirection), i));
　RadioGroup2.ItemIndex := 1;
end;
procedure TForm1.RadioGroup1Click(Sender: TObject);
begin
　CategoryPanelGroup1.HeaderAlignment := TAlignment(RadioGroup1.ItemIndex);
end;
procedure TForm1.RadioGroup2Click(Sender: TObject);
begin
　CategoryPanelGroup1.GradientDirection := TGradIEntDirection(RadioGroup2.ItemIndex);
end;
end.窗體文件:object Form1: TForm1
　Left = 0
　Top = 0
　Caption = 'Form1'
　ClIEntHeight = 209
　ClIEntWidth = 334
　Color = clBtnFace
　Font.Charset = DEFAULT_CHARSET
　Font.Color = clWindowText
　Font.Height = -11
　Font.Name = 'Tahoma'
　Font.Style = []
　OldCreateOrder = False
　OnCreate = FormCreate
　PixelsPerInch = 96
　TextHeight = 13
　object CategoryPanelGroup1: TCategoryPanelGroup
　　Left = 0
　　Top = 0
　　Width = 216
　　Height = 209
　　VertScrollBar.Tracking = True
　　HeaderFont.Charset = DEFAULT_CHARSET
　　HeaderFont.Color = clWindowText
　　HeaderFont.Height = -11
　　HeaderFont.Name = 'Tahoma'
　　HeaderFont.Style = []
　　TabOrder = 0
　　object CategoryPanel1: TCategoryPanel
　　　Top = 0
　　　Caption = 'CategoryPanel1'
　　　TabOrder = 0
　　　ExplicitWidth = 174
　　end
　　object CategoryPanel2: TCategoryPanel
　　　Top = 200
　　　Caption = 'CategoryPanel2'
　　　TabOrder = 1
　　　ExplicitWidth = 174
　　end
　　object CategoryPanel3: TCategoryPanel
　　　Top = 400
　　　Caption = 'CategoryPanel3'
　　　TabOrder = 2
　　　ExplicitWidth = 174
　　end
　end
　object RadioGroup1: TRadioGroup
　　Left = 222
　　Top = 9
　　Width = 104
　　Height = 97
　　Caption = 'RadioGroup1'
　　TabOrder = 1
　　OnClick = RadioGroup1Click
　end
　object RadioGroup2: TRadioGroup
　　Left = 222
　　Top = 121
　　Width = 104
　　Height = 80
　　Caption = 'RadioGroup2'
　　TabOrder = 2
　　OnClick = RadioGroup2Click
　end
end
