IOCP擴展方法AcceptEx, DisconnectEx, GetAcceptExSockaddr用法示例，iocpacceptex
這篇文章記錄了我剛接觸IOCP模型時的理解，對於初學者，應該算不錯的調試程序，僅有一個400多行代碼的dpr文件，可以直接用WriteLn輸出信息，前提是會用delphi建立Console Application，當然你也可以很容易的就改成了C控制台程序或是其它語言。附加代碼中有詳細的注釋，如果你已有IOCP經驗，那麼請不用在此浪費時間，這個示例不適合你。示例僅展示了IOCP中AcceptEx, DisconnectEx, GetAcceptExSockaddr等的用法。在文章最後有推薦的兩個連接，對於想深入研究IOCP與TCP的可以去看看，可人感覺值得去看。文中錯誤或是不合理的地方敬請原諒，如果方便還請指出，深表感謝！
剛接觸IOCP時，因為要弄清裡面的復雜關系，最直接的方法當然就是斷點調試與信息輸出了，所以我選用了控制台程序。具體的原理在文章末尾的第一個連接中講得很詳細,擴展的方法可以到MSDN上查。示例中僅用了一個工作線程和10個連接，個人覺得這樣方便調試與查看輸出信息，省去了多線程與數據池的干擾，當然在實際應用中會涉及線程池、消息隊列、內存管理等等，不在這個示例展示范圍。下面我只記錄了我碰到的問題：
問題一：AcceptEx成功，但有客戶端連接時，GetQueuedCompletionStatus卻不返回，後來把ListenSocket用CreateIoCompletionPort綁定到完在端口之後問題不再出現，因為之前用WSAAccept,就沒有把ListenSocket綁定。
問題二：10014錯誤，在一開始時，gOverls用了array[0..ACCEPT_COUNT - 1] of TIOCPRecord,用這樣的類型時，AcceptEx是成功的，也能接收幾個連接，但是測試的連接不完全能連上，後來改用array[0..ACCEPT_COUNT - 1] of PIOCPRecord,用New分配內存時，測試連接能全部連上，分析原因，可能是棧內存與堆內存的區別。另外一次出現10014是把TWSABUF中的u_long類型改為int64類型後出現這個錯。
問題三：首次GetQueuedCompletionStatus的完鍵不是預期的那個，即soAccept時的那個完成鍵並不是想要的那個，連接後正常。我一開始AcceptEx時就已經把每一個待接收的Socket綁定到了完成端口，因為連接非法時不想在DisconnectEx那裡判斷。
問題四：要說一下TAcceptEx與TGetAcceptExSockaddrs中的dwReceiveDataLength參數，這個初始值如果不是0，那麼當IOCP接到一個連接時並不立即返回，而是收到客戶端的數據時才返回。這會導致DOS攻擊的大量連接耗盡預設等待的Socket連接，即AcceptEx投遞的連接資源，如果設置為0，那麼有連接時GetQueuedCompletionStatus就回立即返回，至於是否非法那就仁者見人智者見智了，比如心跳包的檢測。使用AcceptEx時，一定要保證IOCP中有空閒的Socket接收客戶端。
問題五：ERROR_IO_PENDING（997），當WSAGetLastError返回這個值時表示已經進入處理中，但並沒有處理完。
問題六：GetQueuedCompletionStatus返回soWrite狀態時，buffer的數據不一寫就發送完了，沒有發送完的數據繼續WSASend。

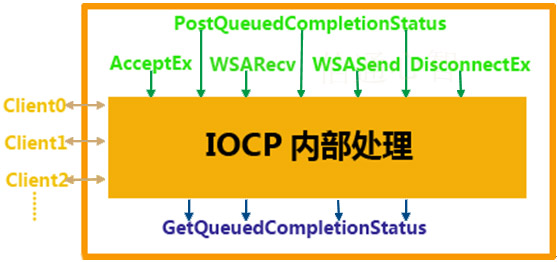

下圖是我寫完這個示例後對IOCP中那幾個API關系的理解，注意圖中的箭頭方向，PostQueuedCompletionStatus，AcceptEx,WSARecv, WSASend, DisconnectEx都是向IOCP內部投遞數據，投遞完後立即返回，這並不意味著投遞的數據就會立即被處理，可以理解為進入一個等待處理隊列，這幾個方法可以投遞多個數據不阻塞。PostQueuedCompletionStatus一般用於結束工作線程時使用，也就是GetQueuedCompletionStatus會得到PostQueuedCompletionStatus的狀態信息。所有IOCP內部處理完的數據都會通過GetQueuedCompletionStatus這個方法反回，比如收到客戶端請求後，發送數據到客戶端後。這是一個阻塞的方法，當然可以設置超時。每一個工作線程也就通過GetQueuedCompletionStatus這個方法來處理消息，具體可以看後面的附加代碼。
附加IOCPsever.dpr與WinSock2.pas：
![]()
1 program IOCPServer;
2
3 {$APPTYPE CONSOLE}
4
5 uses
6 SysUtils, windows,
7 WinSock2 in 'winsock2.pas';
8
9 const
10 WINSOCK_VERSION = $0202;
11 LISTEN_PORT = 6553; //監聽端口
12 MAX_BUFFSIZE = 4096; //數據buffer
13 ACCEPT_COUNT = 10; //接收連接數
14 SHUTDOWN_FLAG = $FFFFFFFF; //退出標記
15
16 SO_UPDATE_ACCEPT_CONTEXT = $700B;
17 TF_REUSE_SOCKET = $02;
18 IOC_IN =$80000000;
19 IOC_VENDOR =$18000000;
20 IOC_OUT =$40000000;
21 SIO_KEEPALIVE_VALS =IOC_IN or IOC_VENDOR or 4;
22
23 WSAID_GETACCEPTEXSOCKADDRS: System.TGuid = (D1:$b5367df2;D2:$cbac;D3:$11cf;D4:($95,$ca,$00,$80,$5f,$48,$a1,$92));
24 WSAID_ACCEPTEX: System.TGuid = (D1:$b5367df1;D2:$cbac;D3:$11cf;D4:($95,$ca,$00,$80,$5f,$48,$a1,$92));
25 WSAID_CONNECTEX: System.TGuid = (D1:$25a207b9;D2:$ddf3;D3:$4660;D4:($8e,$e9,$76,$e5,$8c,$74,$06,$3e));
26 WSAID_DISCONNECTEX: System.TGuid = (D1:$7fda2e11;D2:$8630;D3:$436f;D4:($a0,$31,$f5,$36,$a6,$ee,$c1,$57));
27
28 type
29 TAcceptEx = function(sListenSocket, sAcceptSocket: TSocket;
30 lpOutputBuffer: Pointer; dwReceiveDataLength, dwLocalAddressLength,
31 dwRemoteAddressLength: LongWord; var lpdwBytesReceived: LongWord;
32 lpOverlapped: POverlapped): BOOL; stdcall;
33
34 TGetAcceptExSockaddrs = procedure(lpOutputBuffer: Pointer;
35 dwReceiveDataLength, dwLocalAddressLength, dwRemoteAddressLength: DWORD;
36 var LocalSockaddr: PSockAddr; var LocalSockaddrLength: Integer;
37 var RemoteSockaddr: PSockAddr; var RemoteSockaddrLength: Integer);stdcall;
38
39 TConnectEx = function(const s : TSocket; const name: PSOCKADDR; const
40 namelen: Integer; lpSendBuffer : Pointer; dwSendDataLength : DWORD; var
41 lpdwBytesSent : LongWord; lpOverlapped : POverlapped): BOOL; stdcall;
42
43 TDisconnectEx = function(const hSocket : TSocket; lpOverlapped: POverlapped;
44 const dwFlags : LongWord; const dwReserved : LongWord) : BOOL; stdcall;
45
46 PTCPKeepAlive = ^TTCPKeepAlive;
47 TTCPKeepAlive = packed record
48 KeepOn: integer;
49 KeepTime: integer;
50 KeepInterval: integer;
51 end;
52
53 TSockOperate = (soAccept, soDisconnect, soRead, soWrite);
54 PIOCPRecord = ^TIOCPRecord;
55 TIOCPRecord = packed record
56 Ovelpd: TOverlapped;
57 WsaBuf: TWsaBuf;
58 Buffer: array [0..MAX_BUFFSIZE - 1] of AnsiChar;
59 operate: TSockOperate;
60 sock: TSocket;
61 end;
62
63 var
64 gListen: TSocket;
65 gOverls: array[0..ACCEPT_COUNT - 1] of PIOCPRecord;
66 gIOCP: THandle = 0;
67 gWorker: THandle;
68 gFunAcceptEx: TAcceptEx = nil;
69 gFunGetAcceptEx: TGetAcceptExSockaddrs = nil;
70 gFunConnectEx: TConnectEx = nil;
71 gFunDisconnectEx: TDisconnectEx = nil;
72
73 //加載擴展函數
74 function LoadFunEx(ASock: TSocket): Boolean;
75 var
76 tag: LongWord;
77 begin
78 Result := False;
79 if ASock = INVALID_SOCKET then Exit;
80 try
81 tag := 0;
82 if SOCKET_ERROR = WSAIoctl(ASock, SIO_GET_EXTENSION_FUNCTION_POINTER,
83 @WSAID_ACCEPTEX, SizeOf(WSAID_ACCEPTEX),
84 @@gFunAcceptEx, SizeOf(Pointer), @tag, nil, nil)then
85 begin
86 gFunAcceptEx := nil;
87 Exit;
88 end;
89
90 tag := 0;
91 if SOCKET_ERROR = WSAIoctl(ASock, SIO_GET_EXTENSION_FUNCTION_POINTER,
92 @WSAID_GETACCEPTEXSOCKADDRS, SizeOf(WSAID_GETACCEPTEXSOCKADDRS),
93 @@gFunGetAcceptEx, SizeOf(Pointer), @tag, nil, nil)then
94 begin
95 gFunGetAcceptEx := nil;
96 Exit;
97 end;
98
99 if SOCKET_ERROR = WSAIoctl(ASock, SIO_GET_EXTENSION_FUNCTION_POINTER,
100 @WSAID_CONNECTEX, SizeOf(WSAID_CONNECTEX),
101 @@gFunConnectEx, SizeOf(Pointer), @tag, nil, nil)then
102 begin
103 gFunConnectEx := nil;
104 Exit;
105 end;
106
107 if SOCKET_ERROR = WSAIoctl(ASock, SIO_GET_EXTENSION_FUNCTION_POINTER,
108 @WSAID_DISCONNECTEX, SizeOf(WSAID_DISCONNECTEX),
109 @@gFunDisconnectEx, SizeOf(Pointer), @tag, nil, nil)then
110 begin
111 gFunDisconnectEx := nil;
112 Exit;
113 end;
114 Result := True;
115 except
116 end;
117 end;
118
119 //判斷socket是否有效
120 function IsSocketAlive(ASock: TSocket): Boolean;
121 var
122 tmp: LongWord;
123 begin
124 Result := WinSock2.send(ASock, tmp, 0, 0) <> -1;
125 end;
126
127 //設置心跳
128 procedure SetKeepLive(ASock: TSocket);
129 var
130 opt: Integer;
131 dwFlags: DWORD;
132 inKeepAlive, OutKeepAlive: TTCPKeepAlive;
133 begin
134 if ASock <> INVALID_SOCKET then
135 begin
136 opt := 1;
137 inKeepAlive.KeepOn := 1;
138 inKeepAlive.KeepTime := 5000;
139 inKeepAlive.KeepInterval := 1;
140
141 if (SetSockOpt(ASock, SOL_SOCKET, SO_KEEPALIVE, @opt, SizeOf(opt)) = SOCKET_ERROR)
142 or (WSAIoctl(ASock, SIO_KEEPALIVE_VALS, @inKeepAlive,SizeOf(TTCPKeepAlive),
143 @outKeepAlive, SizeOf(TTCPKeepAlive), @dwFlags, nil, nil) = SOCKET_ERROR) then
144 WriteLn('設置心跳錯誤 socket: ' + Inttostr(ASock) + 'Error: ' + Inttostr(WSAGetLastError) );
145 end;
146 end;
147
148 //關閉socket
149 procedure FunCloseSocket(ASock: TSocket);
150 var
151 Linger: TLinger;
152 begin
153 if ASock <> INVALID_SOCKET then
154 begin
155 FillChar(Linger, SizeOf(TLinger), 0);
156 setsockopt(ASock, SOL_SOCKET, SO_LINGER, @Linger, Sizeof(Linger));
157 closesocket(ASock);
158 end;
159 end;
160
161 procedure ResetData(PData: PIOCPRecord);
162 var
163 sock: TSocket;
164 begin
165 if Assigned(PData) then
166 begin
167 sock := PData.sock;
168 FillChar(PData^, SizeOf(TIOCPRecord), 0);
169 PData^.WsaBuf.len := MAX_BUFFSIZE;
170 PData^.WsaBuf.buf := @(PData^.Buffer[0]);
171 PData.sock := sock;
172 end;
173 end;
174
175 //投遞一個接收socket
176 function PostAccept(PAccept: PIOCPRecord): Boolean;
177 var
178 dwBytes: LongWord;
179 begin
180 Result := False;
181 if Assigned(PAccept) and (PAccept^.sock <> INVALID_SOCKET) then
182 begin
183 ResetData(PAccept);
184 PAccept^.operate := soAccept;
185 dwBytes := 0;
186 Result := gFunAcceptEx(gListen, PAccept^.sock, PAccept^.Wsabuf.buf, 0,
187 SizeOf(TSockAddrIn) + 16, SizeOf(TSockAddrIn) + 16,
188 dwBytes, @(PAccept^.Ovelpd))
189 or (ERROR_IO_PENDING = WSAGetLastError);
190 end;
191 end;
192
193 //投遞一個斷開socket
194 function PostDisconnect(PData: PIOCPRecord): Boolean;
195 begin
196 Result := False;
197 if Assigned(PData) and (PData^.sock <> INVALID_SOCKET) then
198 begin
199 ResetData(PData);
200 PData^.operate := soDisconnect;
201 WinSock2.shutdown(PData^.sock, SD_BOTH);
202 Result := gFunDisconnectEx(PData^.sock, @(PData^.Ovelpd), TF_REUSE_SOCKET, 0)
203 or (ERROR_IO_PENDING = WSAGetLastError);
204 if Result then
205 WriteLn('客戶端斷開：socket ' + Inttostr(PData^.sock))
206 else
207 WriteLn('客戶端斷開錯誤：socket ' + Inttostr(PData^.sock) + ' WSAError: ' + Inttostr(WSAGetLastError));
208 end;
209 end;
210
211 //投遞接收數據緩沖
212 function PostRecv(PData: PIOCPRecord): Boolean;
213 var
214 dwBuff, dwRecv: LongWord;
215 begin
216 Result := False;
217 if Assigned(PData) and (PData^.sock <> INVALID_SOCKET) then
218 begin
219 ResetData(PData);
220 PData^.operate := soRead;
221 dwBuff := 0;
222 dwRecv := 0;
223 Result := (WSARecv(PData^.sock, @(PData^.WsaBuf), 1, @dwBuff, @dwRecv, @(PData^.Ovelpd), nil) <> SOCKET_ERROR)
224 or (ERROR_IO_PENDING = WSAGetLastError);
225 end;
226 end;
227
228 procedure WriteError(AInfo: String);
229 begin
230 WriteLn(AInfo + ' WSAError: ' + Inttostr(WSAGetLastError));
231 end;
232
233 //工作線程
234 function WorkProc(PValue: Pointer): Integer;stdcall;
235 var
236 data: PIOCPRecord;
237 workCount, dwSend, dwFlags: Cardinal;
238 sock: TSocket;
239 str: AnsiString;
240 remoteAddr, localAddr: PSockAddrin;
241 remoteLen, localLen, opt: Integer;
242 begin
243 Result := 0;
244 while true do
245 begin
246 data := nil;
247 workCount := 0;
248 sock := 0;
249 if not GetQueuedCompletionStatus(gIOCP, workCount, Cardinal(sock), POVerlapped(data), INFINITE) then
250 begin //有可能是客服端斷開
251 if Assigned(data) then
252 PostDisconnect(data);
253 Continue;
254 end;
255 WriteLn('Worker GetQueued socket:' + inttostr(sock));
256 if Cardinal(data) = SHUTDOWN_FLAG then Break; // 有退出
257 if not Assigned(data) then continue;
258
259 case data^.operate of
260 soAccept:
261 begin
262 gFunGetAcceptEx(Data^.WsaBuf.buf, 0, SizeOf(TSockAddrIn) + 16, SizeOf(TSockAddrIn) + 16,
263 PSockAddr(localAddr), localLen, PSockAddr(remoteAddr), remoteLen);
264 WriteLn('接入IP: ' + inet_ntoa(remoteAddr^.sin_addr) + ' Port: ' + Inttostr(ntohs(remoteAddr^.sin_port)));
265 SetSockOpt(data^.sock, SOL_SOCKET, SO_UPDATE_ACCEPT_CONTEXT, PAnsiChar(@(gListen)), SizeOf(gListen));
266 SetKeepLive(data^.sock);
267
268 if PostRecv(data) then
269 WriteLn('Accept 數據 socket: ' + Inttostr(data^.sock))
270 else
271 WriteError('Accept 錯誤 socket: ' + inttostr(data^.sock));
272 end;
273 soDisconnect:
274 begin
275 if PostAccept(data) then
276 WriteLn('投遞Acceptex socket: ' + Inttostr(data^.sock))
277 else
278 WriteError('Disconnectex投遞錯誤 socket: ' + Inttostr(data^.sock));
279 end;
280 soWrite:
281 begin
282 if workCount = 0 then
283 PostDisconnect(data)
284 else begin
285 data^.WsaBuf.len := data^.WsaBuf.len - workCount;
286 if data^.WsaBuf.len <= 0 then
287 begin
288 WriteLn('服務器回復數據完成 socket: ' + inttostr(data^.sock));
289 PostRecv(data);
290 continue;
291 end;
292 dwSend := 0;
293 dwFlags := 0;
294 FillChar(data^.Ovelpd, Sizeof(data^.Ovelpd), 0);
295 if (WSASend(data^.sock, @(data^.WsaBuf), 1, @dwSend, dwFlags, @data^.Ovelpd, nil)<>SOCKET_ERROR)
296 or (ERROR_IO_PENDING = WSAGetLastError) then
297 WriteLn('發送數據 socket: ' + Inttostr(data^.sock))
298 else begin
299 WriteError('發送數據錯誤 socket: ' + Inttostr(data^.sock));
300 end;
301
302 if dwSend = SOCKET_ERROR then//客戶端斷開
303 PostDisconnect(data)
304 end;
305 end;
306 soRead:
307 begin
308 if workCount = 0 then
309 PostDisconnect(data)
310 else begin
311 sock := data^.sock;
312 SetLength(str, workCount);
313 Move(data^.Buffer[0], str[1], workCount);
314 WriteLn('接收數據 socket: ' + Inttostr(sock) + ' str: ' + str);
315 str := '服務器回復：' + str;
316
317 dwSend := 0;
318 dwFlags := 0;
319 FillChar(data^, SizeOf(TIOCPRecord), 0);
320 data^.WsaBuf.len := Length(str);
321 data^.WsaBuf.buf := @(data^.Buffer[0]);
322 data^.operate := soWrite;
323 data^.sock := sock;
324 Move(str[1], data^.Buffer[0], data^.WsaBuf.len);
325 if not ( (WSASend(sock, @(data^.WsaBuf), 1, @dwSend, dwFlags, @(data^.Ovelpd), nil) <> SOCKET_ERROR)
326 or (WSAGetlastError = ERROR_IO_PENDING) ) then
327 begin
328 WriteLn('服務器回復數據失敗 socket: ' + Inttostr(sock));
329 PostRecv(data);
330 end
331 else
332 WriteLn('服務器回復數據 socket: ' + Inttostr(sock));
333 end;
334 end;
335 end; // end of case
336 end;// end of while
337 end;
338
339 var
340 threadID: Cardinal;
341 i: Integer;
342 need: Boolean;
343 WSData: TWSAData;
344 addr: TSockAddr;
345 console: array[0..255] of AnsiChar;
346 label exitLabel;
347 begin
348
349 try
350 need := True;
351
352 WriteLn('初始化網絡環境');
353 if WSAStartup(WINSOCK_VERSION, WSData) <> 0 then goto exitLabel;
354
355 WriteLn('創建完成端口');
356 gIOCP := CreateIoCompletionPort(INVALID_HANDLE_VALUE, 0, 0, 0);
357 if gIOCP = 0 then goto exitLabel;
358
359 WriteLn('創建監聽Socket');
360 gListen := WSASocket(PF_INET, SOCK_STREAM, 0, nil, 0, WSA_FLAG_OVERLAPPED);
361 if gListen = INVALID_SOCKET then goto exitLabel;
362
363 WriteLn('加載擴展函數');
364 if not LoadFunEx(gListen) then goto exitLabel;
365
366 WriteLn('邦定監聽Socket 與IOCP [' + inttostr(gListen) + '][' + inttostr(gIOCP) + ']');
367 if CreateIoCompletionPort(gListen, gIOCP, gListen, 0) = 0 then goto exitLabel;
368
369 WriteLn('邦定監聽Socket 與IP');
370 FillChar(Addr, SizeOf(TSockAddrIn), 0);
371 Addr.sin_family := AF_INET;
372 Addr.sin_port := htons(LISTEN_PORT);
373 Addr.sin_addr.S_addr := htonl(INADDR_ANY);
374 //Addr.sin_addr.S_addr := inet_addr('0.0.0.0');
375 if WinSock2.bind(gListen, @Addr, SizeOf(TSockAddr)) <> 0 then goto exitLabel;
376
377 WriteLn('開始監聽Socket');
378 if WinSock2.listen(gListen, SOMAXCONN) <> 0 then goto exitLabel;
379
380 WriteLn('投遞接收Socket');
381 FillChar(gOverls[0], SizeOf(gOverls), 0);
382 for i := 0 to ACCEPT_COUNT - 1 do
383 begin
384 New(gOverls[i]);
385 gOverls[i]^.sock := WSASocket(AF_INET, SOCK_STREAM, IPPROTO_TCP, nil, 0, WSA_FLAG_OVERLAPPED);
386 if gOverls[i]^.sock = INVALID_SOCKET then goto exitLabel;
387 if CreateIoCompletionPort(gOverls[i]^.sock, gIOCP, gOverls[i]^.sock, 0) = 0 then goto exitLabel;
388 if PostAccept(gOverls[i]) then
389 WriteLn('投遞Socket：' + Inttostr(gOverls[i]^.sock))
390 else goto exitLabel;
391 end;
392
393 //處理完端口請求
394 WriteLn('創建工作線程 ');
395 gWorker := BeginThread(nil, 0, @WorkProc, nil, 0, threadID);
396 if gWorker = 0 then goto exitLabel;
397
398 WriteLn('鍵入exit退出 ');
399 while True do
400 begin
401 ReadLn(console);
402 if console = 'exit' then
403 Break;
404 console := '';
405 end;
406
407 WriteLn('投遞完成端口結束標記, 退出工作線程');
408 if not PostQueuedCompletionStatus(gIOCP, 0, 0, Pointer(SHUTDOWN_FLAG)) then
409 begin
410 WriteLn('投遞完成端口結束標記錯誤:' + inttostr(GetLastError));
411 TerminateThread(gWorker, 0);
412 end;
413
414 WriteLn('關閉工作線程句柄');
415 CloseHandle(gWorker);
416
417 WriteLn('釋放socket資源');
418 for i := 0 to ACCEPT_COUNT - 1 do
419 Dispose(gOverls[i]);
420 FillChar(gOverls[0], SizeOf(gOverls), 0);
421
422 WriteLn('關閉監聽端口');
423 FunCloseSocket(gListen);
424
425 WriteLn('關閉完成端口');
426 CloseHandle(gIOCP);
427
428 WriteLn('釋放網絡環境');
429 WSACleanup;
430
431 need := false;
432
433 exitLabel:
434 if need then
435 WriteLn('運行錯誤：' + Inttostr(WSAGetLastError));
436
437 except
438 on e:Exception do
439 WriteLn(e.Message);
440 end;
441
442 end.
IOCPServer.dpr
![]()
1 {*******************************************************}
2 { }
3 { Windows Sockets API v. 2.20 Header File }
4 { }
5 { Prerelease 16.09.96 }
6 { }
7 { Base: WinSock2.h from Winsock SDK 1.6 BETA }
8 { Delphi 2 RTL Windows32 API Interface }
9 { }
10 { (c) 1996 by Artur Grajek 'AHS' }
11 { email:
[email protected] }
12 { }
13 {*******************************************************}
14 {$MINENUMSIZE 4} { Force 4 bytes enumeration size}
15
16 unit WinSock2;
17
18 interface
19
20 uses Windows;
21
22 type
23 u_char = Char;
24 u_short = Word;
25 u_int = Integer;
26 u_long = Longint;
27 pu_long = ^u_long;
28 pu_short = ^u_short;
29
30 { The new type to be used in all
31 instances which refer to sockets. }
32 TSocket = u_int;
33
34 const
35 FD_SETSIZE = 64;
36
37 type
38 PFDSet = ^TFDSet;
39 TFDSet = packed record
40 fd_count: u_int;
41 fd_array: array[0..FD_SETSIZE-1] of TSocket;
42 end;
43
44 PTimeVal = ^TTimeVal;
45 TTimeVal = packed record
46 tv_sec: Longint;
47 tv_usec: Longint;
48 end;
49
50 const
51 IOCPARM_MASK = $7f;
52 IOC_VOID = $20000000;
53 IOC_OUT = $40000000;
54 IOC_IN = $80000000;
55 IOC_INOUT = (IOC_IN or IOC_OUT);
56
57 FIONREAD = IOC_OUT or { get # bytes to read }
58 ((Longint(SizeOf(Longint)) and IOCPARM_MASK) shl 16) or
59 (Longint(Byte('f')) shl 8) or 127;
60 FIONBIO = IOC_IN or { set/clear non-blocking i/o }
61 ((Longint(SizeOf(Longint)) and IOCPARM_MASK) shl 16) or
62 (Longint(Byte('f')) shl 8) or 126;
63 FIOASYNC = IOC_IN or { set/clear async i/o }
64 ((Longint(SizeOf(Longint)) and IOCPARM_MASK) shl 16) or
65 (Longint(Byte('f')) shl 8) or 125;
66
67
68 const
69
70 { Protocols }
71
72 IPPROTO_IP = 0; { Dummy }
73 IPPROTO_ICMP = 1; { Internet Control Message Protocol }
74 IPPROTO_IGMP = 2; { Internet Group Management Protocol}
75 IPPROTO_GGP = 3; { Gateway }
76 IPPROTO_TCP = 6; { TCP }
77 IPPROTO_PUP = 12; { PUP }
78 IPPROTO_UDP = 17; { User Datagram Protocol }
79 IPPROTO_IDP = 22; { XNS IDP }
80 IPPROTO_ND = 77; { UNOFFICIAL Net Disk Protocol }
81
82 IPPROTO_RAW = 255;
83 IPPROTO_MAX = 256;
84
85 { Port/socket numbers: network standard functions}
86
87 IPPORT_ECHO = 7;
88 IPPORT_DISCARD = 9;
89 IPPORT_SYSTAT = 11;
90 IPPORT_DAYTIME = 13;
91 IPPORT_NETSTAT = 15;
92 IPPORT_FTP = 21;
93 IPPORT_TELNET = 23;
94 IPPORT_SMTP = 25;
95 IPPORT_TIMESERVER = 37;
96 IPPORT_NAMESERVER = 42;
97 IPPORT_WHOIS = 43;
98 IPPORT_MTP = 57;
99
100 { Port/socket numbers: host specific functions }
101
102 IPPORT_TFTP = 69;
103 IPPORT_RJE = 77;
104 IPPORT_FINGER = 79;
105 IPPORT_TTYLINK = 87;
106 IPPORT_SUPDUP = 95;
107
108 { UNIX TCP sockets }
109
110 IPPORT_EXECSERVER = 512;
111 IPPORT_LOGINSERVER = 513;
112 IPPORT_CMDSERVER = 514;
113 IPPORT_EFSSERVER = 520;
114
115 { UNIX UDP sockets }
116
117 IPPORT_BIFFUDP = 512;
118 IPPORT_WHOSERVER = 513;
119 IPPORT_ROUTESERVER = 520;
120
121 { Ports < IPPORT_RESERVED are reserved for
122 privileged processes (e.g. root). }
123
124 IPPORT_RESERVED = 1024;
125
126 { Link numbers }
127
128 IMPLINK_IP = 155;
129 IMPLINK_LOWEXPER = 156;
130 IMPLINK_HIGHEXPER = 158;
131
132 type
133 SunB = packed record
134 s_b1, s_b2, s_b3, s_b4: u_char;
135 end;
136
137 SunW = packed record
138 s_w1, s_w2: u_short;
139 end;
140
141 PInAddr = ^TInAddr;
142 TInAddr = packed record
143 case integer of
144 0: (S_un_b: SunB);
145 1: (S_un_w: SunW);
146 2: (S_addr: u_long);
147 end;
148
149 PSockAddrIn = ^TSockAddrIn;
150 TSockAddrIn = packed record
151 case Integer of
152 0: (sin_family: u_short;
153 sin_port: u_short;
154 sin_addr: TInAddr;
155 sin_zero: array[0..7] of Char);
156 1: (sa_family: u_short;
157 sa_data: array[0..13] of Char)
158 end;
159 type
160 PHostEnt = ^THostEnt;
161 THostEnt = packed record
162 h_name: PChar;
163 h_aliases: ^PChar;
164 h_addrtype: Smallint;
165 h_length: Smallint;
166 case integer of
167 0: (h_addr_list: ^PChar);
168 1: (h_addr: ^PInAddr);
169 end;
170
171 PNetEnt = ^TNetEnt;
172 TNetEnt = packed record
173 n_name: PChar;
174 n_aliases: ^PChar;
175 n_addrtype: Smallint;
176 n_net: u_long;
177 end;
178
179 PServEnt = ^TServEnt;
180 TServEnt = packed record
181 s_name: PChar;
182 s_aliases: ^PChar;
183 s_port: Smallint;
184 s_proto: PChar;
185 end;
186
187 PProtoEnt = ^TProtoEnt;
188 TProtoEnt = packed record
189 p_name: PChar;
190 p_aliases: ^Pchar;
191 p_proto: Smallint;
192 end;
193
194 const
195 INADDR_ANY = $00000000;
196 INADDR_LOOPBACK = $7F000001;
197 INADDR_BROADCAST = $FFFFFFFF;
198 INADDR_NONE = $FFFFFFFF;
199
200 ADDR_ANY = INADDR_ANY;
201
202 const
203 WSADESCRIPTION_LEN = 256;
204 WSASYS_STATUS_LEN = 128;
205
206 type
207 PWSAData = ^TWSAData;
208 TWSAData = packed record
209 wVersion: Word;
210 wHighVersion: Word;
211 szDescription: array[0..WSADESCRIPTION_LEN] of Char;
212 szSystemStatus: array[0..WSASYS_STATUS_LEN] of Char;
213 iMaxSockets: Word;
214 iMaxUdpDg: Word;
215 lpVendorInfo: PChar;
216 end;
217
218 PTransmitFileBuffers = ^TTransmitFileBuffers;
219 TTransmitFileBuffers = packed record
220 Head: Pointer;
221 HeadLength: DWORD;
222 Tail: Pointer;
223 TailLength: DWORD;
224 end;
225
226 const
227
228 { Options for use with [gs]etsockopt at the IP level. }
229
230 IP_OPTIONS = 1;
231 IP_MULTICAST_IF = 2; { set/get IP multicast interface }
232 IP_MULTICAST_TTL = 3; { set/get IP multicast timetolive }
233 IP_MULTICAST_LOOP = 4; { set/get IP multicast loopback }
234 IP_ADD_MEMBERSHIP = 5; { add an IP group membership }
235 IP_DROP_MEMBERSHIP = 6; { drop an IP group membership }
236
237 IP_DEFAULT_MULTICAST_TTL = 1; { normally limit m'casts to 1 hop }
238 IP_DEFAULT_MULTICAST_LOOP = 1; { normally hear sends if a member }
239 IP_MAX_MEMBERSHIPS = 20; { per socket; must fit in one mbuf }
240
241 { This is used instead of -1, since the
242 TSocket type is unsigned.}
243
244 INVALID_SOCKET = TSocket(NOT(0));
245 SOCKET_ERROR = -1;
246
247 { The following may be used in place of the address family, socket type, or
248 protocol in a call to WSASocket to indicate that the corresponding value
249 should be taken from the supplied WSAPROTOCOL_INFO structure instead of the
250 parameter itself.
251 }
252
253 FROM_PROTOCOL_INFO = -1;
254
255 { Types }
256
257 SOCK_STREAM = 1; { stream socket }
258 SOCK_DGRAM = 2; { datagram socket }
259 SOCK_RAW = 3; { raw-protocol interface }
260 SOCK_RDM = 4; { reliably-delivered message }
261 SOCK_SEQPACKET = 5; { sequenced packet stream }
262
263 { Option flags per-socket. }
264
265 SO_DEBUG = $0001; { turn on debugging info recording }
266 SO_ACCEPTCONN = $0002; { socket has had listen() }
267 SO_REUSEADDR = $0004; { allow local address reuse }
268 SO_KEEPALIVE = $0008; { keep connections alive }
269 SO_DONTROUTE = $0010; { just use interface addresses }
270 SO_BROADCAST = $0020; { permit sending of broadcast msgs }
271 SO_USELOOPBACK = $0040; { bypass hardware when possible }
272 SO_LINGER = $0080; { linger on close if data present }
273 SO_OOBINLINE = $0100; { leave received OOB data in line }
274
275 SO_DONTLINGER = $ff7f;
276
277 { Additional options. }
278
279 SO_SNDBUF = $1001; { send buffer size }
280 SO_RCVBUF = $1002; { receive buffer size }
281 SO_SNDLOWAT = $1003; { send low-water mark }
282 SO_RCVLOWAT = $1004; { receive low-water mark }
283 SO_SNDTIMEO = $1005; { send timeout }
284 SO_RCVTIMEO = $1006; { receive timeout }
285 SO_ERROR = $1007; { get error status and clear }
286 SO_TYPE = $1008; { get socket type }
287
288 { Options for connect and disconnect data and options. Used only by
289 non-TCP/IP transports such as DECNet, OSI TP4, etc. }
290
291 SO_CONNDATA = $7000;
292 SO_CONNOPT = $7001;
293 SO_DISCDATA = $7002;
294 SO_DISCOPT = $7003;
295 SO_CONNDATALEN = $7004;
296 SO_CONNOPTLEN = $7005;
297 SO_DISCDATALEN = $7006;
298 SO_DISCOPTLEN = $7007;
299
300 { WinSock 2 extension -- new options }
301
302 SO_GROUP_ID = $2001; { ID of a socket group}
303 SO_GROUP_PRIORITY = $2002; { the relative priority within a group}
304 SO_MAX_MSG_SIZE = $2003; { maximum message size }
305 SO_PROTOCOL_INFOA = $2004; { WSAPROTOCOL_INFOA structure }
306 SO_PROTOCOL_INFOW = $2005; { WSAPROTOCOL_INFOW structure }
307
308 {$IFDEF UNICODE }
309 SO_PROTOCOL_INFO = SO_PROTOCOL_INFOW;
310 {$ELSE }
311 SO_PROTOCOL_INFO = SO_PROTOCOL_INFOA;
312 {$ENDIF UNICODE }
313 PVD_CONFIG = $3001; {configuration info for service provider }
314
315 { Option for opening sockets for synchronous access. }
316
317 SO_OPENTYPE = $7008;
318
319 SO_SYNCHRONOUS_ALERT = $10;
320 SO_SYNCHRONOUS_NONALERT = $20;
321
322 { Other NT-specific options. }
323
324 SO_MAXDG = $7009;
325 SO_MAXPATHDG = $700A;
326
327 { TCP options. }
328
329 TCP_NODELAY = $0001;
330 TCP_BSDURGENT = $7000;
331
332 { Address families. }
333
334 AF_UNSPEC = 0; { unspecified }
335 AF_UNIX = 1; { local to host (pipes, portals) }
336 AF_INET = 2; { internetwork: UDP, TCP, etc. }
337 AF_IMPLINK = 3; { arpanet imp addresses }
338 AF_PUP = 4; { pup protocols: e.g. BSP }
339 AF_CHAOS = 5; { mit CHAOS protocols }
340 AF_IPX = 6; { IPX and SPX }
341 AF_NS = 6; { XEROX NS protocols }
342 AF_ISO = 7; { ISO protocols }
343 AF_OSI = AF_ISO; { OSI is ISO }
344 AF_ECMA = 8; { european computer manufacturers }
345 AF_DATAKIT = 9; { datakit protocols }
346 AF_CCITT = 10; { CCITT protocols, X.25 etc }
347 AF_SNA = 11; { IBM SNA }
348 AF_DECnet = 12; { DECnet }
349 AF_DLI = 13; { Direct data link interface }
350 AF_LAT = 14; { LAT }
351 AF_HYLINK = 15; { NSC Hyperchannel }
352 AF_APPLETALK = 16; { AppleTalk }
353 AF_NETBIOS = 17; { NetBios-style addresses }
354 AF_VOICEVIEW = 18; { VoiceView }
355 AF_FIREFOX = 19; { FireFox }
356 AF_UNKNOWN1 = 20; { Somebody is using this! }
357 AF_BAN = 21; { Banyan }
358 AF_ATM = 22; { Native ATM Services }
359 AF_INET6 = 23; { Internetwork Version 6 }
360
361 AF_MAX = 24;
362
363 type
364 { Structure used by kernel to store most addresses. }
365
366 PSockAddr = ^TSockAddr;
367 TSockAddr = TSockAddrIn;
368
369 { Structure used by kernel to pass protocol information in raw sockets. }
370 PSockProto = ^TSockProto;
371 TSockProto = packed record
372 sp_family: u_short;
373 sp_protocol: u_short;
374 end;
375
376 const
377 { Protocol families, same as address families for now. }
378
379 PF_UNSPEC = AF_UNSPEC;
380 PF_UNIX = AF_UNIX;
381 PF_INET = AF_INET;
382 PF_IMPLINK = AF_IMPLINK;
383 PF_PUP = AF_PUP;
384 PF_CHAOS = AF_CHAOS;
385 PF_NS = AF_NS;
386 PF_IPX = AF_IPX;
387 PF_ISO = AF_ISO;
388 PF_OSI = AF_OSI;
389 PF_ECMA = AF_ECMA;
390 PF_DATAKIT = AF_DATAKIT;
391 PF_CCITT = AF_CCITT;
392 PF_SNA = AF_SNA;
393 PF_DECnet = AF_DECnet;
394 PF_DLI = AF_DLI;
395 PF_LAT = AF_LAT;
396 PF_HYLINK = AF_HYLINK;
397 PF_APPLETALK = AF_APPLETALK;
398 PF_VOICEVIEW = AF_VOICEVIEW;
399 PF_FIREFOX = AF_FIREFOX;
400 PF_UNKNOWN1 = AF_UNKNOWN1;
401 PF_BAN = AF_BAN;
402 PF_ATM = AF_ATM;
403 PF_INET6 = AF_INET6;
404
405 PF_MAX = AF_MAX;
406
407 type
408 { Structure used for manipulating linger option. }
409 PLinger = ^TLinger;
410 TLinger = packed record
411 l_onoff: u_short;
412 l_linger: u_short;
413 end;
414
415 const
416 { Level number for (get/set)sockopt() to apply to socket itself. }
417
418 SOL_SOCKET = $ffff; {options for socket level }
419
420 { Maximum queue length specifiable by listen. }
421
422 SOMAXCONN = $7fffffff; { AHS - by硂 5 !?????? }
423
424 MSG_OOB = $1; {process out-of-band data }
425 MSG_PEEK = $2; {peek at incoming message }
426 MSG_DONTROUTE = $4; {send without using routing tables }
427
428 MSG_MAXIOVLEN = 16;
429
430 MSG_PARTIAL = $8000; {partial send or recv for message xport }
431
432 { WinSock 2 extension -- new flags for WSASend(), WSASendTo(), WSARecv() and
433 WSARecvFrom() }
434
435 MSG_INTERRUPT = $10; {send/recv in the interrupt context}
436
437 { Define constant based on rfc883, used by gethostbyxxxx() calls. }
438
439 MAXGETHOSTSTRUCT = 1024;
440
441 { Define flags to be used with the WSAAsyncSelect() call. }
442
443 FD_READ = $01;
444 FD_WRITE = $02;
445 FD_OOB = $04;
446 FD_ACCEPT = $08;
447 FD_CONNECT = $10;
448 FD_CLOSE = $20;
449 FD_QOS = $40;
450 FD_GROUP_QOS = $80;
451 FD_MAX_EVENTS = 8;
452 FD_ALL_EVENTS = $100; { AHS - trudno powiedzie? ile powinno by?}
453
454 { All Windows Sockets error constants are biased by WSABASEERR from the "normal" }
455
456 WSABASEERR = 10000;
457
458 { Windows Sockets definitions of regular Microsoft C error constants }
459
460 WSAEINTR = (WSABASEERR+4);
461 WSAEBADF = (WSABASEERR+9);
462 WSAEACCES = (WSABASEERR+13);
463 WSAEFAULT = (WSABASEERR+14);
464 WSAEINVAL = (WSABASEERR+22);
465 WSAEMFILE = (WSABASEERR+24);
466
467 { Windows Sockets definitions of regular Berkeley error constants }
468
469 WSAEWOULDBLOCK = (WSABASEERR+35);
470 WSAEINPROGRESS = (WSABASEERR+36);
471 WSAEALREADY = (WSABASEERR+37);
472 WSAENOTSOCK = (WSABASEERR+38);
473 WSAEDESTADDRREQ = (WSABASEERR+39);
474 WSAEMSGSIZE = (WSABASEERR+40);
475 WSAEPROTOTYPE = (WSABASEERR+41);
476 WSAENOPROTOOPT = (WSABASEERR+42);
477 WSAEPROTONOSUPPORT = (WSABASEERR+43);
478 WSAESOCKTNOSUPPORT = (WSABASEERR+44);
479 WSAEOPNOTSUPP = (WSABASEERR+45);
480 WSAEPFNOSUPPORT = (WSABASEERR+46);
481 WSAEAFNOSUPPORT = (WSABASEERR+47);
482 WSAEADDRINUSE = (WSABASEERR+48);
483 WSAEADDRNOTAVAIL = (WSABASEERR+49);
484 WSAENETDOWN = (WSABASEERR+50);
485 WSAENETUNREACH = (WSABASEERR+51);
486 WSAENETRESET = (WSABASEERR+52);
487 WSAECONNABORTED = (WSABASEERR+53);
488 WSAECONNRESET = (WSABASEERR+54);
489 WSAENOBUFS = (WSABASEERR+55);
490 WSAEISCONN = (WSABASEERR+56);
491 WSAENOTCONN = (WSABASEERR+57);
492 WSAESHUTDOWN = (WSABASEERR+58);
493 WSAETOOMANYREFS = (WSABASEERR+59);
494 WSAETIMEDOUT = (WSABASEERR+60);
495 WSAECONNREFUSED = (WSABASEERR+61);
496 WSAELOOP = (WSABASEERR+62);
497 WSAENAMETOOLONG = (WSABASEERR+63);
498 WSAEHOSTDOWN = (WSABASEERR+64);
499 WSAEHOSTUNREACH = (WSABASEERR+65);
500 WSAENOTEMPTY = (WSABASEERR+66);
501 WSAEPROCLIM = (WSABASEERR+67);
502 WSAEUSERS = (WSABASEERR+68);
503 WSAEDQUOT = (WSABASEERR+69);
504 WSAESTALE = (WSABASEERR+70);
505 WSAEREMOTE = (WSABASEERR+71);
506
507 { Extended Windows Sockets error constant definitions }
508
509 WSASYSNOTREADY = (WSABASEERR+91);
510 WSAVERNOTSUPPORTED = (WSABASEERR+92);
511 WSANOTINITIALISED = (WSABASEERR+93);
512 WSAEDISCON = (WSABASEERR+101);
513 WSAENOMORE = (WSABASEERR+102);
514 WSAECANCELLED = (WSABASEERR+103);
515 WSAEEINVALIDPROCTABLE = (WSABASEERR+104);
516 WSAEINVALIDPROVIDER = (WSABASEERR+105);
517 WSAEPROVIDERFAILEDINIT = (WSABASEERR+106);
518 WSASYSCALLFAILURE = (WSABASEERR+107);
519 WSASERVICE_NOT_FOUND = (WSABASEERR+108);
520 WSATYPE_NOT_FOUND = (WSABASEERR+109);
521 WSA_E_NO_MORE = (WSABASEERR+110);
522 WSA_E_CANCELLED = (WSABASEERR+111);
523 WSAEREFUSED = (WSABASEERR+112);
524
525 { Error return codes from gethostbyname() and gethostbyaddr()
526 (when using the resolver). Note that these errors are
527 retrieved via WSAGetLastError() and must therefore follow
528 the rules for avoiding clashes with error numbers from
529 specific implementations or language run-time systems.
530 For this reason the codes are based at WSABASEERR+1001.
531 Note also that [WSA]NO_ADDRESS is defined only for
532 compatibility purposes. }
533
534 { Authoritative Answer: Host not found }
535
536 WSAHOST_NOT_FOUND = (WSABASEERR+1001);
537 HOST_NOT_FOUND = WSAHOST_NOT_FOUND;
538
539 { Non-Authoritative: Host not found, or SERVERFAIL }
540
541 WSATRY_AGAIN = (WSABASEERR+1002);
542 TRY_AGAIN = WSATRY_AGAIN;
543
544 { Non recoverable errors, FORMERR, REFUSED, NOTIMP }
545
546 WSANO_RECOVERY = (WSABASEERR+1003);
547 NO_RECOVERY = WSANO_RECOVERY;
548
549 { Valid name, no data record of requested type }
550
551 WSANO_DATA = (WSABASEERR+1004);
552 NO_DATA = WSANO_DATA;
553
554 { no address, look for MX record }
555
556 WSANO_ADDRESS = WSANO_DATA;
557 NO_ADDRESS = WSANO_ADDRESS;
558
559 { Windows Sockets errors redefined as regular Berkeley error constants.
560 These are commented out in Windows NT to avoid conflicts with errno.h.
561 Use the WSA constants instead. }
562
563 EWOULDBLOCK = WSAEWOULDBLOCK;
564 EINPROGRESS = WSAEINPROGRESS;
565 EALREADY = WSAEALREADY;
566 ENOTSOCK = WSAENOTSOCK;
567 EDESTADDRREQ = WSAEDESTADDRREQ;
568 EMSGSIZE = WSAEMSGSIZE;
569 EPROTOTYPE = WSAEPROTOTYPE;
570 ENOPROTOOPT = WSAENOPROTOOPT;
571 EPROTONOSUPPORT = WSAEPROTONOSUPPORT;
572 ESOCKTNOSUPPORT = WSAESOCKTNOSUPPORT;
573 EOPNOTSUPP = WSAEOPNOTSUPP;
574 EPFNOSUPPORT = WSAEPFNOSUPPORT;
575 EAFNOSUPPORT = WSAEAFNOSUPPORT;
576 EADDRINUSE = WSAEADDRINUSE;
577 EADDRNOTAVAIL = WSAEADDRNOTAVAIL;
578 ENETDOWN = WSAENETDOWN;
579 ENETUNREACH = WSAENETUNREACH;
580 ENETRESET = WSAENETRESET;
581 ECONNABORTED = WSAECONNABORTED;
582 ECONNRESET = WSAECONNRESET;
583 ENOBUFS = WSAENOBUFS;
584 EISCONN = WSAEISCONN;
585 ENOTCONN = WSAENOTCONN;
586 ESHUTDOWN = WSAESHUTDOWN;
587 ETOOMANYREFS = WSAETOOMANYREFS;
588 ETIMEDOUT = WSAETIMEDOUT;
589 ECONNREFUSED = WSAECONNREFUSED;
590 ELOOP = WSAELOOP;
591 ENAMETOOLONG = WSAENAMETOOLONG;
592 EHOSTDOWN = WSAEHOSTDOWN;
593 EHOSTUNREACH = WSAEHOSTUNREACH;
594 ENOTEMPTY = WSAENOTEMPTY;
595 EPROCLIM = WSAEPROCLIM;
596 EUSERS = WSAEUSERS;
597 EDQUOT = WSAEDQUOT;
598 ESTALE = WSAESTALE;
599 EREMOTE = WSAEREMOTE;
600
601 { AHS }
602 { WinSock 2 extension -- new error codes and type definition }
603
604 type
605 WSAEVENT = THANDLE;
606 LPHANDLE = PHANDLE;
607 LPWSAEVENT = LPHANDLE;
608 WSAOVERLAPPED = TOVERLAPPED;
609 LPWSAOVERLAPPED = POverlapped;
610
611 const
612
613 WSA_IO_PENDING = ERROR_IO_PENDING;
614 WSA_IO_INCOMPLETE = ERROR_IO_INCOMPLETE;
615 WSA_INVALID_HANDLE = ERROR_INVALID_HANDLE;
616 WSA_INVALID_PARAMETER = ERROR_INVALID_PARAMETER;
617 WSA_NOT_ENOUGH_MEMORY = ERROR_NOT_ENOUGH_MEMORY;
618 WSA_OPERATION_ABORTED = ERROR_OPERATION_ABORTED;
619
620 WSA_INVALID_EVENT = WSAEVENT(NiL);
621 WSA_MAXIMUM_WAIT_EVENTS = MAXIMUM_WAIT_OBJECTS;
622 WSA_WAIT_FAILED = DWORD($FFFFFFFF); { ahs }
623 WSA_WAIT_EVENT_0 = WAIT_OBJECT_0;
624 WSA_WAIT_IO_COMPLETION = WAIT_IO_COMPLETION;
625 WSA_WAIT_TIMEOUT = WAIT_TIMEOUT;
626 WSA_INFINITE = INFINITE;
627
628
629 { WinSock 2 extension -- WSABUF and QOS struct }
630
631 type
632
633 PWSABUF = ^TWSABUF;
634 TWSABUF = packed record
635 len : u_long; { the length of the buffer }
636 buf : Pointer; //PChar; { the pointer to the buffer }
637 end;
638
639 GUARANTEE = (
640 BestEffortService,
641 ControlledLoadService,
642 PredictiveService,
643 GuaranteedDelayService,
644 GuaranteedService
645 );
646
647 PFlowspec = ^TFlowspec;
648 TFlowspec = packed record
649 TokenRate : LongInt; { In Bytes/sec }
650 TokenBucketSize : LongInt; { In Bytes }
651 PeakBandwidth : LongInt; { In Bytes/sec }
652 Latency : LongInt; { In microseconds }
653 DelayVariation : LongInt; { In microseconds }
654 LevelOfGuarantee : Guarantee; { Guaranteed, Predictive }
655 { or Best Effort }
656 CostOfCall : LongInt; { Reserved for future use, }
657 { must be set to 0 now }
658 NetworkAvailability : LongInt; { read-only: }
659 { 1 if accessible, }
660 { 0 if not }
661 end;
662
663 PQOS = ^TQualityOfService;
664 TQualityOfService = packed record
665 SendingFlowspec :TFlowspec; { the flow spec for data sending }
666 ReceivingFlowspec :TFlowspec; { the flow spec for data receiving }
667 ProviderSpecific :TWSABuf; { additional provider specific stuff }
668 end;
669
670 const
671
672 { WinSock 2 extension -- manifest constants for return values of the
673 condition function}
674
675 CF_ACCEPT = $0000;
676 CF_REJECT = $0001;
677 CF_DEFER = $0002;
678
679 {WinSock 2 extension -- manifest constants for shutdown() }
680
681 SD_RECEIVE = $00;
682 SD_SEND = $01;
683 SD_BOTH = $02;
684
685 { WinSock 2 extension -- data type and manifest constants for socket groups }
686 type
687
688 TGroup = u_int;
689 PGroup = ^TGroup;
690
691 const
692
693 SG_UNCONSTRAINED_GROUP = $01;
694 SG_CONSTRAINED_GROUP = $02;
695
696 { WinSock 2 extension -- data type for WSAEnumNetworkEvents() }
697
698 type
699
700 PWSANETWORKEVENTS = ^TWSANETWORKEVENTS;
701 TWSANETWORKEVENTS = packed record
702 lNetworkEvents :u_long;
703 iErrorCode : array [0..FD_MAX_EVENTS-1] of u_int;
704 end;
705
706 {WinSock 2 extension -- WSAPROTOCOL_INFO structure and associated
707 manifest constants}
708
709 PGUID = ^TGUID;
710 TGUID = packed record
711 Data1 :u_long;
712 Data2 :u_short;
713 Data3 :u_short;
714 Data4 : array [0..8-1] of u_char;
715 end;
716
717 const
718
719 MAX_PROTOCOL_CHAIN = 7;
720
721 BASE_PROTOCOL = 1;
722 LAYERED_PROTOCOL = 0;
723
724 type
725
726 PWSAPROTOCOLCHAIN = ^TWSAPROTOCOLCHAIN;
727 TWSAPROTOCOLCHAIN = packed record
728 ChainLen : Integer; { the length of the chain, }
729 { length = 0 means layered protocol, }
730 { length = 1 means base protocol, }
731 { length > 1 means protocol chain }
732 ChainEntries : array[0..MAX_PROTOCOL_CHAIN-1] of DWORD; { a list of dwCatalogEntryIds }
733 end;
734
735 const
736
737 WSAPROTOCOL_LEN = 255;
738
739 type
740
741 PWSAPROTOCOL_INFOA = ^TWSAPROTOCOL_INFOA;
742 TWSAPROTOCOL_INFOA = packed record
743 dwServiceFlags1 : DWORD;
744 dwServiceFlags2 : DWORD;
745 dwServiceFlags3 : DWORD;
746 dwServiceFlags4 : DWORD;
747 dwProviderFlags : DWORD;
748 ProviderId : TGUID;
749 dwCatalogEntryId : DWORD;
750 ProtocolChain : TWSAPROTOCOLCHAIN;
751 iVersion : u_int;
752 iAddressFamily : u_int;
753 iMaxSockAddr : u_int;
754 iMinSockAddr : u_int;
755 iSocketType : u_int;
756 iProtocol : u_int;
757 iProtocolMaxOffset : u_int;
758 iNetworkByteOrder : u_int;
759 iSecurityScheme : u_int;
760 dwMessageSize : DWORD;
761 dwProviderReserved : DWORD;
762 szProtocol : array [0..WSAPROTOCOL_LEN+1-1] of u_char;
763 end;
764
765 PWSAPROTOCOL_INFOW = ^TWSAPROTOCOL_INFOW;
766 TWSAPROTOCOL_INFOW = packed record
767 dwServiceFlags1 : DWORD;
768 dwServiceFlags2 : DWORD;
769 dwServiceFlags3 : DWORD;
770 dwServiceFlags4 : DWORD;
771 dwProviderFlags : DWORD;
772 ProviderId : TGUID;
773 dwCatalogEntryId : DWORD;
774 ProtocolChain : TWSAPROTOCOLCHAIN;
775 iVersion : u_int;
776 iAddressFamily : u_int;
777 iMaxSockAddr : u_int;
778 iMinSockAddr : u_int;
779 iSocketType : u_int;
780 iProtocol : u_int;
781 iProtocolMaxOffset : u_int;
782 iNetworkByteOrder : u_int;
783 iSecurityScheme : u_int;
784 dwMessageSize : DWORD;
785 dwProviderReserved : DWORD;
786 szProtocol : array [0..WSAPROTOCOL_LEN+1-1] of WCHAR;
787 end;
788
789 {$ifdef UNICODE}
790
791 TWSAPROTOCOL_INFO = TWSAPROTOCOL_INFOW ;
792 PWSAPROTOCOL_INFO = PWSAPROTOCOL_INFOW ;
793
794 {$else}
795
796 TWSAPROTOCOL_INFO = TWSAPROTOCOL_INFOA ;
797 PWSAPROTOCOL_INFO = PWSAPROTOCOL_INFOA ;
798
799 {$endif UNICODE}
800
801 const
802 { Flag bit definitions for dwProviderFlags }
803
804 PFL_MULTIPLE_PROTO_ENTRIES =$00000001;
805 PFL_RECOMMENDED_PROTO_ENTRY =$00000002;
806 PFL_HIDDEN =$00000004;
807 PFL_MATCHES_PROTOCOL_ZERO =$00000008;
808
809 { Flag bit definitions for dwServiceFlags1 }
810 XP1_CONNECTIONLESS =$00000001;
811 XP1_GUARANTEED_DELIVERY =$00000002;
812 XP1_GUARANTEED_ORDER =$00000004;
813 XP1_MESSAGE_ORIENTED =$00000008;
814 XP1_PSEUDO_STREAM =$00000010;
815 XP1_GRACEFUL_CLOSE =$00000020;
816 XP1_EXPEDITED_DATA =$00000040;
817 XP1_CONNECT_DATA =$00000080;
818 XP1_DISCONNECT_DATA =$00000100;
819 XP1_SUPPORT_BROADCAST =$00000200;
820 XP1_SUPPORT_MULTIPOINT =$00000400;
821 XP1_MULTIPOINT_CONTROL_PLANE =$00000800;
822 XP1_MULTIPOINT_DATA_PLANE =$00001000;
823 XP1_QOS_SUPPORTED =$00002000;
824 XP1_INTERRUPT =$00004000;
825 XP1_UNI_SEND =$00008000;
826 XP1_UNI_RECV =$00010000;
827 XP1_IFS_HANDLES =$00020000;
828 XP1_PARTIAL_MESSAGE =$00040000;
829
830 BIGENDIAN =$0000;
831 LITTLEENDIAN =$0001;
832
833 SECURITY_PROTOCOL_NONE =$0000;
834
835 { WinSock 2 extension -- manifest constants for WSAJoinLeaf() }
836
837 JL_SENDER_ONLY =$01;
838 JL_RECEIVER_ONLY =$02;
839 JL_BOTH =$04;
840
841 { WinSock 2 extension -- manifest constants for WSASocket() }
842
843 WSA_FLAG_OVERLAPPED =$01;
844 WSA_FLAG_MULTIPOINT_C_ROOT =$02;
845 WSA_FLAG_MULTIPOINT_C_LEAF =$04;
846 WSA_FLAG_MULTIPOINT_D_ROOT =$08;
847 WSA_FLAG_MULTIPOINT_D_LEAF =$10;
848
849 { WinSock 2 extension -- manifest constants for WSAIoctl() }
850
851 IOC_UNIX =$00000000;
852 IOC_WS2 =$08000000;
853 IOC_PROTOCOL =$10000000;
854 IOC_VENDOR =$18000000;
855
856 SIO_ASSOCIATE_HANDLE = IOC_IN or IOC_WS2 or 1;
857 SIO_ENABLE_CIRCULAR_QUEUEING = IOC_VOID or IOC_WS2 or 2;
858 SIO_FIND_ROUTE = IOC_OUT or IOC_WS2 or 3;
859 SIO_FLUSH = IOC_VOID or IOC_WS2 or 4;
860 SIO_GET_BROADCAST_ADDRESS = IOC_OUT or IOC_WS2 or 5;
861 SIO_GET_EXTENSION_FUNCTION_POINTER = IOC_INOUT or IOC_WS2 or 6;
862 SIO_GET_QOS = IOC_INOUT or IOC_WS2 or 7;
863 SIO_GET_GROUP_QOS = IOC_INOUT or IOC_WS2 or 8;
864 SIO_MULTIPOINT_LOOPBACK = IOC_IN or IOC_WS2 or 9;
865 SIO_MULTICAST_SCOPE = IOC_IN or IOC_WS2 or 10;
866 SIO_SET_QOS = IOC_IN or IOC_WS2 or 11;
867 SIO_SET_GROUP_QOS = IOC_IN or IOC_WS2 or 12;
868 SIO_TRANSLATE_HANDLE = IOC_INOUT or IOC_WS2 or 13;
869
870 { WinSock 2 extension -- manifest constants for SIO_TRANSLATE_HANDLE ioctl }
871
872 TH_NETDEV = $00000001;
873 TH_TAPI = $00000002;
874
875 { Microsoft Windows Extended data types required for the functions to
876 convert back and forth between binary and string forms of
877 addresses. }
878
879 type
880
881 SOCKADDR = TSockAddr; { AHS ?}
882 { PSOCKADDR = PSockaddr;}
883 LPSOCKADDR = PSockaddr;
884
885 { Manifest constants and type definitions related to name resolution and
886 registration (RNR) API }
887
888 PBLOB = ^TBLOB;
889 TBLOB = packed record
890 cbSize :ULONG;
891 pBlobData :^byte;
892 end;
893
894 { Service Install Flags }
895
896 const
897
898 SERVICE_MULTIPLE =$00000001;
899
900 { Name Spaces }
901
902 NS_ALL = 0;
903
904 NS_SAP = 1;
905 NS_NDS = 2;
906 NS_PEER_BROWSE = 3;
907
908 NS_TCPIP_LOCAL = 10;
909 NS_TCPIP_HOSTS = 11;
910 NS_DNS = 12;
911 NS_NETBT = 13;
912 NS_WINS = 14;
913
914 NS_NBP = 20;
915
916 NS_MS = 30;
917 NS_STDA = 31;
918 NS_NTDS = 32;
919
920 NS_X500 = 40;
921 NS_NIS = 41;
922 NS_NISPLUS = 42;
923
924 NS_WRQ = 50;
925
926
927 { Resolution flags for WSAGetAddressByName().
928 Note these are also used by the 1.1 API GetAddressByName, so
929 leave them around. }
930
931 RES_UNUSED_1 =$00000001;
932 RES_FLUSH_CACHE =$00000002;
933 RES_SERVICE =$00000004;
934
935
936 { Well known value names for Service Types }
937
938 SERVICE_TYPE_VALUE_IPXPORTA ='IpxSocket';
939 SERVICE_TYPE_VALUE_IPXPORTW = 'IpxSocket';
940 SERVICE_TYPE_VALUE_SAPIDA = 'SapId';
941 SERVICE_TYPE_VALUE_SAPIDW ='SapId';
942
943 SERVICE_TYPE_VALUE_TCPPORTA = 'TcpPort';
944 SERVICE_TYPE_VALUE_TCPPORTW ='TcpPort';
945
946 SERVICE_TYPE_VALUE_UDPPORTA = 'UdpPort';
947 SERVICE_TYPE_VALUE_UDPPORTW ='UdpPort';
948
949 SERVICE_TYPE_VALUE_OBJECTIDA = 'ObjectId';
950 SERVICE_TYPE_VALUE_OBJECTIDW ='ObjectId';
951
952 {$ifdef UNICODE}
953
954 SERVICE_TYPE_VALUE_SAPID =SERVICE_TYPE_VALUE_SAPIDW;
955 SERVICE_TYPE_VALUE_TCPPORT =SERVICE_TYPE_VALUE_TCPPORTW;
956 SERVICE_TYPE_VALUE_UDPPORT =SERVICE_TYPE_VALUE_UDPPORTW;
957 SERVICE_TYPE_VALUE_OBJECTID =SERVICE_TYPE_VALUE_OBJECTIDW;
958
959 {$else} { not UNICODE }
960
961 SERVICE_TYPE_VALUE_SAPID =SERVICE_TYPE_VALUE_SAPIDA;
962 SERVICE_TYPE_VALUE_TCPPORT =SERVICE_TYPE_VALUE_TCPPORTA;
963 SERVICE_TYPE_VALUE_UDPPORT =SERVICE_TYPE_VALUE_UDPPORTA;
964 SERVICE_TYPE_VALUE_OBJECTID =SERVICE_TYPE_VALUE_OBJECTIDA;
965
966 {$endif}
967
968 { SockAddr Information }
969 type
970
971 PSOCKET_ADDRESS = ^TSOCKET_ADDRESS;
972 TSOCKET_ADDRESS = packed record
973 lpSockaddr : PSOCKADDR ;
974 iSockaddrLength : u_int;
975 end;
976
977 { CSAddr Information }
978
979 PCSADDR_INFO = ^TCSADDR_INFO;
980 TCSADDR_INFO = packed record
981 LocalAddr :TSOCKET_ADDRESS;
982 RemoteAddr :TSOCKET_ADDRESS;
983 iSocketType :u_int;
984 iProtocol :u_int;
985 end;
986
987
988 { Address Family/Protocol Tuples }
989
990 PAFPROTOCOLS = ^TAFPROTOCOLS;
991 TAFPROTOCOLS = packed record
992 iAddressFamily :u_int;
993 iProtocol :u_int;
994 end;
995
996 { Client Query API Typedefs }
997
998 { The comparators }
999
1000 PWSAEcomparator = ^TWSAEcomparator;
1001 TWSAEcomparator = (
1002 COMP_EQUAL,
1003 COMP_NOTLESS
1004 );
1005
1006 PWSAVersion = ^TWSAVersion;
1007 TWSAVersion = packed record
1008 dwVersion : Dword;
1009 ecHow : TWSAEComparator;
1010 end;
1011
1012 PWSAQuerySetA = ^TWSAQuerySetA;
1013 TWSAQuerySetA = packed record
1014 dwSize : DWord;
1015 lpszServiceInstanceName : PChar;
1016 lpServiceClassId : PGUID;
1017 lpVersion : PWSAVERSION;
1018 lpszComment : PChar;
1019 dwNameSpace : DWord;
1020 lpNSProviderId : PGUID;
1021 lpszContext : PChar;
1022 dwNumberOfProtocols : DWORD;
1023 lpafpProtocols : PAFPROTOCOLS;
1024 lpszQueryString : PChar;
1025 dwNumberOfCsAddrs : Dword;
1026 lpcsaBuffer : PCSADDR_INFO;
1027 dwOutputFlags : DWord;
1028 lpBlob : PBLOB;
1029 end;
1030
1031 PWSAQuerySetW = ^TWSAQuerySetW;
1032 TWSAQuerySetW = packed record
1033 dwSize : DWord;
1034 lpszServiceInstanceName : PWideChar; //MIO, antes WideChar
1035 lpServiceClassId : PGUID;
1036 lpVersion : PWSAVERSION;
1037 lpszComment : PWideChar; //MIO, antes WideChar
1038 dwNameSpace : DWord;
1039 lpNSProviderId : PGUID;
1040 lpszContext : PWideChar; //MIO, antes WideChar
1041 dwNumberOfProtocols : DWORD;
1042 lpafpProtocols : PAFPROTOCOLS;
1043 lpszQueryString : PWideChar; //MIO, antes WideChar
1044 dwNumberOfCsAddrs : Dword;
1045 lpcsaBuffer : PCSADDR_INFO;
1046 dwOutputFlags : DWord;
1047 lpBlob : PBLOB;
1048 end;
1049
1050 {$ifdef UNICODE}
1051
1052 WSAQUERYSET = TWSAQUERYSETW;
1053 PWSAQUERYSET = PWSAQUERYSETW;
1054
1055 {$else}
1056
1057 WSAQUERYSET = TWSAQUERYSETA;
1058 PWSAQUERYSET = PWSAQUERYSETA;
1059
1060 {$endif }
1061
1062 const
1063
1064 LUP_DEEP = $0001;
1065 LUP_CONTAINERS = $0002;
1066 LUP_NOCONTAINERS = $0004;
1067 LUP_NEAREST = $0008;
1068 LUP_RETURN_NAME = $0010;
1069 LUP_RETURN_TYPE = $0020;
1070 LUP_RETURN_VERSION = $0040;
1071 LUP_RETURN_COMMENT = $0080;
1072 LUP_RETURN_ADDR = $0100;
1073 LUP_RETURN_BLOB = $0200;
1074 LUP_RETURN_ALIASES = $0400;
1075 LUP_RETURN_QUERY_STRING = $0800;
1076 LUP_RETURN_ALL = $0FF0;
1077 LUP_RES_SERVICE = $8000;
1078
1079 LUP_FLUSHCACHE = $1000;
1080 LUP_FLUSHPREVIOUS = $2000;
1081
1082
1083 { Return flags }
1084
1085 RESULT_IS_ALIAS = $0001;
1086
1087 { Service Address Registration and Deregistration Data Types. }
1088
1089 type
1090
1091 PWSAESETSERVICEOP = ^TWSAESETSERVICEOP;
1092 TWSAESETSERVICEOP = (
1093 RNRSERVICE_REGISTER,
1094 RNRSERVICE_DEREGISTER,
1095 RNRSERVICE_DELETE
1096 );
1097
1098 { Service Installation/Removal Data Types. }
1099
1100 PWSANSClassInfoA = ^TWSANSClassInfoA;
1101 TWSANSClassInfoA = packed record
1102 lpszName : PChar;
1103 dwNameSpace : Dword;
1104 dwValueType : Dword;
1105 dwValueSize : Dword;
1106 lpValue : Pointer;
1107 end;
1108
1109 PWSANSClassInfoW = ^TWSANSClassInfoW;
1110 TWSANSClassInfoW = packed record
1111 lpszName : WideChar;
1112 dwNameSpace : Dword;
1113 dwValueType : Dword;
1114 dwValueSize : Dword;
1115 lpValue : Pointer;
1116 end;
1117
1118 {$ifdef UNICODE }
1119
1120 TWSANSCLASSINFO = TWSANSCLASSINFOW;
1121 PWSANSCLASSINFO = PWSANSCLASSINFOW;
1122
1123 {$else}
1124
1125 TWSANSCLASSINFO = TWSANSCLASSINFOA;
1126 PWSANSCLASSINFO = PWSANSCLASSINFOA;
1127
1128 {$endif UNICODE}
1129
1130 PWSAServiceClassInfoA = ^TWSAServiceClassInfoA;
1131 TWSAServiceClassInfoA = packed record
1132 lpServiceClassId : PGUID;
1133 lpszServiceClassName : PChar;
1134 dwCount : DWord;
1135 lpClassInfos : PWSANSCLASSINFOA;
1136 end;
1137
1138 PWSAServiceClassInfoW = ^TWSAServiceClassInfoW;
1139 TWSAServiceClassInfoW = packed record
1140 lpServiceClassId : PGUID;
1141 lpszServiceClassName : WideChar;
1142 dwCount : DWord;
1143 lpClassInfos : PWSANSCLASSINFOW;
1144 end;
1145
1146 {$ifdef UNICODE}
1147
1148 TWSASERVICECLASSINFO = TWSASERVICECLASSINFOW;
1149 PWSASERVICECLASSINFO = PWSASERVICECLASSINFOW;
1150
1151 {$else}
1152
1153 TWSASERVICECLASSINFO = TWSASERVICECLASSINFOA;
1154 PWSASERVICECLASSINFO = PWSASERVICECLASSINFOA;
1155
1156 {$endif UNICODE}
1157
1158 PWSANAMESPACE_INFOA = ^TWSANAMESPACE_INFOA;
1159 TWSANAMESPACE_INFOA = packed record
1160 NSProviderId : TGUID;
1161 dwNameSpace : DWord;
1162 fActive : BOOL;
1163 dwVersion : DWord;
1164 lpszIdentifier : PChar;
1165 end;
1166
1167 PWSANAMESPACE_INFOW = ^TWSANAMESPACE_INFOW;
1168 TWSANAMESPACE_INFOW = packed record
1169 NSProviderId : TGUID;
1170 dwNameSpace : DWord;
1171 fActive : BOOL;
1172 dwVersion : DWord;
1173 lpszIdentifier : WideChar;
1174 end;
1175
1176 {$ifdef UNICODE}
1177
1178 TWSANAMESPACE_INFO = TWSANAMESPACE_INFOW;
1179 PWSANAMESPACE_INFO = PWSANAMESPACE_INFOW;
1180
1181 {$else}
1182
1183 TWSANAMESPACE_INFO = TWSANAMESPACE_INFOA;
1184 PWSANAMESPACE_INFO = PWSANAMESPACE_INFOA;
1185
1186 {$endif UNICODE}
1187
1188 { AHS END }
1189
1190 { Socket function prototypes }
1191
1192 // Using "var addr:TSockAddr" in accept makes impossible to compile for IPv6
1193 function accept(s: TSocket; addr: PSockAddr; var addrlen: Integer): TSocket; stdcall;
1194 // Using "var addr:TSockAddr" in bind makes impossible to compile for IPv6
1195 function bind(s: TSocket; addr: PSockAddr; namelen: Integer): Integer; stdcall;
1196 function closesocket(s: TSocket): Integer; stdcall;
1197 // Using "var addr:TSockAddr" in connect makes impossible to compile for IPv6
1198 function connect(s: TSocket; name: PSockAddr; namelen: Integer): Integer; stdcall;
1199 function ioctlsocket(s: TSocket; cmd: Longint; var arg: u_long): Integer; stdcall;
1200 function getpeername(s: TSocket; var name: TSockAddr; var namelen: Integer): Integer; stdcall;
1201 // Using "var addr:TSockAddr" in getsockname makes impossible to compile for IPv6
1202 function getsockname(s: TSocket; name: PSockAddr; var namelen: Integer): Integer; stdcall;
1203 function getsockopt(s: TSocket; level, optname: Integer; optval: PChar; var optlen: Integer): Integer; stdcall;
1204 function htonl(hostlong: u_long): u_long; stdcall;
1205 function htons(hostshort: u_short): u_short; stdcall;
1206 function inet_addr(cp: PChar): u_long; stdcall; {PInAddr;} { TInAddr }
1207 function inet_ntoa(inaddr: TInAddr): PChar; stdcall;
1208 function listen(s: TSocket; backlog: Integer): Integer; stdcall;
1209 function ntohl(netlong: u_long): u_long; stdcall;
1210 function ntohs(netshort: u_short): u_short; stdcall;
1211 function recv(s: TSocket; var Buf; len, flags: Integer): Integer; stdcall;
1212 // Using "var from: TSockAddr" in recvfrom makes impossible to compile for IPv6
1213 function recvfrom(s: TSocket; var Buf; len, flags: Integer;
1214 from: PSockAddr; var fromlen: Integer): Integer; stdcall;
1215 function select(nfds: Integer; readfds, writefds, exceptfds: PFDSet;
1216 timeout: PTimeVal): Longint; stdcall;
1217 function send(s: TSocket; var Buf; len, flags: Integer): Integer; stdcall;
1218 // Using "var addrto: TSockAddr" in sendto makes impossible to compile for IPv6
1219 function sendto(s: TSocket; var Buf; len, flags: Integer; addrto: PSockAddr;
1220 tolen: Integer): Integer; stdcall;
1221 function setsockopt(s: TSocket; level, optname: Integer; optval: PChar;
1222 optlen: Integer): Integer; stdcall;
1223 function shutdown(s: TSocket; how: Integer): Integer; stdcall;
1224 function socket(af, struct, protocol: Integer): TSocket; stdcall;
1225 function gethostbyaddr(addr: Pointer; len, struct: Integer): PHostEnt; stdcall;
1226 function gethostbyname(name: PChar): PHostEnt; stdcall;
1227 function gethostname(name: PChar; len: Integer): Integer; stdcall;
1228 function getservbyport(port: Integer; proto: PChar): PServEnt; stdcall;
1229 function getservbyname(name, proto: PChar): PServEnt; stdcall;
1230 function getprotobynumber(proto: Integer): PProtoEnt; stdcall;
1231 function getprotobyname(name: PChar): PProtoEnt; stdcall;
1232 function WSAStartup(wVersionRequired: word; var WSData: TWSAData): Integer; stdcall;
1233 function WSACleanup: Integer; stdcall;
1234 procedure WSASetLastError(iError: Integer); stdcall;
1235 function WSAGetLastError: Integer; stdcall;
1236 function WSAIsBlocking: BOOL; stdcall;
1237 function WSAUnhookBlockingHook: Integer; stdcall;
1238 function WSASetBlockingHook(lpBlockFunc: TFarProc): TFarProc; stdcall;
1239 function WSACancelBlockingCall: Integer; stdcall;
1240 function WSAAsyncGetServByName(HWindow: HWND; wMsg: u_int;
1241 name, proto, buf: PChar; buflen: Integer): THandle; stdcall;
1242 function WSAAsyncGetServByPort( HWindow: HWND; wMsg, port: u_int;
1243 proto, buf: PChar; buflen: Integer): THandle; stdcall;
1244 function WSAAsyncGetProtoByName(HWindow: HWND; wMsg: u_int;
1245 name, buf: PChar; buflen: Integer): THandle; stdcall;
1246 function WSAAsyncGetProtoByNumber(HWindow: HWND; wMsg: u_int; number: Integer;
1247 buf: PChar; buflen: Integer): THandle; stdcall;
1248 function WSAAsyncGetHostByName(HWindow: HWND; wMsg: u_int;
1249 name, buf: PChar; buflen: Integer): THandle; stdcall;
1250 function WSAAsyncGetHostByAddr(HWindow: HWND; wMsg: u_int; addr: PChar;
1251 len, struct: Integer; buf: PChar; buflen: Integer): THandle; stdcall;
1252 function WSACancelAsyncRequest(hAsyncTaskHandle: THandle): Integer; stdcall;
1253 function WSAAsyncSelect(s: TSocket; HWindow: HWND; wMsg: u_int; lEvent: Longint): Integer; stdcall;
1254
1255 { WinSock 2 extensions -- data types for the condition function in
1256 WSAAccept() and overlapped I/O completion routine. }
1257
1258 type
1259
1260 PCONDITIONPROC = function ( lpCallerId:PWSABUF; lpCallerData:PWSABUF;
1261 lpSQOS:PQOS; lpGQOS:PQOS; lpCalleeId:PWSABUF;lpCalleeData:PWSABUF;
1262 g:PGroup; dwCallbackData:DWord) :u_int; stdcall;
1263
1264 PWSAOVERLAPPED_COMPLETION_ROUTINE = procedure ( dwError :Dword;
1265 cbTransferred: DWORD; lpOverlapped: LPWSAOVERLAPPED; dwFlags: Dword
1266 ); stdcall;
1267
1268 { WinSock 2 API new function prototypes }
1269
1270 function WSAAccept( s: TSOCKET; addr: psockaddr; addrlen: PINT;
1271 lpfnCondition: PCONDITIONPROC; dwCallbackData: DWORD): TSOCKET; stdcall;
1272 function WSACloseEvent( hEvent: WSAEVENT ):BOOL; stdcall;
1273 function WSAConnect(s: TSOCKET; name: psockaddr;namelen: u_int;
1274 lpCallerData: PWSABUF; lpCalleeData: PWSABUF; lpSQOS: PQOS;
1275 lpGQOS: PQOS) : u_int; stdcall;
1276 function WSACreateEvent:WSAEVENT; stdcall;
1277
1278 {$IFDEF UNICODE}
1279 function WSADuplicateSocket(s: TSocket; dwProcessId: DWORD;
1280 lpProtocolInfo: PWSAPROTOCOL_INFOW): u_int; stdcall;
1281 {$ELSE}
1282 function WSADuplicateSocket(s: TSocket; dwProcessId: DWORD;
1283 lpProtocolInfo: PWSAPROTOCOL_INFOA): u_int; stdcall;
1284 {$ENDIF} {UNICODE}
1285
1286 function WSAEnumNetworkEvents( s: TSocket; hEventObject: WSAEVENT;
1287 lpNetworkEvents: PWSANETWORKEVENTS): u_int; stdcall;
1288
1289 {$IFDEF UNICODE}
1290 function WSAEnumProtocols( lpiProtocols: PInt;
1291 lpProtocolBuffer: PWSAPROTOCOL_INFOW; lpdwBufferLength: PDWORD
1292 ): u_int; stdcall;
1293 {$ELSE}
1294 function WSAEnumProtocols( lpiProtocols: PInt;
1295 lpProtocolBuffer: PWSAPROTOCOL_INFOA; lpdwBufferLength: PDWORD
1296 ): u_int; stdcall;
1297 {$ENDIF} {UNICODE}
1298
1299 function WSAEventSelect(s: TSOCKET; hEventObject: WSAEVENT;
1300 lNetworkEvents: u_long): u_int; stdcall;
1301 function WSAGetOverlappedResult( s: TSocket; lpOverlapped: LPWSAOVERLAPPED;
1302 lpcbTransfer: PDWORD; fWait: BOOL; lpdwFlags: PDWORD): BOOL; stdcall;
1303 function WSAGetQOSByName( s: TSocket; lpQOSName: PWSABUF;
1304 lpQOS: PQOS): BOOL; stdcall;
1305 function WSAHtonl( s: TSocket; hostlong: u_long; lpnetlong: pu_long)
1306 : u_int; stdcall;
1307 function WSAHtons( s: TSocket; hostshort: u_short; lpnetshort: pu_short)
1308 : u_int; stdcall;
1309 function WSAIoctl( s: TSocket; dwIoControlCode: DWORD; lpvInBuffer: Pointer;
1310 cbInBuffer: DWORD; lpvOutBuffer: Pointer; cbOutBuffer: DWORD;
1311 lpcbBytesReturned: PDWORD; lpOverlapped: LPWSAOVERLAPPED;
1312 lpCompletionRoutine: PWSAOVERLAPPED_COMPLETION_ROUTINE): u_int; stdcall;
1313 function WSAJoinLeaf( s: TSocket; name: psockaddr; namelen: u_int;
1314 lpCallerData: PWSABUF; lpCalleeData: PWSABUF; lpSQOS: PQOS; lpGQOS: PQOS;
1315 dwFlags: DWORD): TSocket; stdcall;
1316 function WSANtohl( s: TSocket; netlong: u_long; lphostlong: pu_long)
1317 : u_int; stdcall;
1318 function WSANtohs( s: TSocket; netshort: u_short; lphostshort: pu_short)
1319 : u_int; stdcall;
1320 function WSARecv( s: TSocket; lpBuffers: PWSABUF; dwBufferCount: DWORD;
1321 lpNumberOfBytesRecvd: PDWORD; lpFlags: PDWORD;lpOverlapped: LPWSAOVERLAPPED;
1322 lpCompletionRoutine: PWSAOVERLAPPED_COMPLETION_ROUTINE): u_int; stdcall;
1323 function WSARecvDisconnect( s: TSocket; lpInboundDisconnectData: PWSABUF)
1324 : u_int; stdcall;
1325 function WSARecvFrom( s: TSocket; lpBuffers: PWSABUF; dwBufferCount: DWORD;
1326 lpNumberOfBytesRecvd: PDWORD; lpFlags: PDWORD; lpFrom: psockaddr;
1327 lpFromlen: PInt; lpOverlapped: LPWSAOVERLAPPED;
1328 lpCompletionRoutine: PWSAOVERLAPPED_COMPLETION_ROUTINE): u_int; stdcall;
1329 function WSAResetEvent( hEvent: WSAEVENT): BOOL; stdcall;
1330 function WSASend( s: TSocket; lpBuffers: PWSABUF; dwBufferCount: DWORD;
1331 lpNumberOfBytesSent: PDWORD; dwFlags: DWORD; lpOverlapped: LPWSAOVERLAPPED;
1332 lpCompletionRoutine: PWSAOVERLAPPED_COMPLETION_ROUTINE): u_int; stdcall;
1333 function WSASendDisconnect( s: TSocket; lpOutboundDisconnectData: PWSABUF)
1334 : u_int; stdcall;
1335 function WSASendTo(s: TSocket; lpBuffers: PWSABUF; dwBufferCount: DWORD;
1336 lpNumberOfBytesSent: PDWORD;dwFlags: DWORD; lpTo: psockaddr; iTolen: u_int;
1337 lpOverlapped: LPWSAOVERLAPPED;
1338 lpCompletionRoutine: PWSAOVERLAPPED_COMPLETION_ROUTINE): u_int; stdcall;
1339 function WSASetEvent( hEvent: WSAEVENT): BOOL; stdcall;
1340 {$IFDEF UNICODE}
1341 function WSASocket( af: u_int; atype: u_int; protocol: u_int;
1342 lpProtocolInfo: PWSAPROTOCOL_INFOW; g: TGroup; dwFlags: Dword)
1343 : TSocket; stdcall;
1344 {$ELSE}
1345 function WSASocket( af: u_int; atype: u_int; protocol: u_int;
1346 lpProtocolInfo: PWSAPROTOCOL_INFOA; g: TGroup; dwFlags: Dword)
1347 : TSocket; stdcall;
1348 {$ENDIF} { UNICODE}
1349 function WSAWaitForMultipleEvents( cEvents: DWORD; lphEvents: LPWSAEVENT;
1350 fWaitAll: BOOL; dwTimeout: DWORD; fAlertable: BOOL): DWORD; stdcall;
1351 {$IFDEF UNICODE}
1352 function WSAAddressToString( lpsaAddress: PSOCKADDR; dwAddressLength: DWORD;
1353 lpProtocolInfo: PWSAPROTOCOL_INFOW; lpszAddressString: WideChar;
1354 lpdwAddressStringLength: PDWORD): u_int; stdcall;
1355 {$ELSE}
1356 function WSAAddressToString( lpsaAddress: PSOCKADDR; dwAddressLength: DWORD;
1357 lpProtocolInfo: PWSAPROTOCOL_INFOA; lpszAddressString: PChar;
1358 lpdwAddressStringLength: PDWORD): u_int; stdcall;
1359 {$ENDIF} { UNICODE}
1360
1361 {$IFDEF UNICODE}
1362 function WSAStringToAddress( AddressString: WideChar; AddressFamily: u_int;
1363 lpProtocolInfo: PWSAPROTOCOL_INFOW; lpAddress: PSOCKADDR;
1364 lpAddressLength: PInt): u_int; stdcall;
1365 {$ELSE}
1366 function WSAStringToAddress( AddressString: PChar; AddressFamily: u_int;
1367 lpProtocolInfo: PWSAPROTOCOL_INFOA; lpAddress: PSOCKADDR;
1368 lpAddressLength: PInt): u_int; stdcall;
1369 {$ENDIF} { UNICODE}
1370
1371 { Registration and Name Resolution API functions }
1372
1373 {$IFDEF UNICODE}
1374 function WSALookupServiceBegin( lpqsRestrictions: PWSAQUERYSETW;
1375 dwControlFlags: DWORD; lphLookup: LPHANDLE): u_int; stdcall;
1376 {$ELSE}
1377 function WSALookupServiceBegin( lpqsRestrictions: PWSAQUERYSETA;
1378 dwControlFlags: DWORD; lphLookup: LPHANDLE): u_int; stdcall;
1379 {$ENDIF} { UNICODE}
1380
1381 {$IFDEF UNICODE}
1382 function WSALookupServiceNext( hLookup: THANDLE; dwControlFlags: DWORD;
1383 lpdwBufferLength: PDWORD; lpqsResults: PWSAQUERYSETW): u_int; stdcall;
1384 {$ELSE}
1385 function WSALookupServiceNext( hLookup: THANDLE; dwControlFlags: DWORD;
1386 lpdwBufferLength: PDWORD; lpqsResults: PWSAQUERYSETA): LongInt; stdcall;
1387 {$ENDIF} { UNICODE}
1388
1389 function WSALookupServiceEnd( hLookup: THandle): u_int; stdcall;
1390
1391 {$IFDEF UNICODE}
1392 function WSAInstallServiceClass( lpServiceClassInfo: PWSASERVICECLASSINFOW
1393 ): u_int; stdcall;
1394 {$ELSE}
1395 function WSAInstallServiceClass( lpServiceClassInfo: PWSASERVICECLASSINFOA
1396 ): u_int; stdcall;
1397 {$ENDIF} { UNICODE}
1398
1399 function WSARemoveServiceClass(lpServiceClassId: PGUID): u_int; stdcall;
1400
1401 {$IFDEF UNICODE}
1402 function WSAGetServiceClassInfo( lpProviderId: PGUID; lpServiceClassId: PGUID;
1403 lpdwBufSize: PDWORD; lpServiceClassInfo: PWSASERVICECLASSINFOW)
1404 : u_int; stdcall;
1405 {$ELSE}
1406 function WSAGetServiceClassInfo( lpProviderId: PGUID; lpServiceClassId: PGUID;
1407 lpdwBufSize: PDWORD; lpServiceClassInfo: PWSASERVICECLASSINFOA)
1408 : u_int; stdcall;
1409 {$ENDIF} { UNICODE}
1410
1411 {$IFDEF UNICODE}
1412 function WSAEnumNameSpaceProviders( lpdwBufferLength: PDWORD;
1413 lpnspBuffer: PWSANAMESPACE_INFOW):u_int; stdcall;
1414 {$ELSE}
1415 function WSAEnumNameSpaceProviders( lpdwBufferLength: PDWORD;
1416 lpnspBuffer: PWSANAMESPACE_INFOA):u_int; stdcall;
1417 {$ENDIF} { UNICODE}
1418
1419 {$IFDEF UNICODE}
1420 function WSAGetServiceClassNameByClassId( lpServiceClassId: PGUID;
1421 lpszServiceClassName: WideChar; lpdwBufferLength: PDWORD): u_int; stdcall;
1422 {$ELSE}
1423 function WSAGetServiceClassNameByClassId( lpServiceClassId: PGUID;
1424 lpszServiceClassName: PChar; lpdwBufferLength: PDWORD): u_int; stdcall;
1425 {$ENDIF} { UNICODE}
1426
1427 {$IFDEF UNICODE}
1428 function WSASetService( lpqsRegInfo: PWSAQUERYSETW;
1429 essoperation: TWSAESETSERVICEOP; dwControlFlags: DWORD):u_int; stdcall;
1430 {$ELSE}
1431 function WSASetService( lpqsRegInfo: PWSAQUERYSETA;
1432 essoperation: TWSAESETSERVICEOP; dwControlFlags: DWORD):u_int; stdcall;
1433 {$ENDIF} { UNICODE}
1434
1435 function WSARecvEx(s: TSocket; var buf; len: Integer; var flags: Integer): Integer; stdcall;
1436
1437 function TransmitFile(hSocket: TSocket; hFile: THandle; nNumberOfBytesToWrite: DWORD;
1438 nNumberOfBytesPerSend: DWORD; lpOverlapped: POverlapped;
1439 lpTransmitBuffers: PTransmitFileBuffers; dwReserved: DWORD): BOOL; stdcall;
1440
1441 function WSAMakeASyncReply(Buflen, Error: Word): Longint;
1442 function WSAMakeSelectReply(Event, Error: Word): Longint;
1443 function WSAGetAsyncBuflen(Param: Longint): Word;
1444 function WSAGetAsyncError(Param: Longint): Word;
1445 function WSAGetSelectEvent(Param: Longint): Word;
1446 function WSAGetSelectError(Param: Longint): Word;
1447
1448 implementation
1449
1450 const
1451 winsocket = 'ws2_32.dll';
1452
1453 function WSAMakeASyncReply;
1454 begin
1455 WSAMakeASyncReply:= MakeLong(Buflen, Error);
1456 end;
1457
1458 function WSAMakeSelectReply;
1459 begin
1460 WSAMakeSelectReply:= MakeLong(Event, Error);
1461 end;
1462
1463 function WSAGetAsyncBuflen;
1464 begin
1465 WSAGetAsyncBuflen:= LOWORD(Param);
1466 end;
1467
1468 function WSAGetAsyncError;
1469 begin
1470 WSAGetAsyncError:= HIWORD(Param);
1471 end;
1472
1473 function WSAGetSelectEvent;
1474 begin
1475 WSAGetSelectEvent:= LOWORD(Param);
1476 end;
1477
1478 function WSAGetSelectError;
1479 begin
1480 WSAGetSelectError:= HIWORD(Param);
1481 end;
1482
1483 function accept;
1484 external winsocket name 'accept';
1485 function bind;
1486 external winsocket name 'bind';
1487 function closesocket;
1488 external winsocket name 'closesocket';
1489 function connect;
1490 external winsocket name 'connect';
1491 function getpeername;
1492 external winsocket name 'getpeername';
1493 function getsockname;
1494 external winsocket name 'getsockname';
1495 function getsockopt;
1496 external winsocket name 'getsockopt';
1497 function htonl;
1498 external winsocket name 'htonl';
1499 function htons;
1500 external winsocket name 'htons';
1501 function inet_addr;
1502 external winsocket name 'inet_addr';
1503 function inet_ntoa;
1504 external winsocket name 'inet_ntoa';
1505 function ioctlsocket;
1506 external winsocket name 'ioctlsocket';
1507 function listen;
1508 external winsocket name 'listen';
1509 function ntohl;
1510 external winsocket name 'ntohl';
1511 function ntohs;
1512 external winsocket name 'ntohs';
1513 function recv;
1514 external winsocket name 'recv';
1515 function recvfrom;
1516 external winsocket name 'recvfrom';
1517 function select;
1518 external winsocket name 'select';
1519 function send;
1520 external winsocket name 'send';
1521 function sendto;
1522 external winsocket name 'sendto';
1523 function setsockopt;
1524 external winsocket name 'setsockopt';
1525 function shutdown;
1526 external winsocket name 'shutdown';
1527 function socket;
1528 external winsocket name 'socket';
1529
1530 function gethostbyaddr;
1531 external winsocket name 'gethostbyaddr';
1532 function gethostbyname;
1533 external winsocket name 'gethostbyname';
1534 function getprotobyname;
1535 external winsocket name 'getprotobyname';
1536 function getprotobynumber;
1537 external winsocket name 'getprotobynumber';
1538 function getservbyname;
1539 external winsocket name 'getservbyname';
1540 function getservbyport;
1541 external winsocket name 'getservbyport';
1542 function gethostname;
1543 external winsocket name 'gethostname';
1544
1545 function WSAAsyncSelect;
1546 external winsocket name 'WSAAsyncSelect';
1547 function WSARecvEx;
1548 external winsocket name 'WSARecvEx';
1549 function WSAAsyncGetHostByAddr;
1550 external winsocket name 'WSAAsyncGetHostByAddr';
1551 function WSAAsyncGetHostByName;
1552 external winsocket name 'WSAAsyncGetHostByName';
1553 function WSAAsyncGetProtoByNumber;
1554 external winsocket name 'WSAAsyncGetProtoByNumber';
1555 function WSAAsyncGetprotoByName;
1556 external winsocket name 'WSAAsyncGetprotoByName';
1557 function WSAAsyncGetServByPort;
1558 external winsocket name 'WSAAsyncGetServByPort';
1559 function WSAAsyncGetServByName;
1560 external winsocket name 'WSAAsyncGetServByName';
1561 function WSACancelAsyncRequest;
1562 external winsocket name 'WSACancelAsyncRequest';
1563 function WSASetBlockingHook;
1564 external winsocket name 'WSASetBlockingHook';
1565 function WSAUnhookBlockingHook;
1566 external winsocket name 'WSAUnhookBlockingHook';
1567 function WSAGetLastError;
1568 external winsocket name 'WSAGetLastError';
1569 procedure WSASetLastError;
1570 external winsocket name 'WSASetLastError';
1571 function WSACancelBlockingCall;
1572 external winsocket name 'WSACancelBlockingCall';
1573 function WSAIsBlocking;
1574 external winsocket name 'WSAIsBlocking';
1575 function WSAStartup;
1576 external winsocket name 'WSAStartup';
1577 function WSACleanup;
1578 external winsocket name 'WSACleanup';
1579
1580 {$IFDEF UNICODE}
1581 function WSASetService;
1582 external winsocket name 'WSASetServiceW';
1583 function WSAGetServiceClassNameByClassId;
1584 external winsocket name 'WSAGetServiceClassNameByClassIdW';
1585 function WSAEnumNameSpaceProviders;
1586 external winsocket name 'WSAEnumNameSpaceProvidersW';
1587 function WSAGetServiceClassInfo;
1588 external winsocket name 'WSAGetServiceClassInfoW';
1589 function WSAInstallServiceClass;
1590 external winsocket name 'WSAInstallServiceClassW';
1591 function WSALookupServiceNext;
1592 external winsocket name 'WSALookupServiceNextW';
1593 function WSALookupServiceBegin;
1594 external winsocket name 'WSALookupServiceBeginW';
1595 function WSAStringToAddress;
1596 external winsocket name 'WSAStringToAddressW';
1597 function WSAAddressToString;
1598 external winsocket name 'WSAAddressToStringW';
1599 function WSASocket;
1600 external winsocket name 'WSASocketW';
1601 function WSAEnumProtocols;
1602 external winsocket name 'WSAEnumProtocolsW';
1603 function WSADuplicateSocket;
1604 external winsocket name 'WSADuplicateSocketW';
1605 {$ELSE}
1606 function WSASetService;
1607 external winsocket name 'WSASetServiceA';
1608 function WSAGetServiceClassNameByClassId;
1609 external winsocket name 'WSAGetServiceClassNameByClassIdA';
1610 function WSAEnumNameSpaceProviders;
1611 external winsocket name 'WSAEnumNameSpaceProvidersA';
1612 function WSAGetServiceClassInfo;
1613 external winsocket name 'WSAGetServiceClassInfoA';
1614 function WSAInstallServiceClass;
1615 external winsocket name 'WSAInstallServiceClassA';
1616 function WSALookupServiceNext;
1617 external winsocket name 'WSALookupServiceNextA';
1618 function WSALookupServiceBegin;
1619 external winsocket name 'WSALookupServiceBeginA';
1620 function WSAStringToAddress;
1621 external winsocket name 'WSAStringToAddressA';
1622 function WSAAddressToString;
1623 external winsocket name 'WSAAddressToStringA';
1624 function WSASocket;
1625 external winsocket name 'WSASocketA';
1626 function WSAEnumProtocols;
1627 external winsocket name 'WSAEnumProtocolsA';
1628 function WSADuplicateSocket;
1629 external winsocket name 'WSADuplicateSocketA';
1630 {$ENDIF} { UNICODE}
1631
1632
1633 function WSALookupServiceEnd;
1634 external winsocket name 'WSALookupServiceEnd';
1635 function WSARemoveServiceClass;
1636 external winsocket name 'WSARemoveServiceClass';
1637 function WSAWaitForMultipleEvents;
1638 external winsocket name 'WSAWaitForMultipleEvents';
1639 function WSASetEvent;
1640 external winsocket name 'WSASetEvent';
1641 function WSASendTo;
1642 external winsocket name 'WSASendTo';
1643 function WSASendDisconnect;
1644 external winsocket name 'WSASendDisconnect';
1645 function WSASend;
1646 external winsocket name 'WSASend';
1647 function WSAResetEvent;
1648 external winsocket name 'WSAResetEvent';
1649 function WSARecvFrom;
1650 external winsocket name 'WSARecvFrom';
1651 function WSARecvDisconnect;
1652 external winsocket name 'WSARecvDisconnect';
1653 function WSARecv;
1654 external winsocket name 'WSARecv';
1655 function WSAIoctl;
1656 external winsocket name 'WSAIoctl';
1657 function WSAJoinLeaf;
1658 external winsocket name 'WSAJoinLeaf';
1659 function WSANtohl;
1660 external winsocket name 'WSANtohl';
1661 function WSANtohs;
1662 external winsocket name 'WSANtohs';
1663 function WSAHtons;
1664 external winsocket name 'WSAHtons';
1665 function WSAHtonl;
1666 external winsocket name 'WSAHtonl';
1667 function WSAGetQOSByName;
1668 external winsocket name 'WSAGetQOSByName';
1669 function WSAGetOverlappedResult;
1670 external winsocket name 'WSAGetOverlappedResult';
1671 function WSAEventSelect;
1672 external winsocket name 'WSAEventSelect';
1673 function WSAEnumNetworkEvents;
1674 external winsocket name 'WSAEnumNetworkEvents';
1675 function WSACreateEvent;
1676 external winsocket name 'WSACreateEvent';
1677 function WSAConnect;
1678 external winsocket name 'WSAConnect';
1679 function WSACloseEvent;
1680 external winsocket name 'WSACloseEvent';
1681 function WSAAccept;
1682 external winsocket name 'WSAAccept';
1683
1684 function TransmitFile;
1685 external winsocket name 'TransmitFile';
1686
1687 end.
winsock2.pas
參考資料：
【完成端口詳解】http://blog.csdn.net/piggyxp/article/details/6922277
【TCP的那些事】http://coolshell.cn/articles/11564.html
