Delphi實現圖形化批量IP Ping

/*Title:Insun的故事

*Author：Insun

*Blog:http://yxmhero1989.blog.163.com

*From:www.4safer.com

*Reference：http://hi.baidu.com/ydbesl/blog/item/a16afa2ad14d8698033bf6a1.html

*/

ics控件下載地址http://www.huasoft.net/download/files/ics_d7.zip

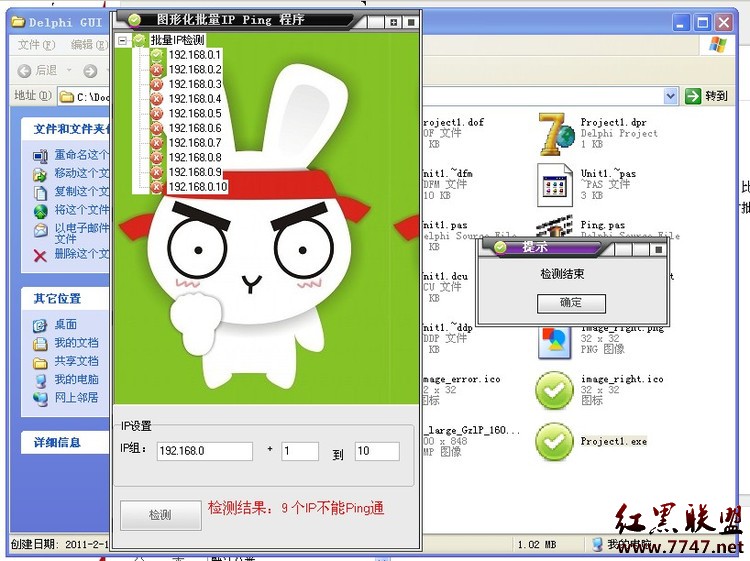

當要檢測的IP比較少時，我們一般直接使用DOS命令Ping來實現。但是，如果我們要檢測的IP比較多時（比如一個網段），再用Ping命令就比較繁瑣了，即使寫一個批處理來實現，大把數據看起來也讓人惱火。這裡，我們用Delphi實現對批量IP的檢測，檢測結果用明了的圖形顯示，效果如下：

  Delphi treeview添加背景圖片

procedure TForm1.FormCreate(Sender: TObject);
begin
form1.TreeView1 .Brush.Bitmap:=image1.Picture.Bitmap;
end;

DELPHI自帶的DEMO    ..demoscustomdraw   不錯。

不知bkMode怎麼設為transparent，求指導。

//setBkmode(Canvas.Handle,transparent);

      unit Unit1;

interface

uses
  Windows, Messages, SysUtils, Variants, Classes, Graphics, Controls, Forms,
  Dialogs, StdCtrls, ImgList, Ping, ComCtrls, jpeg, ExtCtrls, WinSkinData;

type
  TForm1 = class(TForm)
    TreeView1: TTreeView;
    Ping1: TPing;
    ImageList1: TImageList;
    GroupBox1: TGroupBox;
    Label1: TLabel;
    Edit1: TEdit;
    Label2: TLabel;
    Edit2: TEdit;
    Edit3: TEdit;
    Label3: TLabel;
    Button1: TButton;
    Label4: TLabel;
    SkinData1: TSkinData;
    Image1: TImage;
    procedure Button1Click(Sender: TObject);
    procedure FormCreate(Sender: TObject);
   private
  Function Ping(strip:string):Boolean;
    { Private declarations }
  public
    { Public declarations }
  end;

var
  Form1: TForm1;
   i:Integer;

implementation

{$R *.dfm}
Function TForm1.Ping(strip:string):Boolean;
Begin
ping1.address:=Trim(strip);
Ping1.ping;
if ping1.ErrorCode=0 then
begin
ping:=True;
end
Else
Begin
ping:=False;
i:=i+1;
End;
End;

procedure TForm1.Button1Click(Sender: TObject);
Var
h:Integer;
treenode1,treenode2:TTreeNode;
begin
//清空所有Item;
TreeView1.Items.Clear;

With TreeView1.Items Do
Begin
//增加根接點;
TreeNode1:=Add(nil, 批量IP檢測);
//全部展開所有結點
TreeView1.FullExpand;
//刷新TreeView
TreeView1.Refresh;
//根結點圖標
TreeNode1.ImageIndex:=0;
TreeNode1.SelectedIndex:=0;
//二級接點
For h:=StrToInt(Trim(Edit2.Text)) To StrToInt(Trim(Edit3.Text)) Do
Begin
if ping(Trim(Edit1.Text)+.+Trim(IntToStr(h)))=True Then
Begin
//如果可以Ping通，圖標為0；
TreeNode2:=AddChild(TreeNode1,Trim(Edit1.Text)+.+IntToStr(h));
TreeNode2.ImageIndex:=0;
TreeNode2.SelectedIndex:=0;
//全部展開所有結點
TreeView1.FullExpand;
//刷新TreeView
TreeView1.Refresh;
End
Else
Begin
//如果不能Ping通，圖標為1
TreeNode2:=AddChild(TreeNode1,Trim(Edit1.Text)+.+IntToStr(h));
TreeNode2.ImageIndex:=1;
TreeNode2.SelectedIndex:=1;
//全部展開所有結點
TreeView1.FullExpand;
//刷新TreeView
TreeView1.Refresh;
End;
End;
h:=h+1;
End;
Label4.Caption:=檢測結果：+IntToStr(i)+ 個IP不能Ping通;
Application.MessageBox(檢測結束,提示,0);
End;

procedure TForm1.FormCreate(Sender: TObject);
begin
form1.TreeView1 .Brush.Bitmap:=image1.Picture.Bitmap;
end;

end.
