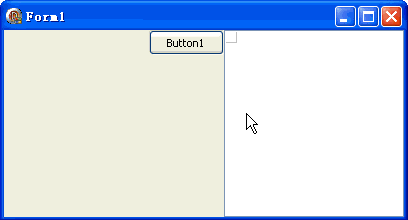

本例效果圖:
代碼文件:unit Unit1;
interface
uses
Windows, Messages, SysUtils, Variants, Classes, Graphics, Controls, Forms,
Dialogs, StdCtrls, Grids;
type
TForm1 = class(TForm)
DrawGrid1: TDrawGrid;
OpenDialog1: TOpenDialog;
Button1: TButton;
procedure FormCreate(Sender: TObject);
procedure FormDestroy(Sender: TObject);
procedure FormPaint(Sender: TObject);
procedure Button1Click(Sender: TObject);
end;
var
Form1: TForm1;
implementation
{$R *.dfm}
uses GDIPOBJ, GDIPAPI, Math;
var
img: TGPImage;
procedure TForm1.FormCreate(Sender: TObject);
begin
{調整 DrawGrid1 顯示效果}
with DrawGrid1 do
begin
Align := alRight;
Width := 180;
FixedCols := 0;
FixedRows := 0;
DefaultColWidth := 10;
DefaultRowHeight := 10;
ColCount := 0;
RowCount := 1;
DefaultDrawing := False;
ScrollBars := ssNone;
end;
Button1.Left := ClientWidth - DrawGrid1.Width - Button1.Width;
Button1.Top := 0;
img := TGPImage.Create;
end;
procedure TForm1.FormDestroy(Sender: TObject);
begin
img.Free;
end;
procedure TForm1.FormPaint(Sender: TObject);
var
g: TGPGraphics;
begin
g := TGPGraphics.Create(Self.Canvas.Handle);
g.DrawImage(img, 0, 0, img.GetWidth, img.GetHeight);
g.Free;
end;
procedure TForm1.Button1Click(Sender: TObject);
var
Palette: PColorPalette; {調色板指針}
ColorNum: Integer; {調色板中的顏色總數}
Colors: PGPColor; {調色板中的顏色數組指針}
i: Integer;
begin
OpenDialog1.Filter := 'All (*.png;*.gif;*.bmp;*.tif;*.jpg)|*.png;*.gif;*.bmp;*.tif;*.jpg';
if not OpenDialog1.Execute then Exit;
img.Free;
img := TGPImage.Create(OpenDialog1.FileName);
Text := ExtractFileName(OpenDialog1.FileName);
{為調色板分配內存}
GetMem(Palette, img.GetPaletteSize);
{獲取調色板數據}
img.GetPalette(Palette, img.GetPaletteSize);
DrawGrid1.ColCount := 0;
DrawGrid1.RowCount := 1;
if Palette^.Count = 0 then
begin
ShowMessage('此圖片沒有調色板');
Exit;
end;
ColorNum := Palette^.Count;
Colors := @Palette.Entries; {調色板中顏色數組的指針}
if ColorNum < 16 then DrawGrid1.ColCount := ColorNum else
begin
DrawGrid1.ColCount := 16;
DrawGrid1.RowCount := ColorNum div 16;
end;
DrawGrid1.Refresh; {不刷新不行}
for i := 0 to ColorNum - 1 do
begin
DrawGrid1.Canvas.Brush.Color := ARGBToColorRef(Colors^);
DrawGrid1.Canvas.FillRect(DrawGrid1.CellRect(i mod 16, i div 16));
Inc(Colors);
end;
FreeMem(Palette);
end;
end.
窗體文件:object Form1: TForm1
Left = 0
Top = 0
Caption = 'Form1'
ClientHeight = 187
ClientWidth = 400
Color = clBtnFace
Font.Charset = DEFAULT_CHARSET
Font.Color = clWindowText
Font.Height = -11
Font.Name = 'Tahoma'
Font.Style = []
OldCreateOrder = False
Position = poDesktopCenter
OnCreate = FormCreate
OnDestroy = FormDestroy
OnPaint = FormPaint
PixelsPerInch = 96
TextHeight = 13
object DrawGrid1: TDrawGrid
Left = 192
Top = 8
Width = 193
Height = 137
TabOrder = 0
end
object Button1: TButton
Left = 8
Top = 8
Width = 75
Height = 25
Caption = 'Button1'
TabOrder = 1
OnClick = Button1Click
end
object OpenDialog1: TOpenDialog
Left = 96
Top = 8
end
end
