Delphi利用Indy的TIdIcmpClient組件實現Ping - 網址連接狀態檢測

編輯：Delphi

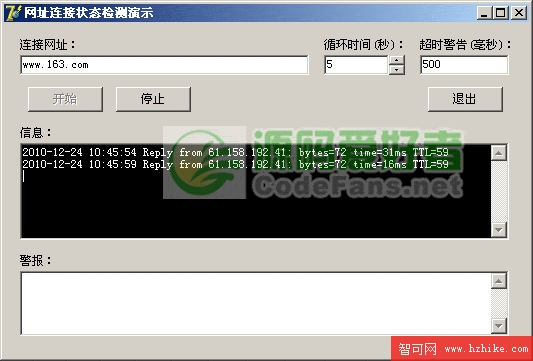

Delphi可視化Ping命令，用來檢測網絡連接狀態，信息窗口類似Windows運行cmd窗口的效果一樣，顯示bytes、time、TTL等返回信息。這個Ping例子相對實現很簡單，原理是利用Indy的TIdIcmpClIEnt組件即可輕松完成此功能。最終的運行界面效果圖：

Delphi Ping命令檢測網絡連接

完整代碼及注釋如下：

vIEw source

print? 001 unit Unit1; 002 interface 003 uses 004 Windows, Messages, SysUtils, Variants, Classes, Graphics, Controls, Forms, 005 Dialogs, IDBaseComponent, IdComponent, IdRawBase, IdRawClIEnt, 006 IdIcmpClIEnt, ExtCtrls, ComCtrls, StdCtrls; 007 type 008 TForm1 = class(TForm) 009 Label2: TLabel; 010 Label3: TLabel; 011 Label4: TLabel; 012 Label5: TLabel; 013 Label1: TLabel; 014 Edit1: TEdit; 015 Button1: TButton; 016 Edit2: TEdit; 017 Memo1: TMemo; 018 Button2: TButton; 019 Memo2: TMemo; 020 Edit3: TEdit; 021 UpDown1: TUpDown; 022 Button3: TButton; 023 Timer1: TTimer; 024 IdIcmpClient1: TIdIcmpClIEnt; 025 procedure Button1Click(Sender: TObject); 026 procedure FormCreate(Sender: TObject); 027 procedure Button2Click(Sender: TObject); 028 procedure Button3Click(Sender: TObject); 029 procedure Timer1Timer(Sender: TObject); 030 procedure IdIcmpClIEnt1Reply(ASender: TComponent; 031 const AReplyStatus: TReplyStatus); 032 private 033 { Private declarations } 034 public 035 { Public declarations } 036 end; 037 var 038 Form1: TForm1; 039 implementation 040 {$R *.dfm} 041 procedure TForm1.Button1Click(Sender: TObject); 042 begin 043 Button1.Enabled := False; 044 Timer1.Interval := UpDown1.Position * 1000; //設置循環時間 045 Timer1.Enabled := True; //開始循環 046 end; 047 procedure TForm1.FormCreate(Sender: TObject); 048 begin 049 //通常在窗體建立的時候我們可以設置一些組件的屬性。 050 Memo1.ScrollBars := ssVertical; //顯示垂直滾動條 051 Memo1.Color := clBlack; 052 Memo1.Font.Color := clWhite; 053 Memo2.Font.Color := clRed; 054 Memo2.ScrollBars := ssVertical; 055 Timer1.Enabled := False; 056 UpDown1.Associate := Edit2; //關聯到Edit2 057 UpDown1.Min := 1; //從1秒開始 058 UpDown1.Position := 5; //默認5秒 059 end; 060 procedure TForm1.Button2Click(Sender: TObject); 061 begin 062 Timer1.Enabled := False; 063 Button1.Enabled := True; 064 end; 065 procedure TForm1.Button3Click(Sender: TObject); 066 begin 067 Close; 068 end; 069 procedure TForm1.Timer1Timer(Sender: TObject); 070 begin 071 try 072 IdIcmpClIEnt1.Host := Edit1.Text; 073 IdIcmpClIEnt1.Ping; //開始Ping操作 074 except 075 Timer1.Enabled := False; //非法錯誤停止循環 076 Button1.Enabled := True; 077 end; 078 end; 079 procedure TForm1.IdIcmpClIEnt1Reply(ASender: TComponent; 080 const AReplyStatus: TReplyStatus); 081 var 082 sTime: string; 083 AMemo: TMemo; //當前添加內容的Memo組件 084 begin 085 if (AReplyStatus.MsRoundTripTime = 0) then 086 sTime := '<1' 087 else 088 sTime := '='; 089 //超時Memo2顯示，正常狀態Memo1顯示 090 if (AReplyStatus.MsRoundTripTime > StrToIntDef(Edit3.Text, 1000)) then 091 AMemo := Memo2 else 092 AMemo := Memo1; 093 AMemo.Lines.Add(Format('%s Reply from %s: bytes=%d time%s%dms TTL=%d', [ 094 DatetimeToStr(now), 095 AReplyStatus.FromIpAddress, 096 AReplyStatus.BytesReceived, 097 sTime, 098 AReplyStatus.MsRoundTripTime, 099 AReplyStatus.TimeToLive 100 ])); 101 end; 102 end.
