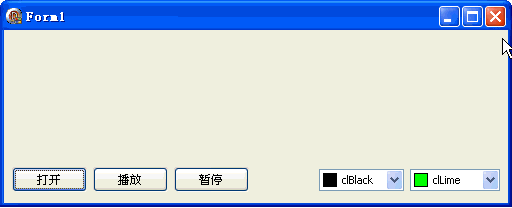

本例效果圖:
代碼文件:
unit Unit1;
interface
uses
Windows, Messages, SysUtils, Variants, Classes, Graphics, Controls, Forms,
Dialogs, StdCtrls, ExtCtrls, ComCtrls;
type
TForm1 = class(TForm)
OpenDialog1: TOpenDialog;
PaintBox1: TPaintBox;
Button1: TButton;
Button2: TButton;
Button3: TButton;
ColorBox1: TColorBox;
ColorBox2: TColorBox;
procedure FormCreate(Sender: TObject);
procedure Button1Click(Sender: TObject);
procedure Button2Click(Sender: TObject);
procedure Button3Click(Sender: TObject);
procedure ColorBox1Change(Sender: TObject);
procedure ColorBox2Change(Sender: TObject);
procedure FormDestroy(Sender: TObject);
procedure PaintBox1Paint(Sender: TObject);
private
procedure Draw;
end;
var
Form1: TForm1;
implementation
{$R *.dfm}
uses Bass;
var
hs: HSTREAM; {流句柄}
Data: array of Cardinal;
bit: TBitmap;
procedure TForm1.FormCreate(Sender: TObject);
begin
bit := TBitmap.Create;
PaintBox1.Align := alTop;
ColorBox1.Selected := clBlack;
ColorBox2.Selected := clLime;
if HiWord(BASS_GetVersion) <> BASSVERSION then
MessageBox(0, '"Bass.dll" 文件版本不合適! ', nil, MB_ICONERROR);
if not BASS_Init(-1, 44100, 0, 0, nil) then ShowMessage('初始化錯誤');
end;
{打開}
procedure TForm1.Button1Click(Sender: TObject);
var
Mp3Path: AnsiString;
i: Cardinal;
time: Double;
hs2: HSTREAM;
begin
BASS_StreamFree(hs);
OpenDialog1.Filter := 'Mp3 文件(*.mp3)|*.mp3|Wav 文件(*.wav)|*wav';
if OpenDialog1.Execute then
Mp3Path := AnsiString(OpenDialog1.FileName);
hs := BASS_StreamCreateFile(False, PAnsiChar(Mp3Path), 0, 0, 0);
if hs < BASS_ERROR_ENDED then
Text := '打開失敗'
else begin
Text := string(Mp3Path);
bit.Free;
bit := TBitmap.Create;
PaintBox1.Repaint;
{下面幾行不好理解}
{重新建立文件流 hs2, 最後的參數是: BASS_STREAM_DECODE, 這樣可以提前讀取波 形數據}
hs2 := BASS_StreamCreateFile(False, PAnsiChar(Mp3Path), 0, 0, BASS_STREAM_DECODE);
{用 BASS_ChannelGetLevel 獲取峰值時, 是以 20ms 為一個單位的; 先獲取總時 間}
time := BASS_ChannelBytes2Seconds(hs2, BASS_ChannelGetLength(hs, BASS_POS_BYTE));
{time * 1000 div 20 + 1 是可以獲取的總的峰值數據, 也是數組需要的大小}
SetLength(Data, Trunc(time * 50 + 1));
{遍歷峰值數據填充數組}
for i := 0 to Length(Data) - 1 do Data[i] := BASS_ChannelGetLevel (hs2);
{hs2 此時已完成使命, 釋放它}
BASS_StreamFree(hs2);
{調用繪制過程}
Draw;
end;
end;
{播放}
procedure TForm1.Button2Click(Sender: TObject);
begin
BASS_ChannelPlay(hs, False);
end;
{暫停}
procedure TForm1.Button3Click(Sender: TObject);
begin
BASS_ChannelPause(hs);
end;
{背景色}
procedure TForm1.ColorBox1Change(Sender: TObject);
begin
Draw;
end;
{前景色}
procedure TForm1.ColorBox2Change(Sender: TObject);
begin
Draw;
end;
procedure TForm1.FormDestroy(Sender: TObject);
begin
BASS_Free;
bit.Free;
end;
{刷新}
procedure TForm1.PaintBox1Paint(Sender: TObject);
begin
PaintBox1.Canvas.StretchDraw(Bounds(0, 0, PaintBox1.Width, PaintBox1.Height), bit);
end;
{繪制波形圖}
procedure TForm1.Draw;
var
i,ch: Integer;
L,R: SmallInt;
begin
bit.Width := Length(Data);
bit.Height := PaintBox1.Height;
ch := bit.Height div 2;
bit.Canvas.Brush.Color := ColorBox1.Selected;
bit.Canvas.FillRect(Bounds(0, 0, bit.Width, bit.Height));
bit.Canvas.Pen.Color := ColorBox2.Selected;
for i := 0 to Length(Data) - 1 do
begin
L := LoWord(Data[i]);
R := HiWord(Data[i]);
bit.Canvas.MoveTo(i, ch - Trunc(L/32768*ch));
bit.Canvas.LineTo(i, ch + Trunc(R/32768*ch));
end;
PaintBox1.Repaint;
end;
end.
窗體文件:
object Form1: TForm1
Left = 222
Top = 114
Caption = 'Form1'
ClientHeight = 173
ClientWidth = 504
Color = clBtnFace
Font.Charset = DEFAULT_CHARSET
Font.Color = clWindowText
Font.Height = -11
Font.Name = 'Tahoma'
Font.Style = []
OldCreateOrder = False
Position = poDesigned
OnCreate = FormCreate
OnDestroy = FormDestroy
PixelsPerInch = 96
TextHeight = 13
object PaintBox1: TPaintBox
Left = 40
Top = 0
Width = 105
Height = 131
OnPaint = PaintBox1Paint
end
object Button1: TButton
Left = 8
Top = 137
Width = 75
Height = 25
Caption = #25171#24320
TabOrder = 0
OnClick = Button1Click
end
object Button2: TButton
Left = 89
Top = 137
Width = 75
Height = 25
Caption = #25773#25918
TabOrder = 1
OnClick = Button2Click
end
object Button3: TButton
Left = 170
Top = 137
Width = 75
Height = 25
Caption = #26242#20572
TabOrder = 2
OnClick = Button3Click
end
object ColorBox1: TColorBox
Left = 315
Top = 139
Width = 85
Height = 22
ItemHeight = 16
TabOrder = 3
OnChange = ColorBox1Change
end
object ColorBox2: TColorBox
Left = 406
Top = 139
Width = 90
Height = 22
ItemHeight = 16
TabOrder = 4
OnChange = ColorBox2Change
end
object OpenDialog1: TOpenDialog
Left = 192
Top = 32
end
