VCL 中的 Windows API 函數: BeginDeferWindowPos

編輯:Delphi

 BeginDeferWindowPos 和 DeferWindowPos、EndDeferWindowPos 是一組一起使用的函數, 可對一組窗口的位置、大小、Z 序等進行調整, 在 ExtCtrls 單元有用到.

  下面先用常規方法實現對 Panel1 中的一組 Button 進行調整, 然後再用上面三個函數重新實現.

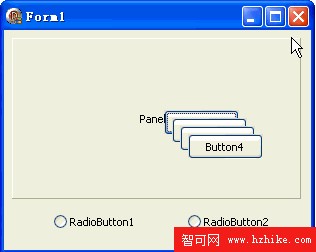

  本例效果圖:

VCL 中的 Windows API 函數: BeginDeferWindowPos

  代碼文件:

unit Unit1;

interface

uses
 Windows, Messages, SysUtils, Variants, Classes, Graphics, Controls, Forms,
 Dialogs, StdCtrls, ExtCtrls;

type
 TForm1 = class(TForm)
  Panel1: TPanel;
  Button1: TButton;
  Button2: TButton;
  Button3: TButton;
  Button4: TButton;
  RadioButton1: TRadioButton;
  RadioButton2: TRadioButton;
  procedure RadioButton1Click(Sender: TObject);
  procedure RadioButton2Click(Sender: TObject);
 end;

var
 Form1: TForm1;

implementation

{$R *.dfm}

procedure TForm1.RadioButton1Click(Sender: TObject);
var
 num,i: Integer;
 btn: TButton;
 L,T,W,H: Integer;
begin
 num := Panel1.ControlCount;

 L := 10;
 T := 10;
 W := (Panel1.ClIEntWidth - L * (num+1)) div num;
 H := (Panel1.ClIEntHeight - T * (num+1)) div num;

 for i := 0 to num - 1 do
 begin
  if Panel1.Controls[i] is TButton then
  begin
   btn := TButton(Panel1.Controls[i]);
   btn.Left := L;
   btn.Top := (H + T) * i + T;
   btn.Width := W;
   btn.Height := H;
  end;
 end;
end;

procedure TForm1.RadioButton2Click(Sender: TObject);
var
 num,i: Integer;
 btn: TButton;
 L,T,W,H: Integer;
begin
 num := Panel1.ControlCount;

 L := 10;
 T := 10;
 W := (Panel1.ClIEntWidth - L * (num+1)) div num;
 H := (Panel1.ClIEntHeight - T * (num+1)) div num;

 for i := 0 to num - 1 do
 begin
  if Panel1.Controls[i] is TButton then
  begin
   btn := TButton(Panel1.Controls[i]);
   btn.Left := (W + L) * i + L;
   btn.Top := T;
   btn.Width := W;
   btn.Height := H;
  end;
 end;
end;

end.

窗體文件:

object Form1: TForm1
 Left = 0
 Top = 0
 Caption = 'Form1'
 ClIEntHeight = 220
 ClIEntWidth = 307
 Color = clBtnFace
 Font.Charset = DEFAULT_CHARSET
 Font.Color = clWindowText
 Font.Height = -11
 Font.Name = 'Tahoma'
 Font.Style = []
 OldCreateOrder = False
 PixelsPerInch = 96
 TextHeight = 13
 object Panel1: TPanel
  Left = 8
  Top = 8
  Width = 289
  Height = 161
  Caption = 'Panel1'
  TabOrder = 0
  object Button1: TButton
   Left = 152
   Top = 72
   Width = 75
   Height = 25
   Caption = 'Button1'
   TabOrder = 0
  end
  object Button2: TButton
   Left = 160
   Top = 80
   Width = 75
   Height = 25
   Caption = 'Button2'
   TabOrder = 1
  end
  object Button3: TButton
   Left = 168
   Top = 88
   Width = 75
   Height = 25
   Caption = 'Button3'
   TabOrder = 2
  end
  object Button4: TButton
   Left = 176
   Top = 96
   Width = 75
   Height = 25
   Caption = 'Button4'
   TabOrder = 3
  end
 end
 object RadioButton1: TRadioButton
  Left = 50
  Top = 183
  Width = 113
  Height = 17
  Caption = 'RadioButton1'
  TabOrder = 1
  OnClick = RadioButton1Click
 end
 object RadioButton2: TRadioButton
  Left = 184
  Top = 183
  Width = 113
  Height = 17
  Caption = 'RadioButton2'
  TabOrder = 2
  OnClick = RadioButton2Click
 end
end

 用 BeginDeferWindowPos、DeferWindowPos、EndDeferWindowPos 重新實現的代碼(窗體和運行效果是一樣的):

unit Unit1;

interface

uses
 Windows, Messages, SysUtils, Variants, Classes, Graphics, Controls, Forms,
 Dialogs, StdCtrls, ExtCtrls;

type
 TForm1 = class(TForm)
  Panel1: TPanel;
  Button1: TButton;
  Button2: TButton;
  Button3: TButton;
  Button4: TButton;
  RadioButton1: TRadioButton;
  RadioButton2: TRadioButton;
  procedure RadioButton1Click(Sender: TObject);
  procedure RadioButton2Click(Sender: TObject);
 end;

var
 Form1: TForm1;

implementation

{$R *.dfm}

procedure TForm1.RadioButton1Click(Sender: TObject);
var
 num,i: Integer;
 btn: TButton;
 L,T,W,H: Integer;
 DeferHandle: THandle;
begin
 num := Panel1.ControlCount;

 L := 10;
 T := 10;
 W := (Panel1.ClIEntWidth - L * (num+1)) div num;
 H := (Panel1.ClIEntHeight - T * (num+1)) div num;

 DeferHandle := BeginDeferWindowPos(num); {准備調整一組窗口}
 for i := 0 to num - 1 do
 begin
  if Panel1.Controls[i] is TButton then
  begin
   btn := TButton(Panel1.Controls[i]);
   DeferHandle := DeferWindowPos(DeferHandle,
                  btn.Handle,
                  HWND_TOP,         {此參數決定 Z 序}
                  L, (H + T) * i + T, W, H, {新的位置與大小}
                  SWP_NOZORDER       {更多控制, 現在是不改變 Z 序}
                  );
  end;
 end;
 EndDeferWindowPos(DeferHandle); {實施調整}
end;

procedure TForm1.RadioButton2Click(Sender: TObject);
var
 num,i: Integer;
 btn: TButton;
 L,T,W,H: Integer;
 DeferHandle: THandle;
begin
 num := Panel1.ControlCount;

 L := 10;
 T := 10;
 W := (Panel1.ClIEntWidth - L * (num+1)) div num;
 H := (Panel1.ClIEntHeight - T * (num+1)) div num;

 DeferHandle := BeginDeferWindowPos(num);
 for i := 0 to num - 1 do
 begin
  if Panel1.Controls[i] is TButton then
  begin
   btn := TButton(Panel1.Controls[i]);
   DeferHandle := DeferWindowPos(DeferHandle,
                  btn.Handle,
                  HWND_TOP,
                  (W + L) * i + L, T, W, H,
                  SWP_NOZORDER
                  );
  end;
 end;
 EndDeferWindowPos(DeferHandle);
end;

end.
