一共做了三種，前兩種分別是bfs和Astar，第三種不是解迷宮，是連通區域標記，用的是並查集。
效果如下(csdn貌似不能顯示gif動態圖，所以只是截了幾幅圖片。
本人覺得gif圖 還是很好看的，github有：https://github.com/scauPYygzx/picture_maze ^-^)：

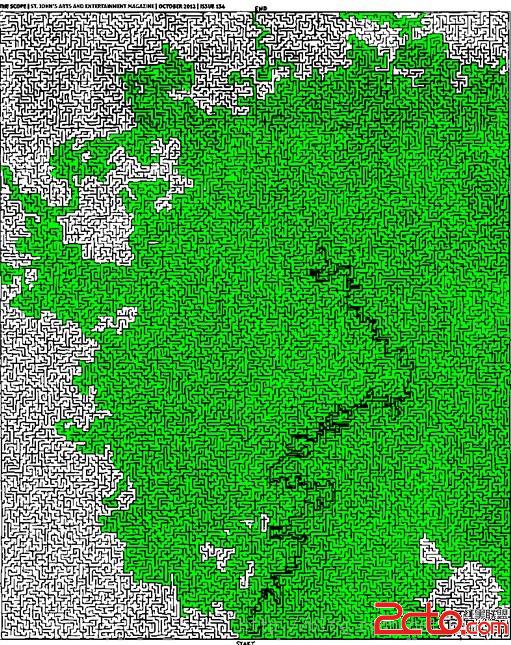

bfs

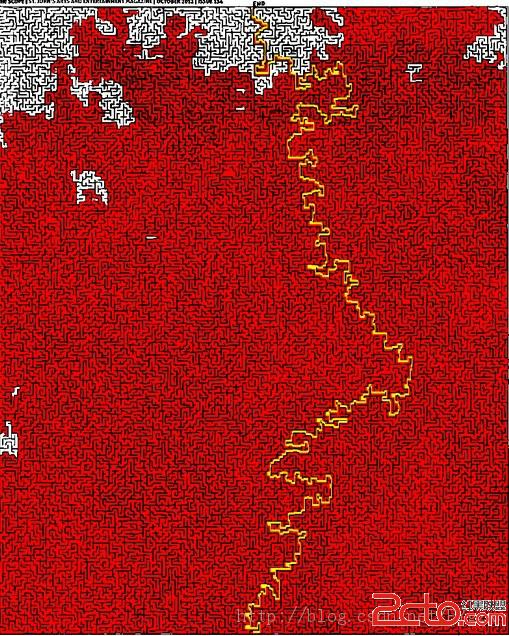

Astar

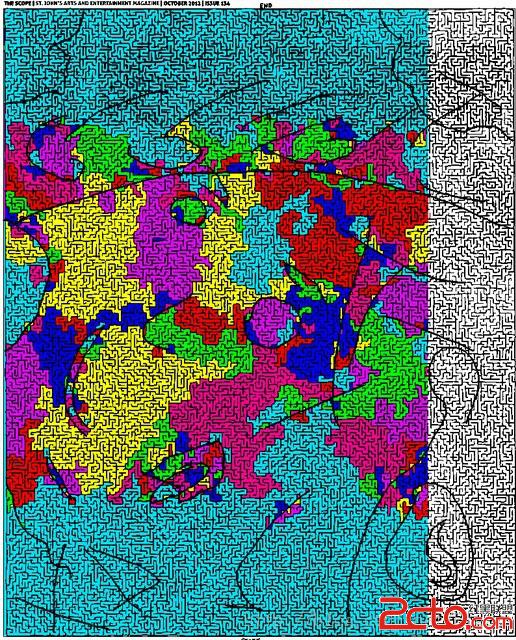

並查集
從圖中可以看出Astar比bfs搜少了好多點，但是因為用到了priorityQueue的原因，在這圖上的時間效率不如bfs。
PS：用convert命令制作gif圖真的很方便，推薦。
code：
?
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200 201 202 203 204 205 206 207 208 209 210 211 #-*- coding:utf-8 -*- from PIL import Image import Queue import time #只是玩玩就硬編碼了.. ext = png imageName = p.%s % ext saveName = {0:05d}.{1} #用PIL庫載入圖片 im = Image.open(imageName) im = im.convert(RGB) print im.format, im.size, im.mode pix = im.load() size = im.size half = 256 >> 1 white = (255, 255, 255) black = (0, 0, 0) red = (255, 0, 0) green = (0, 255, 0) blue = (0, 0, 255) yellow = (255, 255, 0) fillColor = red lineColor = yellow colors = [red, green, blue, yellow, (0, 223, 248), (223, 8, 248), (255, 2, 146)] cLen = len(colors) #起點,終點 startPoint = [400, 984] endPoint = [398, 25] fa = [0] * size[0] * size[1] def changeImage(): ''' 將圖片轉換為二值圖 ''' x, y = size for i in xrange(x): for j in xrange(y): r, g, b = pix[i, j] if r > half and g > half and b > half: pix[i, j] = white else: pix[i, j] = black #================================================================# #BFS def getNeighbor(point): x, y = point return [[x, y + 1], [x + 1, y], [x, y - 1], [x - 1, y]] def inBounds(point, size): x, y = point sx, sy = size if x < 0 or y < 0 or x >= sx or y >= sy: return False return True def isWhite(point): x, y = point if pix[x, y] == white: return True return False def bfs(start, end): count = no = 0 q = [[start]] while len(q): path = q.pop(0); p = path[-1] if p[0] == end[0] and p[1] == end[1]: im.save(saveName.format(no, ext)) no += 1 for pa in path: pix[pa[0], pa[1]] = pix[pa[0], pa[1] - 1] = pix[pa[0], pa[1] - 2] = lineColor count += 1 if not count % 200: im.save(saveName.format(no, ext)) no += 1 no += 1 im.save(saveName.format(no, ext)) return path for ne in getNeighbor(p): if inBounds(ne, size) and isWhite(ne): newPath = list(path) newPath.append(ne) q.append(newPath) pix[ne[0], ne[1]] = fillColor if not count % 10000: im.save(saveName.format(no, ext)) no += 1 count += 1 return None #================================================================# #Astar def getValue(point, end): ''' 啟發函數 ''' return abs(point[0] - end[0]) + abs(point[1] - end[1]) def aStar(start, end): fillColor = green lineColor = black count = no = 0 Q = Queue.PriorityQueue() Q.put([0,[start]]) while(Q.qsize()): q = Q.get() path = q[-1] p = path[-1] if p[0] == end[0] and p[1] == end[1]: im.save(saveName.format(no, ext)) no += 1 for pa in path: pix[pa[0], pa[1]] = pix[pa[0], pa[1] - 1] = pix[pa[0], pa[1] - 2] = lineColor count += 1 if not count % 200: im.save(saveName.format(no, ext)) no += 1 im.save(saveName.format(no, ext)) return path for ne in getNeighbor(p): if inBounds(ne, size) and isWhite(ne): newPath = list(path) newPath.append(ne) newList = [getValue(p, end) + len(newPath), newPath] Q.put(newList) pix[ne[0], ne[1]] = fillColor if not count % 10000: im.save(saveName.format(no, ext)) no += 1 count += 1 return None #================================================================# #並查集 def getID(x, y): return x * size[0] + y def ufInit(size): for i in range(size[0]): for j in range(size[1]): fa[getID(i, j)] = getID(i, j) def ufFind(v): if v != fa[v]: fa[v] = ufFind(fa[v]) return fa[v] return fa[v] def ufUnion(x, y): x = ufFind(x) y = ufFind(y) if x == y: return fa[x] = y def connectivity(): fillColor = yellow no = count = now = 0 d = {} x_range = (5, 792) y_range = (22, 986) ufInit(size) for x in range(x_range[0], x_range[1]): for y in range(y_range[0], y_range[1]): if pix[x, y] != black: if pix[x - 1, y] == black and pix[x, y - 1] == black: pass elif pix[x - 1, y] == white and pix[x, y - 1] == black: ufUnion(getID(x - 1, y), getID(x, y)) elif pix[x - 1, y] == black and pix[x, y - 1] == white: ufUnion(getID(x, y - 1), getID(x, y)) else: ufUnion(getID(x - 1, y), getID(x, y - 1)) ufUnion(getID(x, y), getID(x - 1, y)) for x in range(x_range[0], x_range[1]): for y in range(y_range[0], y_range[1]): count += 1 if pix[x, y] != black: father = ufFind(getID(x,y)) if father not in d: d[father] = colors[now % cLen] now += 1 pix[x, y] = d[father] if not count % 15000: im.save(saveName.format(no, ext)) no += 1 im.save(saveName.format(no, ext)) #================================================================# t1 = time.time() changeImage() #bfs(startPoint, endPoint) #aStar(startPoint, endPoint) connectivity() t2 = time.time() print t2- t1
