1. 需求分析

使用 LR(1)Method syntax analysis.

根據 C Language grammar generated action 表和 goto 表,利用 action 表和 goto Table on the output of the lexical analysis syntax analysis,構建語法樹.

2. 文法設計

要求：Given the following language ingredient grammar description.

• 聲明語句（包括變量聲明、數組聲明、Record statement and process statement）

Defination -> Type Point id
Type -> int | float | bool | id | double | Type [ const ]
Point -> epsilon | *
Struct -> struct id { Statement }
Statement -> Defination ; | Defination ; Statement
Function -> Type Point id ( Parameter ) { Process }
Parameter -> epsilon | Defination | Defination , Parameter
Process -> Module Return
Return -> return id Index ; | return Index ; | epsilon

• Expression and assignment statements（Including array element references and assignment）

Assignment -> id Index = Value
Value -> Value + Value | Value - Value | Value * Value | Value / Value | Call
Value -> - Value
Value -> ( Value )
Value -> const | id Index
Index -> [ Value ] Index | epsilon

• 分支語句：if_then_else

Control -> If | If_Else | While
If -> if ( Condition ) { Module }
If_Else -> if ( Condition ) { Module } else { Module }

• 循環語句：do_while

While -> while ( Condition ) { Module }
Condition -> Condition and Condition | Condition or Condition | not Condition | ( Condition ) | Value Relop Value | true | false
Relop -> < | <= | == | != | > | >=

• 過程調用語句

Call -> id ( Transmit )
Transmit -> epsilon | Value | Value , Transmit

3. 系統設計

要求：Divided into the system summary design and detailed design.

(1) 系統概要設計：Given the necessary system macro design,Such as system frame、數據流圖、Function module structure and the corresponding caption.

Program is mainly composed of several parts

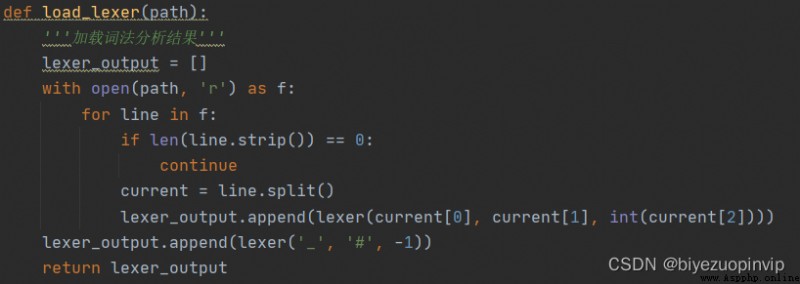

• Lexical analysis results loader
• action 表和 goto Table loader
• 語法分析器
• The syntax tree printing machine

(2) 系統詳細設計：Description of the following work carried out by

• The design of the core data structure

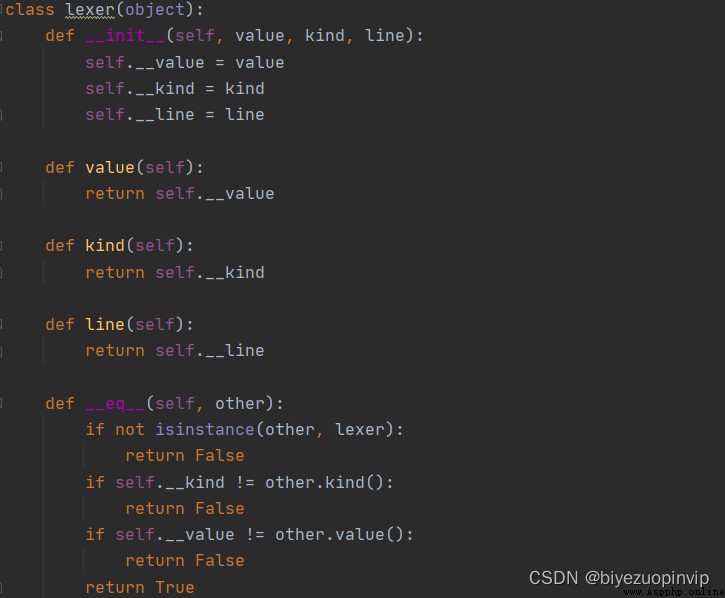

Used to store the lexical analysis of the results,Save the lexical analysis after the value of the、Type and number of lines.

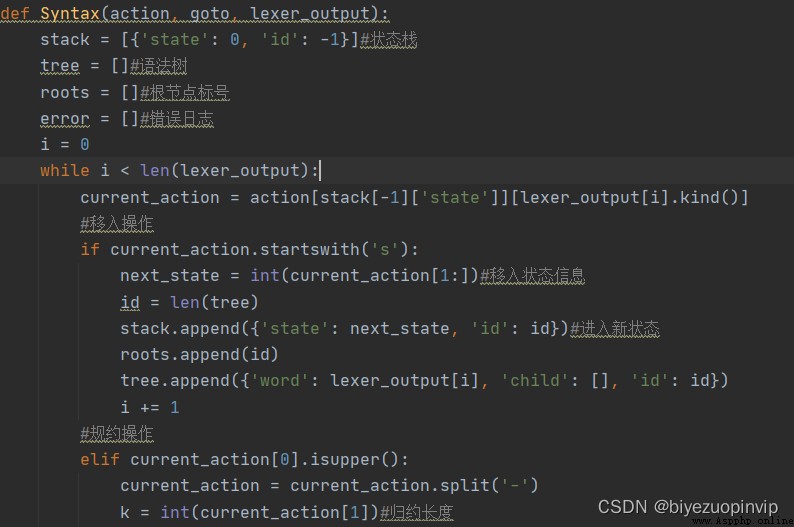

• 主要功能函數說明

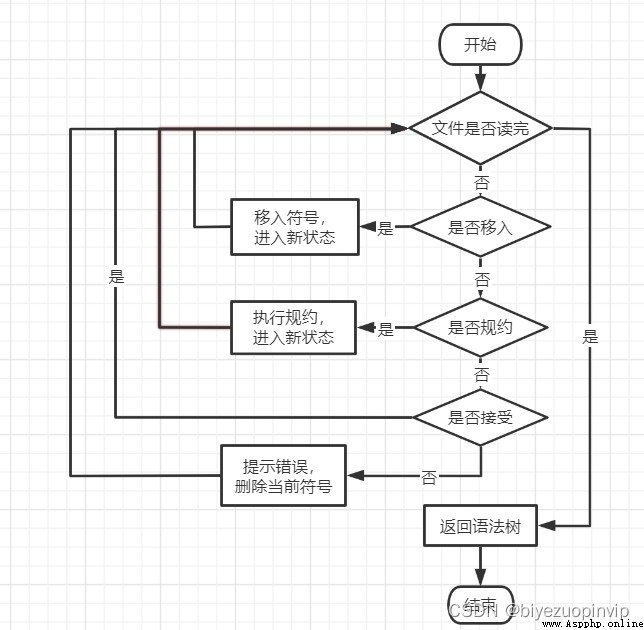

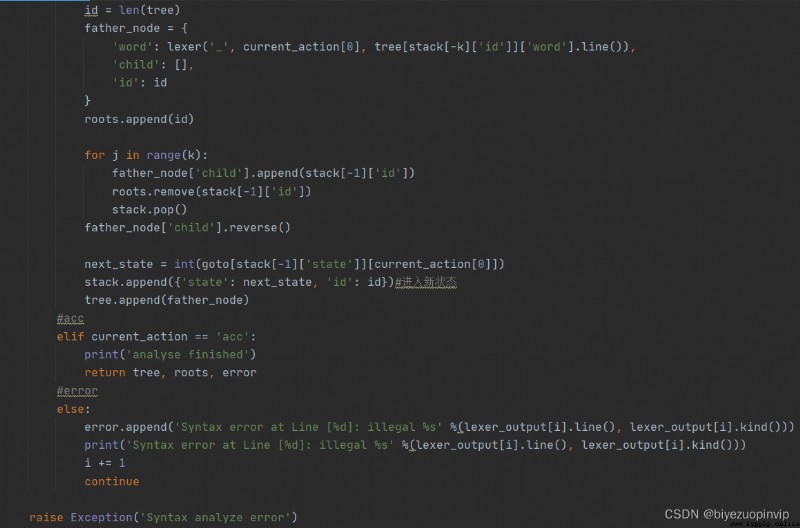

• Program the core part of the program flow chart

4. System implementation and result analysis

要求：On the following description.

• The problems in the system implementation process;
• The output of the syntactic analyzer analysis table;

附件 action.txt 與 goto.txt

• For a test program output its syntactic analysis results;

測試程序

輸出結果：

Module (1)
Function (1)
Type (1)
int (1)
Point (1)
id : sum (1)
( (1)
Parameter (1)
Defination (1)
Type (1)
float (1)
Point (1)
id : a (1)
, (1)
Parameter (1)
Defination (1)
Type (1)
int (1)
Point (1)
id : b (1)
) (1)
{ (1)
Process (2)
Module (2)
Defination (2)
Type (2)
float (2)
Point (2)
id : ans (2)
; (2)
Module (3)
Assignment (3)
id : ans (3)
Index (3)
= (3)
Value (3)
Value (3)
id : a (3)
Index (3)
+ (3)
Value (3)
id : b (3)
Index (3)
; (3)
Module (3)
Return (4)
return (4)
id : ans (4)
Index (4)
; (4)
} (5)
Module (7)
Struct (7)
struct (7)
id : student (7)
{ (7)
Statement (8)
Defination (8)
Type (8)
int (8)
Point (8)
id : x (8)
; (8)
Statement (9)
Defination (9)
Type (9)
int (9)
Point (9)
id : y (9)
; (9)
} (10)
Module (12)
Defination (12)
Type (12)
int (12)
Point (12)
id : a (12)
; (12)
Module (13)
Defination (13)
Type (13)
Type (13)
int (13)
[ (13)
const : 3 (13)
] (13)
Point (13)
id : b (13)
; (13)
Module (14)
Defination (14)
Type (14)
int (14)
Point (14)
id : c (14)
; (14)
Module (15)
Defination (15)
Type (15)
int (15)
Point (15)
id : f (15)
; (15)
Module (16)
Defination (16)
Type (16)
int (16)
Point (16)
* (16)
id : k (16)
; (16)
Module (18)
Assignment (18)
id : a (18)
Index (18)
= (18)
Value (18)
const : 1 (18)
; (18)
Module (19)
Assignment (19)
id : b (19)
Index (19)
[ (19)
Value (19)
const : 0 (19)
] (19)
Index (19)
= (19)
Value (19)
const : 1 (19)
; (19)
Module (20)
Assignment (20)
id : c (20)
Index (20)
= (20)
Value (20)
Value (20)
id : a (20)
Index (20)
+ (20)
Value (20)
id : b (20)
Index (20)
[ (20)
Value (20)
const : 0 (20)
] (20)
Index (20)
; (20)
Module (21)
Assignment (21)
id : f (21)
Index (21)
= (21)
Value (21)
Call (21)
id : sum (21)
( (21)
Transmit (21)
Value (21)
Value (21)
id : a (21)
Index (21)
+ (21)
Value (21)
id : b (21)
Index (21)
[ (21)
Value (21)
const : 0 (21)
] (21)
Index (21)
) (21)
; (21)
Module (23)
Control (23)
IfElse (23)
if (23)
( (23)
Condition (23)
Value (23)
id : a (23)
Index (23)
Relop (23)
== (23)
Value (23)
const : 0 (23)
) (23)
{ (23)
Module (24)
Assignment (24)
id : b (24)
Index (24)
[ (24)
Value (24)
const : 1 (24)
] (24)
Index (24)
= (24)
Value (24)
const : 1 (24)
; (24)
Module (24)
} (25)
else (25)
{ (25)
Module (26)
Assignment (26)
id : b (26)
Index (26)
[ (26)
Value (26)
const : 1 (26)
] (26)
Index (26)
= (26)
Value (26)
const : 0 (26)
; (26)
Module (26)
} (27)
Module (28)
Assignment (28)
id : a (28)
Index (28)
= (28)
Value (28)
const : 1 (28)
; (28)
Module (30)
Control (30)
While (30)
while (30)
( (30)
Condition (30)
Value (30)
id : f (30)
Index (30)
Relop (30)
< (30)
Value (30)
const : 4 (30)
) (30)
{ (30)
Module (31)
Assignment (31)
id : b (31)
Index (31)
[ (31)
Value (31)
const : 2 (31)
] (31)
Index (31)
= (31)
Value (31)
Value (31)
id : b (31)
Index (31)
[ (31)
Value (31)
const : 2 (31)
] (31)
Index (31)
+ (31)
Value (31)
const : 1 (31)
; (31)
Module (31)
} (32)
Module (30)

• Output corresponding syntax error report for the test procedure;

第 28 行出現錯誤,進行報錯

Syntax error at Line [28]:illegal ==

• 對實驗結果進行分析.

The experimental results is correct
const : 1 (31)
; (31)
Module (31)
} (32)
Module (30)

- Output corresponding syntax error report for the test procedure;
第 28 行出現錯誤,進行報錯
```c++
Syntax error at Line [28]:illegal ==

• 對實驗結果進行分析.

The experimental results is correct
