問題描述：時間過得真快,In the blink of an eye, another month has passed,2022And in the past half,7月的尾巴,Finally made it a little bit 東西,I am not a developer,Also a novice who is constantly learning.這次使用tkinter制作了一個mysqlinspection tool,使用圖形化操作,邊學邊操作,一路踩坑,寫的不好,But I can give you something,Deepen the learning processclass的理解,學習了tkinter布局,How to connect to the database etc..
python:Python 3.8.1
數據庫對象：MySQL
過程中遇到的問題
1.Because it is a database inspection system,Therefore, the logged-in account is often a more privileged account, such asroot,Then how to checkroot賬號,Unlike normal management system,Not create a good user and password table,然後去比對.rootis stored in the database system,no way to checkroot的用戶和密碼.這裡的root是作為參數傳進來的,So how to compare users with more privileges?？
2.How does the display page load the query results in the database?？It should be simple,Get the return value of a database query,then load in the page.But the final result is not very good

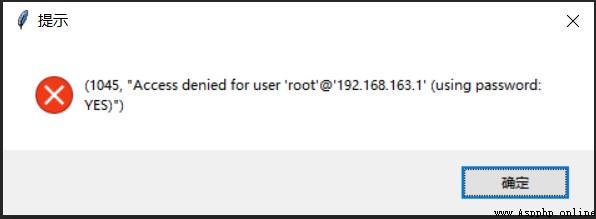

3.How to return when the database is logged inmysqlThe error value given by the connection,It is very simple if you only set up to determine whether the login is successful or not,但是在返回mysqlHow to return to the front desk when an error value is reported?

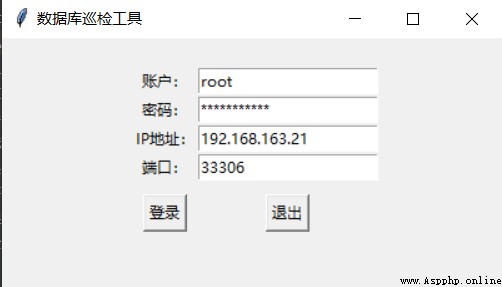

登錄類
class Application(Frame):
username = ''
password = ''
ip = ''
port = '' def __init__(self,master=None):
super().__init__(master)
self.master = master
self.pack()
self.createWidget() def createWidget(self): #創建組件容器 page = Frame(self)
page.pack() self.usernameGet = StringVar()
self.usernameGet.set('root')
self.passwordGet = StringVar()
self.passwordGet.set('zabbix.9.31')
self.ipGet = StringVar()
self.ipGet.set('192.168.163.21')
self.portGet = StringVar() #這裡如果設置IntVar,GUI上會顯示0,Integer can be0,不能是空
self.portGet.set('33306') Label(page).grid(row=0,column=0)
Label(page,text='賬戶：').grid(row=1,column=1)
Entry(page,textvariable=self.usernameGet).grid(row=1,column=2)
Label(page,text='密碼：').grid(row=2,column=1)
Entry(page,textvariable=self.passwordGet,show='*').grid(row=2,column=2)
Label(page,text='IP地址：').grid(row=3,column=1)
Entry(page,textvariable=self.ipGet).grid(row=3,column=2)
Label(page,text='端口：').grid(row=4,column=1)
Entry(page,textvariable=self.portGet).grid(row=4,column=2) Button(page,text='登錄',command=self.login_check).grid(row=5,column=1,pady=10)
Button(page,text='退出',command=page.quit).grid(row=5,column=2)
def login_check(self): #Set up login exit button
i = self.ipGet.get()
p = int(self.portGet.get())
u = self.usernameGet.get()
pa = self.passwordGet.get()
db_name = 'mysql' #實例化Mysql類
mysqlLogin = Mysql(i,p,u,pa,db_name) #這裡不能用mysqlloginObject to do boolean judgment,只要輸入正確,His boolean value has always beentrue
results = mysqlLogin.select('select @@version')
print(bool(mysqlLogin));print(bool(results))
if results:

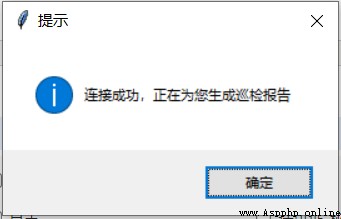

messagebox.showinfo('提示', '連接成功,Generating inspection report for you')
# print(type(i),type(p),type(u),type(pa))
self.destroy()
MainPage(root)
mysqlLogin.show()
數據庫連接類
class Mysql(object):
# mysql 端口號,注意：必須是int類型
def __init__(self, host, port, user, passwd, db_name):
self.host = host
self.user = user
self.passwd = passwd
self.port = port
self.db_name = db_name def select(self, sql):
"""
執行sql命令
:param sql: sql語句
:return: 元祖
"""
try:
conn = pymysql.connect(
host=self.host,
user=self.user,
passwd=self.passwd,
port=self.port,
database=self.db_name,
charset='utf8',
#cursorclass=pymysql.cursors.DictCursor
)
cur = conn.cursor() # 創建游標
# conn.cursor()
cur.execute(sql) # 執行sql命令
#print(type(cur.execute(sql)))
res = cur.fetchall() # 獲取執行的返回結果
#print(type(res))
cur.close()
conn.close()
# print(res)
return res
except Exception as e:
messagebox.showerror('提示',e)
return False def show(self):
sql1 = "show global variables"
# sql2 = "show master status;"
# sql3 = "SELECT table_schema,SUM((AVG_ROW_LENGTH*TABLE_ROWS+INDEX_LENGTH))/1024 AS total_KB FROM information_schema.TABLES GROUP BY table_schema ORDER BY total_KB DESC ;" res1 = dict(self.select(sql1))
# res2 = self.select(sql2)
# res3 = self.select(sql3)
filename = r"D:\{}".format('mysql_check.txt')
with open(filename, mode='w', encoding='utf-8') as f:
# 檢查MySQL版本
#print("\033[1;32m當前數據庫的版本是：\033[0m" + res1['version'])
f.write("當前數據庫的版本是：" + res1['version'] + "\n") f.write("當前數據庫的version_comment是：" + res1['version_comment'] + "\n")
f.write("當前數據庫的version_compile_machine是：" + res1['version_compile_machine'] + "\n")
f.write("當前數據庫的version_compile_os是：" + res1['version_compile_os'] + "\n")
f.write("當前數據庫的version_compile_zlib是：" + res1['version_compile_zlib'] + "\n")
f.write("當前數據庫的sql_mode是：" + res1['sql_mode'] + "\n") # 檢查MySQL端口
#print("\033[1;35mThe port of the current database is：\033[0m" + res1['port'])
f.write("The port of the current database is：" + res1['port'] + "\n")
# 檢查server_id
#print("\033[1;32m當前數據庫的server_id是：\033[0m" + res1['server_id'])
f.write("當前數據庫的server_id是：" + res1['server_id'] + "\n")
# 檢查basedir目錄
#print("\033[1;32m當前數據庫的basedir在：\033[0m" + res1['basedir'])
f.write("當前數據庫的basedir在:" + res1['basedir'] + "\n")
# 檢查datadir目錄
#print("\033[1;35m當前數據庫的datadir在：\033[0m" + res1['datadir'])
f.write("當前數據庫的datadir在：" + res1['datadir'] + "\n")
# 檢查tmpdir目錄
#print("\033[1;32m當前數據庫的tmpdir在：\033[0m" + res1['tmpdir'])
f.write("當前數據庫的tmpdir在：" + res1['tmpdir'] + "\n") #pid_file
f.write("當前數據庫的pid_file在：" + res1['pid_file'] + "\n")
#optimizer_switch
f.write("當前數據庫的optimizer_switch：" + res1['optimizer_switch'] + "\n")
#mysqlx_socket
f.write("mysqlx_socket：" + res1['mysqlx_socket'] + "\n")
#log_bin_basename
f.write("當前數據庫的log_bin_basename在：" + res1['log_bin_basename'] + "\n")
#log_error
f.write("當前數據庫的log_error在：" + res1['log_error'] + "\n")
#slow_query_log_file
f.write("當前數據庫的slow_query_log_file在：" + res1['slow_query_log_file'] + "\n")
class MainPage:
def __init__(self,master: tk.Tk):
self.root = master
self.root.title('Database inspection system')
self.root.geometry('600x400')
self.create_page()
def create_page(self):
self.about_frame = AboutFrame(self.root) #調用views中的aboutframe類,Show information about
# tk.Label(self.about_frame,text = '關於作品：Database inspection system').pack()
# tk.Label(self.about_frame,text = '關於作者：i love water lilies').pack()
# tk.Label(self.about_frame,text = '版權所有：https://www.cnblogs.com/houzhiheng/').pack() self.check_frame = CheckFrame(self.root) menubar = tk.Menu(self.root)
menubar.add_command(label='巡檢結果',command=self.show_check)
menubar.add_command(label='關於',command=self.show_about)
self.root['menu'] = menubar def show_check(self):
self.check_frame.pack()
self.about_frame.pack_forget() #Selectively forget other loaded pages,Otherwise, it will be loaded in the page def show_about(self):
self.about_frame.pack()
self.check_frame.pack_forget()
Show About Sections
class AboutFrame(tk.Frame):
def __init__(self,root):
super().__init__(root)
tk.Label(self, text='Production：Database inspection system').pack()
tk.Label(self, text='Author：i love water lilies').pack()
tk.Label(self, text='Version:1.0').pack()
tk.Label(self, text='@Copyright：https://www.cnblogs.com/houzhiheng/').pack()

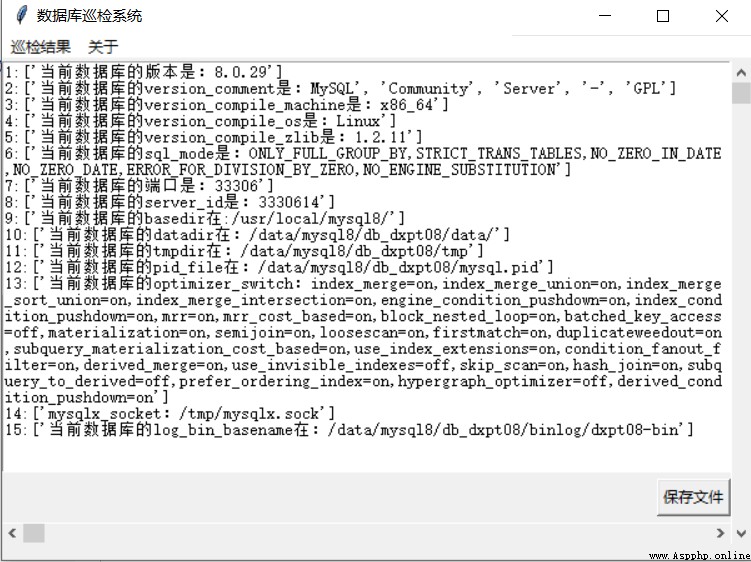

Display database inspection result class
class CheckFrame(tk.Frame):
def __init__(self,root):
super().__init__(root)
# tk.Label(self, text='巡檢結果').pack()
self.table_view = tk.Frame()
self.table_view.pack() self.create_page() tk.Button(self,text='保存文件',command=self.save_data_frame).pack(anchor=tk.E,pady=5) def create_page(self):
# self.tree_view = ttk.Treeview(self,show='headings')
# columns = ("check_results")
# columns_values = ("數據庫巡檢報告")
# top = Tk() # 設置窗口
# sb = Scrollbar(top) # set window scroll bar
# sb.pack(side=RIGHT, fill=) # Set the window scroll bar position
# self.sb = Scrollbar()
# self.sb.pack(side=RIGHT,fill= Y)
# self.tree_view = ttk.Treeview(self,show='headings',columns=columns)
# self.tree_view.column('check_results',width=500,anchor='center')
# self.tree_view.heading('check_results',text=columns_values)
# self.tree_view.pack(fill=tk.BOTH,expand=True)
# self.show_data_frame() with open(r'D:\mysql_check.txt', 'r', encoding='utf-8') as f:
lines2 = [l.split() for l in f.readlines() if l.strip()]
# 滾動條初始化（scrollBar為垂直滾動條,scrollBarx為水平滾動條）
scrollBar = Scrollbar(self)
scrollBarx = Scrollbar(self, orient=HORIZONTAL)
# 靠右,充滿Y軸
scrollBar.pack(side=RIGHT, fill=Y)
# 靠下,充滿X軸
scrollBarx.pack(side=BOTTOM, fill=X)
lb = Text(self, width=100, height=25,)
lb.pack()
# db = Mysql('192.168.163.21', 33306, 'root', 'zabbix.9.31', 'mysql')
# res = db.show() textvar = "1:{} \n2:{}\n3:{}\n4:{}\n5:{}\n6:{}\n7:{}\n8:{}\n9:{}\n10:{}\n11:{}\n12:{}\n13:{}\n14:{}\n15:{}"\
.format(lines2[0],lines2[1],lines2[2],lines2[3],lines2[4],lines2[5],lines2[6],lines2[7],lines2[8],lines2[9],lines2[10],lines2[11],lines2[12],lines2[13],lines2[14],lines2[15],lines2[16])
lb.insert('insert', textvar + '\n')
lb.update()
# And when the user manipulates the scroll bar,自動調用 Treeview 組件的 yview()與xview() 方法
# That is, the scroll bar is synchronized with the position of the page content
scrollBar.config(command=lb.yview)
scrollBarx.config(command=lb.xview) def show_data_frame(self): #Output the content of the query to the screen
pass
def save_data_frame(self):
messagebox.showinfo('提示','Your file has been saved inD:\mysql_check.txt中！')
問題處理：
1.How to contrastrootIs the login successful?,從上面代碼可以看到,I can't go directly to the database to verify the username and password,But I can let the user name login successful to execute the command to determine whether the login,如果rootLog in and execute the command successfully,I will return a result asTRUE,如果執行失敗,returns a result ofFALSE,This command is to query the version of the database itself to get,任何用戶都可以執行
2.Output the inspection results on the screen,Originally, I can get the database return value and then put it on the screen.,但是我的views.py調用class MySQL類失敗,So in the end, the query results are directly saved in the file,Open the file when outputting in the foreground,Then adjust the file format and output,This step is a failure

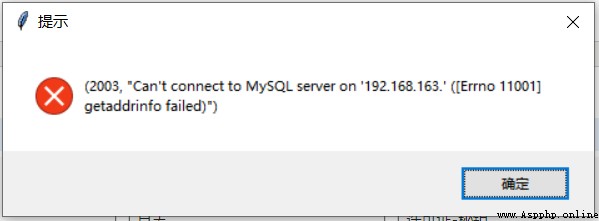

3.將mysqlThe error returned by the connection can be handled as an exception.,It's just that there was a little problem with the logic when I did it at the time, and it didn't show success.
Conclusion Harvest：
Originally wanted to do a full set of database inspectionsGUI系統,The desktop version is ready,But not to the light to do oneGUI+mysqlThe version took two weeks,However, this general structure,If you want to do behind should be simple.This time, a deeper understanding of object-oriented,did not study well,Gotta make it up after graduation
