The contents of this article are as follows :️️️
Catalog
1 Knowledge point
1.1 Ant colony algorithm steps
1.2 Ant colony algorithm program
2 Ant algorithm to solve the shortest path problem ——Python Realization
2.1 The source code to achieve
2.2 ACA_TSP Realization

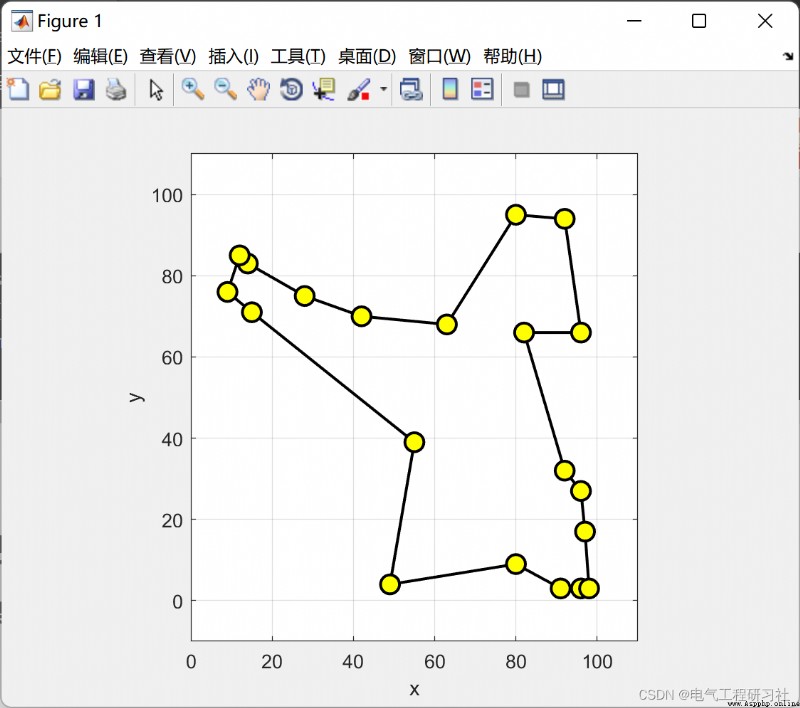

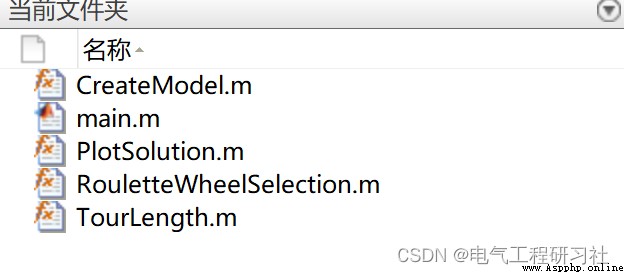

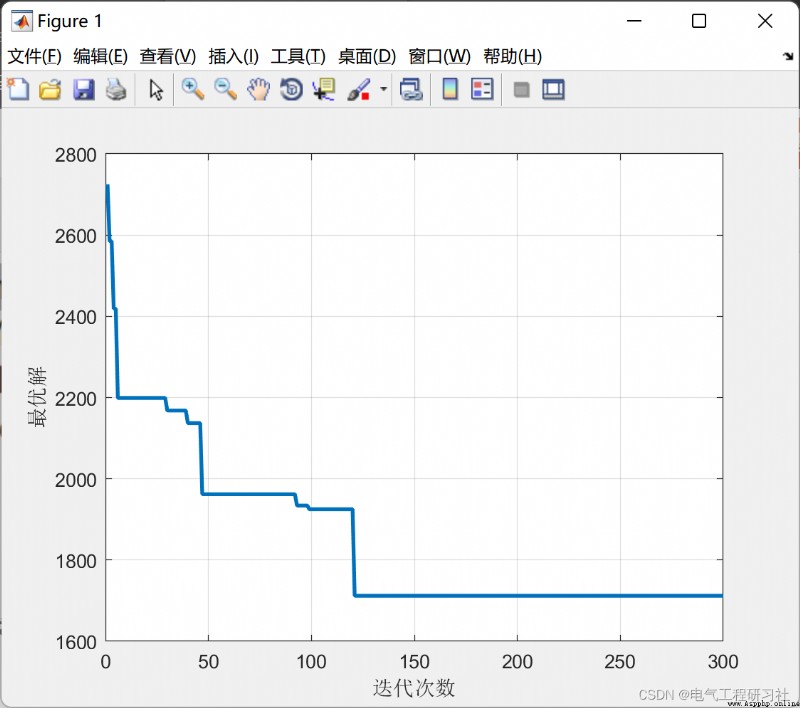

3 Ant algorithm to solve the shortest path problem ——Matlab Realization
4 Ant algorithm solves quadratic assignment problem ——Matlab Realization
5 Ant algorithm solves knapsack problem ——Matlab Realization
6 Improved ant algorithm ——BP Neural network Ant Optimization Algorithm
7 At the end
For details, see : Intelligent optimization algorithm — Ant colony algorithm (Python Realization )
In this section, we only talk about Ant colony algorithm to solve the shortest path steps and processes .
1.1 Ant colony algorithm steps
Let the number of ants be m, The number of locations is n, place i And location j Distance between Dij,t Time and place i And location j The pheromone concentration on the connected path is Sij, At the initial time, the pheromone concentration on the path between each location is equal .
Ant k The next target location is determined according to the pheromone on the connection path between each location ,Pijk Express t Time ants k From place i The probability of transfer , The probability calculation formula is as follows :
In the above formula , For the heuristic function ,, Indicates where the ants are from i Move to location j The degree of expectation ; For the ants k A collection of places to visit , At the beginning of the There is n-1 Elements ( Except for the place of departure ), Over time , Every time the ant reaches the next place , The element in is reduced by one , Until the empty set , This means that all locations have been visited ;a Is the pheromone importance factor , The bigger the value is. , It shows that the concentration of pheromone plays a greater role in transfer , In other words, ants are more likely to choose the next place close ,β Is the importance factor of the heuristic function .
Ants release pheromones at the same time , The pheromone on the connection path between each location gradually disappears , With the parameters
Indicates the volatilization degree of pheromone . therefore , When all the ants complete a cycle , The pheromone concentration on the connection path between each location needs to be updated , That is, ants pass by and leave pheromones , There is a formula expressed as :
among , It means the first one k An ant is in the spot i And j Pheromone concentration released on the connection path ; Indicates that all ants are in the location i And j Sum of pheromone concentrations released on the connection path ;Q Constant , Indicates the total amount of pheromones released by ants in one cycle ;Lk It means the first one k The length of an ant's path , in general , The shorter the path the ant passes , The higher the pheromone concentration released , Finally, choose the shortest path .
1.2 Ant colony algorithm program
(1) Parameter initialization
Looking for the shortest money , All parameters of the program need to be initialized , Ant colony size m、 Pheromone importance factor α、 Heuristic function importance factor β、 Pheromone hair factor 、 Maximum number of iterations ddcs_max, The initial iteration value is ddcs=1.
(2) Construct solution space
Place each ant randomly at a different starting point , Calculate the location of the next visit according to the formula , Until all the ants have visited all the places .
(3) Update pheromones
Calculate the total length of each ant's path Lk, Record the best path in the current cycle , At the same time, the pheromone concentration on the connection path between each location is updated according to the formula .
(4) Termination judgment
Before the number of iterations reaches the maximum , Clear the record of ants passing , And go back to step (2).
Intelligent optimization algorithm — Ant colony algorithm (Python Realization )
Supplementary information :scipy.spatial.distance.cdist
#============ Import related libraries =================
import numpy as np
from scipy import spatial
import pandas as pd
import matplotlib.pyplot as plt
from sko.ACA import ACA_TSP
num_points = 25
points_coordinate = np.random.rand(num_points, 2) # Generate the coordinates of the point
distance_matrix = spatial.distance.cdist(points_coordinate, points_coordinate, metric='euclidean')# The function is used to calculate the distance between two input sets
def cal_total_distance(routine):
num_points, = routine.shape
return sum([distance_matrix[routine[i % num_points], routine[(i + 1) % num_points]] for i in range(num_points)])
#=============ACA_TSP solve ==================================
aca = ACA_TSP(func=cal_total_distance, n_dim=num_points,
size_pop=50, max_iter=200,
distance_matrix=distance_matrix)
best_x, best_y = aca.run()
#============= visualization =======================
fig, ax = plt.subplots(1, 2)
best_points_ = np.concatenate([best_x, [best_x[0]]])
best_points_coordinate = points_coordinate[best_points_, :]
ax[0].plot(best_points_coordinate[:, 0], best_points_coordinate[:, 1], 'o-r')
pd.DataFrame(aca.y_best_history).cummin().plot(ax=ax[1])
plt.show()
The complete code is here : Ant algorithm solves the shortest path

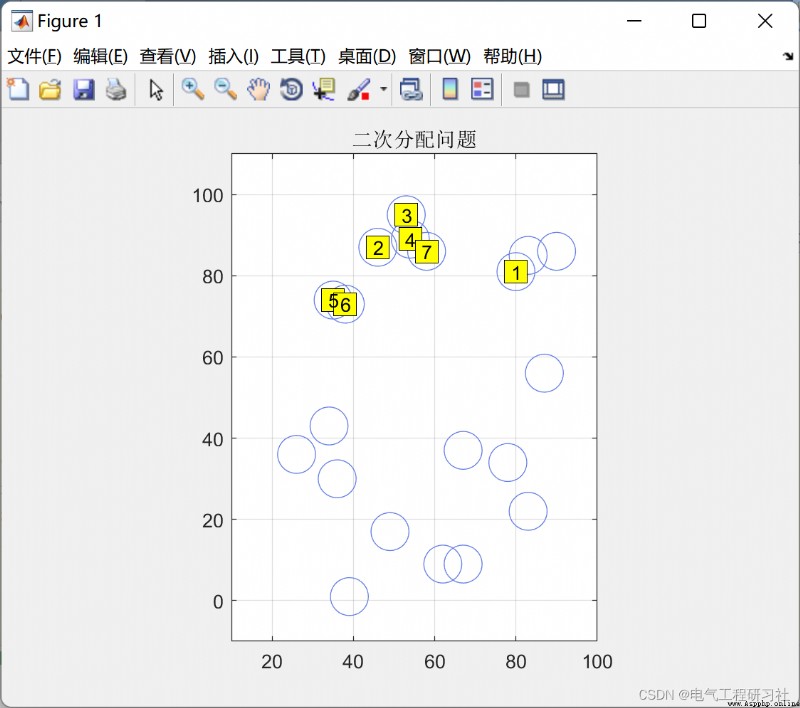

In social network analysis , There is a way to study the relationship between relationships , Popular speaking , Is to study the correlation and regression of two matrices . This method is called QAP(Quadratic Assignment Procedure, Secondary assignment procedure ). It compares the similarity of the lattice values of the two matrices , Give the correlation coefficient between the two matrices , At the same time, the coefficient is tested nonparametric , It is based on the replacement of matrix data .
QAP The difference from other standard statistical procedures is , The values of the matrix are not independent of each other , Therefore, parameter estimation and statistical test cannot be carried out with many standard statistical procedures , Otherwise, the accountant calculates the wrong standard deviation . For this question , Scholars use a randomized test (randomization test) To test ,QAP Belong to one of them .

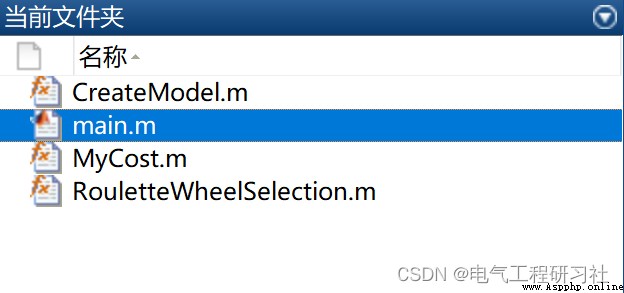

The complete code needs to click here : Ant algorithm solves quadratic assignment problem
The complete code is here : Ant algorithm solves knapsack problem
Improved a little , If you are interested, you can have a look at , You may also need your own processing :BP Neural network Ant Optimization Algorithm
