brief introduction ： In some special situations , Passed adb Connect , Then you can take a screenshot , Recording screen , Crawl log operation .
Related strategies ：
adb：5 Seconds to finish viewing App Package name and startup page Activity
adb Restart or shut down the phone
adb： The android mobile phone USB Debug mode
adb：win10 Installation under system
adb： Common commands

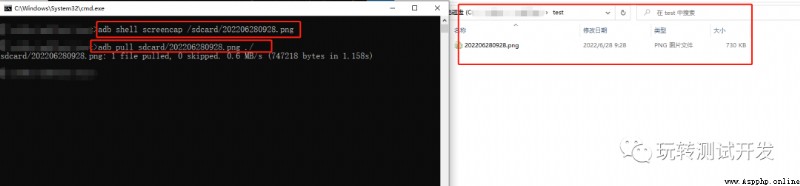

Case study 1： Screenshot
# Screenshot
adb shell screencap /sdcard/202206280928.png
# Pull screenshot
adb pull sdcard/202206280928.png ./

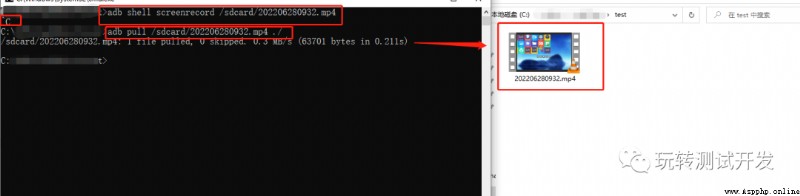

Case study 2： Recording screen , Press Ctrl+C Stop recording
# Recording screen
adb shell screenrecord /sdcard/202206280932.mp4
# Pull screenshot
adb pull /sdcard/202206280932.mp4 ./

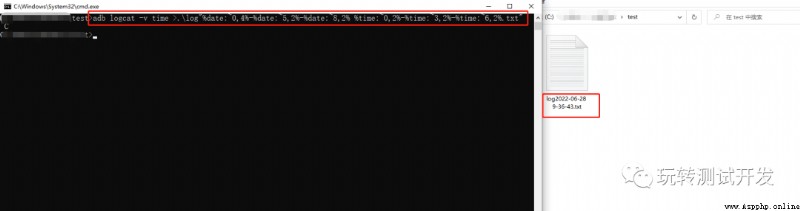

Case study 3： Grab logs , Press Ctrl+C Stop grabbing
adb logcat -v time >.\log"%date:~0,4%-%date:~5,2%-%date:~8,2% %time:~0,2%-%time:~3,2%-%time:~6,2%.txt"
Transform into Python Script form ：
# -*- coding: utf-8 -*-
# time: 2022/6/28 10:18
# file: adb_test.py
# author: tom
# official account : Play with test development
import os
import time
import datetime
import subprocess
import threading
class ADB:
def __init__(self, device, target_path):
self.target_path = target_path
subprocess.Popen(f"adb connect {
device}")
def screenshot(self):
# Use && separate .
file_name = datetime.datetime.now().strftime("%Y%m%d%H%M%S")
step1 = rf"cd {
self.target_path}"
step2 = f"adb shell screencap /sdcard/{
file_name}.png"
step3 = f"adb pull sdcard/{
file_name}.png ./"
command = fr"{
step1} && {
step2} && {
step3}"
os.popen(command)
def video(self, record_time):
# collection
file_name = datetime.datetime.now().strftime("%Y%m%d%H%M%S")
step1 = rf"cd {
self.target_path}"
step2 = f"adb shell screenrecord --time-limit {
record_time} /sdcard/{
file_name}.mp4"
command = fr"{
step1} && {
step2}"
os.system(command)
# Pull
step4 = rf"adb pull sdcard/{
file_name}.mp4 ./"
command2 = fr"{
step1} && {
step4}"
os.system(command2)
if __name__ == '__main__':
device = "192.168.xxx.xxx"
target_path = r"C:\adbTest\test"
adb = ADB(device, target_path)
adb.screenshot()
adb.video(10)
