Python & c++ mixed call programming comprehensive practice -30 start the thread to call the read read view frame function of pyffmpeg extension library

編輯：Python

author ： Empty bad uncle
Blog ：https://xuhss.com

The breakfast shop won't be open till night , The people who want to eat have already come ！

Start thread call pyffmpeg Extension of library Read Read view frame function

One 、pyffmpeg Extension of library Read Read view frame function add

XFFmpeg.h Add a function to read video frames

#pragma once
struct AVFormatContext;
struct AVPacket;
class XFFmpeg
{

public:
// Open the video
bool Open(const char *url);
// Read a burst of video Store... Internally
bool Read();
XFFmpeg();
~XFFmpeg();
int totalms = 0;
protected:
// Unpack context
AVFormatContext *ic = 0;
// Read video frames
AVPacket *pkt = 0;
};

XFFmpeg.cpp Add function implementation

#include "XFFmpeg.h"
#include <stdio.h>
extern "C" {

#include "libavformat\avformat.h"
}
bool XFFmpeg::Open(const char *url)
{

printf("XFFmpeg::open %s\n", url);
// Open the video decapsulation
int re =avformat_open_input(&ic, url, 0, 0);
if (re != 0)
{

char buf[1024] = {
 0 };
av_strerror(re, buf, 1023);
printf("avformat open fail:%s\n", buf);
return false;
}
// Get stream
avformat_find_stream_info(ic, 0);
// Total duration of video acquisition
this->totalms = ic->duration / (AV_TIME_BASE / 1000);
printf("Total Ms =%d\n", totalms);
return true;
}
bool XFFmpeg::Read()
{

if (!ic)
return false;
// Storage space of video frames
if (!pkt)
{

// Allocate object space
pkt = av_packet_alloc();
}
else
{

// Reference count -1 Clean up video frames
av_packet_unref(pkt);
}
int re = 0;
bool isFindVideo = false;
// Audio data lost
for (int i = 0; i < 20; i++)
{

// Read a frame of data
re = av_read_frame(ic, pkt);
// Read failed or read to the end of the file
if (re != 0)
{

return false;
}
// Is it a video frame
if (pkt->stream_index == 0)
{

isFindVideo = true;
break;
}
// Audio frame clear packet
av_packet_unref(pkt);
}
return isFindVideo;
}
XFFmpeg::XFFmpeg()
{

printf("Create XFFmpeg\n");
}
XFFmpeg::~XFFmpeg()
{

printf("Delete XFFmpeg\n");
}

PyFFmpeg.h Open interface , convenient python call

#pragma once
#include<Python.h>
class XFFmpeg;
class PyFFmpeg
{

public:
PyObject_HEAD
XFFmpeg *ff;
// Open to python Function of
public:
static PyObject *Create(PyTypeObject *type, PyObject *args, PyObject *kw);
static int Init(PyFFmpeg*self, PyObject *args, PyObject *kw);
static void Close(PyFFmpeg*self);
static PyObject* Open(PyFFmpeg*self, PyObject*args);
static PyObject *Read(PyFFmpeg*self, PyObject*args);
// Property function get
static PyObject* GetTotalms(PyFFmpeg*self, void*closure);
};

PyFFmpeg.cpp Open interface implementation add implementation and registration

#include "PyFFmpeg.h"
#include "XFFmpeg.h"
// Open to python
PyObject *PyFFmpeg::Create(PyTypeObject *type, PyObject *args, PyObject *kw) {

printf("PyFFmpeg::Create\n");
PyFFmpeg*f = (PyFFmpeg*)type->tp_alloc(type, 0);
f->ff = new XFFmpeg();
return (PyObject *)f;
}
int PyFFmpeg::Init(PyFFmpeg*self, PyObject *args, PyObject *kw)
{

printf("PyFFmpeg::Init\n");
return 0;
}
void PyFFmpeg::Close(PyFFmpeg*self)
{

printf("PyFFmpeg::Close\n");
delete self->ff;
Py_TYPE(self)->tp_free(self);
}
PyObject *PyFFmpeg::Read(PyFFmpeg*self, PyObject*args)
{

if (!self->ff)
Py_RETURN_FALSE;
if (self->ff->Read())
Py_RETURN_TRUE;
Py_RETURN_FALSE;
}
PyObject* PyFFmpeg::Open(PyFFmpeg*self, PyObject*args)
{

const char *url = NULL;
if (!PyArg_ParseTuple(args, "s", &url))
return NULL;
printf("PyFFmpeg::Open %s\n", url);
if (self->ff->Open(url))
Py_RETURN_TRUE;
Py_RETURN_FALSE;
}
PyObject* PyFFmpeg::GetTotalms(PyFFmpeg*self, void*closure)
{

return PyLong_FromLong(self->ff->totalms);
}
// Module entry Module name pyffmpeg
PyMODINIT_FUNC PyInit_pyffmpeg(void)
{

PyObject *m = NULL;
static PyModuleDef ffmod = {

PyModuleDef_HEAD_INIT,
"pyffmpeg",
"", -1, 0
};
m = PyModule_Create(&ffmod);
// add to PyFFmpeg_python class
static PyTypeObject type;
memset(&type, 0, sizeof(PyFFmpeg));
type.ob_base = {
 PyObject_HEAD_INIT(NULL) 0 };
type.tp_name = "";
type.tp_basicsize = sizeof(PyFFmpeg);
type.tp_flags = Py_TPFLAGS_DEFAULT | Py_TPFLAGS_BASETYPE;
type.tp_new = PyFFmpeg::Create;
type.tp_init = (initproc)PyFFmpeg::Init;
type.tp_dealloc = (destructor)PyFFmpeg::Close;
static PyMethodDef ffmeth[] = {

{
 "open", (PyCFunction)PyFFmpeg::Open, METH_VARARGS, "" },
{
 "read", (PyCFunction)PyFFmpeg::Read, METH_NOARGS, "" },
{
 NULL }
};
type.tp_methods = ffmeth;
static PyGetSetDef sets[] = {

{
 "totalms", (getter)PyFFmpeg::GetTotalms, 0, 0,0 },
{
 NULL }
};
type.tp_getset = sets;
// Initialization type
if (PyType_Ready(&type) < 0) {

return NULL;
}
PyModule_AddObject(m, "PyFFmpeg", (PyObject*)&type);
printf("Pyinit_pyffmpeg\n");
return m;
}

pyqt.py Add a call to the interface

isRunning = True
# The main function Called in subthread , Thread is c++ establish
def main():
print("Python main")
global ff;
while isRunning:
print(ff.read());

Two 、 Open the thread to call the extension library interface

2.1 Do not start thread calling

pyplayer.cpp Invocation in constructor main Function call Threads are not enabled here

PyPlayer::PyPlayer(QWidget *parent)
: QWidget(parent)
{

ui.setupUi(this);
Py_SetPythonHome(L"./");
Py_Initialize();
// Loading module
pModule = PyImport_ImportModule("pyqt");
if (!pModule)
{

printf("PyImport import error");
PyErr_Print();
return;
}
// obtain python Configuration item Change the size and title of the window
PyObject *conf = PyObject_GetAttrString(pModule, "conf");
if (!conf)
{

cout << "Please set the conf" << endl;
PyErr_Print();
return;
}
PyObject *key = PyUnicode_FromString("width");
int width = PyLong_AsLong(PyDict_GetItem(conf, key));
Py_XDECREF(key);
key = PyUnicode_FromString("height");
int height = PyLong_AsLong(PyDict_GetItem(conf, key));
Py_XDECREF(key);
// Change window title
key = PyUnicode_FromString("title");
wchar_t title[1024] = {
 0 };
PyUnicode_AsWideChar(PyDict_GetItem(conf, key), title, 1023);
this->setWindowTitle(QString::fromUtf16((char16_t*)title));
Py_XDECREF(key);
if (width > 0 && height > 0)
{

resize(width, height);
}
Py_XDECREF(conf);
// Open the interface for selecting files to python
static PyMethodDef meths[] = {

{
 "OpenDialog", (PyCFunction)OpenDialog, METH_NOARGS, 0 }
,{
 NULL }
};
int re = PyModule_AddFunctions(pModule, meths);
if (!re)
{

PyErr_Print();
}
// Open thread call python Of main function
PyObject*main_fun = PyObject_GetAttrString(pModule, "main");
if (!main_fun || !PyCallable_Check(main_fun))
{

cout << "main_fun get failed!" << endl;
return;
}
if (PyObject_CallObject(main_fun, 0))
{

PyErr_Print();
return;
}
}

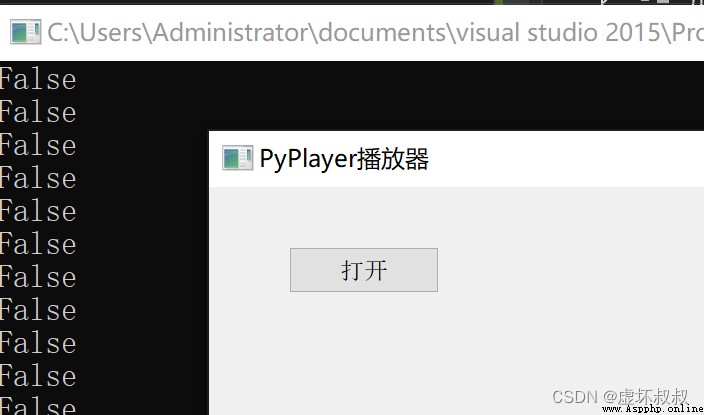

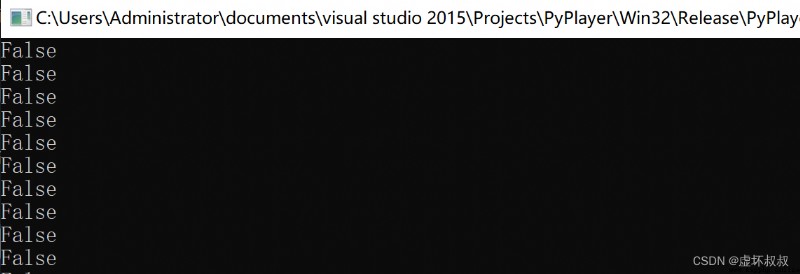

function , You will find that it always outputs false, And the main thread is stuck , Because it's in a thread ,python Of main Function has a loop , A loop that does not exit .

2.2 Start thread call to read video

Add a thread function run_main, And will be implemented main The code of the function is put into this thread

#include <Python.h>
#include "PyPlayer.h"
#include <iostream>
#include <QFileDialog>
#include <thread>
using namespace std;
static PyObject *pModule = 0;
// Returns the selected file path
PyObject* OpenDialog(PyObject *self)
{

QString fileName = "";
fileName = QFileDialog::getOpenFileName();
if (fileName.isEmpty())
return PyUnicode_FromString("");
return PyUnicode_FromString(fileName.toStdString().c_str());
}
void PyPlayer::Open() {

cout << "PyPlayer::Open()" << endl;
// call Python Of open function
if (!pModule) return;
PyObject *open = PyObject_GetAttrString(pModule, "open");
if (!open || !PyCallable_Check(open))
{

PyErr_Print();
return;
}
PyObject_CallObject(open, 0);
}
void run_main()
{

PyObject*main_fun = PyObject_GetAttrString(pModule, "main");
if (!main_fun || !PyCallable_Check(main_fun))
{

cout << "main_fun get failed!" << endl;
return;
}
if (PyObject_CallObject(main_fun, 0))
{

PyErr_Print();
return;
}
}
PyPlayer::PyPlayer(QWidget *parent)
: QWidget(parent)
{

ui.setupUi(this);
Py_SetPythonHome(L"./");
Py_Initialize();
// Loading module
pModule = PyImport_ImportModule("pyqt");
if (!pModule)
{

printf("PyImport import error");
PyErr_Print();
return;
}
// obtain python Configuration item Change the size and title of the window
PyObject *conf = PyObject_GetAttrString(pModule, "conf");
if (!conf)
{

cout << "Please set the conf" << endl;
PyErr_Print();
return;
}
PyObject *key = PyUnicode_FromString("width");
int width = PyLong_AsLong(PyDict_GetItem(conf, key));
Py_XDECREF(key);
key = PyUnicode_FromString("height");
int height = PyLong_AsLong(PyDict_GetItem(conf, key));
Py_XDECREF(key);
// Change window title
key = PyUnicode_FromString("title");
wchar_t title[1024] = {
 0 };
PyUnicode_AsWideChar(PyDict_GetItem(conf, key), title, 1023);
this->setWindowTitle(QString::fromUtf16((char16_t*)title));
Py_XDECREF(key);
if (width > 0 && height > 0)
{

resize(width, height);
}
Py_XDECREF(conf);
// Open the interface for selecting files to python
static PyMethodDef meths[] = {

{
 "OpenDialog", (PyCFunction)OpenDialog, METH_NOARGS, 0 }
,{
 NULL }
};
int re = PyModule_AddFunctions(pModule, meths);
if (!re)
{

PyErr_Print();
}
// Open thread call python Of main function
std::thread t1(run_main);
t1.detach();
}

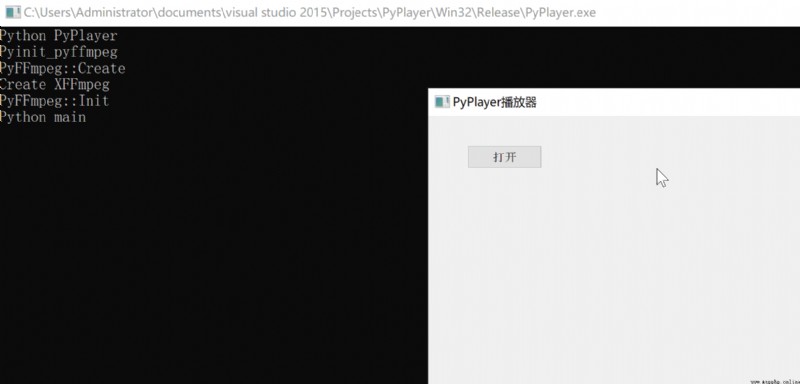

In execution , The interface comes out ：

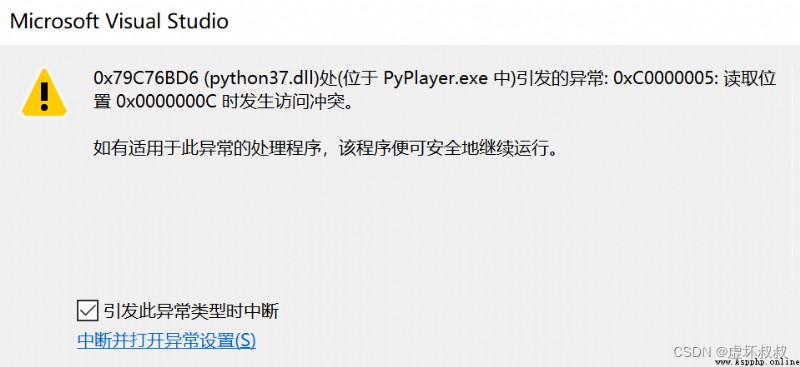

Click the open button Found that the program crashed ：

2.3 Add global GIL lock , Prevent software from crashing

stay PyPlayer.cpp in open Function to add gil lock

void PyPlayer::Open() {

cout << "PyPlayer::Open()" << endl;
// call Python Of open function
if (!pModule) return;
PyGILState_STATE gil;
gil = PyGILState_Ensure();
PyObject *open = PyObject_GetAttrString(pModule, "open");
if (!open || !PyCallable_Check(open))
{

PyErr_Print();
PyGILState_Release(gil);
return;
}
PyObject_CallObject(open, 0);
PyGILState_Release(gil);
}

Run again and you won't crash .

2.4 The console visualizes the process of reading video

modify pyqt.py The process of reading video is output point by point , In this way, you can verify that the read thread is ok

print("Python PyPlayer")
from pyffmpeg import *
import time
conf = {

"width" : 1280,
"height" : 720,
"title" : "PyPlayer player "
}
ff = PyFFmpeg()
def open():
global ff;
print("Python open")
filename = OpenDialog()
if ff.open(filename):
print("open file success!")
else:
print("open file failed!")
print(filename)
isRunning = True
# The main function Called in subthread , Thread is c++ establish
def main():
print("Python main")
global ff;
while isRunning:
#print(ff.read())
re = ff.read()
if re:
print(".", end='', flush = True) #flush Output buffer
time.sleep(0.02)
else:
time.sleep(1)

3、 ... and 、 summary

This article starts thread calling pyffmpeg Extension of library Read Read view frame function .
If you think the article is useful to you , Remember give the thumbs-up Collection forward A wave , Bloggers also support making exclusive dynamic wallpapers for iron fans ~

Share high-quality articles in previous periods

C++ QT combination FFmpeg Actual development of video player -01 Environment installation and project deployment
solve QT problem ： function qmake：Project ERROR: Cannot run compiler ‘cl‘. Output:
Resolve installation QT after MSVC2015 64bit No compiler and debugger issues with configuration
Qt Kit tips in no complier set in kit and no debugger, The yellow exclamation mark appears and the problem is solved （MSVC2017）
Python+selenium automation - Realize automatic import 、 Upload external files （ Don't pop up windows window ）

High quality tutorial sharing

If you don't enjoy reading the article , You can come to my other special column Take a look ~
For example, the following columns ：Python Actual wechat ordering applet 、Python Quantitative trading practice 、C++ QT Practical projects and Algorithm learning column
You can learn more about C++/Python Relevant contents of ！ Directly click on the color font below to jump ！

Learning route guidance （ Click unlock ） Knowledge orientation Crowd positioning 🧡 Python Actual wechat ordering applet 🧡 Progressive class This course is python flask+ Perfect combination of wechat applet , From the deployment of Tencent to the launch of the project , Create a full stack ordering system .Python Quantitative trading practice beginner Take you hand in hand to create an easy to expand 、 More secure 、 More efficient Quantitative trading System ️ C++ QT combination FFmpeg Actual development of video player ️ The difficulty is high Sharing learning QT Finished video player source code , We need to have a solid C++ knowledge ！ A community of 90000 game lovers Help each other / Blow water 90000 game lovers community , Chat and help each other , White whoring prize Python Zero basis to introduction Python beginner For small partners who have not been systematically studied , The core purpose is to enable us to learn quickly Python Knowledge to get started

Data white whoring , reminder

Follow the card below to get more programming knowledge immediately , Including various language learning materials , Thousands of sets PPT Templates and various game source materials and so on . More information can be viewed by yourself ！
