The purpose of the command pattern is to decouple the object that invokes the operation （ caller ） And objects that provide implementation （ The receiver ）.
The idea of command mode is to insert a command class between the caller and the receiver （Command）, This command class defines a execute Interface , And the interface actually calls specific methods in the receiver to execute specific commands , In this way, multiple different receivers can be extended by extending the command subclass .
In this way, the caller who invokes this command is decoupled from the command receiver .
advantage ：
Good encapsulation , Each command is encapsulated , For the client , Call the corresponding command when you need any function , Without knowing how the command is executed .
Good scalability , In the receiver class, the operation is generally encapsulated in the most basic way , The command class encapsulates these basic operations .
Good reusability , When adding new commands , The writing of command classes generally does not start from scratch , There are a large number of receiver classes to call , There are also a large number of command classes to call .
Application scenarios

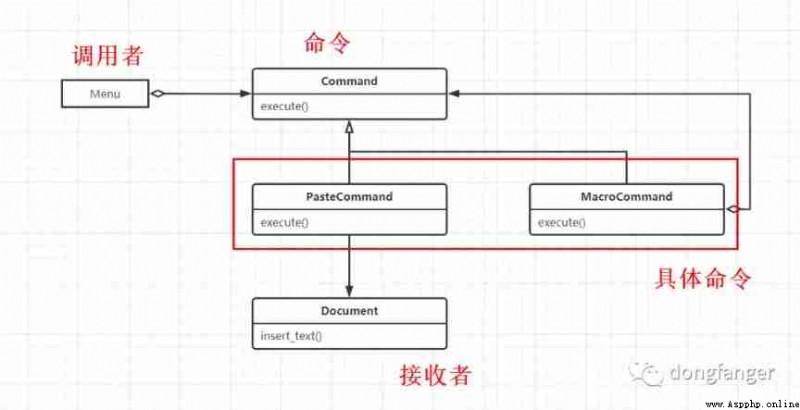

Menu driven text editor ： The caller is the menu , The recipient is the edited document .
Code example

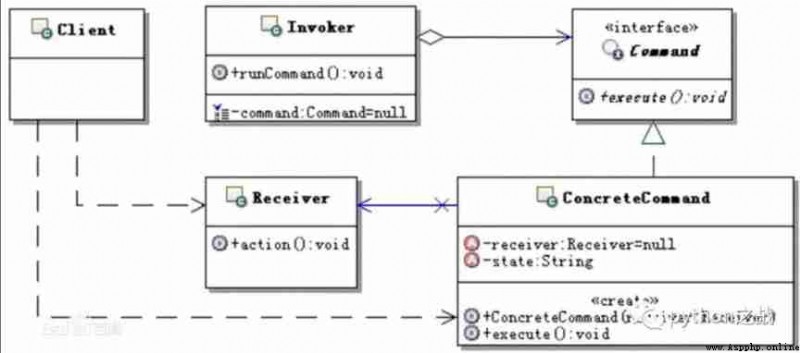

Entity role ：
Abstract command base class （Command）： Abstract class of command , Define the interface of the command , It can be understood as a base class .
Concrete command implementation class （ConcreteCommand）： Command interface implementation object , Usually the receiver , And call the receiver's function to complete the operation to be executed .
Command the receiver （Receiver）： The object that actually receives and executes specific commands . Any class can become a receiver , As long as it can realize the corresponding functions required by the command .
Order caller （Invoker）： Call the command , Then send the command to the receiver . Usually holds the command object , Can hold many command objects , It is equivalent to using the entry of the command object .
Command the assembler （Client）： The client will create a specific command object , Assemble command objects and receivers .
class Command:
""" Declare the command mode interface """
def __init__(self, obj):
self.obj = obj
def execute(self):
pass
class ConcreteCommand(Command):
""" Implement command mode interface """
def execute(self):
self.obj.run()
class Invoker:
""" Interface for receiving and executing commands """
def __init__(self):
self._commands = []
def add_command(self, cmd):
self._commands.append(cmd)
def remove_command(self, cmd):
self._commands.remove(cmd)
def run_command(self):
for cmd in self._commands:
cmd.execute()
class Receiver:
""" Specific actions """
def __init__(self, word):
self.word = word
def run(self):
print(self.word)
def client():
""" Assembler """
test = Invoker()
cmd1 = ConcreteCommand(Receiver(' Command one '))
test.add_command(cmd1)
cmd2 = ConcreteCommand(Receiver(' Command two '))
test.add_command(cmd2)
cmd3 = ConcreteCommand(Receiver(' Three orders '))
test.add_command(cmd3)
test.run_command()
if __name__ == '__main__':
client()
