Stack is a method that can only be used in At the same end Insert / Delete the The linear table . Insertion is allowed in the table / One end of the delete operation is called To the top of the stack . The current position of the top of the stack is dynamic , You can use a position indicator called the stack top pointer to indicate . The other end of the table is called At the bottom of the stack . When there are no elements in the stack, it is called Empty stack . The insertion operation of stack is usually called Into the stack or Push , The deletion of the stack is usually called Out of the stack or Backstack .
A major feature of stack is LIFO, namely Last In First Out.
The definition of abstract data type stack is as follows ：
Data objects ： D = { a i ∣ 0 ≤ i ≤ n − 1 , n ≥ 0 } Data relation ： R = { r } r = { < a i , a i + 1 > ∣ a i , a i + 1 ∈ D , i = 0 , ⋯ , n − 2 } Basic operation ： empty() ： sentence break Stack yes no by empty push(e) ： take e Pressure Enter into Stack in pop() ： take Out Stack The top element plain gettop() ： return return Stack The top element plain \begin{aligned} &\text{ Data objects ：} D=\{a_i|0\leq i\leq n-1,n\geq0\} \\ &\text{ Data relation ：} \\ &\quad R = \{r\} \\ &\quad r=\{<a_i,a_{i+1}>|a_i,a_{i+1}\in D,i=0,\cdots, n-2\} \\ &\text{ Basic operation ：} \\ &\quad \text{empty()}： Judge whether the stack is empty \\ &\quad \text{push(e)}： take e Pressure into the stack \\ &\quad \text{pop()}： Take out the top element of the stack \\ &\quad \text{gettop()}： Back to top of stack element \\ \end{aligned} Data objects ：D={ ai∣0≤i≤n−1,n≥0} Data relation ：R={ r}r={ <ai,ai+1>∣ai,ai+1∈D,i=0,⋯,n−2} Basic operation ：empty()： sentence break Stack yes no by empty push(e)： take e Pressure Enter into Stack in pop()： take Out Stack The top element plain gettop()： return return Stack The top element plain
Because the logical relationship of the elements in the stack is the same as that of the linear table , Therefore, we can learn from the two storage structures of linear tables to store stacks .

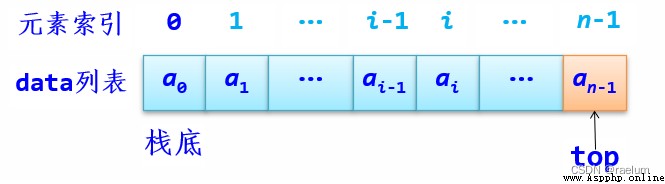

When using sequential storage structure to store , Use list data To store the elements in the stack , be called Order of the stack . because Python The list provides the function of dynamic expansion at one end , For this reason will data[0] As the bottom of the stack , take data[-1] As the top of the stack , among len(data) Represents the number of elements in the stack .
Next, we directly and completely implement the basic functions of the sequence stack ：
class SqStack:
def __init__(self):
self.data = []
def empty(self):
return len(self.data) == 0
def push(self, e):
self.data.append(e)
def pop(self):
assert not self.empty()
return self.data.pop()
def gettop(self):
assert not self.empty()
return self.data[-1]
You can see from the above , The time complexity of various basic operations of the stack is O ( 1 ) \mathcal{O}(1) O(1).
Suppose that the expression entered by the user contains parentheses 、 Square brackets and curly braces , And only these brackets . Design an algorithm to determine whether the parentheses in the expression are paired .
We can use sequence stack to solve this problem ：
def is_match(string):
stack = SqStack()
for e in string:
if e == '(' or e == '[' or e == '{':
stack.push(e)
else:
if e == ')':
if stack.empty() or stack.gettop() != '(':
return False
stack.pop()
if e == ']':
if stack.empty() or stack.gettop() != '[':
return False
stack.pop()
if e == '}':
if stack.empty() or stack.gettop() != '{':
return False
stack.pop()
return stack.empty()
string_1 = '([)]'
string_2 = '([])'
print(is_match(string_1))
# False
print(is_match(string_2))
# True
Design a minimum stack . That is, based on the original stack structure , Add one getmin() Method , Used in O ( 1 ) \mathcal{O}(1) O(1) Return the smallest element in the stack within the time of .
We can add one to the original mindata list , among data The list represents the main stack ,mindata The list represents the auxiliary stack , Used to store the current minimum element （ notes ：mindata There may be multiple elements in ）.
class SqStack:
def __init__(self):
self.data = []
self.__mindata = []
""" min The basic operation of stack """
def __minempty(self):
return len(self.__mindata) == 0
def __minpush(self, e):
self.__mindata.append(e)
def __minpop(self):
assert not self.__minempty()
return self.__mindata.pop()
def __mingettop(self):
assert not self.__minempty()
return self.__mindata[-1]
""" Basic operation of main stack """
def empty(self):
return len(self.data) == 0
def push(self, e):
if self.empty() or e <= self.getmin():
self.__mindata.append(e)
self.data.append(e)
def pop(self):
assert not self.empty()
x = self.data.pop()
if x == self.__mingettop():
self.__minpop()
return x
def gettop(self):
assert not self.empty()
return self.data[-1]
def getmin(self):
assert not self.empty()
return self.__mindata[-1]
The stack with chain storage structure is called chain stack , Here we use single linked list to realize .
The advantage of chain stack is that it doesn't need to consider stack overflow .

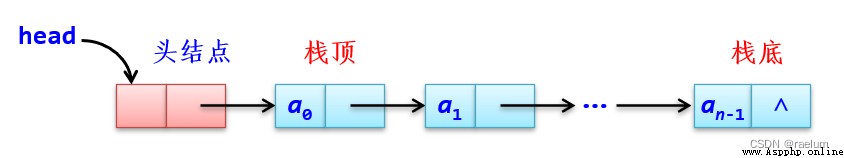

As shown in the figure , The first node is the top node of the stack , The tail node is the bottom node . The four elements of the chain stack are as follows ：
head.next == None;The type of each node in the chain stack is the same as that of the ordinary single chain list ：
class LinkNode:
def __init__(self, data=None, next=None):
self.data = data
self.next = next
The design of the chain stack class is as follows ：
class LinkStack:
def __init__(self):
self.head = LinkNode()
self.head.next = None
Next, we implement the basic operation of the stack in the chain stack ：
class LinkStack:
def __init__(self):
self.head = LinkNode()
self.head.next = None
def empty(self):
return self.head.next == None
def push(self, e):
s = LinkNode(e)
s.next = self.head.next
self.head.next = s
def pop(self):
assert not self.empty()
p = self.head.next
self.head.next = p.next
return p.data
def gettop(self):
assert not self.empty()
return self.head.next.data
The same stack sequence can produce different stack sequences . for example , Set the stack sequence as ( 1 , 2 , 3 , 4 , 5 ) (1,2,3,4,5) (1,2,3,4,5), We can let 1 , 2 , 3 1,2,3 1,2,3 Push 、 Out of the stack , let 4 , 5 4,5 4,5 Push 、 Out of the stack , The stack sequence thus obtained is ( 3 , 2 , 1 , 5 , 4 ) (3,2,1,5,4) (3,2,1,5,4). We can also let 1 , 2 1,2 1,2 Push 、 Out of the stack , let 3 , 4 , 5 3,4,5 3,4,5 Push 、 Out of the stack , The stack sequence thus obtained is ( 2 , 1 , 5 , 4 , 3 ) (2,1,5,4,3) (2,1,5,4,3).
Given the stack sequence a, Design an algorithm to judge b Whether it is a Legal stack sequence of （ among a and b Are all 1 ∼ n 1\sim n 1∼n An arrangement of ）.
We just need to simulate the process ：
def is_valid(a, b):
stack = SqStack()
j = 0
for i in range(len(a)):
stack.push(a[i])
while not stack.empty() and stack.gettop() == b[j]:
stack.pop()
j += 1
return stack.empty()
print(is_valid([1, 2, 3, 4], [1, 3, 2, 4]))
# True
print(is_valid([1, 2, 3, 4], [4, 3, 1, 2]))
# False
The problem is very simple , There is no need for too much explanation .
But here's the thing , For the sake of simplicity , We use lists directly to simulate stacks , No longer write a class alone .

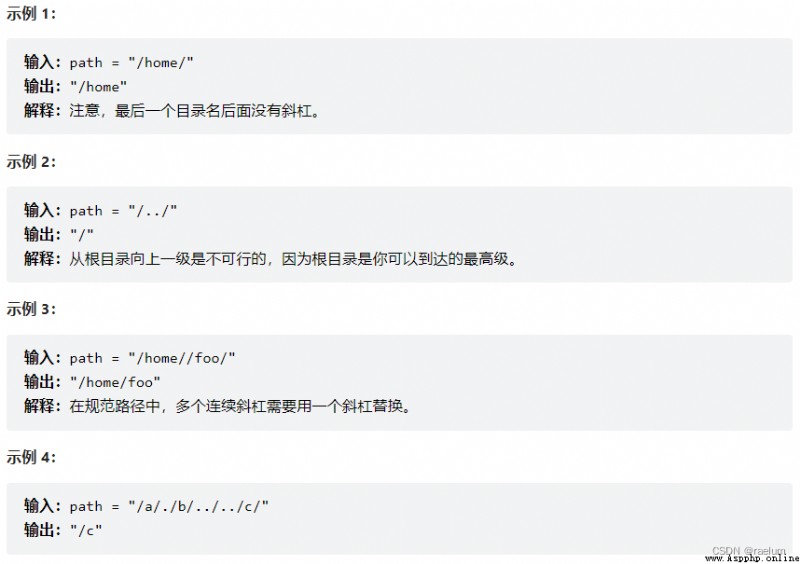

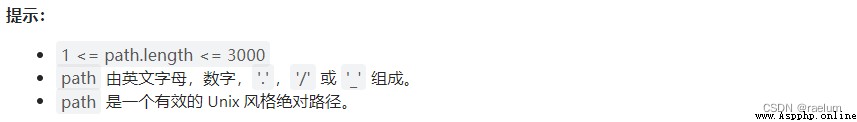

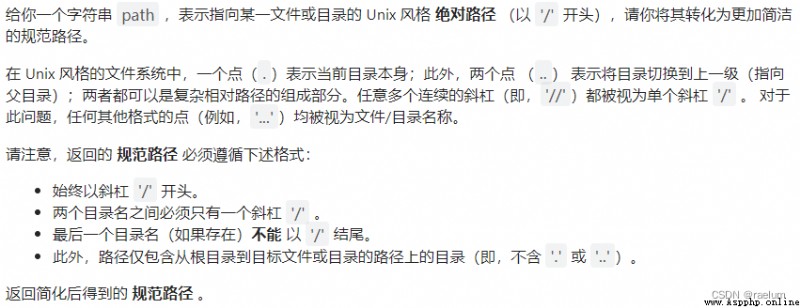

class Solution:
def simplifyPath(self, path: str) -> str:
stack = list()
for s in path.split('/'):
if s:
if s != '.' and s != '..':
stack.append(s)
if s == '..' and stack:
stack.pop()
return '/' + '/'.join(stack)

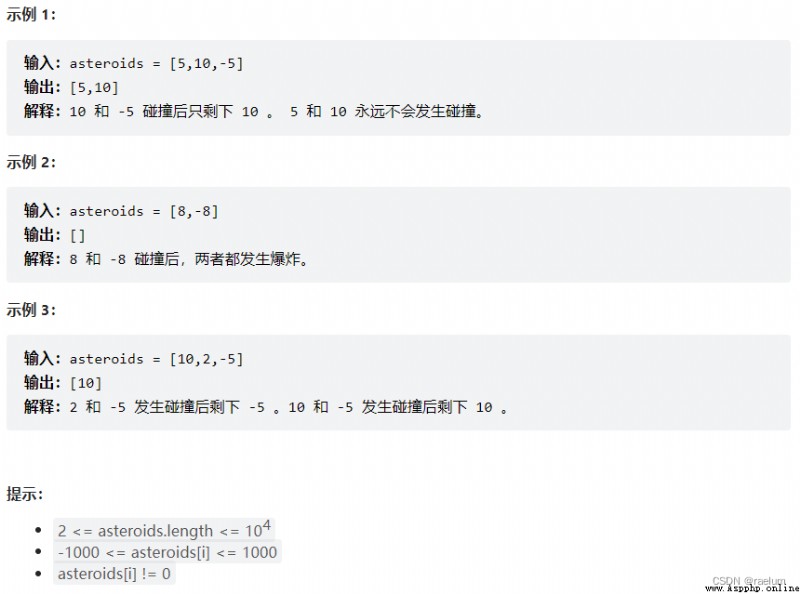

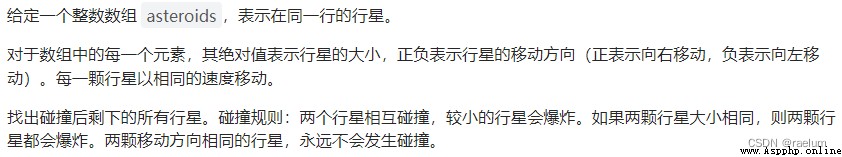

class Solution(object):
def asteroidCollision(self, asteroids):
stack = list()
for new in asteroids:
while stack and new < 0 < stack[-1]:
if stack[-1] < -new:
stack.pop()
continue
elif stack[-1] == -new:
stack.pop()
break
else:
stack.append(new)
return stack

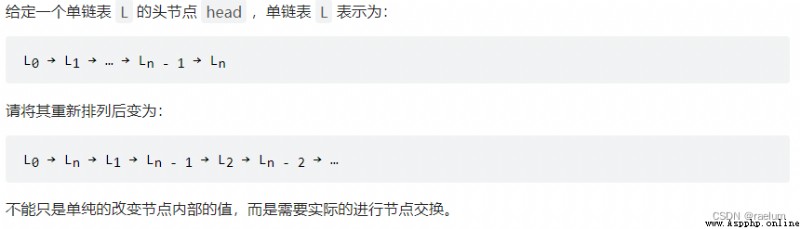

The specific idea is , First, find the intermediate node , Then cut off the first half and the second half of the list , Then reverse the linked list in the second half , Finally, merge the two linked lists .
class Solution:
def reorderList(self, head: ListNode) -> None:
if not head:
return
mid = self.middleNode(head)
l1 = head
l2 = mid.next
mid.next = None
l2 = self.reverseList(l2)
self.mergeList(l1, l2)
def middleNode(self, head: ListNode) -> ListNode:
slow = fast = head
while fast.next and fast.next.next:
slow = slow.next
fast = fast.next.next
return slow
def reverseList(self, head: ListNode) -> ListNode:
prev = None
curr = head
while curr:
nextTemp = curr.next
curr.next = prev
prev = curr
curr = nextTemp
return prev
def mergeList(self, l1: ListNode, l2: ListNode):
while l1 and l2:
l1_tmp = l1.next
l2_tmp = l2.next
l1.next = l2
l1 = l1_tmp
l2.next = l1
l2 = l2_tmp
