Calculation of inflection point of Chinese characters in Python

編輯:Python

List of articles

    • One 、 Calculation principle of line curvature
    • Two 、 Segment inflection point extraction process
    • 3、 ... and 、python Realize the extraction of inflection point
      • 3.1、 Smoothing of curve points
        • 3.1.1、 First order Bessel curve fitting
        • 3.1.2、 Quadratic Bessel curve fitting
      • 3.2、 Calculation of inflection point
        • 3.2.1、Bending value The calculation of
        • 3.2.2、 Judge whether the three points are on the same straight line
        • 3.2.3、 Calculate inflection point

One 、 Calculation principle of line curvature

General curvature calculation method , Such as Xuanchang proportional method 、 Three times B Spline expression 、 Linear polygon approximation and local symmetry . Today is mainly about Bending value algorithm (Bending value) Algorithm . The expression is :
b i k = m a x ( ∣ ( x i − k − x i ) + ( x i + k − x i ) ) ∣ , ∣ ( y i − k − y i ) + ( y i + k − y i ) ∣ ) b_{ik}=max(|(x_{i-k}-x_{i})+(x_{i+k}-x_{i}))|,|(y_{i-k}-y_{i})+(y_{i+k}-y_{i})|) bik​=max(∣(xi−k​−xi​)+(xi+k​−xi​))∣,∣(yi−k​−yi​)+(yi+k​−yi​)∣)

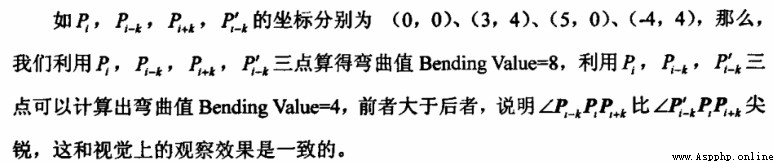

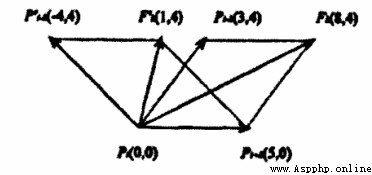

Calculation Bending Value The schematic diagram of is as follows :

Reference link :

Writing quality evaluation of handwritten Chinese characters

Two 、 Segment inflection point extraction process

  • Calculate the Bending Value, Write it down as B v ( i ) Bv(i) Bv(i), Here you need to initialize the threshold delta=1.1 And search scope k=1

  • When B v ( i ) > d e l t a Bv(i)>delta Bv(i)>delta, And for all i − k < = j < = i + k i-k<=j<=i+k i−k<=j<=i+k, Both B v ( i ) > = B v ( j ) Bv(i)>=Bv(j) Bv(i)>=Bv(j), Then the point conforms to the property of maximum local curvature , As a candidate inflection point .

  • Screening condition 1 : Judge three adjacent inflection points p i − 1 p_{i-1} pi−1​、 p i p_{i} pi​、 p i + 1 p_{i+1} pi+1​ Whether it is on the same straight line , If it is, exclude this point

  • Screening condition 2 : Calculate the adaptive bending value (Bending Value). The algorithm flow is as follows :

    Calculate the search range of candidate points k from 1 Began to increase , use b i k b_{ik} bik​ At present Bending Value. If b i k > = b i k + 1 b_{ik}>=b_{ik+1} bik​>=bik+1​,k increase 1, Otherwise, stop increasing . Find continuous Bending Value After value , It is necessary to average again , As the bending value of the final point , The calculation formula is as follows :
    b v i = 1 k i ∑ j = 1 k i b i j b_{v_{i}}=\frac{1}{k_{i}}\sum^{k_{i}}_{j=1}b_{ij} bvi​​=ki​1​j=1∑ki​​bij​
    According to the calculated adaptive inflection point , The following conditions also need to be met :

    • Conditions for a : b v i < t h e t a b_{v_{i}}<theta bvi​​<theta
    • Condition 2 : b v i < b v j b_{v_{i}}<b_{v_{j}} bvi​​<bvj​​, about j = i − 1 j=i-1 j=i−1 or j = i + 1 j=i+1 j=i+1
    • Condition 3 : b v i = b v i − 1 b_{v_{i}}=b_{v_{i-1}} bvi​​=bvi−1​​, also k i < k i − 1 k_{i}<k_{i-1} ki​<ki−1​
    • Condition 4 : b v i = b v i + 1 b_{v_{i}}=b_{v_{i+1}} bvi​​=bvi+1​​, also k i < = k i + 1 k_{i}<=k_{i+1} ki​<=ki+1​

    Condition one means Bending Value The value should be greater than the threshold , Condition 2 、 3、 ... and 、 Four indicates that the inflection point must be a local maximum

3、 ... and 、python Realize the extraction of inflection point

3.1、 Smoothing of curve points

After obtaining the points of the curve, there may be a large interval between points , We need to sample these points to increase their continuity . General sampling methods include DDA、 First order Bessel curve fitting 、 Quadratic Bessel curve fitting or cubic Bessel curve clutch . among DDA It is similar to the first-order Bessel curve fitting . Both are sampled by the slope of the straight line between two points , Of course, use higher-order methods , The sampling curve is also smoother .

3.1.1、 First order Bessel curve fitting

As shown in the figure above , For two points on the plane P0 and P1, Suppose another point B From P0 Move to P1 spot , Then there are B The point is t The coordinate formula of time :

take B The line formed by connecting the coordinates of points at each time in turn , Is the so-called Bezier curve . This formula represents a Bessel curve , Also known as linear Bessel curve .

python The implementation is as follows :

def getFirstBezierPointByT(start,end,t):
''' Calculate the coordinate value of each time according to the calculation formula of the first bell curve :param start: :param end: :param t: :return: '''
x=(1-t)*start[0]+t*end[0]
y=(1-t)*start[1]+t*end[1]
return [x,y]
def calculateFirstBezierPoints(start,end):
''' Calculate the set of Searle curve points between two points :param start: :param handle: :param end: :return: '''
bx=start[0]
by=start[1]
ex=end[0]
ey=end[1]
beDis=math.sqrt(math.pow((bx-ex),2)+math.pow((by-ey),2))
count=int(beDis//1)
if count<2:
return [start]
step = 1.0 / count
points=[]
t = 0.0
for i in range(count):
points.append(getFirstBezierPointByT(start, end, t))
t += step
return points
def firstBezierCurveFitting(pts):
''' First order Bessel curve fitting :param pts: :return: '''
new_pts = []
for pt in pts:
new_pt = []
for i in range(0, (len(pt) - 1)):
pp=calculateFirstBezierPoints(pt[i], pt[i + 1])
new_pt += pp
new_pt.append(pt[len(pt)-1])
new_pts.append(new_pt)
return new_pts

3.1.2、 Quadratic Bessel curve fitting

similarly , For three points on the plane P0、P1 and P2 , hypothesis P0P1 There is a point between B1 From P0 Moving to P1 ,P1P2 There is a point between B2 From P1 Moving to P2, Then there are :


Suppose another point B From B1 Moving to B2, Then there are B Coordinate formula of point :

take B1 and B2 The coordinate formula of is substituted into the above expression , After finishing, we get B Coordinate formula of point :

B The curve formed by the coordinates of points at each time is called quadratic Bessel curve , among P0 and P2 be called The data points ,P1 be called The control points .
Specifically python For implementation, please refer to the following link .

Reference link :

A simple Bessel fitting algorithm

3.2、 Calculation of inflection point

3.2.1、Bending value The calculation of

def computeBendingValue(p1,p2,p3):
''' Calculate the bending value :param p1: :param p2: :param p3: :return: '''
return max(abs(p1[0]+p3[0]-2*p2[0]),abs(p1[1]+p3[1]-2*p2[1]))

3.2.2、 Judge whether the three points are on the same straight line

def isSameGradient(p1,p2,p3):
''' Judge whether the adjacent three points are on the same straight line :param p1: :param p2: :param p3: :return: '''
g1=(p1[1]-p2[1])/(p1[0]-p2[0]+0.00001)
g2=(p2[1]-p3[1])/(p2[0]-p3[0]+0.00001)
return g1==g2

3.2.3、 Calculate inflection point

When calculating the inflection point , There are some core considerations :

  • Calculate the end of the handwriting Bending value, Some pretreatment is needed , My treatment is as follows :

    # When at the left endpoint
    if i-k<0:
    p1=pt[i]
    else:
    p1=pt[i-k]
    # When at the right end
    if i+k>=len(pt):
    p3=pt[i]
    else:
    p3=pt[i+k]

  • How to calculate adaptivity Bending value

     k0=1
    bv0=0
    bv_list=[]
    # Calculate all of the candidate inflection points Bending Value Curvature , Up to the maximum
    while k0+i<len(pt) and i-k0>0:
    bv0=computeBendingValue(pt[i-k0],pt[i],pt[i+k0])
    if bv0>=bv:
    bv_list.append(bv0)
    bv=bv0
    k0+=1
    if bv0<bv:
    break
    k_list[i]=k0
    # Calculate the average of all curvature , The curvature of the final candidate point
    if len(bv_list)==0:
    avg_bv=bv
    else:
    avg_bv=sum(bv_list)/len(bv_list)

  • Further screening inflection point implementation

     # Conditions for a :bv<theta.theta=1.1
    # Condition 2 :bvi<bvj and j=i-1 or j=i+1, Express
    # Condition 3 :bvi==bvi-1 and ki<ki-1
    # Condition 4 :bvi==bvi+1 and ki<=ki+1
    # Condition one means Bending Value Should be greater than theta; Condition 2 ~ Four representations Bending Value It should be a local maximum
    if avg_bv<1.1 or \
    (curvs[i] < curvs[i - 1] or curvs[i] < curvs[i + 1]) or \
    (curvs[i]==curvs[i-1] and k_list[i]<k_list[i-1]) or \
    (curvs[i]==curvs[i+1] and k_list[i]<=k_list[i+1]):
    continue
    else:
    result.append(i)

  • Finally, we need to further merge adjacent inflection points

     merge_result=[]
    i=0
    tmp=[]
    while i+1<len(result_1):
    if result_1[i+1]-result_1[i]<5:
    tmp.append(result_1[i])
    if i+1==len(result_1)-1:
    tmp.append(result_1[i+1])
    merge_result.append(tmp)
    tmp=[]
    else:
    tmp.append(result_1[i])
    merge_result.append(tmp)
    tmp=[]
    if i + 1 == len(result_1) - 1:
    merge_result.append([result_1[i+1]])
    i=i+1
    # Merge the final results
    new_result=[]
    for res in merge_result:
    avg_res=sum(res)//len(res)
    new_result.append(avg_res)

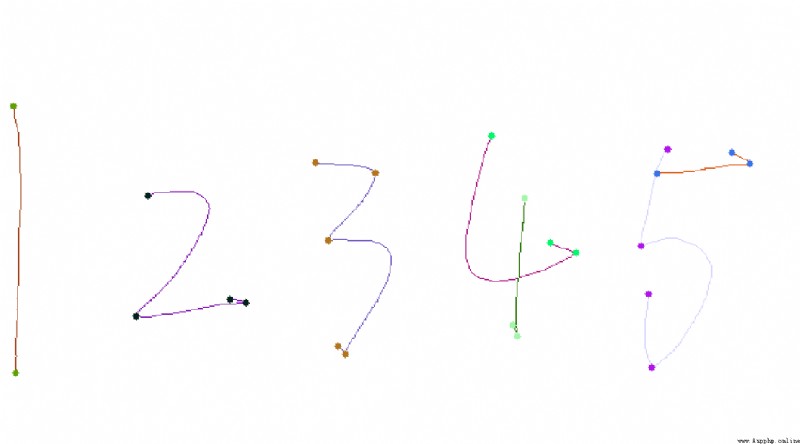

Because of the project , It is not convenient to provide complete code , But the core point has been given , For your reference . The final results are as follows :
