Software use cases in micropython kernel development notebook: simple experimental circuit board design

編輯:Python

Jane Medium : This paper gives MicroPython Kernel Development Notes : Experimental tasks are embedded in the book The simple experimental circuit board in .

key word Simple experimental circuit board

The contents of the manuscript Objective record
Contents
Schematic diagram of circuit board PCB Territory Welded circuit board total junction



  • The contents of this manuscript belong to MicroPython Kernel Development Notes : Experimental tasks are embedded in the book The content in .



§01 book Draft content


Imitate some popular MicroPython card , Most of them are single-chip computers 、 The debugging interface and necessary circuits are compactly packaged on a circuit board , External passing distance 100mil The pin of can be conveniently connected with other circuit boards 、 Bread board connection , Complete the basic test experiment . Compared with PLUS-F3270 Experiment board , This kind of experimental circuit board can build various test circuits more flexibly .

Here is with SD The design schematic diagram and PCB Territory . What's interesting is that , In order to adapt to rapid plate making based on heat transfer ,PCB The layout is specially laid on one side , Only used less 0 Ohmic resistance acts as a jumper , The proposed experimental circuit board can be made on single-sided copper clad laminate .

One 、 Schematic diagram of circuit board

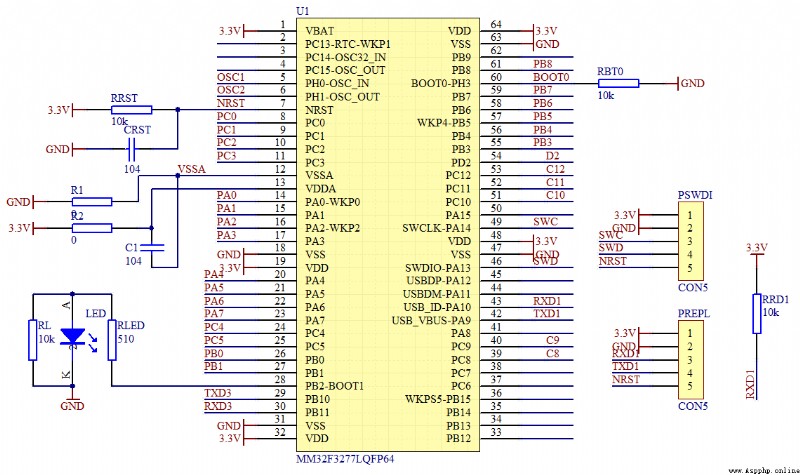

▲ chart 1.1.1 CPU circuit

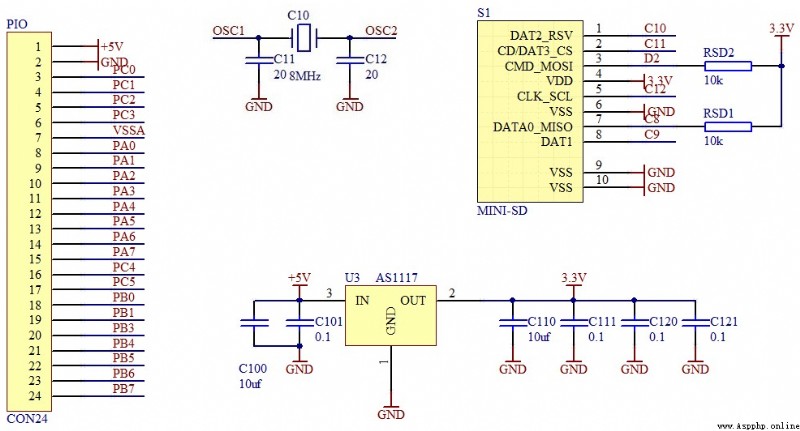

▲ chart 1.1.2 CPU Peripheral circuits

Two 、PCB Territory

Here is PCB Territory , It is suitable for rapid plate making on one side . If you use double-sided board , The circuit can be made more exquisite .

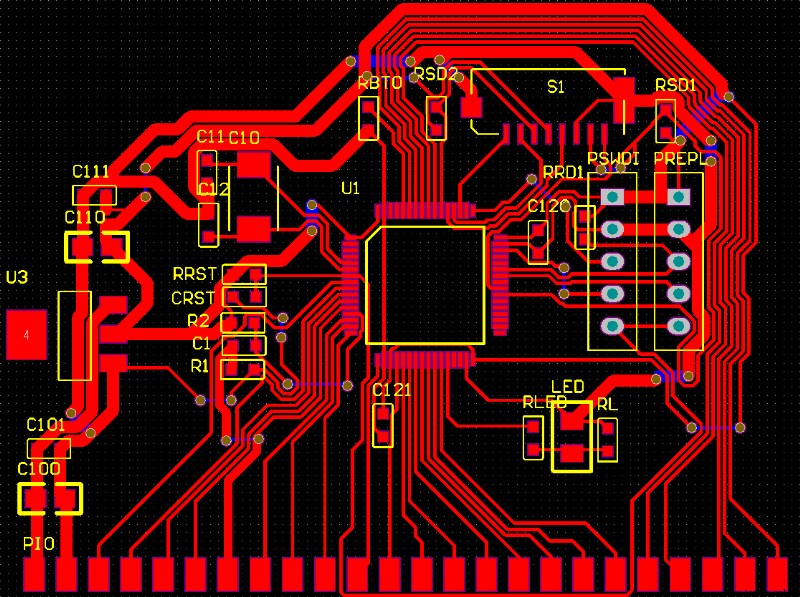

▲ chart 1.2.1 PCB Territory

3、 ... and 、 Welded circuit board

The following is the printed circuit board after welding . It can be inserted into the panel board to build the experimental circuit .

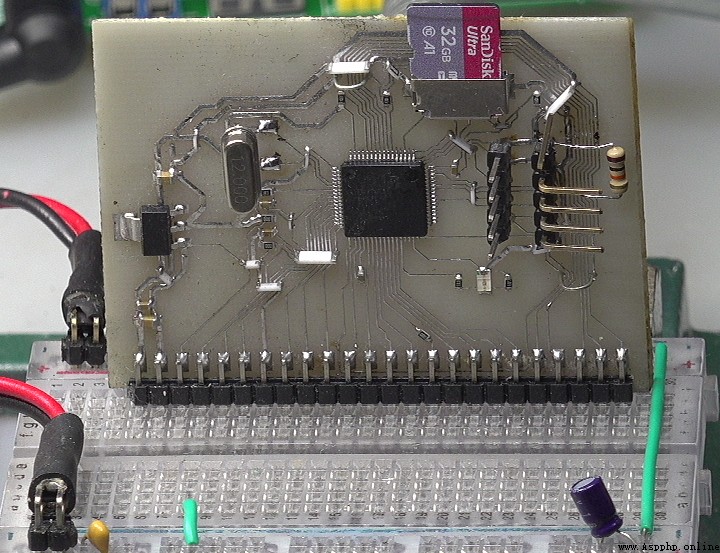

▲ chart 1.2.2 After welding, insert it on the bread board for experiment



※ total junction ※


This paper gives MicroPython Kernel Development Notes : Experimental tasks are embedded in the book The simple experimental circuit board in .
