【自動駕駛】路徑規劃—— Dubins 曲線公式總結及python代碼實現(基於幾何的方法)

編輯:Python

文章目錄

  • 參考資料
  • 1. Dubins 曲線計算
    • 1.1 坐標變換
    • 1.2 LSL路徑
    • 1.3 RSR路徑
    • 1.4 RSL路徑
    • 1.5 LSR路徑
    • 1.6 RLR路徑
    • 1.7 LRL路徑

參考資料

  • Classification of the Dubins set
  • Dubins 曲線計算筆記
  • Dubins path planning

前文

Dubins 曲線推導(基於向量的方法)

前文已經從向量的角度進行了Dubins曲線公式的推導,這篇博客主要基於這篇論文《Classification of the Dubins set》介紹基於幾何的關系下的dubins曲線公式,論文每一種情況都有詳細的推導,因此這裏只給出每種情況的公式,推導過程大家參考論文即可。


1. Dubins 曲線計算

dubins路徑集合為 { L S L , R S R , R S L , L S R , R L R , L R L } \{LSL, RSR, RSL, LSR, RLR, LRL\} { LSL,RSR,RSL,LSR,RLR,LRL}。 L L L錶示向左轉的圓弧運動, R R R錶示向右轉的圓弧運動, S S S錶示沿直線運動。

1.1 坐標變換

設起點為 s ( x i , y i , α i ) s\left(x_{i}, y_{i}, \alpha_{i}\right) s(xi​,yi​,αi​) ,終點為 g ( x g , y g , β g ) g\left(x_{g}, y_{g}, \beta_{g}\right) g(xg​,yg​,βg​) , 先坐標變換將起點平移至原點,並旋轉 θ \theta θ 角,則終點也落在 x \mathrm{x} x 軸上,起點和終點的坐標為 s ( 0 , 0 , α ) , g ( d , 0 , β ) s(0,0, \alpha), g(d, 0, \beta) s(0,0,α),g(d,0,β) ,其中:
θ = atan ⁡ 2 ( y g − y i x g − x i ) m o d { 2 π } D = ( x i − x g ) 2 + ( y i − y g ) 2 d = D / R α = ( α i − θ ) m o d { 2 π } β = ( β g − θ ) m o d { 2 π } (1) \tag{1} \begin{gathered} \theta=\operatorname{atan} 2\left(\frac{y_{g}-y_{i}}{x_{g}-x_{i}}\right) \bmod\{2\pi\} \\ D=\sqrt{\left(x_{i}-x_{g}\right)^{2}+\left(y_{i}-y_{g}\right)^{2}} \\ d=D / R \\ \alpha= \left(\alpha_{i}-\theta\right) \bmod\{2\pi\} \\ \beta= \left(\beta_{g}-\theta\right) \bmod\{2\pi\} \end{gathered} θ=atan2(xg​−xi​yg​−yi​​)mod{ 2π}D=(xi​−xg​)2+(yi​−yg​)2​d=D/Rα=(αi​−θ)mod{ 2π}β=(βg​−θ)mod{ 2π}​(1)

幾點說明

  • 其中 θ \theta θ 為起點和終點航向角度差,上面的角度都在 [ 0 , 2 π ] [0,2 \pi] [0,2π] 之間。

  • 上面用 D D D 除上 R R R這樣處理可以使每個最小轉彎半徑 R R R都為 1 ,由角度計算弧長時更方便,弧長即等於角度的弧度,因此在後面看到的 cos ⁡ ( α ) \cos (\alpha) cos(α) ,其實是前面省略了 R R R 。

  • m o d ( ) mod() mod()是取模運算,例如: m o d ( 3 π , 2 π ) = 3 π m o d 2 π = π \bmod(3\pi,2\pi)=3\pi \bmod 2 \pi=\pi mod(3π,2π)=3πmod2π=π。下述的 β ( m o d 2 π ) \beta(\bmod 2 \pi) β(mod2π)也是這個意思,即 β \beta β對 2 π 2\pi 2π取模。python實現方式很簡單,如下:

    def mod2pi(theta):
    """對2pi取模運算 """
    return theta - 2.0 * math.pi * math.floor(theta / 2.0 / math.pi)


坐標變換的python實現很簡單,如下:

 # 坐標變換
dx = g_x-s_x
dy = g_y-s_y
D = math.hypot(dx, dy)
d = D * curvature
theta = mod2pi(math.atan2(dy, dx))
alpha = mod2pi(s_yaw - theta)
beta = mod2pi(g_yaw - theta)

設車輛在起始圓上走過的長度為 t t t ,直線段長度為 p p p ,第二個圓上的圓弧長度為 q q q,整個路徑長度 L = t + p + q L=t+p+q L=t+p+q。下面依次給出6種情況的軌跡公式。

1.2 LSL路徑

L S L LSL LSL路徑的軌跡長度公式如下:
t l s l = − α + arctan ⁡ cos ⁡ β − cos ⁡ α d + sin ⁡ α − sin ⁡ β { m o d 2 π } p l s l = 2 + d 2 − 2 cos ⁡ ( α − β ) + 2 d ( sin ⁡ α − sin ⁡ β ) q l s l = β − arctan ⁡ cos ⁡ β − cos ⁡ α d + sin ⁡ α − sin ⁡ β { m o d 2 π } (2) \tag{2} \begin{aligned} &t_{l s l}=-\alpha+\arctan \frac{\cos \beta-\cos \alpha}{d+\sin \alpha-\sin \beta}\{\bmod 2 \pi\} \\ &p_{l s l}=\sqrt{2+d^{2}-2 \cos (\alpha-\beta)+2 d(\sin \alpha-\sin \beta)} \\ &q_{l s l}=\beta-\arctan \frac{\cos \beta-\cos \alpha}{d+\sin \alpha-\sin \beta}\{\bmod 2 \pi\} \end{aligned} ​tlsl​=−α+arctand+sinα−sinβcosβ−cosα​{ mod2π}plsl​=2+d2−2cos(α−β)+2d(sinα−sinβ)​qlsl​=β−arctand+sinα−sinβcosβ−cosα​{ mod2π}​(2)
總長度等於:
L l s l = t l s l + p l s l + q l s l = − α + β + p l s l (3) \tag{3} \mathcal{L}_{l s l}=t_{l s l}+p_{l s l}+q_{l s l}=-\alpha+\beta+p_{l s l} Llsl​=tlsl​+plsl​+qlsl​=−α+β+plsl​(3)

python實現如下

def left_straight_left(alpha, beta, d):
"""LSL路徑 """
sa = math.sin(alpha)
sb = math.sin(beta)
ca = math.cos(alpha)
cb = math.cos(beta)
c_ab = math.cos(alpha - beta)
tmp0 = d + sa - sb
mode = ["L", "S", "L"]
p_squared = 2 + (d * d) - (2 * c_ab) + (2 * d * (sa - sb))
if p_squared < 0:
return None, None, None, mode
tmp1 = math.atan2((cb - ca), tmp0)
t = mod2pi(-alpha + tmp1)
p = math.sqrt(p_squared)
q = mod2pi(beta - tmp1)
return t, p, q, mode

1.3 RSR路徑

R S R RSR RSR路徑的軌跡長度公式如下:

t r s r = α − arctan ⁡ cos ⁡ α − cos ⁡ β d − sin ⁡ α + sin ⁡ β { m o d 2 π } p r s r = 2 + d 2 − 2 cos ⁡ ( α − β ) + 2 d ( sin ⁡ β − sin ⁡ α ) q r s r = − β ( m o d 2 π ) + arctan ⁡ cos ⁡ α − cos ⁡ β d − sin ⁡ α + sin ⁡ β { m o d 2 π } (4) \tag{4} \begin{aligned} t_{r s r} &=\alpha-\arctan \frac{\cos \alpha-\cos \beta}{d-\sin \alpha+\sin \beta}\{\bmod 2 \pi\} \\ p_{r s r} &=\sqrt{2+d^{2}-2 \cos (\alpha-\beta)+2 d(\sin \beta-\sin \alpha)} \\ q_{r s r} &=-\beta(\bmod 2 \pi)+\arctan \frac{\cos \alpha-\cos \beta}{d-\sin \alpha+\sin \beta}\{\bmod 2 \pi\} \\ \end{aligned} trsr​prsr​qrsr​​=α−arctand−sinα+sinβcosα−cosβ​{ mod2π}=2+d2−2cos(α−β)+2d(sinβ−sinα)​=−β(mod2π)+arctand−sinα+sinβcosα−cosβ​{ mod2π}​(4)

總長度等於:
L r s r = t r s r + p r s r + q r s r = α − β + p r s r (5) \tag{5} \mathcal{L}_{r s r} =t_{r s r}+p_{r s r}+q_{r s r}=\alpha-\beta+p_{r s r} Lrsr​=trsr​+prsr​+qrsr​=α−β+prsr​(5)

python實現如下

def right_straight_right(alpha, beta, d):
"""RSR路徑 """
sa = math.sin(alpha)
sb = math.sin(beta)
ca = math.cos(alpha)
cb = math.cos(beta)
c_ab = math.cos(alpha - beta)
tmp0 = d - sa + sb
mode = ["R", "S", "R"]
p_squared = 2 + (d * d) - (2 * c_ab) + (2 * d * (sb - sa))
if p_squared < 0:
return None, None, None, mode
tmp1 = math.atan2((ca - cb), tmp0)
t = mod2pi(alpha - tmp1)
p = math.sqrt(p_squared)
q = mod2pi(-mod2pi(beta) + tmp1)
return t, p, q, mode

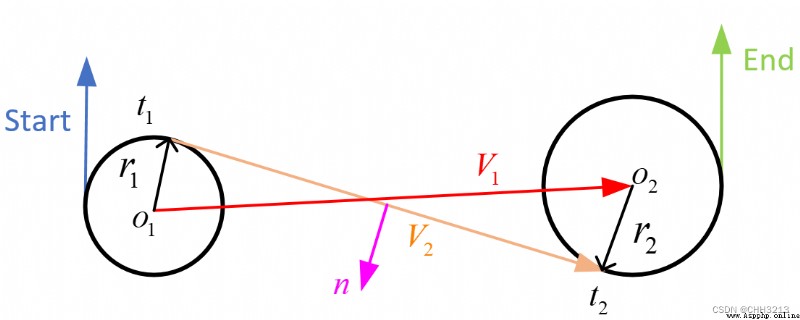

1.4 RSL路徑

R S L RSL RSL路徑的軌跡長度公式如下:

t r s l = α − arctan ⁡ ( cos ⁡ α + cos ⁡ β d − sin ⁡ α − sin ⁡ β ) + arctan ⁡ ( 2 p r s l ) { m o d 2 π } p r s l = d 2 − 2 + 2 cos ⁡ ( α − β ) − 2 d ( sin ⁡ α + sin ⁡ β ) q r s l = β ( m o d 2 π ) − arctan ⁡ ( cos ⁡ α + cos ⁡ β d − sin ⁡ α − sin ⁡ β ) + arctan ⁡ ( 2 p r s l ) { m o d 2 π } (6) \tag{6} \begin{aligned} t_{r s l} &=\alpha-\arctan \left(\frac{\cos \alpha+\cos \beta}{d-\sin \alpha-\sin \beta}\right)+\arctan \left(\frac{2}{p_{r s l}}\right)\{\bmod 2 \pi\} \\ p_{r s l} &=\sqrt{d^{2}-2+2 \cos (\alpha-\beta)-2 d(\sin \alpha+\sin \beta)} \\ q_{r s l} &=\beta(\bmod 2 \pi)-\arctan \left(\frac{\cos \alpha+\cos \beta}{d-\sin \alpha-\sin \beta}\right)+\arctan \left(\frac{2}{p_{r s l}}\right)\{\bmod 2 \pi\} \\ \end{aligned} trsl​prsl​qrsl​​=α−arctan(d−sinα−sinβcosα+cosβ​)+arctan(prsl​2​){ mod2π}=d2−2+2cos(α−β)−2d(sinα+sinβ)​=β(mod2π)−arctan(d−sinα−sinβcosα+cosβ​)+arctan(prsl​2​){ mod2π}​(6)

總長度等於:
L r s l = t r s l + p r s l + q r s l = − α + β + 2 t r s l + p r s l (7) \tag{7} \mathcal{L}_{r s l} =t_{r s l}+p_{r s l}+q_{r s l}=-\alpha+\beta+2 t_{r s l}+p_{r s l} Lrsl​=trsl​+prsl​+qrsl​=−α+β+2trsl​+prsl​(7)

python實現如下

def right_straight_left(alpha, beta, d):
"""RSL路徑 """
sa = math.sin(alpha)
sb = math.sin(beta)
ca = math.cos(alpha)
cb = math.cos(beta)
c_ab = math.cos(alpha - beta)
p_squared = (d * d) - 2 + (2 * c_ab) - (2 * d * (sa + sb))
mode = ["R", "S", "L"]
if p_squared < 0:
return None, None, None, mode
p = math.sqrt(p_squared)
tmp2 = math.atan2((ca + cb), (d - sa - sb)) - math.atan2(2.0, p)
t = mod2pi(alpha - tmp2)
q = mod2pi(mod2pi(beta) - tmp2)
return t, p, q, mode

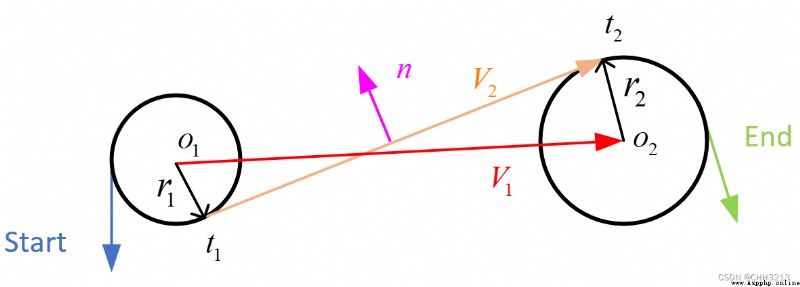

1.5 LSR路徑

L S R LSR LSR路徑的軌跡長度公式如下:

t l s r = ( − α + arctan ⁡ ( − cos ⁡ α − cos ⁡ β d + sin ⁡ α + sin ⁡ β ) − arctan ⁡ ( − 2 p l s r ) ) { m o d 2 π } p l s r = − 2 + d 2 + 2 cos ⁡ ( α − β ) + 2 d ( sin ⁡ α + sin ⁡ β ) q l s r = − β ( m o d 2 π ) + arctan ⁡ ( − cos ⁡ α − cos ⁡ β d + sin ⁡ α + sin ⁡ β ) − arctan ⁡ ( − 2 p l s r ) { m o d 2 π } (8) \tag{8} \begin{aligned} t_{l s r} &=\left(-\alpha+\arctan \left(\frac{-\cos \alpha-\cos \beta}{d+\sin \alpha+\sin \beta}\right)-\arctan \left(\frac{-2}{p_{l s r}}\right)\right)\{\bmod 2 \pi\} \\ p_{l s r} &=\sqrt{-2+d^{2}+2 \cos (\alpha-\beta)+2 d(\sin \alpha+\sin \beta)} \\ q_{l s r} &=-\beta(\bmod 2 \pi)+\arctan \left(\frac{-\cos \alpha-\cos \beta}{d+\sin \alpha+\sin \beta}\right)-\arctan \left(\frac{-2}{p_{l s r}}\right)\{\bmod 2 \pi\} \\ \end{aligned} tlsr​plsr​qlsr​​=(−α+arctan(d+sinα+sinβ−cosα−cosβ​)−arctan(plsr​−2​)){ mod2π}=−2+d2+2cos(α−β)+2d(sinα+sinβ)​=−β(mod2π)+arctan(d+sinα+sinβ−cosα−cosβ​)−arctan(plsr​−2​){ mod2π}​(8)

總長度等於:
L l s r = t l s r + p l s r + q l s r = α − β + 2 t l s r + p l s r (9) \tag{9} \mathcal{L}_{l s r} =t_{l s r}+p_{l s r}+q_{l s r}=\alpha-\beta+2 t_{l s r}+p_{l s r} Llsr​=tlsr​+plsr​+qlsr​=α−β+2tlsr​+plsr​(9)

python實現如下

def left_straight_right(alpha, beta, d):
"""LSR路徑 """
sa = math.sin(alpha)
sb = math.sin(beta)
ca = math.cos(alpha)
cb = math.cos(beta)
c_ab = math.cos(alpha - beta)
p_squared = -2 + (d * d) + (2 * c_ab) + (2 * d * (sa + sb))
mode = ["L", "S", "R"]
if p_squared < 0:
return None, None, None, mode
p = math.sqrt(p_squared)
tmp2 = math.atan2((-ca - cb), (d + sa + sb)) - math.atan2(-2.0, p)
t = mod2pi(-alpha + tmp2)
q = mod2pi(-mod2pi(beta) + tmp2)
return t, p, q, mode

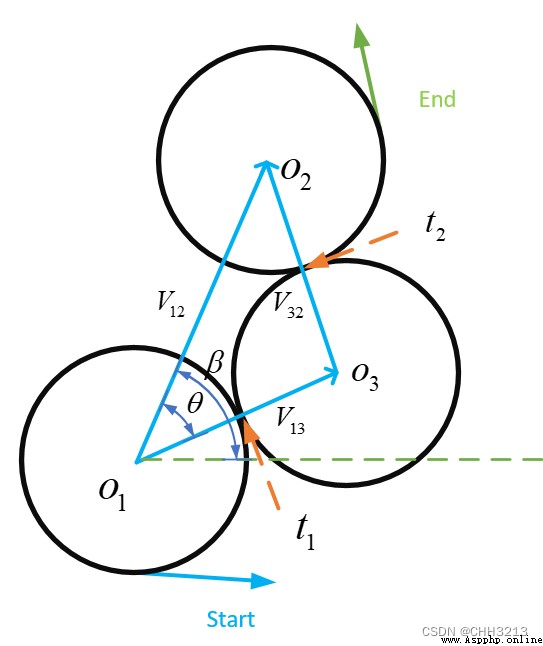

1.6 RLR路徑

R L R RLR RLR路徑的軌跡長度公式如下:
t r l r = α − arctan ⁡ ( cos ⁡ α − cos ⁡ β d − sin ⁡ α + sin ⁡ β ) + p r l r 2 { m o d 2 π } p r l r = arccos ⁡ 1 8 ( 6 − d 2 + 2 cos ⁡ ( α − β ) + 2 d ( sin ⁡ α − sin ⁡ β ) ) q r l r = α − β − t r l r + p r l r { m o d 2 π } (10) \tag{10} \begin{aligned} &t_{r l r}=\alpha-\arctan \left(\frac{\cos \alpha-\cos \beta}{d-\sin \alpha+\sin \beta}\right)+\frac{p_{r l r}}{2}\{\bmod 2 \pi\} \\ &p_{r l r}=\arccos \frac{1}{8}\left(6-d^{2}+2 \cos (\alpha-\beta)+2 d(\sin \alpha-\sin \beta)\right) \\ &q_{r l r}=\alpha-\beta-t_{r l r}+p_{r l r}\{\bmod 2 \pi\} \\ \end{aligned} ​trlr​=α−arctan(d−sinα+sinβcosα−cosβ​)+2prlr​​{ mod2π}prlr​=arccos81​(6−d2+2cos(α−β)+2d(sinα−sinβ))qrlr​=α−β−trlr​+prlr​{ mod2π}​(10)

總長度等於:
L r l r = t r l r + p r l r + q r l r = α − β + 2 p r l r (11) \tag{11} \mathcal{L}_{r l r}=t_{r l r}+p_{r l r}+q_{r l r}=\alpha-\beta+2 p_{r l r} Lrlr​=trlr​+prlr​+qrlr​=α−β+2prlr​(11)

python實現如下

def right_left_right(alpha, beta, d):
"""RLR路徑 """
sa = math.sin(alpha)
sb = math.sin(beta)
ca = math.cos(alpha)
cb = math.cos(beta)
c_ab = math.cos(alpha - beta)
mode = ["R", "L", "R"]
tmp_rlr = (6.0 - d * d + 2.0 * c_ab + 2.0 * d * (sa - sb)) / 8.0
if abs(tmp_rlr) > 1.0:
return None, None, None, mode
p = mod2pi(math.acos(tmp_rlr))
t = mod2pi(alpha - math.atan2(ca - cb, d - sa + sb) + mod2pi(p / 2.0))
q = mod2pi(alpha - beta - t + p)
return t, p, q, mode

上述實現方式得不到最優結果,很奇怪,下面這種寫法倒是可以得到最優結果:

def right_left_right(alpha, beta, d):
"""RLR路徑,這部分的實現與公式不一致,改成與公式一致後反而得不到最優路徑 """
sa = math.sin(alpha)
sb = math.sin(beta)
ca = math.cos(alpha)
cb = math.cos(beta)
c_ab = math.cos(alpha - beta)
mode = ["R", "L", "R"]
tmp_rlr = (6.0 - d * d + 2.0 * c_ab + 2.0 * d * (sa - sb)) / 8.0
if abs(tmp_rlr) > 1.0:
return None, None, None, mode
p = mod2pi(2 * math.pi - math.acos(tmp_rlr))
t = mod2pi(alpha - math.atan2(ca - cb, d - sa + sb) + mod2pi(p / 2.0))
q = mod2pi(alpha - beta - t + mod2pi(p))
return t, p, q, mode

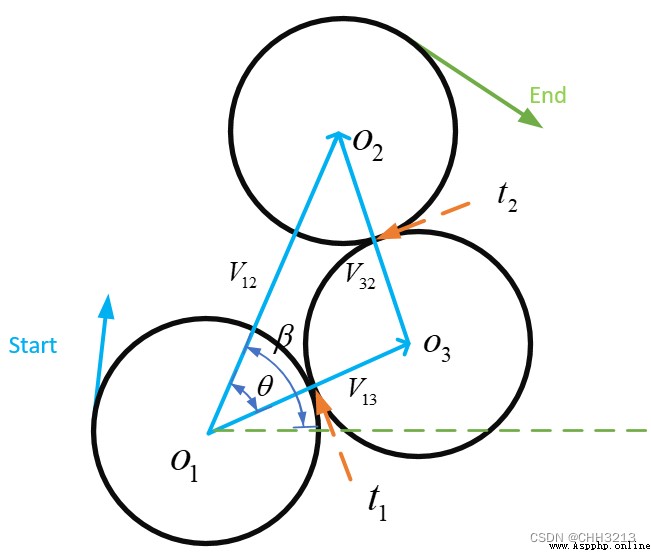

1.7 LRL路徑

L R L LRL LRL路徑的軌跡長度公式如下:
t l r l = ( − α + arctan ⁡ ( − cos ⁡ α + cos ⁡ α d + sin ⁡ α − sin ⁡ β ) + p l r l 2 ) { m o d 2 π } p l r l = arccos ⁡ 1 8 ( 6 − d 2 + 2 cos ⁡ ( α − β ) + 2 d ( sin ⁡ α − sin ⁡ β ) ) { m o d 2 π } q l r l = β ( m o d 2 π ) − α + 2 p l r l { m o d 2 π } (12) \tag{12} \begin{aligned} &t_{l r l}=\left(-\alpha+\arctan \left(\frac{-\cos \alpha+\cos \alpha}{d+\sin \alpha-\sin \beta}\right)+\frac{p_{l r l}}{2}\right)\{\bmod 2 \pi\} \\ &p_{l r l}=\arccos \frac{1}{8}\left(6-d^{2}+2 \cos (\alpha-\beta)+2 d(\sin \alpha-\sin \beta)\right)\{\bmod 2 \pi\} \\ &q_{l r l}=\beta(\bmod 2 \pi)-\alpha+2 p_{l r l}\{\bmod 2 \pi\} \end{aligned} ​tlrl​=(−α+arctan(d+sinα−sinβ−cosα+cosα​)+2plrl​​){ mod2π}plrl​=arccos81​(6−d2+2cos(α−β)+2d(sinα−sinβ)){ mod2π}qlrl​=β(mod2π)−α+2plrl​{ mod2π}​(12)

總長度等於:
L l r l = t l r l + p l r l + q l r l = − α + β + 2 p l r l . (13) \tag{13} \mathcal{L}_{l r l}=t_{l r l}+p_{l r l}+q_{l r l}=-\alpha+\beta+2 p_{l r l} . Llrl​=tlrl​+plrl​+qlrl​=−α+β+2plrl​.(13)
python實現如下

def left_right_left(alpha, beta, d):
"""LRL路徑 """
sa = math.sin(alpha)
sb = math.sin(beta)
ca = math.cos(alpha)
cb = math.cos(beta)
c_ab = math.cos(alpha - beta)
mode = ["L", "R", "L"]
tmp_lrl = (6.0 - d * d + 2.0 * c_ab + 2.0 * d * (- sa + sb)) / 8.0
if abs(tmp_lrl) > 1:
return None, None, None, mode
p = mod2pi(math.acos(tmp_lrl))
t = mod2pi(-alpha - math.atan2(ca - cb, d + sa - sb) + p / 2.0)
q = mod2pi(mod2pi(beta) - alpha +2*p)
return t, p, q, mode

同樣上述實現方式得不到最優結果,下面這種寫法可以得到最優結果:

def left_right_left(alpha, beta, d):
"""LRL路徑,這部分的實現與公式不一致,改成與公式一致後反而得不到最優路徑 """
sa = math.sin(alpha)
sb = math.sin(beta)
ca = math.cos(alpha)
cb = math.cos(beta)
c_ab = math.cos(alpha - beta)
mode = ["L", "R", "L"]
tmp_lrl = (6.0 - d * d + 2.0 * c_ab + 2.0 * d * (- sa + sb)) / 8.0
if abs(tmp_lrl) > 1:
return None, None, None, mode
p = mod2pi(2 * math.pi - math.acos(tmp_lrl))
t = mod2pi(-alpha - math.atan2(ca - cb, d + sa - sb) + p / 2.0)
q = mod2pi(mod2pi(beta) - alpha - t + mod2pi(p))
return t, p, q, mode

以上完整代碼文件見github倉庫
