Hello everyone , This time I will tell you about TCP Concurrent programming of the protocol , The boss arranged a task before , Realize the connection of multiple instruments to the server TCP Connect , And realize communication . Making programs run concurrently is a topic that is often discussed , Today, let's talk about the development of chat rooms Python TCP Various concurrent modes under communication .

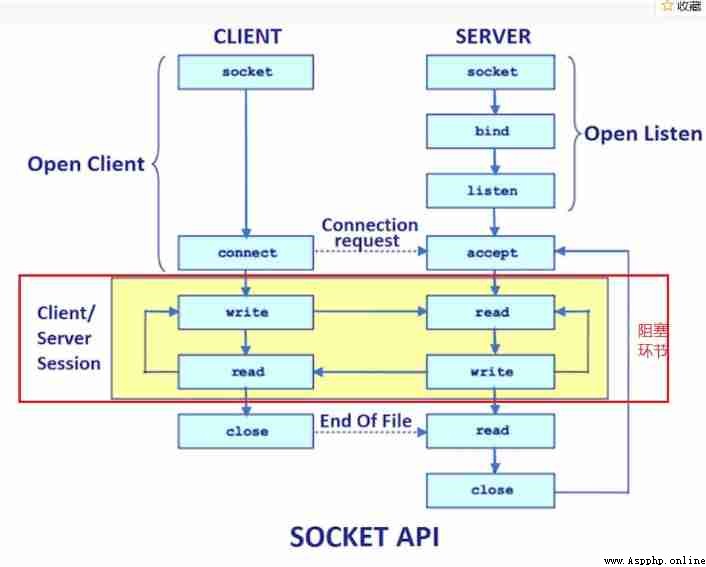

We all know TCP Point to point communication , When a connection is established , Because you want to handle the read and write of this connection , The program will block , Other instruments cannot be connected , as follows :
First ServerSocket Will listen to a port on the server , When the client is found to have Socket To try to connect it , It will accept The Socket Connection request for , At the same time, a corresponding server is established on the server Socket Communicate with . So there are two Socket 了 , One client and one server ( It is also point-to-point communication ).

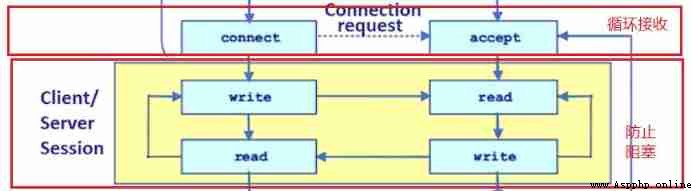

The principle of realizing multiple connections is actually the use of the server Multithreading 、 asynchronous And so on to solve the blocking link in the figure above , Then loop to listen for the connection request of the client , Instantiate one more for each request socket And the client socket Establish point-to-point communication . as follows

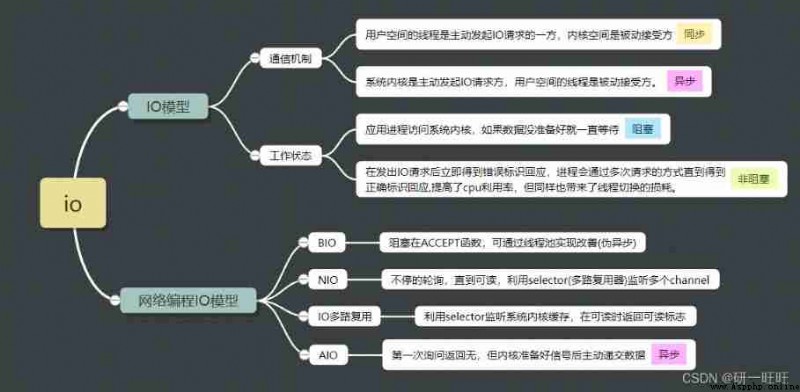

Development of multi person chat room , You need to understand first IO Programming , At the operating system level, first understand linux Systematic IO Model , as follows , Divided into blocking , Non blocking , asynchronous , Synchronization mode . IO The network programming of can be divided into BIO（ Blocking IO）,NIO（ Non blocking IO）,AIO（ asynchronous IO） etc. , Their application scenarios are also different . Use the built-in components of the language to realize IO Network programming model to realize the connection between multiple clients and servers .
Here we will introduce several common implementations TCP Cases of multiple client connections and message forwarding , Take a simple multi person chat as an example .
——————————————————————————
The server of multi person chat room , There are three blocking scenarios , Namely establish socket Connect 、 Client data read in and send data to the client , The first two scenarios need to constantly query the data of the operating system kernel buffer , So you need to poll constantly . as follows , This blocking statement needs to be executed in a loop .
IO The network programming model provided a better method to solve these blocking problems , The following is an introduction .
BIO： Synchronous blocking IO Network programming model

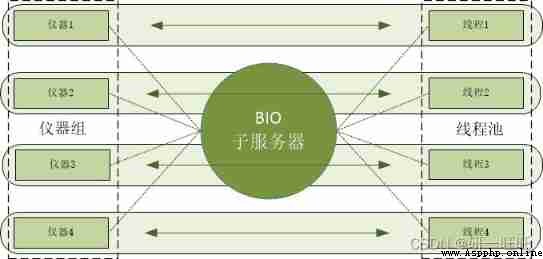

BIO The main thing is that a new thread is opened for each connection , Implement a simple , But waste of resources , It is suitable for less connections , Low development difficulty , Enough server resources .
There's another problem , At the operating system level , Although multithreading can solve the problem of connection blocking , But after the connection is established , If the current thread has no data to read temporarily , Still will Blocking in the operating system kernel cache read Operationally , Waiting for the data to arrive , The efficiency is not high .. Here's the picture , Red circles represent blocking . At the same time python Due to the use of global interpretation lock in （GIL） Why , Code cannot run concurrently on multiple cores at the same time , in other words Python Multiple threads of cannot be concurrent , Use multithreading to improve your own Python After code , The running efficiency of the program may decrease
#**very Simple client **
import socket
clientSocket = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
clientSocket.connect(("127.0.0.1", 8001))
print(" Connected to server ")
clientSocket.send("hello".encode("UTF-8"))
while True:
#data = input(" Client sends data ：").strip() It is recommended to open a thread to process input
data = clientSocket.recv(1024)
print(data.decode())
clientSocket.close()
#BIO The server
from socket import *
import threading
clientAddrList = []
def forwaMsg(socket,msg): # Realize the information forwarding function of the chat room
for item in clientAddrList:
if item[0] != socket: # Forward to others socket
item[0].send(" The server forwarded you ".encode()+msg) #item[1] There is address information in it , You can also add
def handle_request(conn,clientAddr): # Thread event handling
recvData = conn.recv(1024)
if len(recvData) > 0:
print(" come from ",str(clientAddr)," Information about ",recvData)
print(threading.current_thread().getName() ) # When multiple clients are connected here , The output is different threads
#TODO Message forwarding
forwaMsg(clientSocket,recvData)
else:
conn.close()
clientAddrList.remove((conn, clientAddr))
print("%s It's offline " % str(clientAddr))
if __name__=='__main__':
# 1. Create a server socket
sock = socket(AF_INET, SOCK_STREAM)
# 2. Bind host and port
addr = ('', 8001) #
sock.bind(addr)
# 3. Set the maximum number of listeners , Concurrent
sock.listen(10)
while 1:
clientSocket, clientAddr = sock.accept() # It's new here socket For point-to-point communication with users
print(" A new client is connected ：%s" % str(clientAddr))
clientAddrList.append((clientSocket, clientAddr))
t1 = threading.Thread(target = handle_request, args = (clientSocket, clientAddr)) # Each additional client creates a thread
t1.setDaemon(True) # Set thread guard
t1.start()
The implementation of the server is relatively simple , From the execution results , You can see that two clients have established two sub threads ,MainThread Handle connection blocking .
NIO： Synchronous nonblocking IO Network programming model
NIO There is no need to create threads , Set up multiple threads , Turned into Implement a single thread Manage multiple clients , Reduce congestion and resource consumption , High scalability , But when one of the connections is blocked ( Poor network ?) when , Will pull a hair and move the whole body .
# coding:utf-8
from socket import *
# 1. Create a server socket
sock = socket(AF_INET, SOCK_STREAM)
# 2. Bind host and port
addr = ('', 8001) #
sock.bind(addr)
# 3. Set the maximum number of listeners , Concurrent
sock.listen(10)
# 4. Set to non blocking
sock.setblocking(False)
print(' Non blocking server created ');
# Save client socket
clientAddrList = []
while 1:
try:
clientSocket, clientAddr = sock.accept()
print(" A new client is connected ：%s" % str(clientAddr))
clientSocket.setblocking(False)
clientAddrList.append((clientSocket, clientAddr))
except BlockingIOError as e:
pass
for clientSocket, clientAddr in clientAddrList:
try:
recvData = clientSocket.recv(1024)
if len(recvData)>0:
print(" come from ",str(clientAddr)," Information about ",recvData)
import threading
print(threading.current_thread().getName() ) # When multiple clients are connected here , The output is MainThread
#TODO Forward the message It says
else:
clientSocket.close()
clientAddrList.remove((clientSocket, clientAddr))
print("%s It's offline " % str(clientAddr))
except:
pass
# Another way of writing
import socket
import select
from collections import deque
server = socket.socket()
server.setblocking(False) # Set to non blocking
server.bind(("", 8001))
server.listen(5)
rlist = deque([server])
wlist = deque()
xlist = deque()
while True:
read_list, write_list, error_list = select.select(rlist, wlist, xlist)
for socket_item in read_list:
if socket_item == server:
conn, addr = socket_item.accept()
conn.setblocking(False) # Set to non blocking
rlist.append(conn)
else:
print(socket_item.recv(1024).decode("utf-8"))
for write_item in write_list:
pass
for error_item in error_list:
error_item.close()
rlist.remove(error_item)
Execution results : You can see that the communication is also main In the thread
AIO： Asynchronous non-blocking IO Network programming model

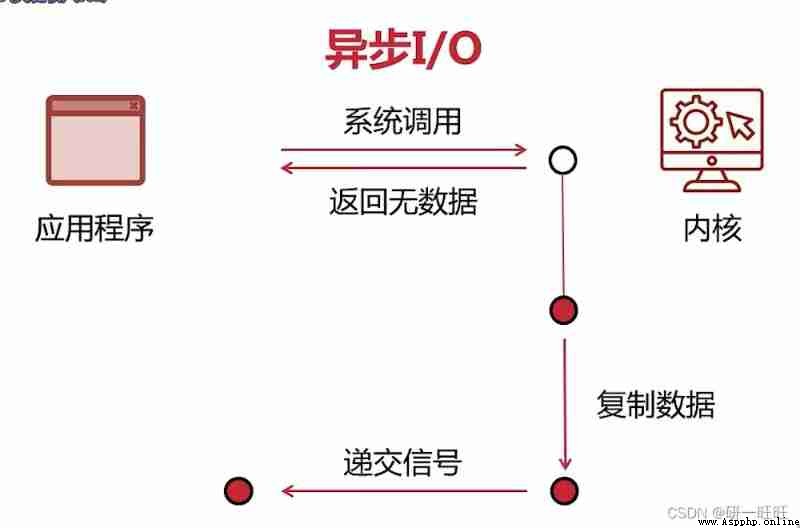

AIO, asynchronous , The main feature is that the application does not block and wait for data , requirement The operating system actively sends data to the application program
import socket
from concurrent.futures import ProcessPoolExecutor
class MyTcpServer:
def __init__(self, ip, port):
self.ip = ip
self.port = port
self.server = socket.socket()
self.server.bind((self.ip, self.port))
self.server.listen(5) # maximum connection
self.clientAddrList = []
def wait_accept(self):
conn, addr = self.server.accept()
return conn, addr
def handle_request(self, conn,addr):
while 1:
try:
recvData = conn.recv(1024)
if len(recvData) > 0:
print(" come from ",addr," Information about ",recvData)
import threading
print(threading.current_thread().getName() ) # When multiple clients are connected here , The output is MainThread
#TODO Forward a message
except Exception as e:
print(e)
server.clientAddrList.remove((conn, addr))
break
conn.close()
if __name__ == '__main__':
server = MyTcpServer('127.0.0.1', 8001)
pool = ProcessPoolExecutor(5) # 5 Processes have been serving
print(" The asynchronous server has been established ");
while 1:
conn, addr = server.wait_accept()
print(" client ",addr," Connected ")
server.clientAddrList.append((conn, addr))
pool.submit(server.handle_request, conn,addr) # Submit tasks asynchronously
—————————————————————————————————
for instance , You go to the library to borrow books ,
meanwhile Python It also supports the use of processes to achieve concurrency , Due to the problem of global interpretation lock mentioned earlier ,Python To use effectively CPU A better way to use parallel resources is to use multiple processes , And achieve real concurrency . Of course , The process does not share memory , It costs more than threads , For computing intensive tasks , It is appropriate to use multi process concurrency , For example, for the algorithm processing after the instrument data is transmitted , Execution efficiency ： Multi process > Single thread > Multithreading .
Attach multi process code , Generally develop chat rooms or web The server does not require multiple processes .
from multiprocessing import Process
def worker():
print 'Worker'
p = Process(target=worker)
p.start()
p.join(
Your praise is my biggest motivation to update ~
