I believe you often see people show all kinds of character paintings on the Internet , For this colorful world , What we see everyday are some high-definition color pictures , Occasionally a rough black-and-white character painting , It's quite relaxing . Like to remember to collect 、 Focus on 、 give the thumbs-up .
notes ： At the end of the article, a technical exchange group is provided
The principle of this character painting is also relatively simple , We can think of each character as a large pixel , A character can represent a color , The more characters , The more colors you can reflect , Character painting is more hierarchical .
The gray value refers to the depth of the color at the point of the black-and-white image , Its scope is 0-255, White is 255, Black is 0, Other colors are somewhere in between .
RGB It's red, green and blue , Other colors can be obtained through different superposition .
To convert a picture to a character drawing , You need to define a character set first , Used for mapping with gray values , The image of each pixel RGB Value is converted to a grayscale value , Output the corresponding character to get the character drawing .
RGB To gray value , There is a transformational formula , Source network ：
gray = (2126 * r + 7152 * g + 722 * b) / 10000
I chose a picture at random ：

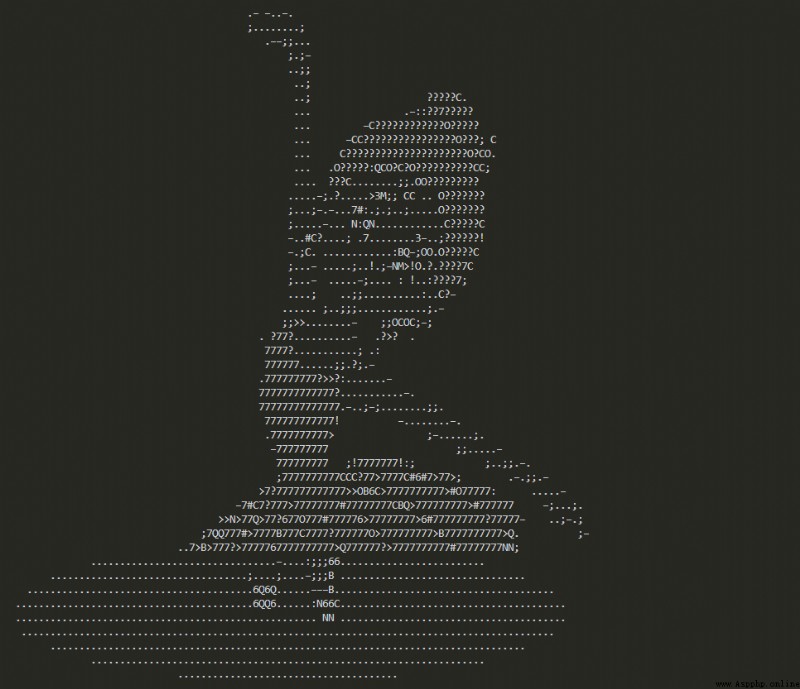

My goal is to transform into the following ：
According to the above conversion principle , Let's go straight to the code ：
from PIL import Image
char = list('M3NB6Q#OC?7>!:–;. ')
def get_char(r, g, b, alpha=256):
if alpha == 0:
return ' '
grey = (2126 * r + 7152 * g + 722 * b) / 10000
char_idx = int((grey / (alpha + 1.0)) * len(char))
return char[char_idx]
def write_file(out_file_name, content):
with open(out_file_name, 'w') as f:
f.write(content)
def main(file_name="input.jpg", width=100, height=80, out_file_name='output.txt'):
text = ''
im = Image.open(file_name)
im = im.resize((width, height), Image.NEAREST)
for i in range(height):
for j in range(width):
text += get_char(*im.getpixel((j, i)))
text += '\n'
print(text)
write_file(out_file_name, text)
if __name__ == '__main__':
main('dance.png')
The idea of procedure ：
Defines an array of characters , The characters in this array can be written at will .
Resolution images , Parse each pixel in the picture into RGB value .
According to our above formula , Convert each pixel into a character in the character array .
Concatenate the characters corresponding to all pixels , The conversion is complete .
Picture to character , The principle and idea of transformation are relatively simple , The implementation is not complicated , You can try it ！
