The concept of tree and its application (Python)

編輯:Python

The concept of tree and its application (Python)

    • 1. Trees
    • 2. Binary tree
      • 1.1 Preorder traversal of two tree
      • 1.2 Middle order traversal of binary trees
      • 1.3 Postorder traversal of binary trees
      • 1.4 The application of binary tree
        • 104. The maximum depth of a binary tree .
        • 543. The diameter of a binary tree .

1. Trees

A tree is a (node) He Bian (edges) A structure that forms a hierarchical relationship .

If you know linux File structure (tree command ), Its structure is also a tree .

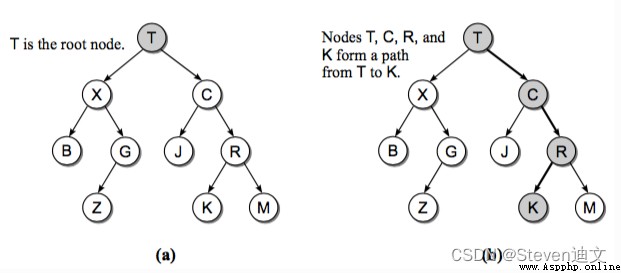

Let's take a quick look at some of the concepts involved in the tree :

  • The root node (root): The top node of the tree , Any non empty tree has a node
  • route (path): The edge experienced from the start node to the end node
  • father (parent): Except for the root node , The node connected by the upper edge of each node is its father ( node )
  • children (children): Each node is the next node pointed by the edge
  • brother (siblings): Nodes with the same father and at the same level
  • subtree (subtree): Each node contains a subtree of all its descendants
  • Leaf node (leaf node): Nodes without children become leaf nodes

2. Binary tree

Binary tree is the most commonly used tree structure , In fact, a binary tree is a simple tree .

Each node of the binary tree contains at most two children .

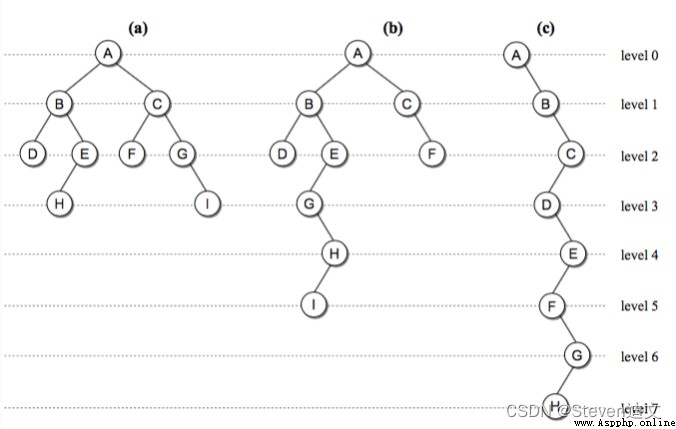

From the figure above, we can see some concepts of binary tree :

  • Node depth (depth): Node corresponding level Numbers .
  • The height of the tree (height): The height of a binary tree is level Count + 1, because level from 0 Start calculated .
  • The width of the tree (width): The width of a binary tree is the number of nodes in the hierarchy that contains the most nodes .
  • Treelike size: The total number of nodes in a binary tree .

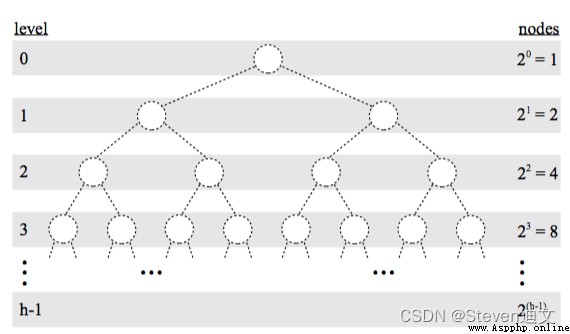

A tree size by n The maximum height of a binary tree can be n, The minimum height is ⌊lgn⌋+1, here log With 2 At the bottom, it's abbreviated as lgn.

1.1 Preorder traversal of two tree

The preorder traversal result of a binary tree = The root node + The result of preorder traversal of left subtree + The result of preorder traversal of the right subtree .

It can be understood as an orderly traversal of a binary tree .

class Solution:
def preorderTraversal(self, root:TreeNode) -> List[int]:
self.res = []
self.traverse(root) # from root To traverse the
return self.res # The return is list
def traverse(self, root: TreeNode):
if root == None:
return
self.res.append(root.val) # Preorder traversal position
self.traverse(root.left)
self.traverse(root.right)

1.2 Middle order traversal of binary trees

Middle order traversal of binary trees , Usually in binary search tree (BST) Most commonly used in .

You can do that BST The middle order traversal of is considered to be traversing an ordered array .

class Solution:
def inorderTraversal(self, root: TreeNode) -> List[int]:
self.res = []
self.traverse(root)
return self.res
def traverse(self, root: TreeNode):
if root == None:
return
self.traverse(root.left)
self.res.append(root.val) # Middle order traversal position
self.traverse(root.right)

1.3 Postorder traversal of binary trees

Postorder traversal returns through recursion , Returns the information of the child nodes of the binary tree .

class Solution:
def postorderTraversal(self, root: TreeNode) -> List[int]:
self.res = []
self.traverse(root)
return self.res
def traverse(self, root: TreeNode):
if root == None:
return
self.traverse(root.left)
self.traverse(root.right)
self.res.append(root.val) # Subsequent traversal position

1.4 The application of binary tree

For the traversal of binary tree , The preorder traversal is performed from top to bottom , The execution of post order traversal is bottom-up .

The above three traversal processes are realized by recursion , It's also DFS Application in binary tree .

In the application , The recursive method of binary tree can be divided into two categories :

  • The first is to traverse the binary tree directly , Corresponding The former sequence traversal .
  • The second is the decomposition problem , Change to solve the subproblem , Corresponding After the sequence traversal .

If you encounter a problem, can you get the answer by traversing the binary tree **( The former sequence traversal )**?

If not , Is it possible to decompose the problem , Use subproblem ( subtree ) The answer to the original question **( After the sequence traversal )**.

Take a few examples :

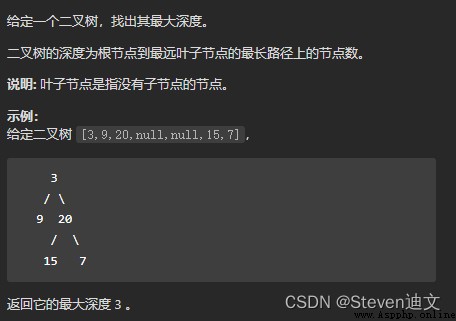

104. The maximum depth of a binary tree .


Find the maximum depth of a binary tree , That is to find the maximum depth of the left and right subtrees of the tree , Directly traversing the binary tree can solve this problem .

# Definition for a binary tree node.
# class TreeNode:
# def __init__(self, val=0, left=None, right=None):
# self.val = val
# self.left = left
# self.right = right
class Solution:
def maxDepth(self, root: Optional[TreeNode]) -> int:
return self.traverse(root)
def traverse(self, root):
if not root:
return 0
return max(self.traverse(root.left), self.traverse(root.right)) + 1 # recursive , The maximum depth of the left and right subtrees
# Add 1 Is the depth of the root node .

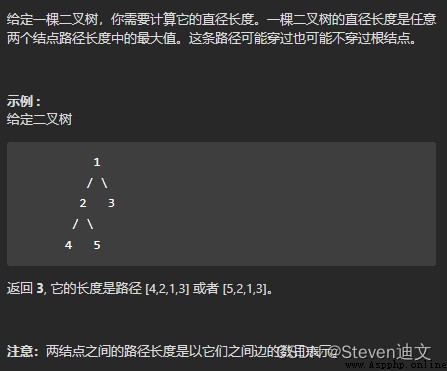

543. The diameter of a binary tree .

According to the title , The diameter can be understood as the sum of the maximum depths of the left and right subtrees of any node .

The direct idea is to calculate the maximum height of the left and right subtrees for each node , Get the diameter of each node , To get the largest diameter .

The key to solving this problem is , The diameter and length of each binary tree , Is the sum of the maximum depths of the left and right subtrees of a node .

This is the way to decompose the original problem into subproblems .

class Solution:
def diameterOfBinaryTree(self, root: Optional[TreeNode]) -> int:
self.max = 0
self.traverse(root)
return self.max
def traverse(self, root):
if not root:
return 0
l = self.traverse(root.left) # Find the depth of the left subtree of the node
r = self.traverse(root.right)# Find the depth of the right subtree of the node
self.max = max(self.max, l+r) # Subsequent iterations update the maximum diameter
return max(l,r) + 1 # This is also the location of the postorder traversal .
# Since the subproblem is calculated from low to high by using post order traversal , It means to return the current node ( Child node ) The one with the largest depth of the left and right subtrees , Used for subsequent calculation of maximum path .
