Python license plate location, character segmentation and intelligent recognition project

編輯:Python

Full project download link : Download code and related materials
be based on python and cv2、pytorch License plate location 、 Character segmentation 、 Character recognition items License plate detection and recognition are widely used , Such as traffic violation license plate tracking , Community or underground garage access control . In the process of license plate recognition and detection , Because the license plate is often a regular rectangle , The aspect ratio is relatively fixed , The hue texture is relatively fixed , Common methods are : Based on shape 、 Based on hue 、 Based on texture 、 Based on text features and other methods , In recent years, with the development of deep learning, some deep learning methods of target detection will also be used .

Problem description

License plate detection and recognition are widely used , Such as traffic violation license plate tracking , Community or underground garage access control . In the process of license plate recognition and detection , Because the license plate is often a regular rectangle , The aspect ratio is relatively fixed , The hue texture is relatively fixed , Common methods are : Based on shape 、 Based on hue 、 Based on texture 、 Based on text features and other methods , In recent years, with the development of deep learning, some deep learning methods of target detection will also be used .

Realize the idea

License plate positioning

License plate segmentation

Character recognition

Engineering and algorithms

Directory structure

The source code and data are located in src In the folder ,src The functions of each sub file in the folder are as follows :

characterData: It contains all character image data sets contained in simplified Chinese license plates ( Including provincial Chinese characters 、 Letter 、 Numbers )
singledigit:( Please create the empty folder by yourself ), Used to store the extracted single character picture
Car.jpg: The sample picture , It can be used to test the effect of model recognition
getplate.py: License plate positioning 、 Character segmentation source code
main.py: model training , Character recognition source code

function

clone To local
stay src Add an empty folder under the folder , be known as singledigit
First run getplate.py
Run again main.py, Console output

License plate positioning

import matplotlib.pyplot as plt
import numpy as np
import torch
import cv2
import os
def find_card(I):
# Recognize the license plate area and return the image of the area
[y, x, z] = I.shape
# y Value range analysis
Blue_y = np.zeros((y, 1))
for i in range(y):
for j in range(x):
# Blue rgb Range
temp = I[i, j, :]
if (I[i, j, 2] <= 30) and (I[i, j, 0] >= 119):
Blue_y[i][0] += 1
MaxY = np.argmax(Blue_y)
PY1 = MaxY
while (Blue_y[PY1, 0] >= 5) and (PY1 > 0):
PY1 -= 1
PY2 = MaxY
while (Blue_y[PY2, 0] >= 5) and (PY2 < y - 1):
PY2 += 1
# x Value
Blue_x = np.zeros((1, x))
for i in range(x):
for j in range(PY1, PY2):
if (I[j, i, 2] <= 30) and (I[j, i, 0] >= 119):
Blue_x[0][i] += 1
PX1 = 0
while (Blue_x[0, PX1] < 3) and (PX1 < x - 1):
PX1 += 1
PX2 = x - 1
while (Blue_x[0, PX2] < 3) and (PX2 > PX1):
PX2 -= 1
# Correction of license plate area
PX1 -= 2
PX2 += 2
return I[PY1:PY2, PX1 - 2: PX2, :]
def divide(I):
[y, x, z] = I.shape
White_x = np.zeros((x, 1))
for i in range(x):
for j in range(y):
if I[j, i, 1] > 176:
White_x[i][0] += 1
return White_x

License plate segmentation

def divide_each_character(I):
[y, x, z] = I.shape
White_x = np.zeros((x, 1))
for i in range(x):
for j in range(y):
if I[j, i, 1] > 176:
White_x[i][0] += 1
res = []
length = 0
for i in range(White_x.shape[0]):
# Use hyperparametric empirical segmentation
t = I.shape[1] / 297
num = White_x[i]
if num > 8:
length += 1
elif length > 20 * t:
res.append([i - length - 2, i + 2])
length = 0
else:
length = 0
return res

Locate and split the main function

if __name__ == '__main__':
I = cv2.imread('Car.jpg')
Plate = find_card(I)
# White_x = divide(Plate)
plt.imshow(Plate)
plt.show()
# plt.plot(np.arange(Plate.shape[1]), White_x)
res = divide_each_character(Plate)
plate_save_path = './singledigit/'
for t in range(len(res)):
plt.subplot(1, 7, t + 1)
temp = res[t]
save_img = cv2.cvtColor(Plate[:, temp[0]:temp[1], :],cv2.COLOR_BGR2GRAY)
ma = max(save_img.shape[0], save_img.shape[1])
mi = min(save_img.shape[0], save_img.shape[1])
ans = np.zeros(shape=(ma, ma, 3),dtype=np.uint8)
start =int(ma/2-mi/2)
for i in range(mi):
for j in range(ma):
if save_img[j,i] > 125:
for k in range(3):
ans[j,start+i,k]=255
ans=cv2.merge([ans[:,:,0],ans[:,:,1],ans[:,:,2]])
ans=cv2.resize(ans,(25,25))
dir_name=plate_save_path+str(t)
os.mkdir(dir_name)
cv2.imwrite(dir_name+'/'+str(t)+'.jpg',ans)
plt.imshow(ans)
plt.show()

Character recognition

from torchvision.datasets import ImageFolder
from torchvision import transforms
from torch.utils.data import DataLoader,SubsetRandomSampler
from torch import nn, optim
import numpy as np
import torch
import time
import sys
import cv2
import os
# License plate character array
match = {
0: '0', 1: '1', 2: '2', 3: '3', 4: '4', 5: '5', 6: '6', 7: '7', 8: '8', 9: '9', 10: 'A', 11: 'B', 12: 'C',13: ' sichuan ', 14: 'D', 15: 'E', 16: ' E ',17: 'F', 18: 'G', 19: ' Gan ', 20: ' gump ', 21: ' your ', 22: ' guangxi ', 23: 'H', 24: ' black ', 25: ' Shanghai ', 26: 'J', 27: ' Ji ', 28: ' tianjin ',29: ' Beijing ', 30: ' ji ', 31: 'K', 32: 'L', 33: ' liao ',34: ' Lu ', 35: 'M', 36: ' Mongolia ', 37: ' Fujian ', 38: 'N', 39: ' ning ', 40: 'P', 41: 'Q', 42: ' green ', 43: ' Joan ', 44: 'R', 45: 'S',46: ' shan ', 47: ' Sue ', 48: ' Jin ', 49: 'T', 50: 'U',51: 'V', 52: 'W ', 53: ' Wan ', 54: 'X', 55: ' hunan ', 56: ' new ', 57: 'Y', 58: ' Yu ', 59: ' chongqing ', 60: ' guangdong ', 61: ' cloud ', 62: 'Z',63: ' hidden ', 64: ' Zhejiang '}
data_path = './characterData/data'
data_transform=transforms.Compose([
transforms.Grayscale(),
transforms.ToTensor()
])
dataset=ImageFolder(data_path,transform=data_transform)
validation_split=.1
shuffle_dataset = True
random_seed= 42
batch_size=100
dataset_size = len(dataset)
indices = list(range(dataset_size))
split = int(np.floor(validation_split * dataset_size))
if shuffle_dataset :
np.random.seed(random_seed)
np.random.shuffle(indices)
train_indices, val_indices = indices[split:], indices[:split]
train_sampler = SubsetRandomSampler(train_indices)
test_sampler = SubsetRandomSampler(val_indices)
train_iter = DataLoader(dataset, batch_size=batch_size,
sampler=train_sampler)
test_iter = DataLoader(dataset, batch_size=batch_size,
sampler=test_sampler)

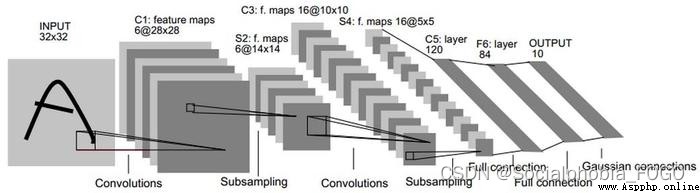

# lenet Training
sys.path.append("..")
device = torch.device('cuda' if torch.cuda.is_available() else 'cpu')
class LeNet(nn.Module):
def __init__(self):
super(LeNet, self).__init__()
self.conv = nn.Sequential(
nn.Conv2d(1, 6, 5), # in_channels, out_channels, kernel_size
nn.Sigmoid(),
nn.MaxPool2d(2, 2), # kernel_size, stride
nn.Conv2d(6, 16, 5),
nn.Sigmoid(),
nn.MaxPool2d(2, 2)
)
self.fc = nn.Sequential(
nn.Linear(16*4, 120),
nn.Sigmoid(),
nn.Linear(120, 84),
nn.Sigmoid(),
nn.Linear(84, 65)
)
def forward(self, img):
feature = self.conv(img)
output = self.fc(feature.view(img.shape[0], -1))
return output
def evaluate_accuracy(data_iter, net, device=None):
if device is None and isinstance(net, torch.nn.Module):
# If not specified device Just use net Of device
device = list(net.parameters())[0].device
acc_sum, n = 0.0, 0
with torch.no_grad():
for X, y in data_iter:
if isinstance(net, torch.nn.Module):
net.eval() # The evaluation mode , This will shut down dropout
acc_sum += (net(X.to(device)).argmax(dim=1) == y.to(device)).float().sum().cpu().item()
net.train() # Change back to training mode
else: # Custom model , 3.13 You won't use... After this section , Don't consider GPU
if('is_training' in net.__code__.co_varnames): # If there is is_training This parameter
# take is_training Set to False
acc_sum += (net(X, is_training=False).argmax(dim=1) == y).float().sum().item()
else:
acc_sum += (net(X).argmax(dim=1) == y).float().sum().item()
n += y.shape[0]
return acc_sum / n
def predict(img,net,device=None):
if device is None and isinstance(net, torch.nn.Module):
# If not specified device Just use net Of device
device = list(net.parameters())[0].device
res=''
with torch.no_grad():
for X,y in img:
if isinstance(net, torch.nn.Module):
net.eval() # The evaluation mode , This will shut down dropout
temp=net(X.to(device)).argmax(dim=1)
x=np.array(X)
temp=np.array(temp).tolist()
for i in temp:
res+=str(match[i])
net.train() # Change back to training mode
return res
# This function has been saved in d2lzh_pytorch The bag is convenient for later use
def train_ch5(net, train_iter, test_iter, batch_size, optimizer, device, num_epochs):
net = net.to(device)
print("training on ", device)
loss = torch.nn.CrossEntropyLoss()
for epoch in range(num_epochs):
train_l_sum, train_acc_sum, n, batch_count, start = 0.0, 0.0, 0, 0, time.time()
for X, y in train_iter:
x=np.array(X)
Y=np.array(y)
X = X.to(device)
y = y.to(device)
y_hat = net(X)
l = loss(y_hat, y)
optimizer.zero_grad()
l.backward()
optimizer.step()
train_l_sum += l.cpu().item()
train_acc_sum += (y_hat.argmax(dim=1) == y).sum().cpu().item()
n += y.shape[0]
batch_count += 1
test_acc = evaluate_accuracy(test_iter, net)
print('epoch %d, loss %.4f, train acc %.3f, test acc %.3f, time %.1f sec'
% (epoch + 1, train_l_sum / batch_count, train_acc_sum / n, test_acc, time.time() - start))
net = LeNet()
print(net)
lr, num_epochs = 0.001, 40
batch_size=256
optimizer = torch.optim.Adam(net.parameters(), lr=lr)
checkpoint_save_path = "./LeNet5.pth"
if os.path.exists(checkpoint_save_path ):
print('load the model')
net.load_state_dict(torch.load(checkpoint_save_path))
else:
train_ch5(net, train_iter, test_iter, batch_size, optimizer, device, num_epochs)
torch.save(net.state_dict(),checkpoint_save_path)
# Identify the contents of the license plate
# plate_paths=os.listdir('./singledigit')
# ans=''
# for plate in plate_paths:
# #ans+=predict(cv2.imread(plate),net)
# img=cv2.imread('./singledigit/'+plate)
# img2=np.zeros(shape=(3,20,20),dtype=torch.float32)
#
# a=net(torch.from_numpy(img))
# print(ans)
pre_path = './singledigit'
pre_transform=transforms.Compose([
transforms.Grayscale(),
transforms.CenterCrop(size=(20,20)),
transforms.ToTensor()
])
preset=ImageFolder(pre_path,transform=pre_transform)
pre_iter = DataLoader(preset)
ans=predict(pre_iter,net)
print(ans)

Realization effect

runfile('E:/ Big data analysis method /workspace/week1/ digital image processing /test05.py', wdir='E:/ Big data analysis method /workspace/week1/ digital image processing ')
LeNet(
(conv): Sequential(
(0): Conv2d(1, 6, kernel_size=(5, 5), stride=(1, 1))
(1): Sigmoid()
(2): MaxPool2d(kernel_size=2, stride=2, padding=0, dilation=1, ceil_mode=False)
(3): Conv2d(6, 16, kernel_size=(5, 5), stride=(1, 1))
(4): Sigmoid()
(5): MaxPool2d(kernel_size=2, stride=2, padding=0, dilation=1, ceil_mode=False)
)
(fc): Sequential(
(0): Linear(in_features=64, out_features=120, bias=True)
(1): Sigmoid()
(2): Linear(in_features=120, out_features=84, bias=True)
(3): Sigmoid()
(4): Linear(in_features=84, out_features=65, bias=True)
)
)
training on cpu
epoch 1, loss 3.7474, train acc 0.069, test acc 0.074, time 75.7 sec
epoch 2, loss 3.7088, train acc 0.071, test acc 0.074, time 7.4 sec
epoch 3, loss 3.3383, train acc 0.194, test acc 0.358, time 7.2 sec
epoch 4, loss 2.4473, train acc 0.420, test acc 0.473, time 7.0 sec
epoch 5, loss 1.9042, train acc 0.488, test acc 0.565, time 7.0 sec
epoch 6, loss 1.5477, train acc 0.583, test acc 0.639, time 7.1 sec
epoch 7, loss 1.3139, train acc 0.656, test acc 0.698, time 6.8 sec
epoch 8, loss 1.1450, train acc 0.705, test acc 0.737, time 8.0 sec
epoch 9, loss 1.0151, train acc 0.743, test acc 0.770, time 7.6 sec
epoch 10, loss 0.9199, train acc 0.769, test acc 0.788, time 7.2 sec
epoch 11, loss 0.8415, train acc 0.789, test acc 0.804, time 7.2 sec
epoch 12, loss 0.7789, train acc 0.804, test acc 0.817, time 7.4 sec
epoch 13, loss 0.7240, train acc 0.817, test acc 0.830, time 7.4 sec
epoch 14, loss 0.6803, train acc 0.825, test acc 0.834, time 7.2 sec
epoch 15, loss 0.6408, train acc 0.833, test acc 0.838, time 7.2 sec
epoch 16, loss 0.6064, train acc 0.838, test acc 0.845, time 7.5 sec
epoch 17, loss 0.5785, train acc 0.842, test acc 0.854, time 7.3 sec
epoch 18, loss 0.5502, train acc 0.850, test acc 0.856, time 7.4 sec
epoch 19, loss 0.5278, train acc 0.855, test acc 0.857, time 7.3 sec
epoch 20, loss 0.5028, train acc 0.860, test acc 0.875, time 7.2 sec
epoch 21, loss 0.4820, train acc 0.867, test acc 0.877, time 7.3 sec
epoch 22, loss 0.4622, train acc 0.872, test acc 0.883, time 7.4 sec
epoch 23, loss 0.4424, train acc 0.877, test acc 0.885, time 7.4 sec
epoch 24, loss 0.4264, train acc 0.882, test acc 0.881, time 7.5 sec
epoch 25, loss 0.4106, train acc 0.885, test acc 0.890, time 7.3 sec
epoch 26, loss 0.3957, train acc 0.888, test acc 0.893, time 7.3 sec
epoch 27, loss 0.3803, train acc 0.894, test acc 0.900, time 8.3 sec
epoch 28, loss 0.3695, train acc 0.897, test acc 0.900, time 8.3 sec
epoch 29, loss 0.3538, train acc 0.903, test acc 0.903, time 7.9 sec
epoch 30, loss 0.3421, train acc 0.906, test acc 0.907, time 8.1 sec
 The predicted result is : Sue E05EV8

Improving direction

1、 License plate location only uses color features

2、 License plate segmentation only uses x Axial projection wave crest and trough

3、 The accuracy of convolution neural network needs to be improved


  1. 上一篇文章:
  2. 下一篇文章:
Copyright © 程式師世界 All Rights Reserved
