Some readers asked : Is there a terminal based on text GUI Development framework ?
Today I will take you , Sort out several common text-based terminals UI frame , Take a glance at it !
The first thing to show up is Curses[1].
Curse
Curses It is a dynamic library that can provide the function of text-based terminal window , It can :
Create and manage a window
Use 8 Different colors
Provide mouse support for programs
Use the function keys on the keyboard Curses Can be followed at any time ANSI/POSIX The standard Unix/Linux Running on the system .Windows Can also run on , However, additional installation is required windows-curses
library :
pip install windows-curses
The picture above , Just a buddy with Curses Written Tetris [2], I don't feel full of memories , You can take it to the resurrection antique machine .
Let's try ox knife :
import cursesmyscreen = curses.initscr()myscreen.border(0)myscreen.addstr(12, 25, "Python curses in action!")myscreen.refresh()myscreen.getch()curses.endwin()
addstr
The first two parameters are character coordinates , Not pixel coordinates getch
It blocks the program , Until waiting for keyboard input
curses.endwin()
The function is to exit the window
If you need to continuously monitor user interaction , You need to write a loop , Also on getch()
Get the input to judge The code works as follows :
A profound
Curses Very lightweight , Especially suitable for dealing with simple interaction , A program that replaces complex parameter input , Both elegant , Simple , and Curses It is also other text terminals UI The basis of .
Npyscreen[3] It is also a terminal that uses to write text Python Component library , Is based on Curses Build an application framework .
Compared with Curses,Npyscreen Closer to the UI Programming , Through the combination of components UI Presentation and interaction , and Npyscreen Can adapt to screen changes .
Npyscreen Provides multiple controls , such as Forms (Form)、 Single line text input box (TitleText)、 Date control (TitleDateCombo)、 Multiline text input box (MultiLineEdit)、 Single list (TitleSelectOne)、 Progress bar (TitleSlider) And other controls .
Provide powerful functions , Meet the requirements of rapid program development , Whether it's a simple single page program or a complex multi page application .
Let's take a little example :
import npyscreenclass TestApp(npyscreen.NPSApp): def main(self): # These lines create the form and populate it with widgets. # A fairly complex screen in only 8 or so lines of code - a line for each control. F = npyscreen.Form(name = "Welcome to Npyscreen",) t = F.add(npyscreen.TitleText, name = "Text:",) fn = F.add(npyscreen.TitleFilename, name = "Filename:") fn2 = F.add(npyscreen.TitleFilenameCombo, name="Filename2:") dt = F.add(npyscreen.TitleDateCombo, name = "Date:") s = F.add(npyscreen.TitleSlider, out_of=12, name = "Slider") ml = F.add(npyscreen.MultiLineEdit, value = """try typing here!\nMutiline text, press ^R to reformat.\n""", max_height=5, rely=9) ms = F.add(npyscreen.TitleSelectOne, max_height=4, value = [1,], name="Pick One", values = ["Option1","Option2","Option3"], scroll_exit=True) ms2= F.add(npyscreen.TitleMultiSelect, max_height =-2, value = [1,], name="Pick Several", values = ["Option1","Option2","Option3"], scroll_exit=True) # This lets the user interact with the Form. F.edit() print(ms.get_selected_objects())if __name__ == "__main__": App = TestApp() App.run()
pip install npyscreen
Inherit npyscreen.NPSApp
Create an application class TestApp
Realization main
Method , Method to create a Form
Form object , Then add various controls to the form object , And set some properties of the control
Call the of the form object Edit
Method , Give the operation right to the user
At run time , Instantiation TestAPP
, And then call run

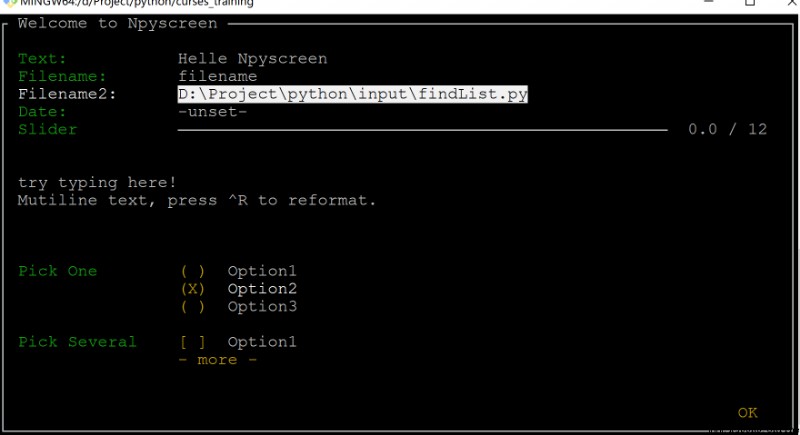

Method to start the application , The application can enter the state of waiting for user interaction The effect of the above code is as follows :
Npyscreen
[Tab] / [Shift + Tab] Used to switch control focus
[ enter ] / [ Space ] Used to enter and select 、 Set up 、 confirm
In the selection frame , Direction keys and vim[4] The operation is similar to , That is, through hjkl To control Is it amazing , You can do so many complicated operations with text , Whether the previous doubts about the progress display in the command line are clear ~
if Curses and Npysreen Is a lightweight text terminal UI frame , that Urwid[5] Definitely a heavyweight .
Urwid Contains many development texts UI Characteristics of , for example :
Automatic text alignment
Easily set text blocks
Powerful selection box control
It can be integrated with various event driven frameworks , For example, Twisted[6], Glib[7], Tornado[8] wait
Provide such as edit box 、 Button 、 many ( single ) Check the box And other prefabricated controls
The display mode supports native 、Curses Pattern 、LCD display as well as Network display
Support UTF-8 as well as CJK Character set ( Can display Chinese )

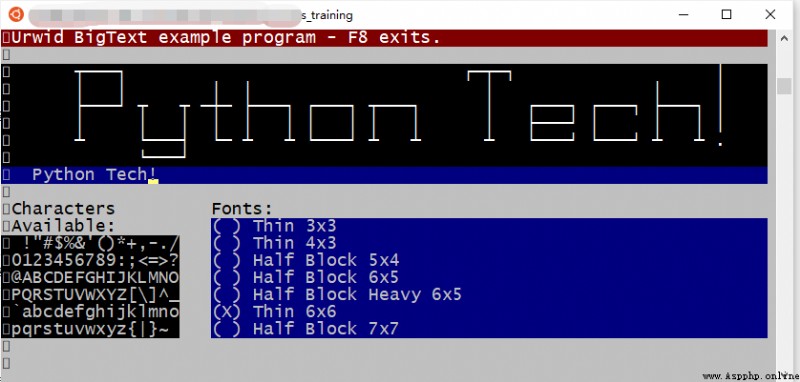

Support multiple colors Look at the effect :

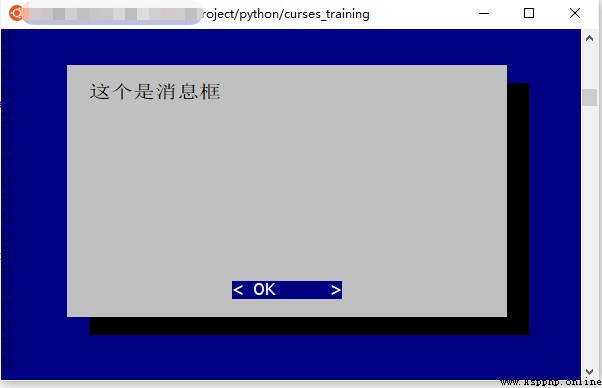

Message box
Multi font

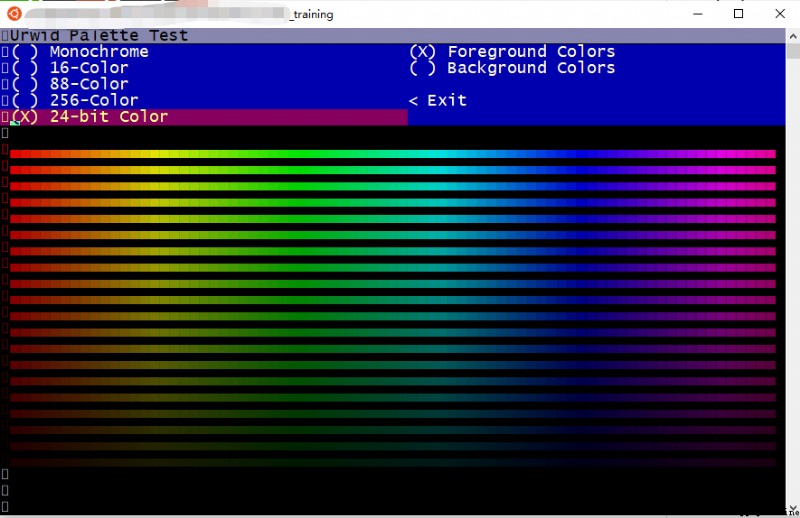

color
I don't know how you feel after watching it , My feeling is : It's too voluminous ~
It's almost possible to do GUI Everything under !
Even worse ,Urwid The framework is completely built according to the idea of object-oriented :

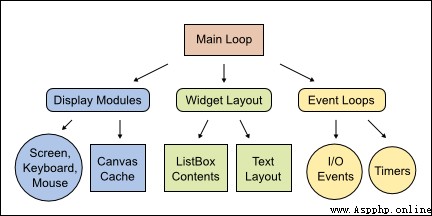

Urwid chart
Now let's give it a try , Feel the Urwid A powerful :
import urwiddef show_or_exit(key): if key in ('q', 'Q'): raise urwid.ExitMainLoop() txt.set_text(repr(key))txt = urwid.Text(u"Hello World")fill = urwid.Filler(txt, 'middle')loop = urwid.MainLoop(fill, unhandled_input=show_or_exit)loop.run()
First introduced urwid modular
Defines an input event handling method show_or_exit
In the process , When the input key is q perhaps Q when , Exit the main loop , Otherwise, the key name will be displayed
urwid.Text
Is a text control , Accept a string as a display message
urwid.Filler
Be similar to panel, take txt Control is filled on it , The position is set in the center of the window
urwid.MainLoop
Set up Urwid Main cycle of , take fill As the drawing entry of the control , Parameters unhandled_input
Accept a key event handling method , It uses the previously defined show_or_exit
loop.run()
start-up UI, And monitor various events Run this code , You can see that the command line is set to interactive mode , When pressing the key, the key name will be displayed in the center of the window , If you press q key , The program will exit .
Be careful :
Urwid Only in Linux Running in the operating system ,Windows Will fail to run due to missing necessary components
Limited to space , Only three text terminal frameworks are shown here , However, it has been able to use text-based terminals UI The powerful feeling of the framework is one or two .
Some frameworks are also excellent , such as prompt_toolkit, Those of you who are interested can study it .
Although text-based terminals UI It is no longer the mainstream , But in some special industries or businesses , It still has its value , Look at the , Maybe it can help us in a special place .

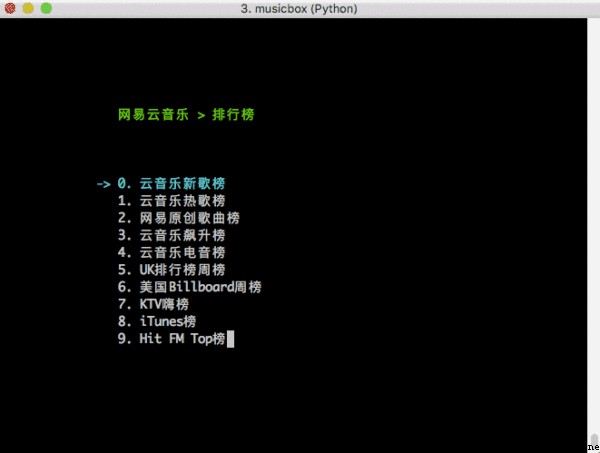

Last , Recommend a very interesting application based on text terminal —— Command line Netease cloud music [9]:
NetEase-MusicBox
Is based on Curses Development , If it runs , Can be shocked by its strength , You can play when you are free , finger heart !
