Python3 get quartile [box chart filter abnormal data]

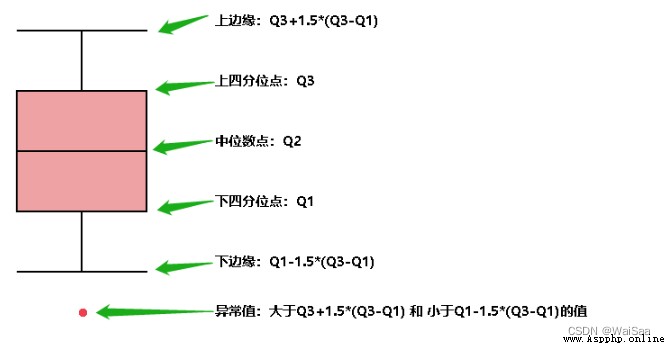

1、 Box figure - Four percentile

• Filter abnormal data by box chart , You need to calculate the upper quartile and the lower quartile first , Then calculate the minimum min、 Maximum max, Obtain the threshold range for judging outliers [min, max].
• The quartile is through 3 A little bit （Q1,Q2,Q3） Divide all the data into 4 part , Each part of it contains 25% The data of .
• Obviously , The middle quartile Q2 That 's the median .
• Usually , call Q1 Is the lower quartile , That is, from small to large 25% Number of numbers ; call Q3 The upper quartile is , That is, from small to large 75% Number of numbers .
• Minimum of outlier threshold range 、 Maximum value calculation formula ：min=Q1-1.5*(Q3-Q1)、max=Q3+1.5*(Q3-Q1)


2、 Code implementation

Implementation logic ：

• First, get the median of the total sample Q2 And its index ;
• And then use Q2 The index divides the total sample into two parts ;
• Then, the median of the two equally divided parts is obtained with the same logic , namely Q1 and Q3;
• Eventually return Q1,Q2,Q3;
• We can use Q1,Q3 Calculate to get the minimum min、 Maximum max.

import numpy as np
import math
def do_cal_min_max(q1, q3):
""" Calculate the minimum 、 Maximum """
min = q1 - 1.5 * (q3 - q1)
max = q3 + 1.5 * (q3 - q1)
return min, max
def get_mid_idx(data):
""" Get the index of the median , If it's an even number , Is the average of the indexes of the middle two numbers """
length = len(data)
if length % 2 == 0:
idx1 = length / 2 - 1
idx2 = idx1 + 1
idx = np.mean([idx1, idx2])
else:
idx = math.ceil(length / 2)
return idx
def do_cal_quarter(data):
""" Calculate the quartile ： The quartile is through 3 A little bit （Q1,Q2, Q3） Divide all the data into 4 part , Each part of it contains 25% The data of . Q1: Lower quartile , It is equal to the number of all values in the sample arranged from small to large 25% Number of numbers ; Q2: Median , It is equal to the number of all values in the sample arranged from small to large 50% Number of numbers ; Q3: Upper quartile , It is equal to the number of all values in the sample arranged from small to large 75% Number of numbers . """
# Sort from small to large
data.sort()
# Get the median index and median first
idx = get_mid_idx(data)
q2 = np.median(data)
# Two parts equally divided by the median index
part1 = [v for i, v in enumerate(data) if i < idx]
part2 = [v for i, v in enumerate(data) if i > idx]
# Get lower quartile
q1 = np.median(part1)
# Get the upper quartile
q3 = np.median(part2)
return q1, q2, q3
def main():
""" The main function """
data = [-1, -2, -3, -4, -5]
# obtain Q1,Q2,Q3
q1, q2, q3 = do_cal_quarter(data)
print(q1, q2, q3)
# Get the minimum min、 Maximum max
min, max = do_cal_min_max(q1, q3)
print(min, max)
if __name__ == '__main__':
main()
