List of articles

• Threads
• Multithreading

This article will introduce Python The basics of multithreading in programming languages . It's like multitasking , Multithreading is a way to implement multitasking . In multithreading , Use Threads The concept of .

Let's first look at the computer architecture Threads The concept of .

Threads

In calculation , process Is an instance of a computer program being executed . Any process has 3 Basic components ：

• Executable program .
• Associated data required by the program （ Variable 、 working space 、 Buffer, etc. ）
• The execution context of the program （ Process status ）

Threads Is an entity in a process that can be scheduled for execution . Besides , It is available in the operating system （ operating system ） The smallest processing unit executed in .

Simply speaking , Threads Is a sequence of such instructions in a program that can be executed independently of other code . For the sake of simplicity , You can assume that threads are just a subset of processes ！

The thread is in Thread control block （TCB） Contains all this information ：

• Thread identifier ： Will be the only ID （TID） Assign to each new thread
• Stack pointer ： Point to the thread stack in the process . The stack contains local variables under the thread scope .
• Program counter ： A register that stores the address of the instruction that the thread is currently executing .
• Thread state ： It can be running 、 be ready 、 wait for 、 Start or finish .
• The register set of the thread ： Registers allocated to threads for calculation .
• Parent process pointer ： Point to the process control block of the process where the thread is located （PCB） The pointer to .

Please refer to the following figure to understand the relationship between a process and its threads ：

Multithreading

There can be multiple threads in a process , among ：

• Each thread contains its own Register set and local variable （ Stored in the stack ）.
• All threads of the process share Global variables （ Store in the pile ） and Program code .

Refer to the figure below to see how multiple threads exist in memory ：

stay Python in , Threads The module provides a very simple and intuitive API, Used to generate multiple threads in a program .

Let's consider a simple example of using a threading module ：

import threading
def print_cube(num):
""" A function for printing a cube of a given number """
print("Cube: {}".format(num * num * num))
def print_square(num):
""" Function prints the square of a given number """
print("Square: {}".format(num * num))
if __name__ == "__main__":
# Create thread
t1 = threading.Thread(target=print_square, args=(10,))
t2 = threading.Thread(target=print_cube, args=(10,))
# Start thread 1
t1.start()
# Start thread 2
t2.start()
# Wait for thread 1 Fully implement
t1.join()
# Wait for thread 2 Fully implement
t2.join()
# Both threads are fully executed
print("Done!")

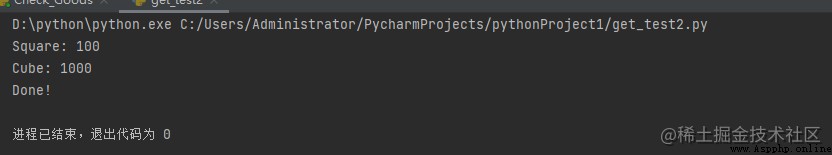

Running results ：

Let's try to understand the above code ：

• To import the thread module , We need to ：

  import threading


• To create a new thread , We create a Thread Class object . It requires the following parameters ：

  • The goal is ： Function to be executed by thread
  • args： Parameters to be passed to the objective function

  In the example above , We created 2 Threads with different objective functions ：

  t1 = threading.Thread(target=print_square, args=(10,))
  t2 = threading.Thread(target=print_cube, args=(10,))


• To start a thread , We use Thread Class start Method .

  t1.start()
  t2.start()


• Once the thread starts , Current procedure （ You can think of it as a main thread ） Will continue to carry out . To stop the execution of the current program , Until the thread completes , We use Connect Method .

  t1.join()
  t2.join()


  therefore , The current program will first wait t1 Completion , And then wait t2 complete . After completion , The remaining statements of the current program will be executed .

Consider the image below , To better understand how the above procedure works ：

Consider the following python Program , Where we print the thread name and the corresponding process for each task ：

import threading
import os
def task1():
print(" Mission 1 Assign to thread : {}".format(threading.current_thread().name))
print(" Run the task 1 The process of ID: {}".format(os.getpid()))
def task2():
print(" Mission 2 Assign to thread : {}".format(threading.current_thread().name))
print(" Run the task 2 The process of ID: {}".format(os.getpid()))
if __name__ == "__main__":
# Print the of the current process ID
print(" The process that runs the main program ID: {}".format(os.getpid()))
# Print the main thread name
print(" Main thread name : {}".format(threading.current_thread().name))
# Create thread
t1 = threading.Thread(target=task1, name='t1')
t2 = threading.Thread(target=task2, name='t2')
# Start thread
t1.start()
t2.start()
# Wait for all threads to finish
t1.join()
t2.join()

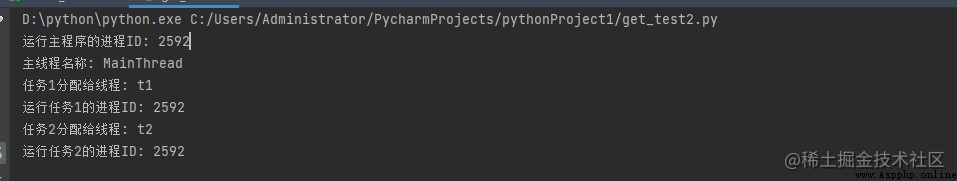

Running results ：

Let's try to understand the above code ：

• We use os.getpid（） Function to get the of the current process ID.

  print(" The process that runs the main program ID: {}".format(os.getpid()))


  It is clear from the output that , All threaded processes ID All remain the same .

• We use threading.main_thread（） Function to get the main thread object . Under normal circumstances , The main thread is to start Python Interpreter thread . Of Thread objects name Property is used to get the name of the thread .

  print(" Main thread name : {}".format(threading.main_thread().name))


• We use threading.current_thread（） Function to get the current thread object .

  print(" Mission 1 Allocated threads : {}".format(threading.current_thread().name))


The following figure illustrates the above concepts ：
