title django Create an interface

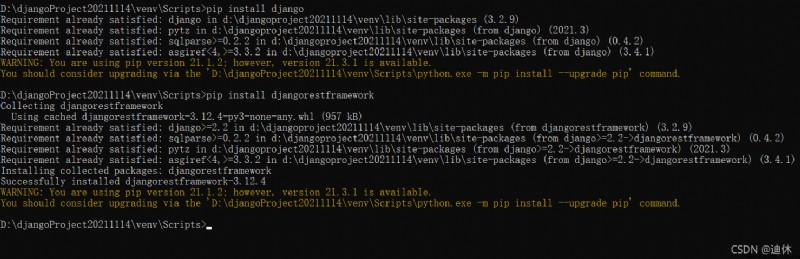

1. Installation environment and framework django and djangorestframework

pip install django
pip install djangorestframework

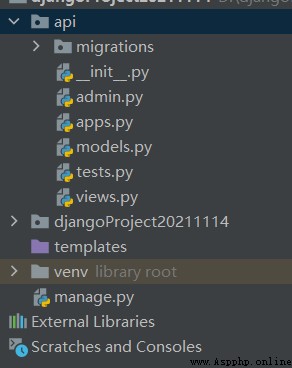

2. Create a name api The interface of

python manage.py startapp api

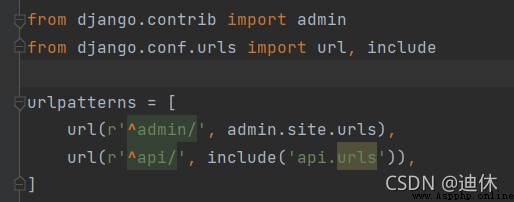

3. modify djangoProject2021114 Of urls.py, It's not new api Inside

from django.contrib import admin
from django.conf.urls import url, include
urlpatterns = [
url(r'^admin/', admin.site.urls),
url(r'^api/', include('api.urls')),
]

4. modify api Under folder views.py, Add the following two sentences and views object

from django.shortcuts import render
from rest_framework.views import APIView
from rest_framework.response import Response
# Create your views here.
class LoginView(APIView):
def post(self, request, *args, **kwargs):
print(request.data)
return Response({
"status": True})

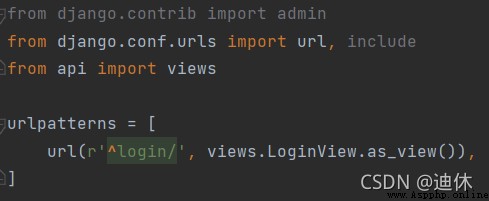

5. from djangoProject2021114 Make a copy of urls.py to api Under the folder , And modify it api Under folder urls.py file

from django.contrib import admin
from django.conf.urls import url, include
from api import views
urlpatterns = [
url(r'^login/',views.LoginView.as_view()),
]

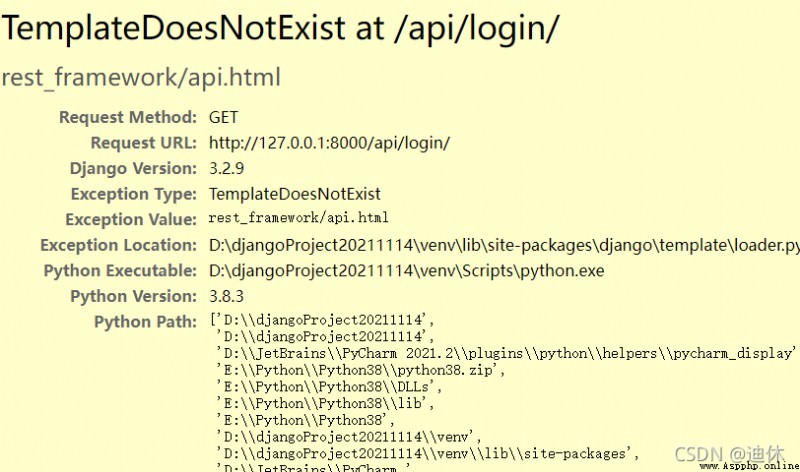

6. The following error occurred

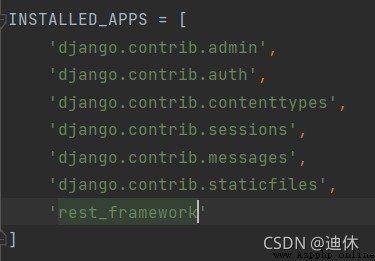

modify djangoProject20211114 Inside settings.py Medium INSTALLED_APPS, Add a sentence at the end ‘rest_framework’

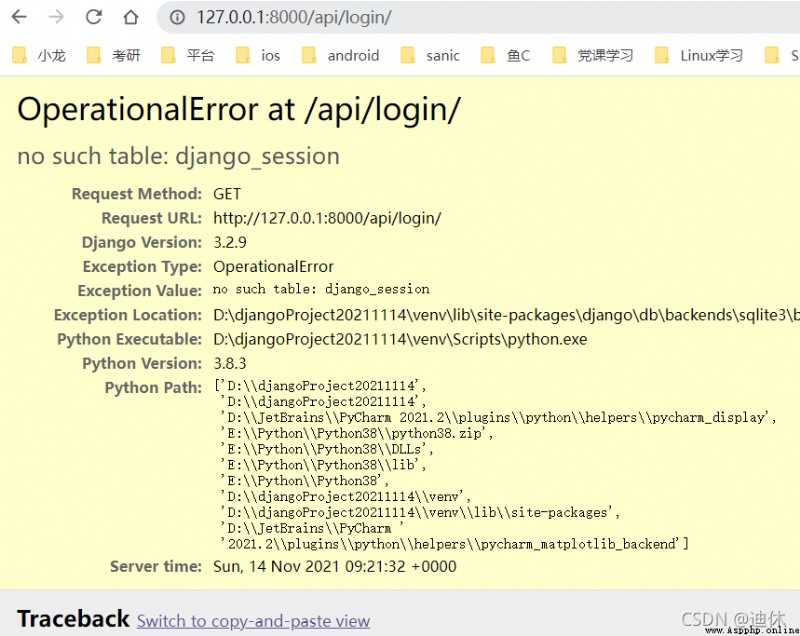

7. Now, if the step is run directly, there will be the following error ,django_session It's because of the database , The modification scheme is as follows

Reference link ：https://www.bilibili.com/video/BV1i64y1y7mm?p=25

django Connect to the built-in database db.sqlite3

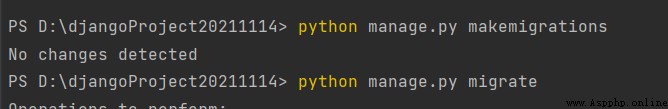

1. Data and db.sqlite3 docking ,（ Step by step from above , Those that have been docked are not needed ）

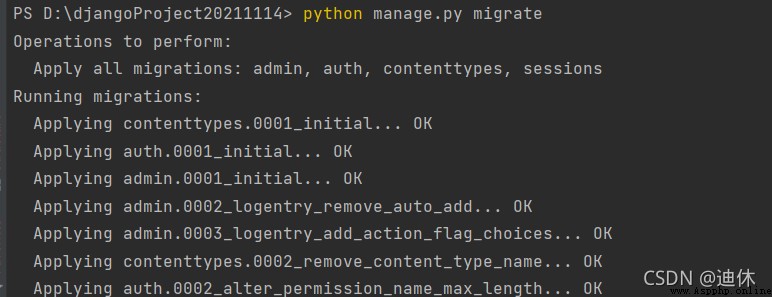

python manage.py migrate

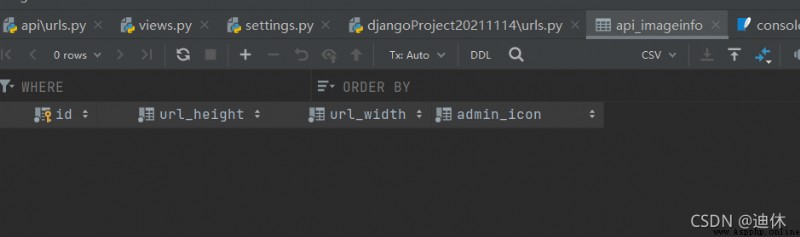

After creation, the following interface will appear

• problem ： No more dbsqlit3 Data table interface

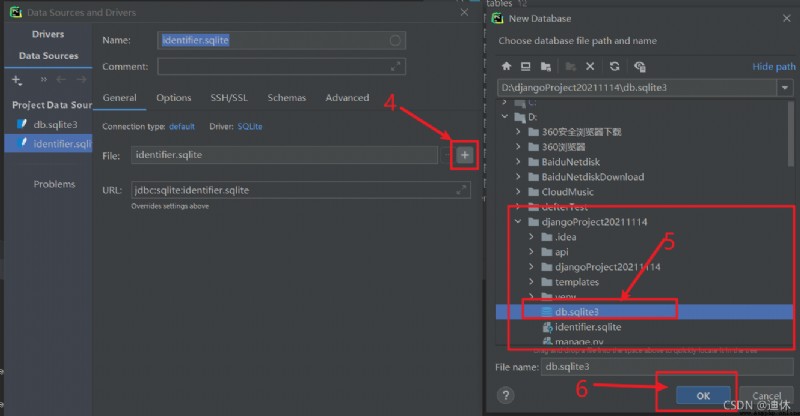

• The solution is as follows ：

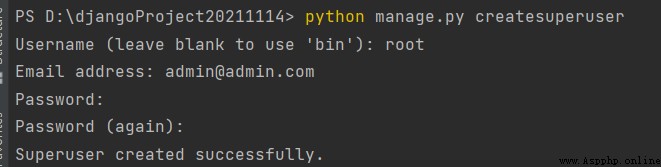

2. Create super admin

python manage.py createsuperuser

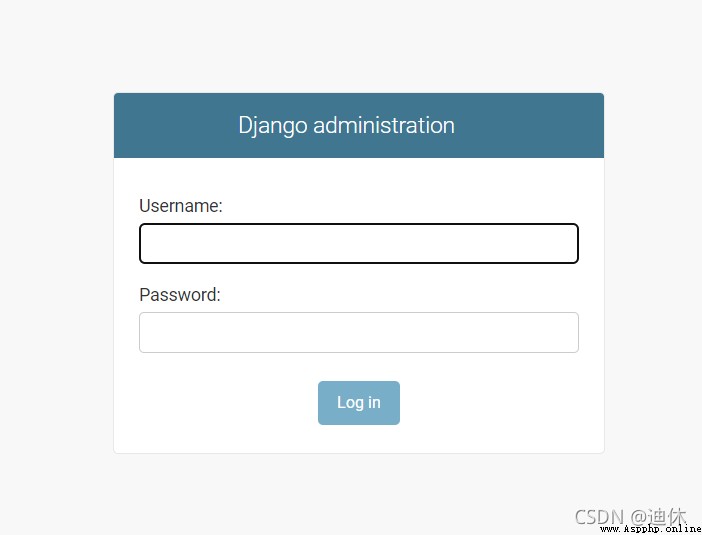

Enter the super administrator interface

127.0.0.1:8000/admin

3. function To configure ( Example ： Picture model )

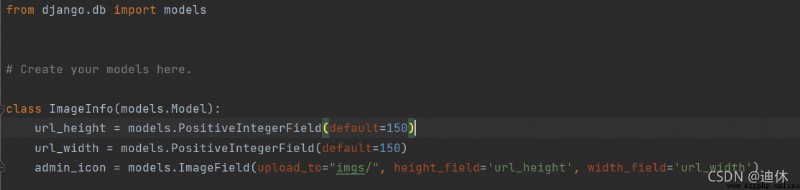

stay api Under folder models.py Add the following to the file

from django.db import models
# Create your models here.
class ImageInfo(models.Model):
url_height = models.PositiveIntegerField(default=150)
url_width = models.PositiveIntegerField(default=150)
admin_icon = models.ImageField(upload_to="imgs/", height_field='url_height', width_field='url_width')

4. Function introduction project

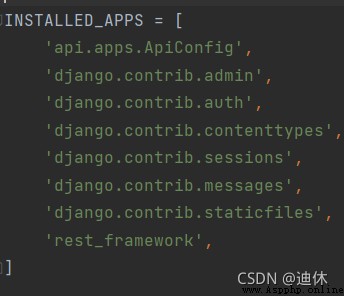

Add the following sentence in djangoProject20211114 Under the settings.py Of INSTALLED_APPS
‘api.apps.ApiConfig’,
（api Is the name of the function you created ）

/ root directory /settings.py
Adding INSTALLED_APPS = [
The name of the function .apps. The name of the function Config
]

5. Function write to db.sqlit3 In the database

python manage.py makemigrations api
python manage.py makemigrations The name of the function

• problem ： There may be a mistake , If you look carefully, , It may be installation Pillow Group
• Solution ：

pip install Pillow

6. Update the database db.sqlit3

python manage.py migrate

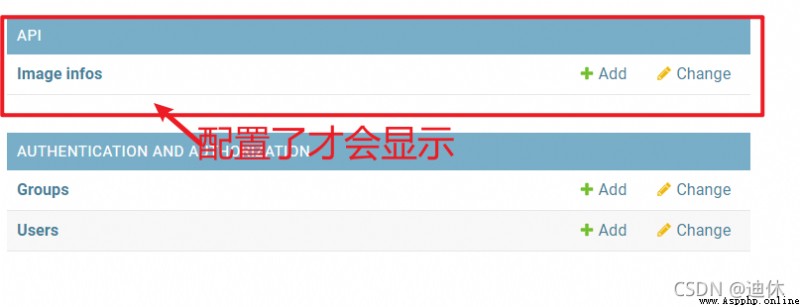

7. Configure the background （ After configuration , You can manage in the super administrator interface ）

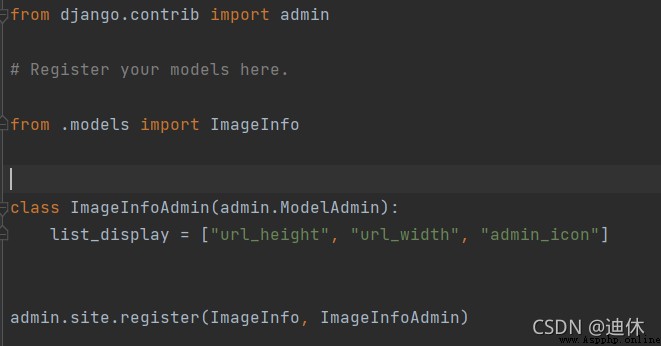

Add the following sentence in djangoProject20211114 Under the admin.py

from django.contrib import admin
# Register your models here.
from .models import ImageInfo
class ImageInfoAdmin(admin.ModelAdmin):
list_display = ["url_height", "url_width", "admin_icon"]
admin.site.register(ImageInfo, ImageInfoAdmin)

problem , The image was successfully imported by the super administrator , But I can't open it , It doesn't show

Solution ：
stay djangoProject20211114 Under the settings.py in , Add at the end of the file

MEDIA_URL = "/upimg/"
MEDIA_ROOT = os.path.join(BASE_DIR, "upimg")

upimg This name can be assigned by yourself

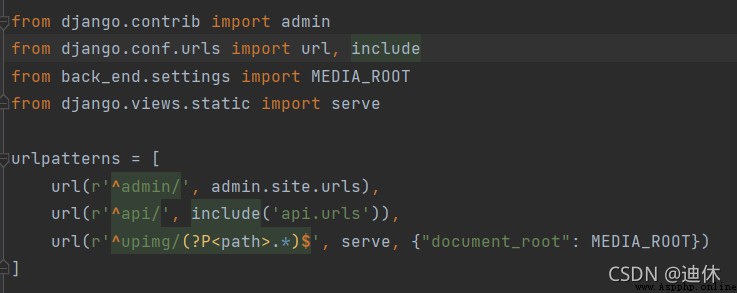

stay djangoProject20211114 Under the urls.py Configuration is introduced in

from djangoProject20211114.settings import MEDIA_ROOT
from django.views.static import serve
url(r'^upimg/(?P<path>.*)$', serve, {
"document_root": MEDIA_ROOT})

8. give the result as follows

Reference link ：https://www.bilibili.com/video/BV1oU4y1w7PF?spm_id_from=333.999.0.0
