Python implementation of PSO algorithm based on multi group mechanism

編輯:Python

List of articles

  • Preface
  • Copyright
  • reference
  • 2022.6.20
    • The first point
    • Second points
  • The first point implements ( Basics PSO Realization )
    • Algorithm configuration Config
    • Objective function Target
    • Bird Definition
    • Basic algorithm implementation
  • The second point implements ( Reference 3 )
  • contrast

Preface

At present, we are still optimizing the single objective algorithm , The purpose is to avoid the sudden drop of multi-objective effect caused by the limitations of single objective algorithm .
This code adopts Python Realization , Later will be transferred to Flink platform .

Copyright

It's a solemn reminder : The copyright of this article belongs to me , No one is allowed to copy , Carry , Use with my consent !

reference

[1] Liaoyanna , Limengjun , Zhangjingqi .K Mean clustering - Particle swarm optimization multi-objective localization algorithm [J]. Electronic Design Engineering ,2018,26(02):56-60.
Abstract : Aiming at the problem of multi-target location in complex image background , use K Mean clustering - Particle swarm optimization combined algorithm , Using the crowding out mechanism to determine the initial clustering centroid ; The target particle population is divided into several subgroups according to the eigenvector , Update the Particle Optimization in each target subgroup ; Repeat clustering and subgroup optimization , Until each target subgroup gets the optimal solution . The algorithm is applied to multi license plate location , Based on the actual collection of a large number of parking lot pictures , The particle model of license plate target is designed , Eigenvectors and fitness functions , The algorithm is Matlab Simulation . Experimental results show that :K Mean clustering - Particle swarm optimization (PSO) realizes the accurate and automatic positioning of multiple targets , The algorithm converges stably .

[2] Guo Cheng , Zhang Wanda , Wang Bo , Wang Jiafu . Particle swarm optimization algorithm based on multi swarm parallel cooperation [J]. Computer and modernization ,2022,(01):33-40.
Abstract : For high-dimensional complex optimization problems, it is easy to produce dimension disaster when solving, resulting in the problem that the algorithm is easy to fall into local optimization , This paper presents a method that can comprehensively consider the characteristics of high-dimensional complex optimization problems , Multi swarm parallel cooperative particle swarm optimization algorithm with dynamic adjustment of evolutionary strategy . The algorithm is based on the analysis of particle characteristics in the process of solving high-dimensional complex problems , Establish a fused ring topology 、 Network model of multi swarm parallel cooperation of particle swarm optimization algorithm with fully connected topology and von Neumann topology . The model combines 3 The advantages of a topological particle swarm optimization algorithm in solving high-dimensional complex optimization problems , A particle broadcasting system based on multi community is designed - Feedback dynamic evolution strategy and its evolutionary algorithm , Realize the dynamic adaptation of topology in high-dimensional complex optimization environment , The algorithm has strong search ability in solving high-dimensional unimodal function and multimodal function . The simulation results show that , The algorithm has good performance in the optimization accuracy and convergence speed of solving high-dimensional complex optimization problems .

[3] Rhodes , Zhou Yongquan , Huang huajuan , Wei xingqiong . Multi swarm particle swarm optimization algorithm [J]. Computer engineering and Application ,2010,46(19):51-54.
Abstract : Divide a particle swarm of a certain size into three subgroups , And according to the basic particle optimization algorithm 、ω Particle swarm optimization algorithm with self linear adjustment strategy and cloud adaptive particle swarm optimization algorithm have three different evolution rules , It not only maintains the independence and superiority of each subgroup and algorithm , Without increasing the complexity of the algorithm , And to put forward " Super social " part , Redefined the speed replacement formula , At the same time, the expansion mutation method and perturbation operation are introduced . The experimental simulation results show that , The global search ability of the algorithm is given 、 Convergence rate , The accuracy and stability have been significantly improved .

[4] Yangdaoping . Research on neighborhood topology of particle swarm optimization algorithm [J]. China's high-tech enterprises ,2009,(16):36-37.
Abstract : Particle swarm optimization (PSO Algorithm ) It is a heuristic global optimization technique .PSO The neighborhood topology of particle swarm optimization is a very important factor to determine the effect of particle swarm optimization algorithm , Particle swarm optimization algorithm with different neighborhood topology , The effect is very different . This paper analyzes the neighborhood topology and PSO The relationship between algorithms , The research status of neighborhood topology of particle swarm optimization algorithm is described , The possible research directions in the future are put forward .

Here I refer to four papers , So I put forward three optimization ideas here , Here we first implement two versions .

2022.6.20

date :2022.6.20 DAY 1

The first point

First, the most basic... Is realized based on non matrix operation PSO Algorithm

Second points

Implement the simplest algorithm based on the third reference . This is actually PSO Realized , But I want to go to reinforcement learning optimization , So we have to do it alone python Of .

The first point implements ( Basics PSO Realization )

ok , Let's first look at today's first working point , The most basic of tradition is 1995 The algorithm proposed in .

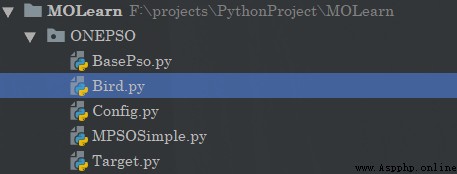

The overall project structure is as follows :

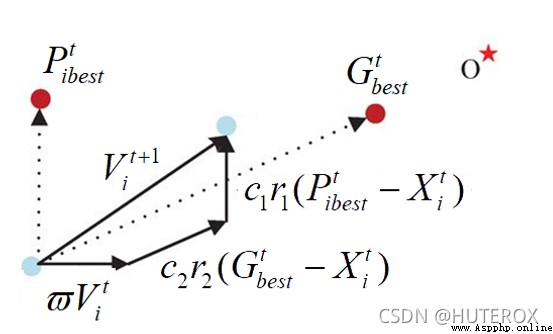

The basic core formula of the algorithm is as follows :

Algorithm configuration Config

The first is configuration
This is mainly responsible for the following configurations , Then we use linear weights to unify .

# The setting of relevant parameters is completed through the configuration center
C1=2.0
C2=2.0
C3=2.0
W = 0.4
# Dimensions defined under a single objective
DIM = 2
X_down = -2.0
X_up = 2.0
V_min = -4.0
V_max = 4.0
# This parameter is used to optimize multiple groups later PSO Parameters of the algorithm
ClusterSize = 20
ClusterNumber = 3
# The size of the population
PopulationSize = 60
IterationsNumber = 1000
def LinearW(iterate):
# Number of incoming iterations
Wmax = 0.9
Wmin = 0.4
w = Wmax-(iterate*((Wmax-Wmin)/IterationsNumber))
return w

Objective function Target

Then there is our objective optimization function , I also extracted the words here separately , Because I intend to optimize the single objective first , Then optimize the multi-objective , Then let's find some practical points to break through , Then the article came out , Although there are similar PlatEMO This platform , But as a sophomore in soft work , I still like to write my own wheels , And I have to go on the back Flink, The upper class processing engine is distributed ( So I don't need matrix in the following code , Utility class , Use objects to represent more information , Single machine has no concurrency , Multiple computers can be concurrent , If it's a matrix , Don't want to , so much trouble .

# This gadget is used to define functions that need to be optimized
class Target(object):
def SquareSum(self,X:list):
res = 0
for x in X:
res+=x*x
return res

Bird Definition

This Bird That's what I do to reduce matrix operations
Although actually I use numpy It's going to be great , Direct matrix parallel operation , Then update it , But a single stream processing , It's hard to do , If we go to the back , Maybe I finished the matrix operation on a computer , If you look at Flink To handle the mechanism of data synchronization , Matrix is not easy to split , Then he came according to the slowest one , If you split , How much to dismantle , How to merge , How to handle the delay is a problem .

# Here we use definitions Class The way to achieve PSO, Easy to adjust later
from ONEPSO.Config import *
import random
class Bird(object):
ID = 0
# This is the population when it is divided into multiple groups ID
CID = 0
Iterate = 0
Y = None
X = None
# Record the optimal value of the individual , This is related to finding the global optimal value later
PbestY = None
PBestX = None
GBestX = None
GBestY = None
CBestY=None
CBestX=None
V = None
def __init__(self,ID):
self.ID = ID
self.V = [random.random() *(V_max-V_min) + V_min for _ in range(DIM)]
self.X = [random.random() *(X_up-X_down) + X_down for _ in range(DIM)]
def __str__(self):
return "ID:"+str(self.ID)+" -Fintess:%.2e:"%(self.Y)+" -X"+str(self.X)+" -PBestFitness:%.2e"%(self.PbestY)+" -PBestX:"+str(self.PBestX)+\
"\n -GBestFitness:%.2e"%(self.GBestY)+" -GBestX:"+str(self.GBestX)

Basic algorithm implementation

And then the most basic implementation

# This is the most basic PSO Algorithm implementation , Used to test the rationality of the current algorithm architecture
# In addition, this gadget is also a tool class for optimization , The whole algorithm is to find the minimum value
from ONEPSO.Bird import Bird
from ONEPSO.Config import *
from ONEPSO.Target import Target
import random
import time
class BasePso(object):
Population = None
Random = random.random
target = Target()
W = W
def __init__(self):
# For convenience , Let's start with 1 Start
self.Population = [Bird(ID) for ID in range(1,PopulationSize+1)]
def ComputeV(self,bird:Bird):
# This method is used to calculate the velocity drop
NewV=[]
for i in range(DIM):
v = bird.V[i]*self.W + C1*self.Random()*(bird.PBestX[i]-bird.X[i])\
+C2*self.Random()*(bird.GBestX[i]-bird.X[i])
# Here, pay attention to judge whether it is beyond the scope
if(v>V_max):
v = V_max
elif(v<V_min):
v = V_min
NewV.append(v)
return NewV
def ComputeX(self,bird:Bird):
NewX = []
NewV = self.ComputeV(bird)
for i in range(DIM):
x = bird.X[i]+NewV[i]
if(x>X_up):
x = X_up
elif(x<X_down):
x = X_down
NewX.append(x)
return NewX
def InitPopulation(self):
# Initial population
GBestX = [0. for _ in range(DIM)]
Flag = float("inf")
for bird in self.Population:
bird.PBestX = bird.X
bird.Y = self.target.SquareSum(bird.X)
bird.PbestY = bird.Y
if(bird.Y<=Flag):
GBestX = bird.X
Flag = bird.Y
# After the convenience, we get the globally optimal population
for bird in self.Population:
bird.GBestX = GBestX
bird.GBestY = Flag
def Running(self):
# Here we begin to iterate
for iterate in range(1,IterationsNumber+1):
w = LinearW(iterate)
# This is a good one GBestX In fact, it is always the best thing in the next round
GBestX = [0. for _ in range(DIM)]
Flag = float("inf")
for bird in self.Population:
# Change to linear weight
self.W = w
x = self.ComputeX(bird)
y = self.target.SquareSum(x)
# Here we still need to be more detailed unconditionally , Otherwise, here C1 Is failure
# if(y<=bird.Y):
# bird.X = x
# bird.PBestX = x
bird.X = x
bird.Y = y
if(bird.Y<=bird.PbestY):
bird.PBestX=bird.X
bird.PbestY = bird.Y
# The best in an individual must contain the best that the whole world has experienced
if(bird.PbestY<=Flag):
GBestX = bird.PBestX
Flag = bird.PbestY
for bird in self.Population:
bird.GBestX = GBestX
bird.GBestY=Flag
if __name__ == '__main__':
start = time.time()
basePso = BasePso()
basePso.InitPopulation()
basePso.Running()
end = time.time()
for bird in basePso.Population:
print(bird)
print(" It takes a long time :",end-start)

The whole algorithm is very simple to write , It is also the easiest to understand in this way , The easiest to modify , Because I can change many things directly .

The second point implements ( Reference 3 )

Then there are our many groups .

The first thing I have implemented here is the simplest one , Multi group ( In fact, I wrote this for testing , There are three more points to be achieved ), There are still a few papers to deal with tomorrow .

Article this thing , It's really fast to read and write code .
I suddenly found that it was really cool to mix in the school laboratory , Otherwise, it is still CURD, Still in the eight part essay .

So this code is like this , Divided into three small groups , Now it's direct distribution , Three groups , Then update the equation to look like this


The last two points , One is how to divide the species group , One is about how this population interacts , In the first chapter, we mentioned the problems of different topology networks . The last one is how to optimize parameters , Because of this PSO, You will also find that this parameter is correct PSO The impact of , for example C1,2,3 Set up , This means which one you prefer later , Here I consider using reinforcement learning to optimize , Let's have a simple one first QL Try water .

# This algorithm is intended to BasePso On the basis of , Do a simple multi group optimization
from ONEPSO.BasePso import BasePso
from ONEPSO.Config import *
from ONEPSO.Bird import Bird
import time
class MPSOSimple(BasePso):
def __init__(self):
super(MPSOSimple,self).__init__()
self.Divide()
def Divide(self):
# Let's start with the simplest way , Hard classification
CID = 0
for bird in self.Population:
bird.CID=CID
if(bird.ID % ClusterSize==0):
if(CID<=ClusterNumber):
CID+=1
def ComputeV(self,bird:Bird):
# This method is used to calculate the velocity drop
NewV=[]
for i in range(DIM):
v = bird.V[i]*self.W + C1*self.Random()*(bird.PBestX[i]-bird.X[i])\
+C2*self.Random()*(bird.GBestX[i]-bird.X[i]) + C3*self.Random()*(bird.CBestX[i]-bird.X[i])
# Here, pay attention to judge whether it is beyond the scope
if(v>V_max):
v = V_max
elif(v<V_min):
v = V_min
NewV.append(v)
return NewV
def ComputeX(self,bird:Bird):
NewX = []
NewV = self.ComputeV(bird)
for i in range(DIM):
x = bird.X[i]+NewV[i]
if (x > X_up):
x = X_up
elif (x < X_down):
x = X_down
NewX.append(x)
return NewX
def InitPopulation(self):
# Initial population
# This is to record the global optimal solution
GBestX = [0. for _ in range(DIM)]
Flag = float("inf")
# There is also a record Cluster Optimal solution
CBest = {
}
CFlag = {
}
for i in range(ClusterNumber):
CFlag[i]=float("inf")
for bird in self.Population:
bird.PBestX = bird.X
bird.Y = self.target.SquareSum(bird.X)
bird.PbestY = bird.Y
bird.CBestX = bird.X
bird.CBestY = bird.Y
if(bird.Y<=Flag):
GBestX = bird.X
Flag = bird.Y
if(bird.Y<=CFlag.get(bird.CID)):
CBest[bird.CID]=bird.X
CFlag[bird.CID] = bird.Y
# After the convenience, we get the globally optimal population
for bird in self.Population:
bird.GBestX = GBestX
bird.GBestY = Flag
bird.CBestY=CFlag.get(bird.CID)
bird.CBestX=CBest.get(bird.CID)
def Running(self):
# Here we begin to iterate
for iterate in range(1,IterationsNumber+1):
w = LinearW(iterate)
# This is a good one GBestX In fact, it is always the best thing in the next round
GBestX = [0. for _ in range(DIM)]
Flag = float("inf")
CBest = {
}
CFlag = {
}
for i in range(ClusterNumber):
CFlag[i] = float("inf")
for bird in self.Population:
# Change to linear weight
self.W = w
x = self.ComputeX(bird)
y = self.target.SquareSum(x)
# Here we still need to be more detailed unconditionally , Otherwise, here C1 Is failure
# if(y<=bird.Y):
# bird.X = x
# bird.PBestX = x
bird.X = x
bird.Y = y
if(bird.Y<=bird.PbestY):
bird.PBestX=bird.X
bird.PbestY = bird.Y
# The best in an individual must contain the best that the whole world has experienced
if(bird.PbestY<=Flag):
GBestX = bird.PBestX
Flag = bird.PbestY
if (bird.Y <= CFlag.get(bird.CID)):
CBest[bird.CID] = bird.X
CFlag[bird.CID] = bird.Y
for bird in self.Population:
bird.GBestX = GBestX
bird.GBestY=Flag
bird.CBestY = CFlag.get(bird.CID)
bird.CBestX = CBest.get(bird.CID)
if __name__ == '__main__':
start = time.time()
mpso = MPSOSimple()
mpso.InitPopulation()
mpso.Running()
end = time.time()
for bird in mpso.Population:
print(bird)
print(" It takes a long time :",end-start)

contrast

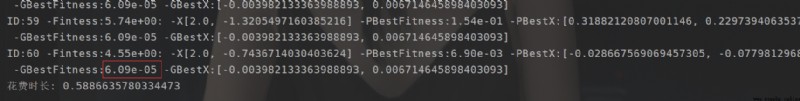

How to say this , The effect of the latter is relatively good .

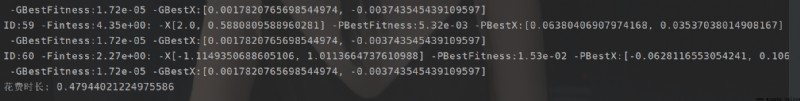

The original BasePSo

My calculation is average
