I've written an article about using centos7+nginx Deploy django Blog post of the project , Because this project is a front-end and back-end mode , Some static files need to use nginx Agents can access , Not used docker.
Original link :https://blog.csdn.net/qq_39253370/article/details/106454587
If the front and back ends are separated , The back end only needs to provide an interface , Add some permission control , Deployment is also relatively simple .
There are two files to note :
pip.conf:
[global]
index-url = https://mirrors.aliyun.com/pypi/simple/
[install]
trusted-host=mirrors.aliyun.com
start.sh
uwsgi --ini /var/www/html/mysite1/uwsgi.ini
It can be placed under any directory :
Put it here. : /home/{
xx}/data/project below
Pictured :
# establish python3.7 Environmental Science
FROM python:3.7
# Mirror author
MAINTAINER xx
# Set up python environment variable
ENV PYTHONUNBUFFERED 1
# Set up pip The source is domestic
# I made a mistake when running here , Not for the time being , You can configure according to your server path
# COPY /home/yufuxiao/data/project/gongyequ/pip.conf /root/.pip/pip.conf
# In a container /var/www/html/ Create mysite1 Folder
# Be careful : Here is the specific operation in the container ,run After getting up, the following directory will be created
RUN mkdir -p /var/www/html/mysite1
# Set the working directory in the container
WORKDIR /var/www/html/mysite1
# Add the current directory file to the working directory of the container (. Indicates the current host directory )
# Will be /home/{xx}/data/project All the following files will be added to the container , Here we only put our project files
ADD . /var/www/html/mysite1
# utilize pip Installation dependency
# Installation dependency
# RUN python3.7 -m pip install -r /home/yufuxiao/data/project/gongyequ/requirements.txt
# Windows Written in the environment of start.sh There is extra at the end of each command line \r character , Need to be removed .
# Start project
RUN sed -i 's/\r//' /var/www/html/mysite1/gongyequ/start.sh
# Set up start.sh File executable rights
RUN chmod +x /var/www/html/mysite1/gongyequ/start.sh
sudo docker build -t docker_django_img:v1 .
-t: tagging
.: Context Directory , Current project and dockerfile Points can be used in a directory , If not in a directory , You need to specify the directory

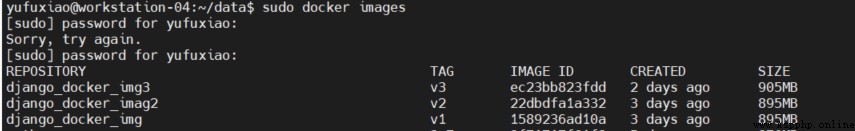

sudo docker images
Look at the constructed image , Here's the picture :
delete mirror :sudo docker rmi Mirror image id -f Parameters : Mandatory deletion
function :
sudo docker run --name Name yourself -p Host port : Container port Image name .
Example :sudo docker run --name gongyequ -p 10418:8000 django_docker_img:v1
Check to see if startup succeeded :sudo docker ps
View the running status of all containers :sudo docker ps -a
Restart container :sudo docker restart Container name or id
Delete container :sudo docker rm Container name or id -f Parameters : Mandatory deletion
sudo docker exec -it Containers id Or name /bin/bash
Another way to get into the container :docker attach [OPTIONS] CONTAINER
Install all dependent packages :pip install -r requirements.txt
install uwsgi :pip install uwsgi
Start project :python manager.py runserver 0.0.0.0:8000
If the startup is successful , It shows that more than half of the work has been completed here .
In the above we used Django It comes with its own runserver The command starts the test server , However, it can only be used for user's local mode development , However, in the actual generation environment, you should use the one that supports high concurrency uwsgi Server to start Django service .
[uwsgi]
# Project name
project=mysite
# Project path
base=/var/www/html
# Specify the directory of the project , stay app Switch to the current directory before loading , This is something to pay attention to , yes app Catalog
# gongyequ:app name
chdir=/var/www/html/mysite1/gongyequ
# Specify the application, Load the specified python WSGI modular ( Module path must be in PYTHONPATH in )
# Here is the django project wsgi.py file
# nsproject:django Project name
module=nsproject.wsgi:application
# Start a master Process to manage other processes
master=True
# Number of processes , If the main process master Then the subprocess will also kill fall
processes=2
# use nginx When it comes to socket , When running directly, it is equipped with http
# Appoint IP port // Direct external access
http=0.0.0.0:8000
# Setting is used for uwsgi Internal buffer size for package resolution . The default is 4k Maximum 64
buffer-size=65536
# Timeout time
harakiri=60
# Set up running in the background
daemonize=uwsgi.log
Execute this file :uwsgi uwsgi.ini
External access indicates that the deployment is successful .
The general question is uwsgi.ini The configuration in is not written correctly , Please recheck , The most error prone place is the path configuration :
# Specify the directory of the project , stay app Switch to the current directory before loading , This is something to pay attention to , yes app Catalog
# gongyequ:app name
chdir=/var/www/html/mysite1/gongyequ
# Specify the application, Load the specified python WSGI modular ( Module path must be in PYTHONPATH in )
# Here is the django project wsgi.py file
# nsproject:django Project name
module=nsproject.wsgi:application
It's hard to avoid editing files in containers , Need to install vim,Ubuntu Lower installation vim:
apt-get update && apt-get install apt-file -y && apt-file update && apt-get install vim
Check whether the port is on :
apt-get update && apt-get install net-tools
If there is access inside the container redis Please put bind Change it to 0.0.0.0 Or directly comment bind
https://www.jianshu.com/p/07458e99198a
https://www.runoob.com/docker/docker-command-manual.html
Django It's a Web frame , The role of the framework is to deal with request and reponse, The rest is not what the framework cares about . So how to deploy Django No Django What we need to care about .
Django What is provided is a development server , This development server , Not tested for safety , And it uses Python Self contained simple HTTPServer Created , It's not safe or efficient
and uWSGI It's a full-featured HTTP The server , All he has to do is put HTTP The protocol is transformed into a language supported network protocol . For example HTTP The agreement translates into WSGI agreement , Give Way Python You can use it directly .
uwsgi It's a kind of uWSGI Internal agreement of , Use binary mode to communicate with other applications .
Reference resources :https://blog.csdn.net/mnszmlcd/article/details/78819237

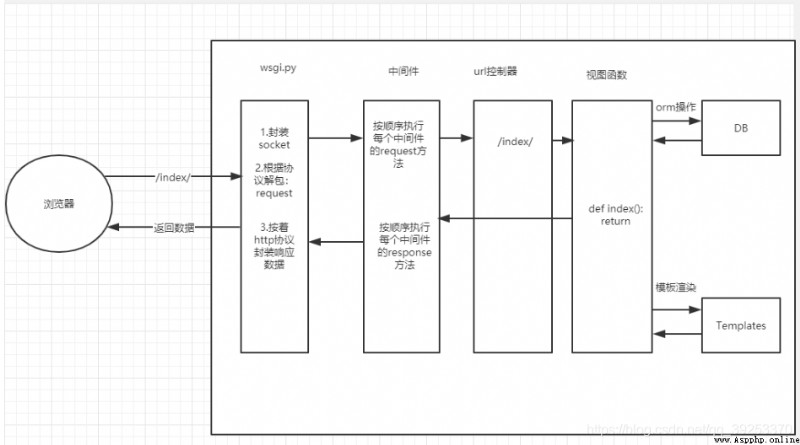

uwsgi General summary :
First, the client requests to come ------ Send to uwsgi Do the processing ( encapsulation 、 Processing data )------ middleware ---- route ---- Try the function ----- Database operation or template rendering
Recommended articles :https://blog.csdn.net/qq_39253370/article/details/104620553
