[background development of Django project] data statistics - statistics of total users, statistics of daily increasing users and statistics of daily active users (3)

One 、 Statistics of total users

1、 Back end connection ⼝ Design

request ⽅ type ： GET /statistics/total_count/
Request parameters ： Pass through the request header jwt token data .
Return the data ： JSON

{
 "count": " total ⽤ Household quantity "}

2、 Back end code implementation

route

from django.urls import re_path
from rest_framework_jwt.views import obtain_jwt_token
from .views import users
from .views import statistics
urlpatterns=[
re_path('^mg_admin/login/$',obtain_jwt_token),
re_path('^statistics/total_count/$',statistics.UserTotalAPIView.as_view()),

View

from datetime import date
from rest_framework.permissions import IsAdminUser
from rest_framework.response import Response
from rest_framework.views import APIView
from userapp.models import Users
class UserTotalCountView(APIView):
''' Get the total number of users '''
# Specify administrator privileges
permission_classes=IsAdminUser
def get(self,request):
count=Users.objects.all().count()
return Response({
'count':count})

Two 、 Statistics of daily increasing number of users

1、 Back end connection ⼝ Design

request ⽅ type ： GET /statistics/day_increment/
Request parameters ： Pass through the request header jwt token data .
Return the data ： JSON

{
 "count": " newly added ⽤ Household quantity ", }

2、 Back end code implementation

date_joined Record when the account was created

route

from django.urls import re_path
from rest_framework_jwt.views import obtain_jwt_token
from .views import users
from .views import statistics
urlpatterns=[
re_path('^mg_admin/login/$',obtain_jwt_token),
re_path('^statistics/day_increment/$',statistics.UserDayCountView.as_view()),

View

class UserDayCountView(APIView):
''' Get the number of daily users '''
# Specify administrator privileges
permission_classes=IsAdminUser
def get(self,request):
# Get current date
now_today=date.today()
year=now_today.year
month=now_today.month
day=now_today.day
count=Users.objects.filter(date_joined__year=year,date_joined__month=month,date_joined__day=day)
return Response({
'count':count})

3、 ... and 、 Daily active user statistics

1、 Back end connection ⼝ Design

request ⽅ type ：GET /statistics/day_active/
Request parameters ： Pass through the request header jwt token data .
Return the data ： JSON

{
 "count": " active ⽤ Household quantity "}

2、 Back end code implementation

route

from django.urls import re_path
from rest_framework_jwt.views import obtain_jwt_token
from .views import users
from .views import statistics
urlpatterns=[
re_path('^mg_admin/login/$',obtain_jwt_token),
re_path('^statistics/day_active/$',statistics.UserActiveCountView.as_view()),
]

View

class UserActiveCountView(APIView):
''' obtain ⽇ active ⽤ households '''
# Specify administrator privileges
permission_classes=IsAdminUser
def get(self,request):
# Get current date
now_today=date.today()
year=now_today.year
month=now_today.month
day=now_today.day
# Get when ⽇ Sign in ⽤ Number of households last_login Record the last login time count=User.objects.filter(last_login__year=year,last_login__month=month,last_login__day=day).count()
return Response({
'count':count})

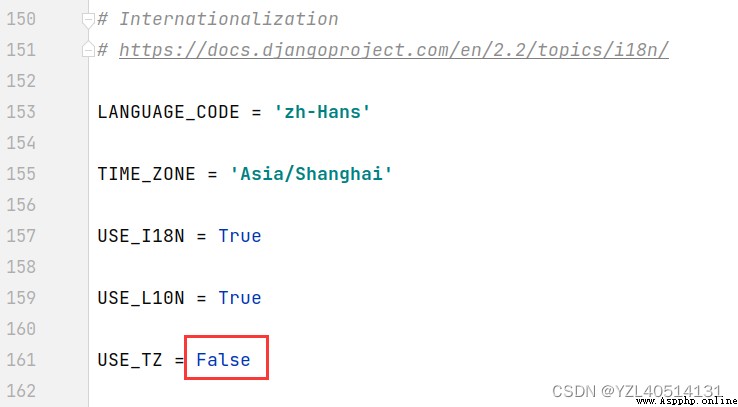

Be careful ： You need to put the USE_TZ Change it to False, To show the current time

The above front-end code implements

 data() {

return {

host:'http://192.168.17.129:8880',
token:localStorage.token,
username:localStorage.username,
userid:localStorage.user_id,
stat: [
[
],
]
}
},
computed:{

chartLine1() {

return this.$echarts.init(Util.getDom('line1'));
}
},
methods: {

getOrderCount(){

this.$axios.get(this.host +'/statistics/time_order_count/',{

headers:{

'Authorization': 'JWT ' + this.token
}
}).then(response=>{

this.drawLine1(response.data);
}).catch(error=>{

console.log(error.response);
})
},
drawLine1(data)
{

let title = " Orders placed today and yesterday ";
let option = {

title: Object.assign({
}, Util.defaultEchartsOpt.title, {
text: title}),
grid: {

top: 60,
left: 60,
right: 80,
bottom: 20,
containLabel: true
},
tooltip: {

trigger: 'axis',
axisPointer: {

lineStyle: {

color: '#ddd'
}
},
backgroundColor: 'rgba(255,255,255,1)',
padding: [5, 10],
textStyle: {

color: '#999',
},
extraCssText: 'box-shadow: 0 0 5px rgba(0,0,0,0.3)'
},
legend: {

top: 15,
right: 20,
orient: 'vertical',
textStyle: {

color: "#666"
}
},
xAxis: {

type: 'category',
data: ['00:00','2:00','4:00','6:00','8:00','10:00','12:00','14:00','16:00','18:00','20:00','22:00'],
boundaryGap: false,
splitLine: {

show: false,
interval: 'auto',
lineStyle: {

color: ['#D4DFF5']
}
},
axisTick: {

show: false
},
axisLine: {

lineStyle: {

color: '#999'
}
},
axisLabel: {

margin: 10,
textStyle: {

fontSize: 14
}
}
},
yAxis: {

type: 'value',
splitLine: {

lineStyle: {

color: ['#D4DFF5']
}
},
axisTick: {

show: false
},
axisLine: {

lineStyle: {

color: '#999'
}
},
axisLabel: {

margin: 10,
textStyle: {

fontSize: 14
}
}
},
series: [{

name: ' Today, ',
type: 'line',
smooth: true,
showSymbol: false,
symbol: 'circle',
symbolSize: 4,
data: data['t_count_list'],
areaStyle: {

normal: {

color: new this.$echarts.graphic.LinearGradient(0, 0, 0, 1, [{

offset: 0,
color: 'rgba(199, 237, 250,0.5)'
}, {

offset: 1,
color: 'rgba(199, 237, 250,0.2)'
}], false)
}
},
itemStyle: {

normal: {

color: 'rgba(154, 116, 179, 0.7)'
}
},
lineStyle: {

normal: {

width: 2
}
}
}, {

name: ' Yesterday, ',
type: 'line',
smooth: true,
showSymbol: false,
symbol: 'circle',
symbolSize: 4,
data: data['y_count_list'],
areaStyle: {

normal: {

color: new this.$echarts.graphic.LinearGradient(0, 0, 0, 1, [{

offset: 0,
color: 'rgba(216, 244, 247,1)'
}, {

offset: 1,
color: 'rgba(216, 244, 247,1)'
}], false)
}
},
itemStyle: {

normal: {

color: 'rgba(126, 237, 238, 0.7)'
}
},
lineStyle: {

normal: {

width: 2
}
}
}]
};
this.chartLine1.setOption(option);
return this;
},
day_active_count(){

// Get the total number of daily active users
this.$axios.get(this.host+'/statistics/day_active/',{

headers:{

'Authorization': 'JWT ' + this.token
}
}).then(response=>{

this.stat[0].splice(2,0,{

title: ' Total number of active users per day ',
total: response.data.count,
bgColor: '#67c4ed'
});
}).catch(error=>{

console.log(error.response);
});
},
day_increment_count(){

// Get the total number of users growing every day
this.$axios.get(this.host+'/statistics/day_increment/',{

headers:{

'Authorization': 'JWT ' + this.token
}
}).then(response=>{

this.stat[0].splice(1,0,{

title: ' Total number of daily users ',
total: response.data.count,
bgColor: '#3acaa9'
});
}).catch(error=>{

console.log(error.response);
});
},
total_user_count(){

// Get the total number of users
this.$axios.get(this.host+'/statistics/total_count/',{

headers:{

'Authorization': 'JWT ' + this.token
}
}).then(response=>{

this.stat[0].splice(0,0,{

title: ' Total users ',
total: response.data.count,
bgColor: '#ebcc6f'
});
}).catch(error=>{

console.log(error.response);
});
},
},
mounted() {

this.total_user_count();
this.day_increment_count();
this.day_active_count();
this.getOrderCount();
}
}
