Quadratic linear interpolation principle + code explanation [Python]

編輯:Python

One 、 principle

Reference blog , I also read this article to get started .

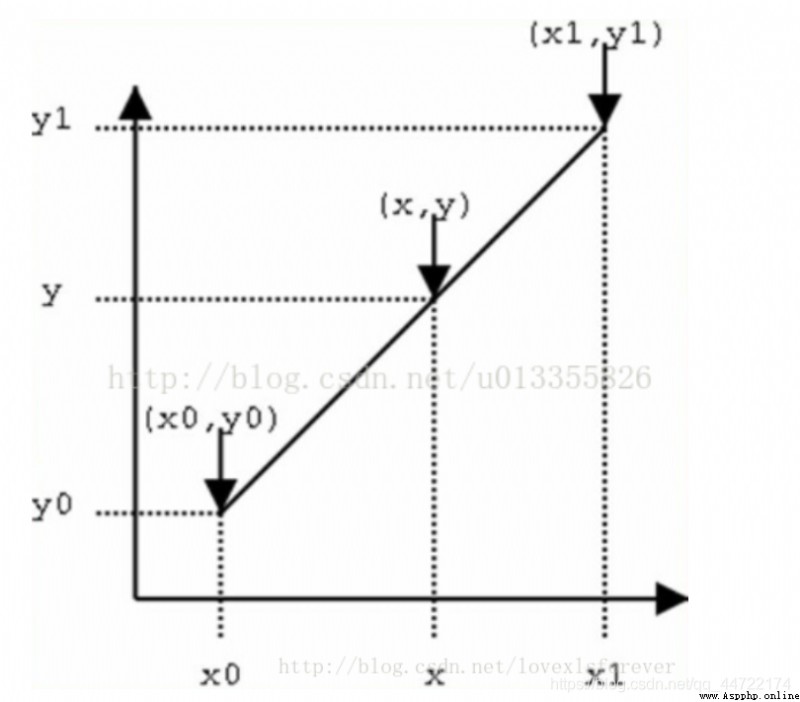

1、 Single linear interpolation


The simple linear interpolation is just like the expression of the function obtained by the two-point method in junior high school , utilize y0 and y1 Weighted representation of y

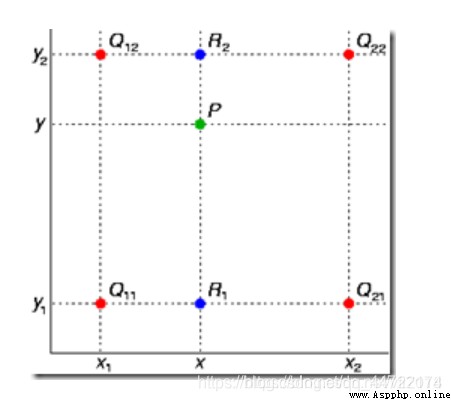

2、 Bilinear interpolation


Interpolate from two directions respectively :


Merge the above formula :

3、 Advanced version

Double line interpolation algorithm is a better image scaling algorithm , It makes full use of the four real pixel values around the virtual points in the source image to jointly determine a pixel value in the target image , Therefore, the scaling effect is much better than simple nearest neighbor interpolation . Because image bilinear interpolation only uses adjacent 4 A little bit , Therefore, the denominator of the following formula is 1. Algorithm description : For a destination pixel , Set the floating-point coordinates obtained by inverse transformation to (i+u,j+v) ( among i、j Are integer parts of floating-point coordinates ,u、v Is the decimal part of the floating-point coordinates , It's a value [0,1) Floating point numbers in intervals ), Then the value of this pixel f(i+u,j+v) The coordinates in the original image can be (i,j)、(i+1,j)、(i,j+1)、(i+1,j+1) The corresponding values of the surrounding four pixels determine , namely :

f(i+u,j+v) = (1-u)(1-v)f(i,j) + (1-u)vf(i,j+1) + u(1-v)f(i+1,j) + uvf(i+1,j+1)

among f(i,j) Represents the source image (i,j) Pixel value at , And so on . Single linear interpolation : Known data (x0, y0) And (x1, y1), To calculate [x0, x1] Somewhere in the interval x On a straight line y value . Bilinear interpolation : Known functions f stay Q11 = (x1, y1)、Q12 = (x1, y2), Q21 = (x2, y1) as well as Q22 = (x2, y2) The value of four points . Find unknown function f At point P = (x, y) Value .

Two 、 Code

1、 Import related library functions

from PIL import Image
from datetime import datetime
import matplotlib.pyplot as plt
import numpy as np
import math
import os

2、 Basic initial settings

img_path = r'D:\jupyter_py\in50.jpg' # The address of the source graph
target_size = (600,800, 3) # The size of the target image
img_arr = np.array(Image.open(img_path), np.uint8)
source_img = Image.fromarray(img_arr.astype(np.uint8)) # Source image coding
plt.imshow(source_img)
plt.show()
source_size = img_arr.shape # Source image size
print(source_size)
ratio_x, ratio_y = source_size[0]/target_size[0], source_size[1]/target_size[1] # Length width ratio of source image to target image

3、 Define the evaluation function

def cal(x, y, c): # What is passed in is the coordinate value from the target image to the original image , But it's not an integer
x, y = math.modf(x), math.modf(y) # Get the integer and decimal parts of the input value
mod_x, int_x, mod_y, int_y = round(x[0],4),int(x[1]),round(y[0],4),int(y[1]) # The decimal part is reserved 4 position , Index must be an integer
#print(int_x, int_y)
if int_x<source_size[0]-1 and int_y<source_size[1]-1: # If this condition is not added , The index value will overflow
p1 = (1-mod_x)*(1-mod_y)*img_arr[int_x, int_y, c] + mod_x*(1-mod_y)*img_arr[int_x+1, int_y, c]
p2 = (1-mod_x)*mod_y*img_arr[int_x, int_y+1, c] + mod_x*mod_y*img_arr[int_x+1, int_y+1, c]
else:
p1 = (1-mod_x)*(1-mod_y)*img_arr[int_x, int_y, c] + mod_x*(1-mod_y)*img_arr[int_x, int_y, c]
p2 = (1-mod_x)*mod_y*img_arr[int_x, int_y, c] + mod_x*mod_y*img_arr[int_x, int_y, c]
p = p1 + p2 # The principle formula
return p # The above treatment is hasty ,x,y Three times of condition judgment shall be strictly conducted for each overflow

4、mian function

if __name__ == '__main__':
start = datetime.now() # Calculate the operation time
resized_img = [cal(i*ratio_x, j*ratio_y, c) for i in range(target_size[0]) for j in range(target_size[1]) for c in range(target_size[2])] # Calculate from three dimensions
resized_img = np.array(resized_img).reshape((target_size[0], target_size[1], target_size[2]))
end = datetime.now()
seconds = (end-start).seconds
print('process cost {}s'.format(seconds)) # Output calculation time
resized_show = Image.fromarray(resized_img.astype(np.uint8))
resized_show.save(r"./1.jpg") # Save the target image
plt.imshow(resized_show) # Display the target image
plt.show()

5、 Effect display
