Python computer vision - image retrieval and recognition

編輯:Python

List of articles

    • Principle analysis
      • 1.1 What does image classification mean in the field of computer vision ?
      • 1.2 How to realize image classification ?
      • 1.3Bag-of-features Algorithm and process ?
      • 1.4TF-IDF?
      • 1.5 At present, there will be some challenging problems in image classification ?
    • Data sets
      • Handle
    • Code
      • **2.1** Create vocabulary
      • 2.2 Building a database
      • 2.3 Search the database for images
    • Running results

Principle analysis

1.1 What does image classification mean in the field of computer vision ?

Image classification , That is, images are divided into different categories through different image contents ,
This technology was proposed in the late 1990s , It is named image classification based on image content (Content- Based ImageClassific- ation, CEIC) Algorithm concept ,
The content-based image classification technology does not need to label the semantic information of the image manually ,
Instead, the features contained in the image are extracted by computer , And process and analyze the characteristics , Get the classification results .

Common image features are Image color 、 texture 、 Grayscale and other information . In the process of image classification ,
The extracted features are not easy to be disturbed by random factors , Effective feature extraction can improve the accuracy of image classification .
After feature extraction , Select an appropriate algorithm to create the correlation between image types and visual features , Classify the images .

In the field of image classification , According to the image classification requirements , In general, it can be divided into Scene classification and There are two kinds of problems in target classification .
Scene classification can also be called event classification , Scene classification is right What the whole image represents Categorize the overall information , Or in the image A general description of the event that occurred .
Target classification ( Also known as object classification ) It's in the image The target that appears ( object ) To identify or classify .

1.2 How to realize image classification ?

Visual word bag model ( Bag-of-features ) It is a commonly used image representation method in the field of computer vision .
The visual word bag model comes from the word bag model (Bag-of-words), Word bag model was originally used in text classification , Representing a document as a feature vector . Its basic idea is to assume For a text , Ignore its word order and grammar 、 syntax , Just think of it as a collection of words , Each word in the text is independent . In short, each document is regarded as a bag ( Because it's full of words ,
So it's called word bag ,Bag of words That is why ) Look at the words in the bag , Classify them .
If there is a pig in the document 、 Horse 、 cattle 、 sheep 、 The valley 、 land 、 There are more words like tractor , And the bank 、 building 、 automobile 、 There are fewer words like Park , We tend to judge it as a A document depicting the countryside , Instead of describing the town .
Bag of Feature It also draws on this idea , Just in the image , What we draw out is no longer one by one word, It is Key features of the image Feature, So the researchers renamed it Bag of Feature.Bag of Feature The algorithm flow and classification in retrieval are almost the same , The only difference is , For the original BOF features , Histogram vector , We introduce TF_IDF A weight .

1.3Bag-of-features Algorithm and process ?

The algorithm process :
1) Extraction of image features
2) Cluster the features , Get a visual dictionary ( visual vocabulary )
3) Represent the picture as a vector according to the dictionary ( Histogram )
4) Convert the input picture into a frequency histogram of visual words

1) Extraction of image features
Feature extraction and description are mainly about Representative and Highly differentiated Global or local features are extracted from the image , And describe these characteristics .
These characteristics are generally the comparison of the gap between categories Obvious features , It can be distinguished from other categories , secondly , These features also require Good stability , Can maximize the light 、 visual angle 、 scale 、 Keep stable when noise and various external factors change , Not affected by it . So even in very complex situations , The computer can also detect and recognize the object well through these stable features .
The simplest and most effective method of feature extraction is Regular grid method ,
This method uses uniform grid to divide the image , Thus, the local region features of the image are obtained .
Interest point detection is another effective feature extraction method , The basic idea of interest point detection is :
When artificially judging the category of an image , First, capture the overall contour features of the object , Then focus on where the object is significantly different from other objects , Finally, determine the category of the image . That is, through this object and other objects Distinguish between Salient features , Then judge the category of the image .
After extracting the features of the image , The next step is to use the feature descriptor to describe the extracted image features , The feature vector represented by the feature descriptor will generally be used as input data when processing the algorithm , therefore , If the descriptor has certain discrimination and distinguishability , Then the descriptor will play a great role in the later image processing .
among ,SIFT Descriptor is a classical and widely used descriptor in recent years .
SIFT Many feature points will be extracted from the picture , Each feature point is 128 Dimension vector , therefore , If there are enough pictures , We will extract a huge feature vector library .

2) Training Dictionary ( visual vocabulary )

Finish extracting SIFT After the steps of the feature , utilize K-means The clustering algorithm will extract SIFT Feature clustering generates visual dictionary .
K-means Algorithm is a method to measure the similarity between samples , The algorithm sets the parameters to K, hold N An object is divided into K A cluster of , The similarity between clusters is high , The similarity between clusters is low . The cluster center has K individual , The visual dictionary is K. The process of building visual words is shown in the figure .

After extracting features , We will use some The clustering algorithm clusters these feature vectors . The most commonly used clustering algorithm is k-means.
as for k-means Medium k How to take , To be determined according to the specific situation . in addition , Because the number of features can be very large , This clustering process will also be very long . After clustering , We got this k A word song composed of two vectors , this k A vector has a pass Express in , It's called visual word.

3) The picture histogram represents
The words in the visual dictionary are used to represent the images to be classified . Calculate... In each image SIFT Feature here K The distance between two visual words ,
among The nearest visual word is this SIFT Visual words corresponding to features .
By counting the number of times each word appears in the image , Represent the image as a K One dimensional numerical vector ,
As shown in the figure , among K=4, Each image is described by histogram .

4) Training classifier
When we get the histogram vector of each picture , The rest of this step is the same as the previous steps .
It is nothing more than the vector of the database picture and the label of the picture , Train the classifier model . Then, for the pictures that need to be predicted , We still follow the above method , extract SIFT features , Then quantize the histogram vector according to the dictionary , The histogram vector is classified by classifier model . Of course , It can also be directly based on KNN The algorithm judges the similarity of histogram vector .

1.4TF-IDF?

TF-IDF(Term frequency-Inverse document frequency) It's a statistical method , Used to evaluate the importance of feature words . according to TF-IDF The formula , The weight of feature words is the same as that in The frequency of occurrence in the corpus is related to , It is also related to the frequency of occurrence in the document . Conventional TF-IDF The formula is as follows :

TF-IDF To evaluate the importance of a word to a document set or one of the documents in a corpus . The importance of a word increases in proportion to the number of times it appears in the document , But at the same time, it will decrease inversely with the frequency of its occurrence in the corpus . For now , If one Keywords only appear in very few web pages , Through it, we can Easy to lock the search target , its The weight should be Big . On the contrary, if a word appears in a large number of web pages , We see it still I'm not sure what I'm looking for , So it should Small .

1.5 At present, there will be some challenging problems in image classification ?

The purpose of image classification is Classify an unknown image by image content .
But when humans observe themselves , Because people have different understanding of images , Focus on different , Different people will produce different results ,
And when people judge the category of an image , It has a certain subjectivity .
And computers are objective , It will judge the category of image through certain data information .
Therefore, image classification is a difficult problem , And the problem is difficult to achieve perfection ,
Most of the current classification methods continue to improve the classification accuracy as much as possible .
The problems encountered in the process of image classification are mainly caused by Intra class changes in images 、 Semantic differences between image classes and The semantic gap .
1、 Intra class differences .
The so-called intra class difference represents images belonging to the same class , For various reasons , Make the content of the image show a variety of changes .
Intra class differences mainly include : Different perspectives 、 Target deformation 、 Light difference 、 Scale difference 、 Partial occlusion 、 Complex background 、 Same kind, different type, etc .

2、 Differences between classes .
The so-called inter class difference refers to that different categories contain the same underlying characteristics , As a result, images of different categories are divided into the same category .

3、 Semantic gap
Long term knowledge accumulation , Human beings can judge the semantic similarity through high-level abstract understanding of images .
But the computer can only judge the image category through the statistical characteristics at the bottom of the image , Without human The ability to abstract and reason about images ,
As a result, the image category information obtained by the underlying visual features of the image extracted by the computer is inconsistent with the image category information obtained by human understanding of the image , cause “ Semantic gap ”,
“ Semantic gap ” It's actually the image Underlying visual features and Between high-level semantic information Objective differences .

Data sets

32 Mobile phone photo

Handle

Uniform picture size

import cv2
from cv2 import imwrite
import numpy as np
import glob
images = glob.glob('./imaRetrieval/img/*.jpg') # Image used for calibration
for fname in images:
img = cv2.imread(fname)
# img = cv2.resize(img, (640, 480), interpolation=cv2.INTER_AREA)
imwrite(fname,img)

Code

2.1 Create vocabulary

Generate corresponding for each picture sift file , And visual vocabulary , In order to establish BOW Model . What I use is an image set for 37 Zhang . If you need to increase or reduce the number of images, you only need to change the number of training images read in the code . To get the magnitude of different dimensions , You need to modify the training times of the dataset .

# -*- coding: utf-8 -*-
import pickle
from PCV.imagesearch import vocabulary
from PCV.tools.imtools import get_imlist
from PCV.localdescriptors import sift
# Get image list
imlist = get_imlist('./imaRetrieval/img/')
nbr_images = len(imlist)
# Get feature list
featlist = [imlist[i][:-3]+'sift' for i in range(nbr_images)]
# Extract the image under the folder sift features
for i in range(nbr_images):
sift.process_image(imlist[i], featlist[i])
# Generating words
voc = vocabulary.Vocabulary('ukbenchtest')
voc.train(featlist, 30, 10)
# Save vocabulary
# saving vocabulary
with open('./imaRetrieval/img/vocabulary.pkl', 'wb') as f:
pickle.dump(voc, f)
print('vocabulary is:', voc.name, voc.nbr_words)

2.2 Building a database

Store the data model obtained above in the database testImaAdd.db in , That is, running the following code will generate a testImaAdd.db Database files .

# -*- codeing =utf-8 -*-
import pickle
from PCV.imagesearch import imagesearch
from PCV.localdescriptors import sift
import sqlite3
from PCV.tools.imtools import get_imlist
# Get image list
imlist = get_imlist('./imaRetrieval/img/')
nbr_images = len(imlist)
# Get feature list
featlist = [imlist[i][:-3] + 'sift' for i in range(nbr_images)]
# load vocabulary
# Load vocabulary
with open('./imaRetrieval/img/vocabulary.pkl', 'rb') as f:
voc = pickle.load(f)
# Create index
indx = imagesearch.Indexer('./imaRetrieval/testImaAdd.db', voc)
indx.create_tables()
# go through all images, project features on vocabulary and insert
# Traverse all images , And project their features onto words
for i in range(nbr_images)[:32]:
locs, descr = sift.read_features_from_file(featlist[i])
indx.add_to_index(imlist[i], descr)
# commit to database
# Commit to database
indx.db_commit()
con = sqlite3.connect('testImaAdd.db')
print(con.execute('select count (filename) from imlist').fetchone())
print(con.execute('select * from imlist').fetchone())

2.3 Search the database for images

Obtain candidate images using the index + Query with an image + Determine the comparison benchmark and draw the results
Index the image , You can search for similar images in the database . here , Use BoW( The word bag model ) To represent the whole image , It's universal , It can be used to find similar objects 、 Similar faces 、 Similar colors, etc , It all depends on the image and the descriptor used . In order to realize search , stay Imagesearch.py Add Searcher class .

# -*- codeing =utf-8 -*-
import pickle
from PCV.localdescriptors import sift
from PCV.imagesearch import imagesearch
from PCV.geometry import homography
from PCV.tools.imtools import get_imlist
# load image list and vocabulary
# Load image list
imlist = get_imlist('./imaRetrieval/img/') # The path where the dataset is stored
nbr_images = len(imlist)
# Load feature list
featlist = [imlist[i][:-3] + 'sift' for i in range(nbr_images)]
# Load vocabulary
with open('./imaRetrieval/img/vocabulary.pkl', 'rb') as f: # Storage path of the model
voc = pickle.load(f)
src = imagesearch.Searcher('./imaRetrieval/testImaAdd.db', voc)
# index of query image and number of results to return
# Query the image index and the number of images returned by the query
q_ind =10
nbr_results = 4
# regular query
# Regular query ( Sort the results by Euclidean distance )
res_reg = [w[1] for w in src.query(imlist[q_ind])[:nbr_results]]
print('top matches (regular):', res_reg)
# load image features for query image
# Load query image features
q_locs, q_descr = sift.read_features_from_file(featlist[q_ind])
fp = homography.make_homog(q_locs[:, :2].T)
# RANSAC model for homography fitting
# Fitting with homography to establish RANSAC Model
model = homography.RansacModel()
rank = {
}
# load image features for result
# Load features of candidate images
for ndx in res_reg[1:]:
locs, descr = sift.read_features_from_file(featlist[ndx]) # because 'ndx' is a rowid of the DB that starts at 1
# get matches
# Get the number of matches # get matches After execution, two pictures will appear
matches = sift.match(q_descr, descr)
ind = matches.nonzero()[0]
ind2 = matches[ind]
tp = homography.make_homog(locs[:, :2].T)
# compute homography, count inliers. if not enough matches return empty list
# Calculate the homography , Internal point technology . If there are not enough matching books, an empty list is returned
try:
H, inliers = homography.H_from_ransac(fp[:, ind], tp[:, ind2], model, match_theshold=4)
except:
inliers = []
# store inlier count
rank[ndx] = len(inliers)
# sort dictionary to get the most inliers first
# Sort dictionaries , To get the inner points of the innermost layer first
sorted_rank = sorted(rank.items(), key=lambda t: t[1], reverse=True)
res_geom = [res_reg[0]] + [s[0] for s in sorted_rank]
print('top matches (homography):', res_geom)
# Show query results
# imagesearch.plot_results(src, res_reg[:8]) # Regular query
imagesearch.plot_results(src, res_geom[:8]) # The result of the rearrangement

Running results

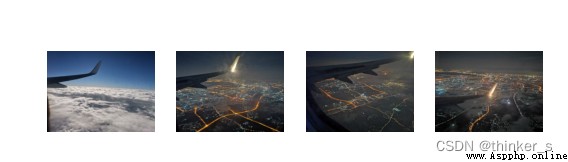

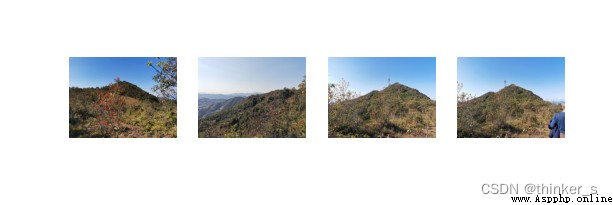

On the far left is the selected query image , Four at a time . The data set is very small ( I take fewer pictures ) Just for fun
