Introduction of fuzzy c-means clustering (FCM) algorithm and its Python implementation

This article was written by the landlord by doing his homework long ago , If there is any problem, Mina sang is suggested to solve it by herself ~

Catalog

• • One 、 The theory is introduced
  • Two 、 Algorithm implementation ideas
  • 3、 ... and 、FCM Algorithm core code python Realization
  • Four 、 Examples of use
  • • 1. Clustering the data
    • 2. Image segmentation
  • 5、 ... and 、 Summary of implementation errors
  • 6、 ... and 、 Source link

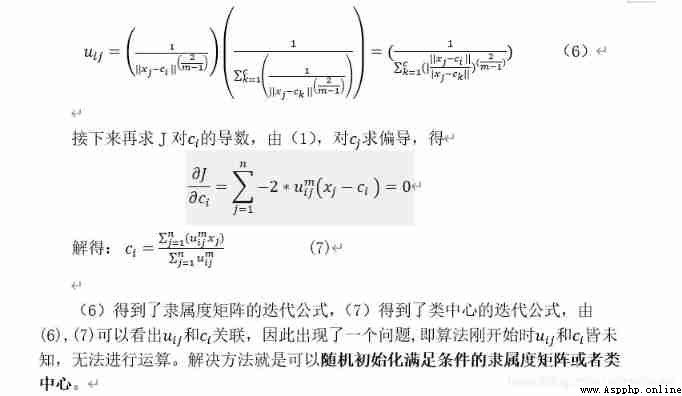

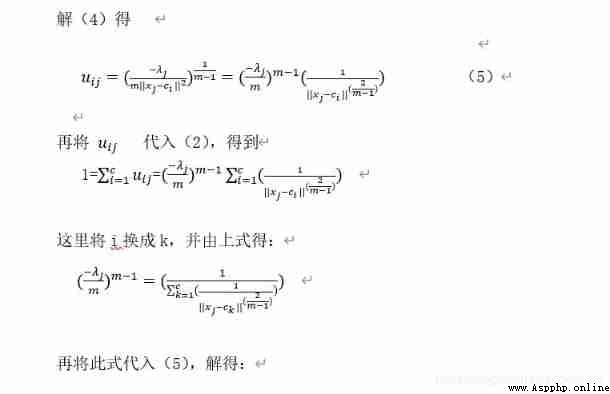

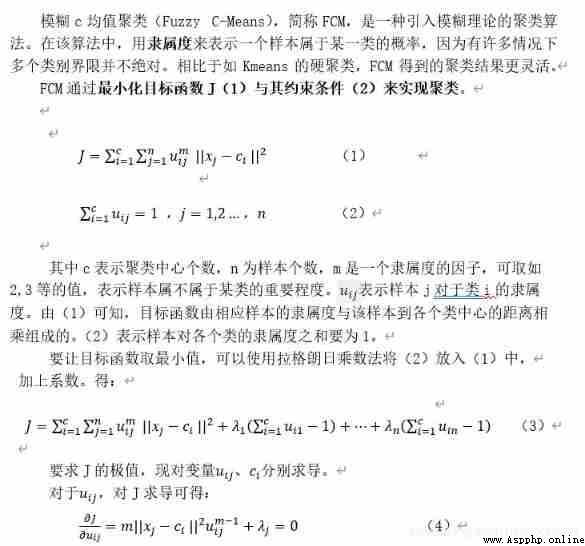

One 、 The theory is introduced

Two 、 Algorithm implementation ideas

The basic idea of the algorithm is given below ：
1. You can initialize a membership matrix first U（ The sum of membership degree of each sample to each class is 1）.
2. according to U Start with the class center matrix C Calculate .
3. According to C Calculation U.
4. loop 2,3 Step until the cycle conditions are met , end .

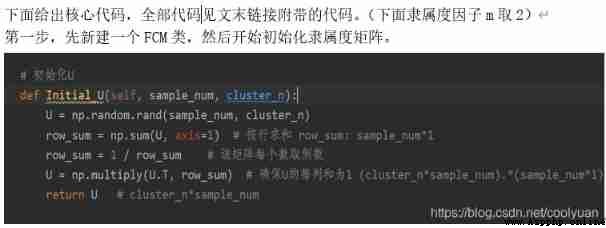

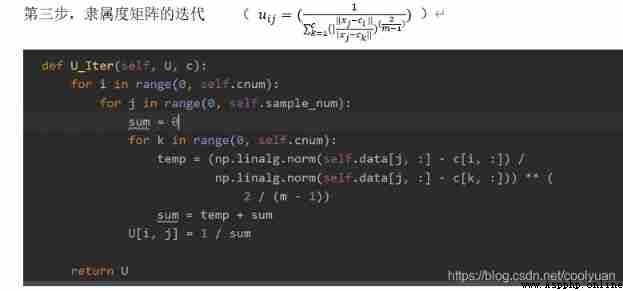

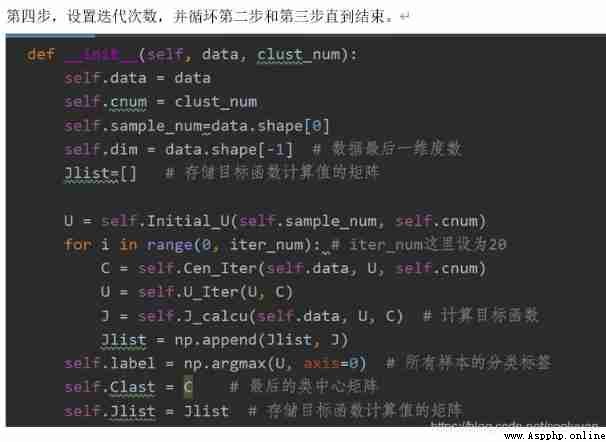

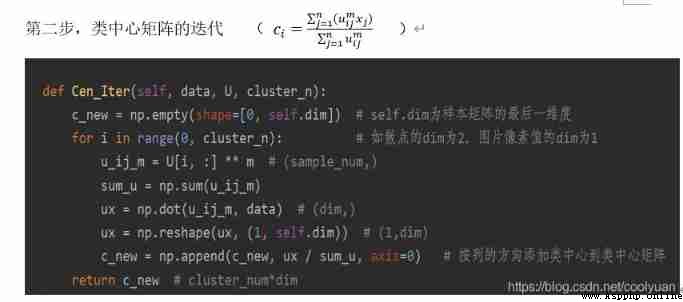

3、 ... and 、FCM Algorithm core code python Realization

Four 、 Examples of use

1. Clustering the data

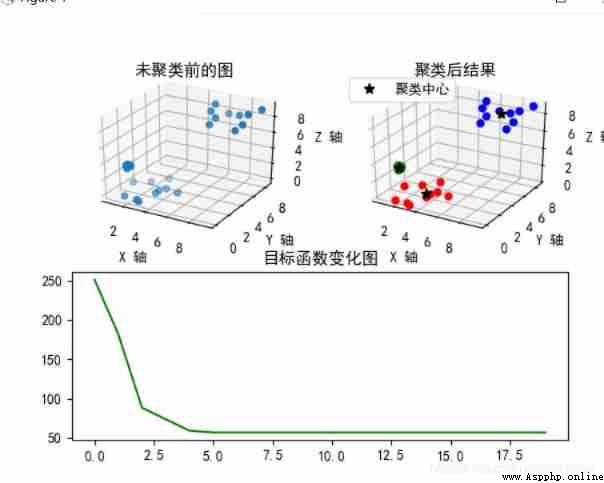

Next I use np Of random Generate some data to FCM To display

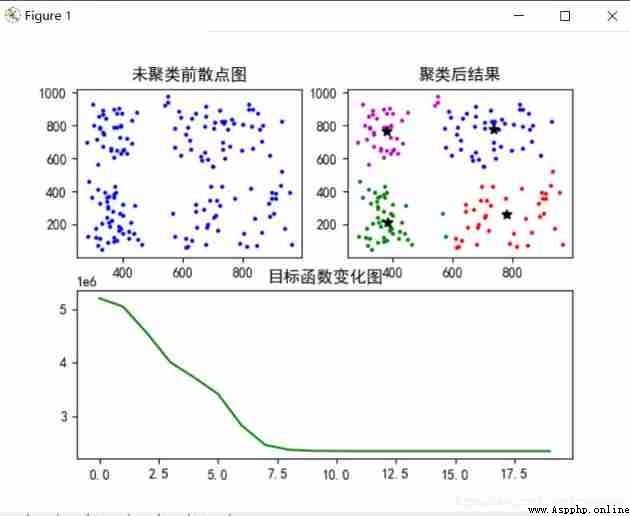

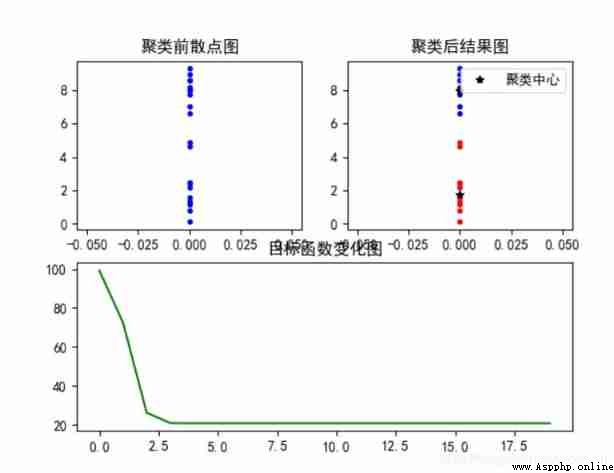

Example 1：

Example 2：

Example 3：

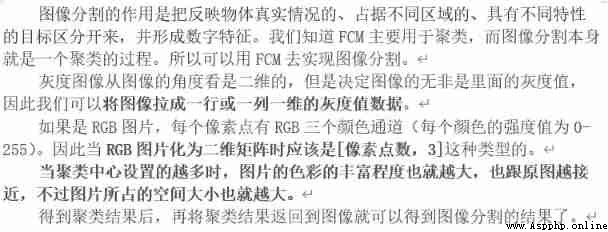

2. Image segmentation

The results of image segmentation are shown below ~

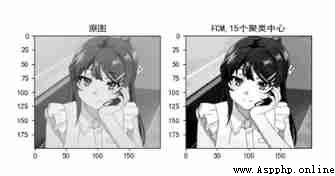

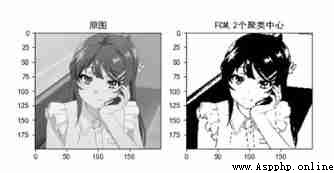

grayscale ：（ The cluster center shown below is 2 and 15 Two kinds of ）

Ps: Do not set the cluster center too large , Don't make the picture too big ！！！

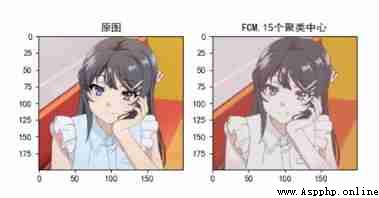

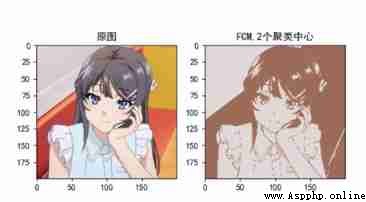

Color picture ：

You can see , After segmentation, the image can still have a clear outline , Only the number of types of grayscale or color is reduced .

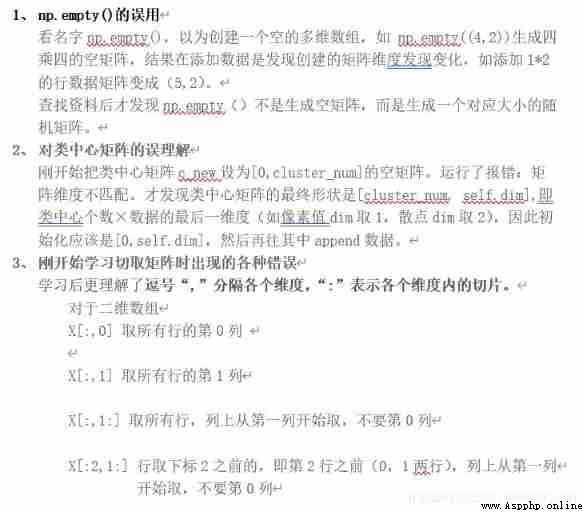

5、 ... and 、 Summary of implementation errors

6、 ... and 、 Source link

Click here to , Mixed food is the best
